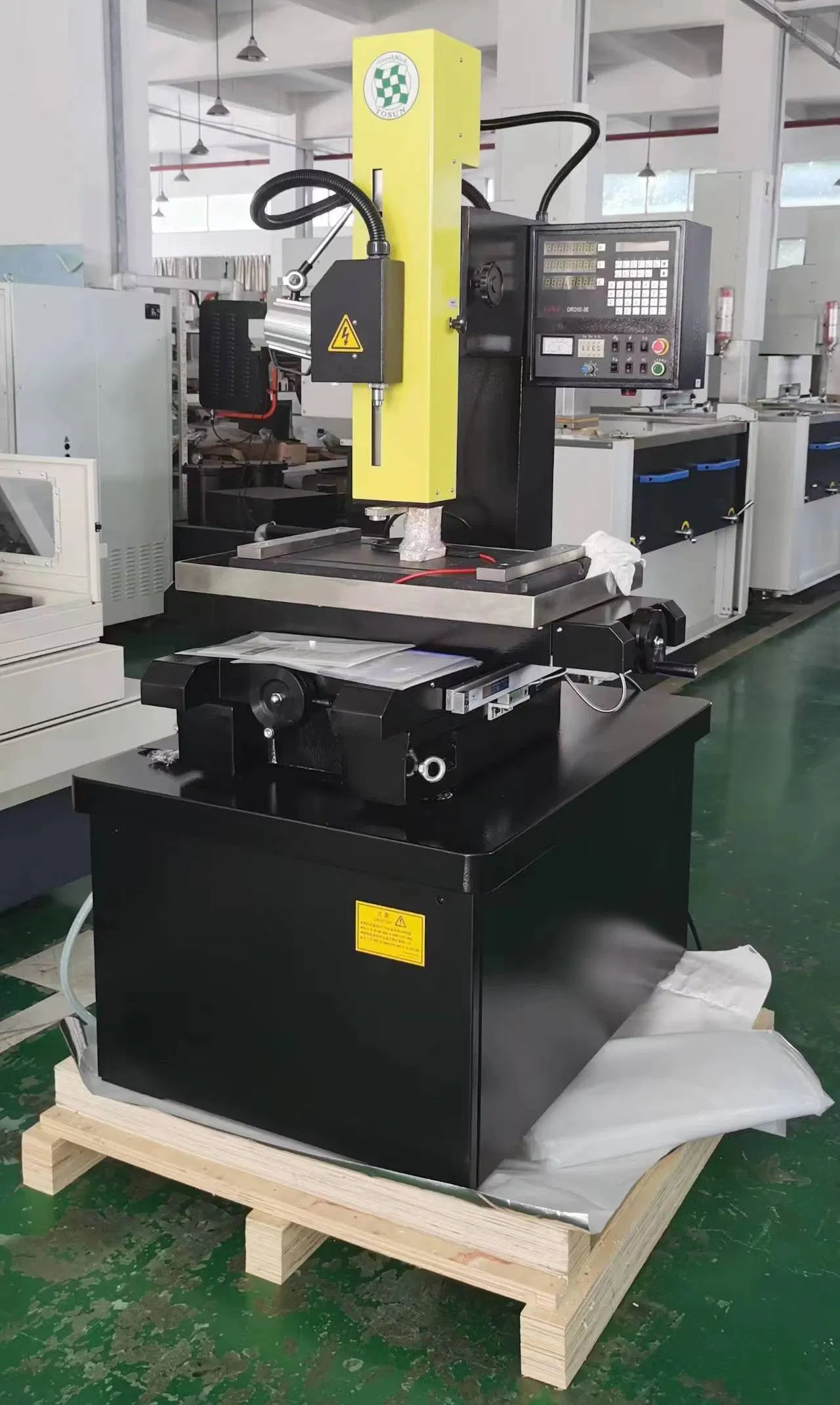

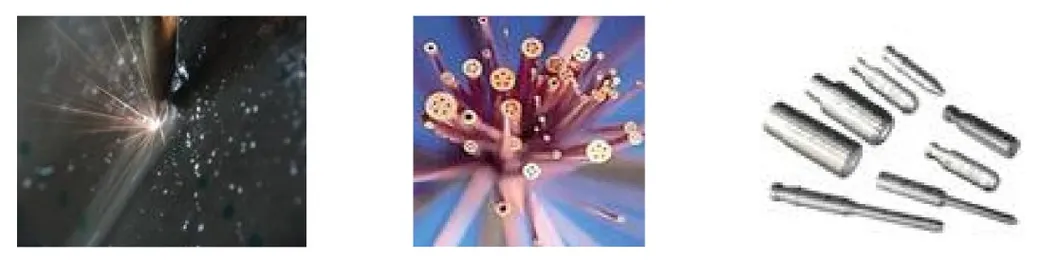

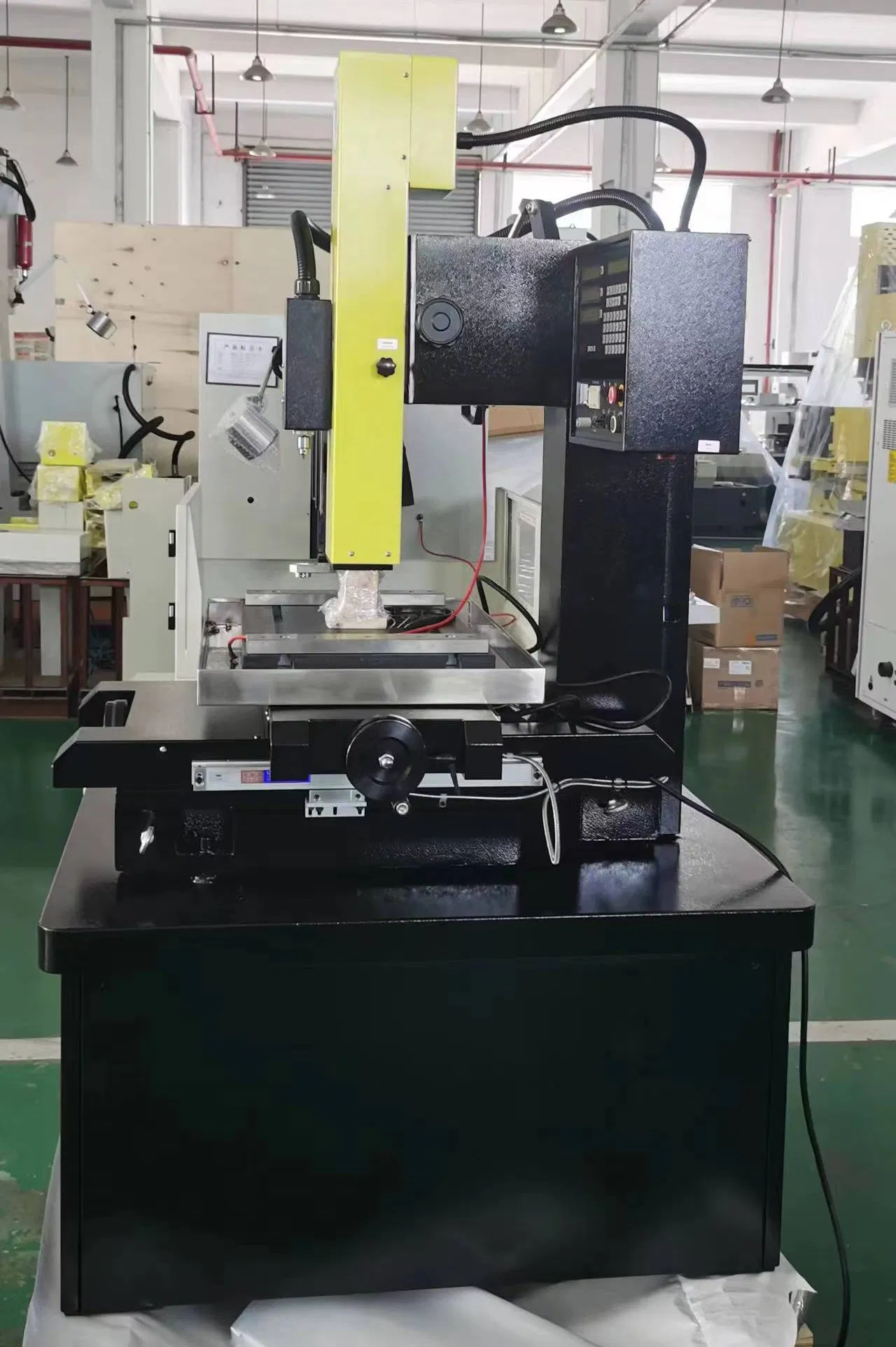

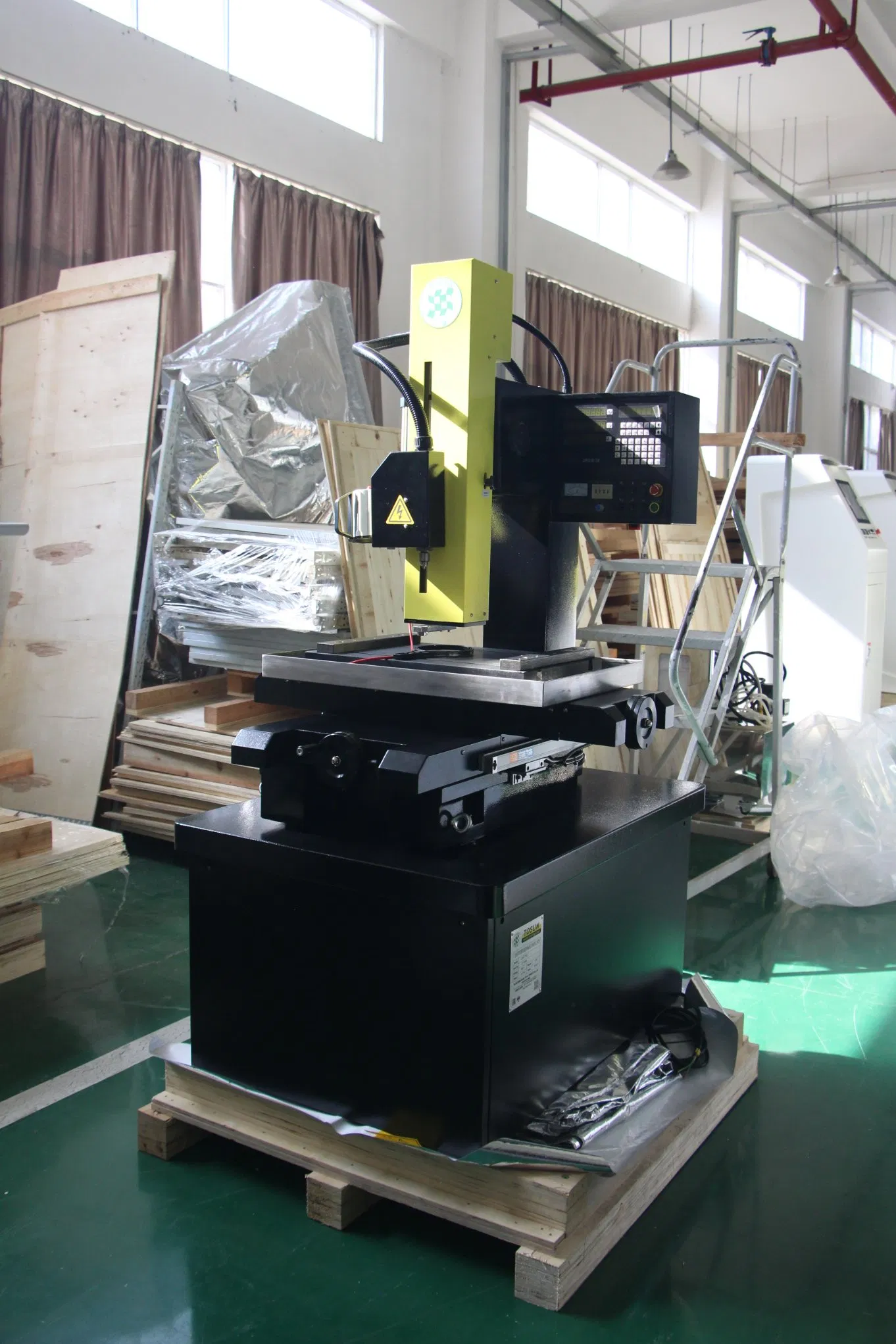

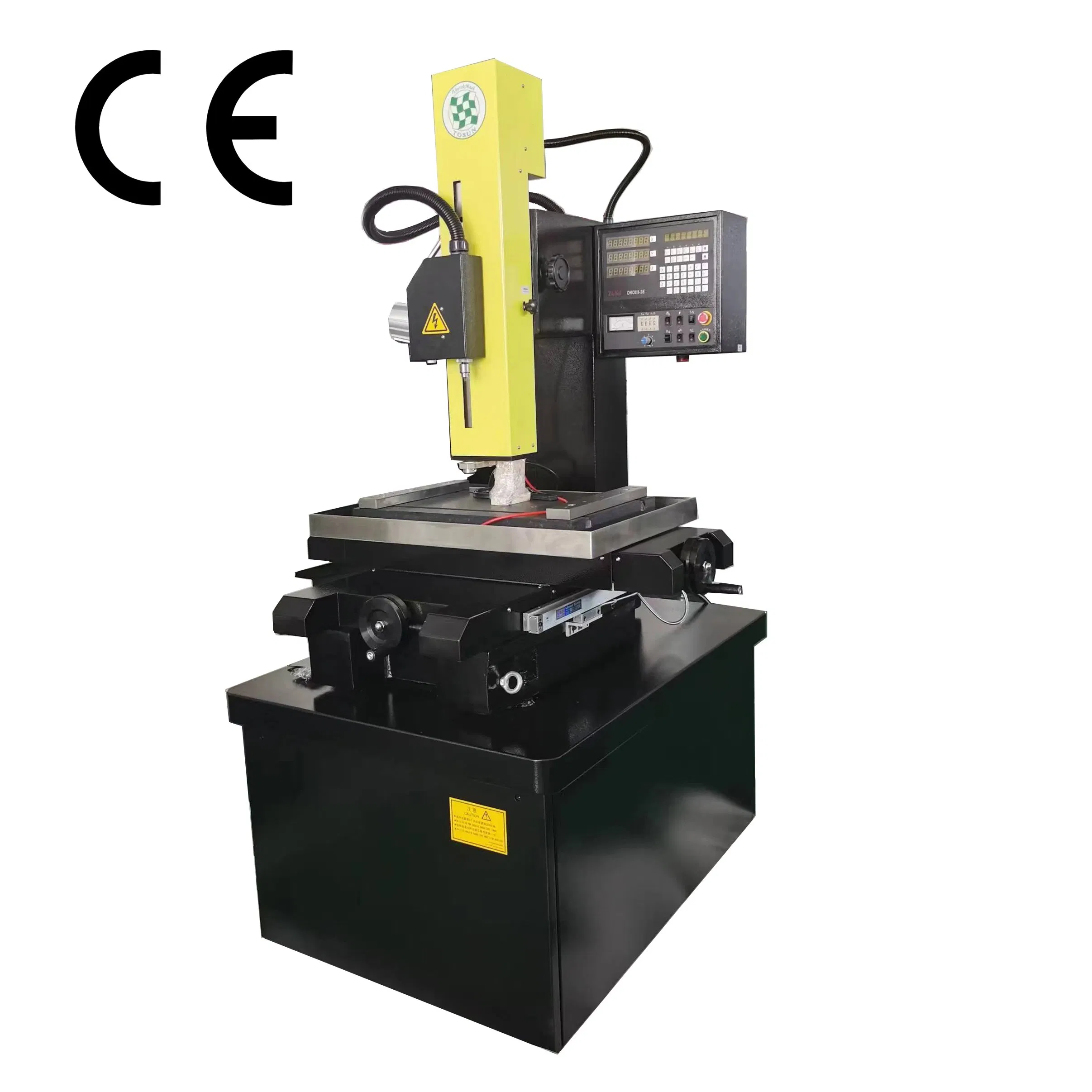

CNC EDM Small Hole Drilling Machine 703SA is suitable for processing micro-holes, deep holes, nozzle holes, filter holes, pores and group holes of various metals and super hard conductor materials.
| No. | Description | Unit | Specification |
|---|---|---|---|
| 1 | Model | - | 703SA |

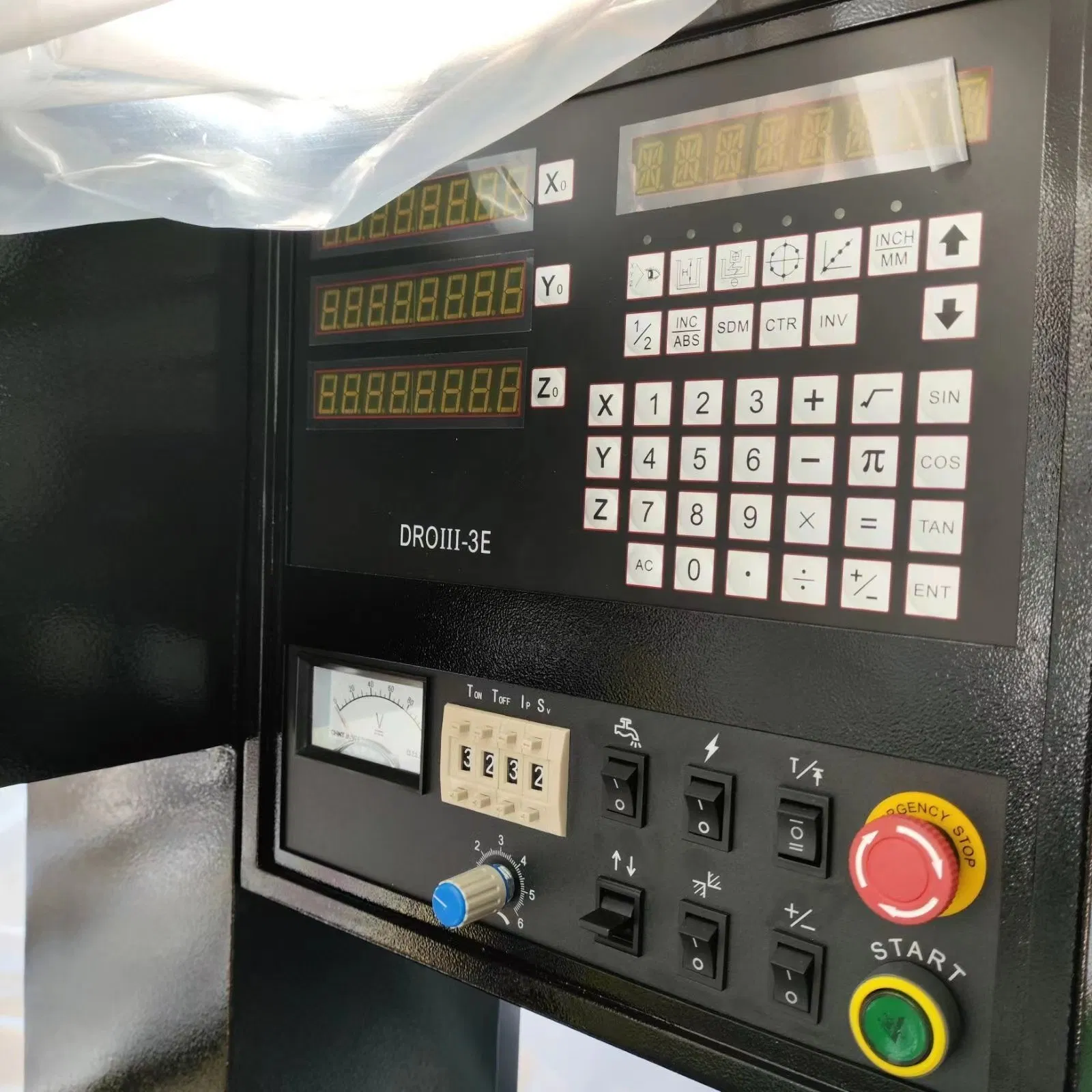

| 2 | Control Mode | - | Z-axis CNC controller |
| 3 | Digital Display | - | 3 axis digital display |
| 4 | Working Material | - | Steel/copper/aluminum/conductive |
| 5 | Working Solution | - | Tap Water/ Ion free water |
| 6 | Worktable Size | mm | 700×400 |
| 7 | Worktable Travel | mm | 500×400×(380+280) |
| 8 | Max. Workpiece Weight | kg | 150 |
| 9 | Max. Drilling Speed | mm²/min | 30-60 (Φ1.0mm) |
| 10 | Max. Drilling Depth | mm | 370 |
| 11 | Hole Diameter | mm | Φ0.3~Φ3.0 |
| 12 | Max. Solution Pressure | MPa | 8 |
| 13 | Working Tank Size | mm | 700×480 |
| 14 | Depth Diameter Ratio | - | ≥300 (φ>0.3mm) |
| 15 | Max. Working Current | A | 30 |
| 16 | Machine Dimensions | mm | 1300×1100×2300 |
| 17 | Machine Weight | kg | 750 |
| 18 | Machine Power | Kw | 3.5 |
