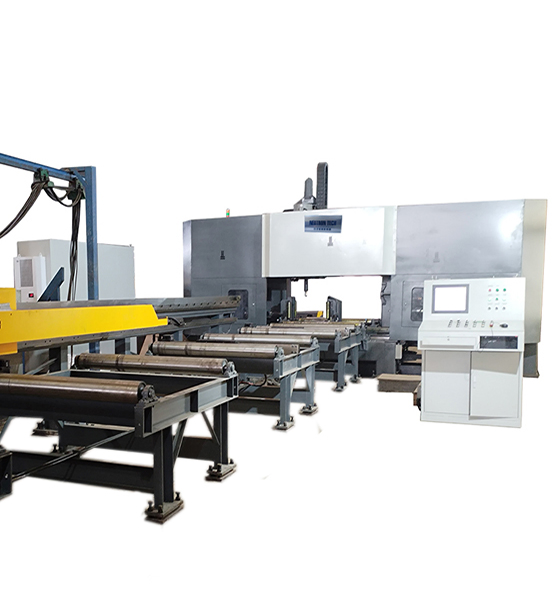

Beam CNC Automatic Drilling Machine Bhd1206A H Beam U-Beam Drilling Equipment Steel Structure Drilling Line Beam Processing Three Spindle Drilling

Structure: CNC Drilling Machine
Controlling Mode: CNC
Number of Shaft: 3

Product Description

📋 Basic Info
Model NO.
BHD1206
Automatic Grade
Automatic
Certification
ISO 9001
Condition
New
Weight (kg)
8500
Type
Combination Drilling Machine
Application
Steel Structure
Spindle Taper
Bt40
Voltage
380V
Transport Package
Wooden Box
Specification
6000x2.1x3.5
HS Code
8465920000
Production Capacity
80 Unit Per Year
⚙️ Product Description
Beam CNC Automatic Drilling Machine
1. Size of workpiece
  • H-Beam: web height H: 150 ~ 1250mm | flange width B: 75 ~ 600mm
  • U-Beam: web height H: 150 ~ 1250mm | flange width B: 75 ~ 300mm
  • Max. thickness: 80mm
  • Length: 15m (customizable)
2. Drilling unit
  • Number of Spindles: 3
  • Max. drilling dia (Carbide): ¢30mm
  • Max. drilling dia (HSS): ¢40mm
  • Spindle Taper: BT40
  • Motor power of spindle: 3×11KW
  • Rotation speed (stepless): 0~2000r/min
3. CNC Control System
  • No. of axes: 6
  • Servo motor power (feeding): 3×2KW
  • Servo motor power (positioning): 3×1.5KW
  • Positioning speed: 0 ~ 10m/min
  • Feeding speed: 0 ~ 5m/min
4. Environment & Dimensions
  • Overall dimension: approx. 6.0×1.6×3.4m
  • Weight: approx. 8000Kgs
  • Working power: 380±10%V, 50±1HZ
  • Working temperature: 0ºC ~ 40ºC
🖼️ Product Display

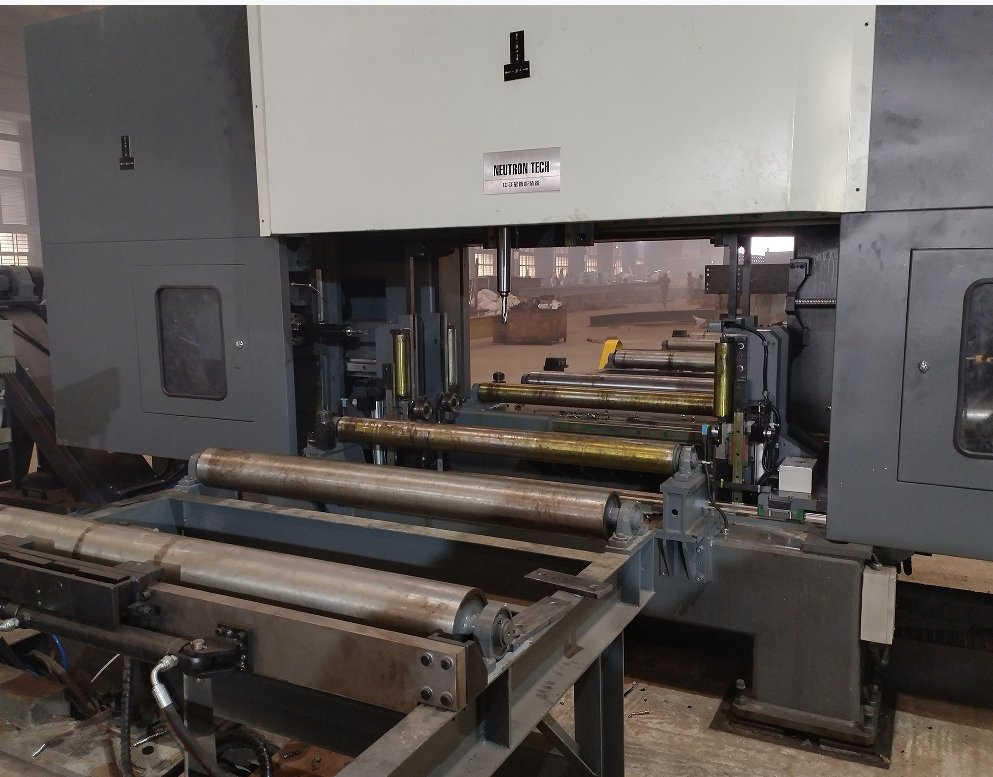

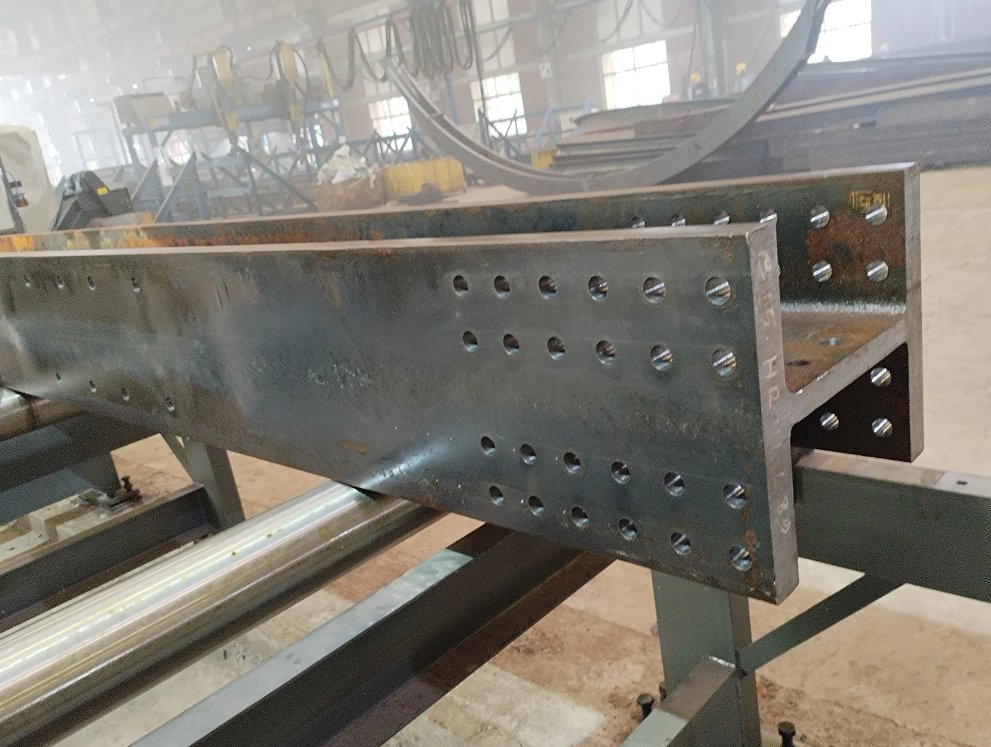

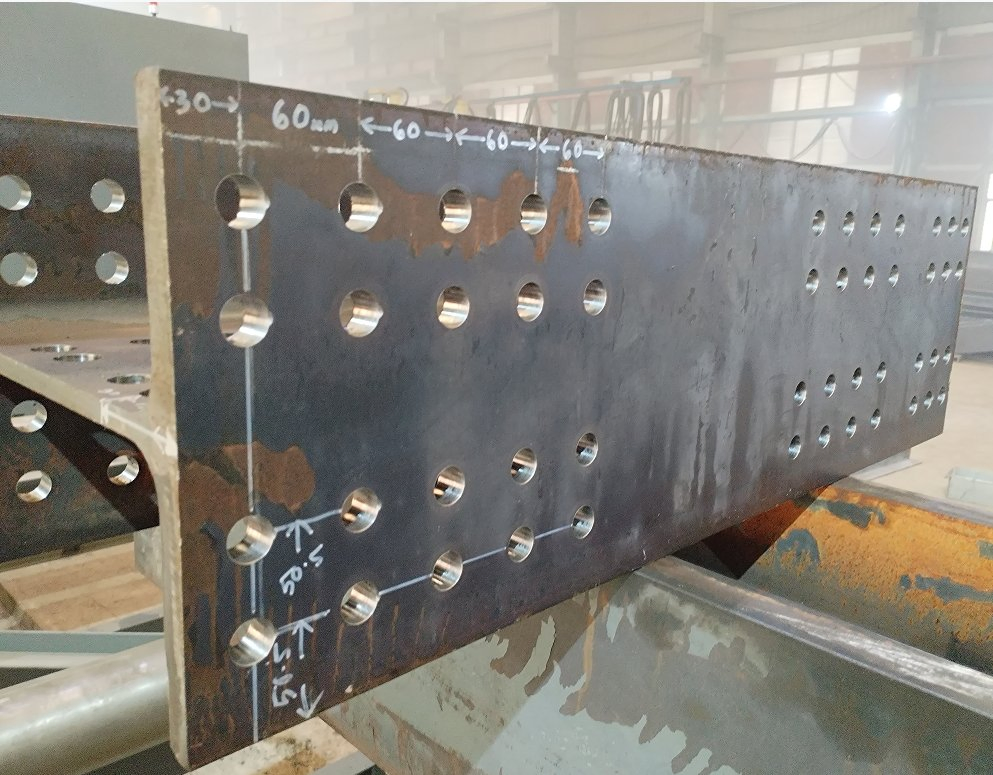

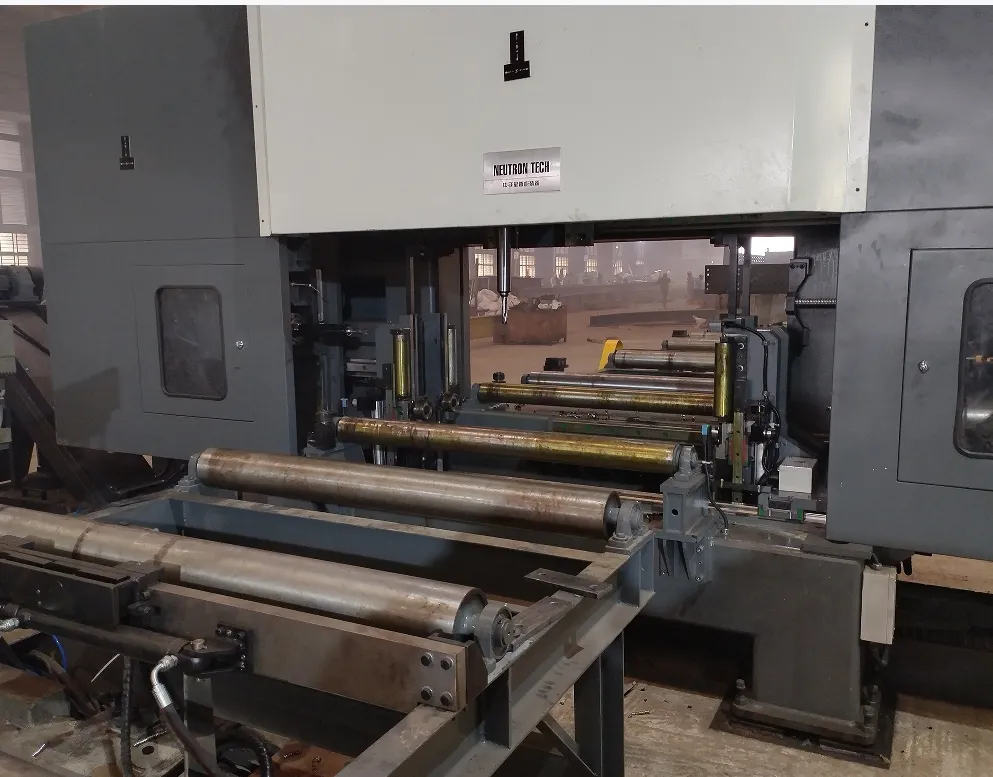

Display 1

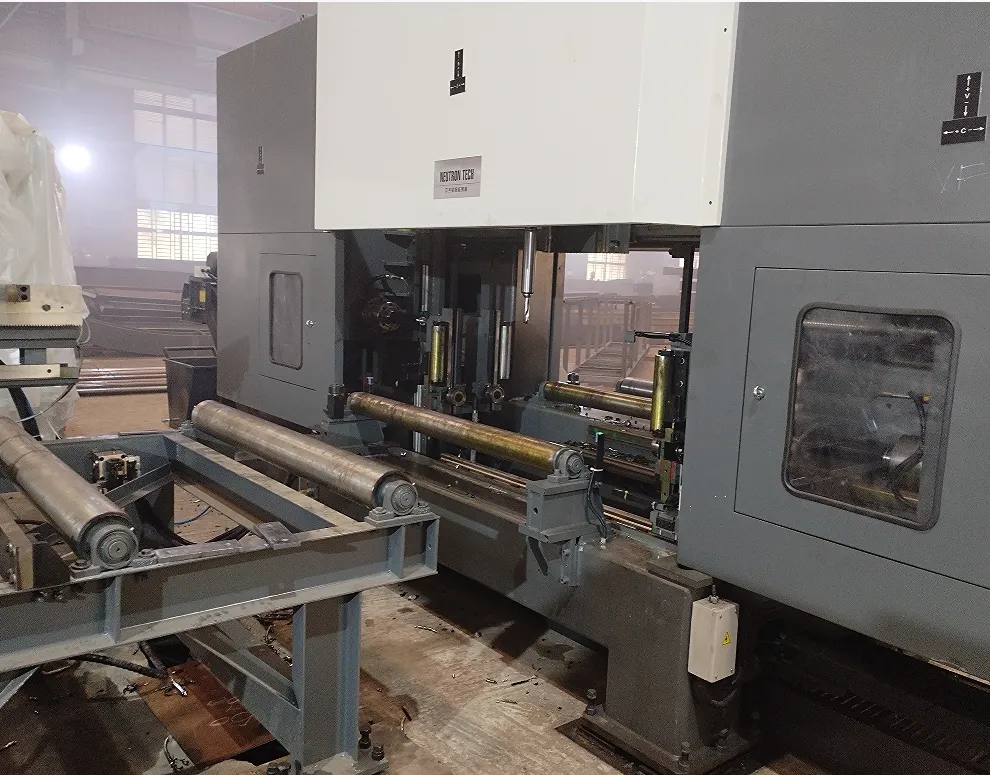

Display 2
Display 3
Display 4

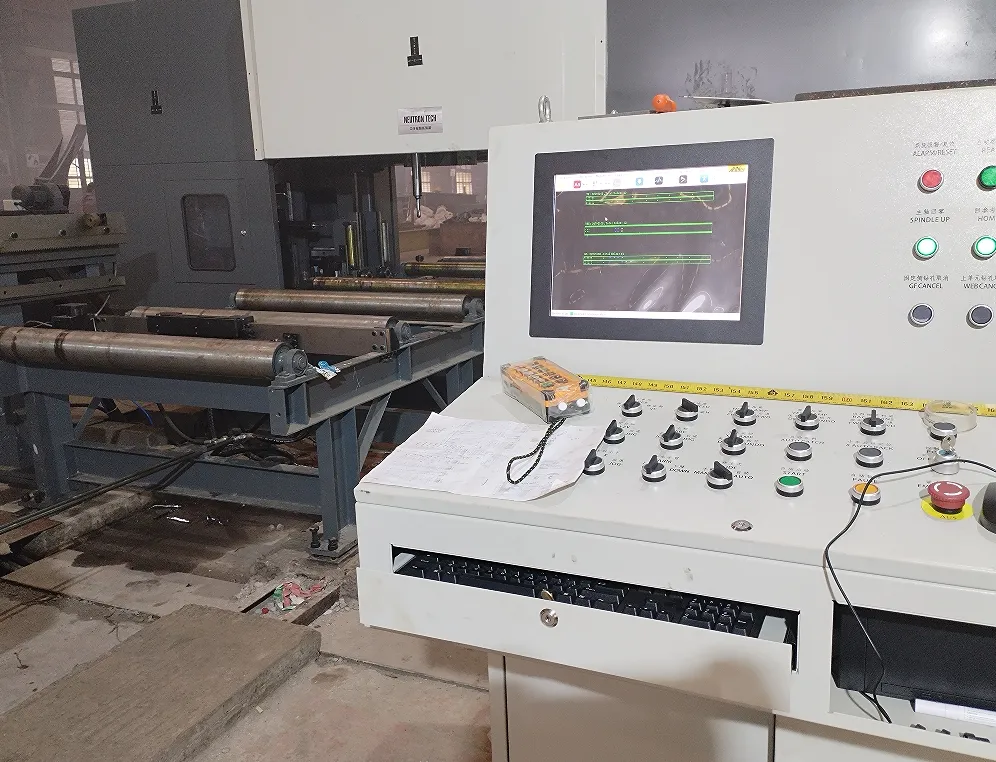

Display 5

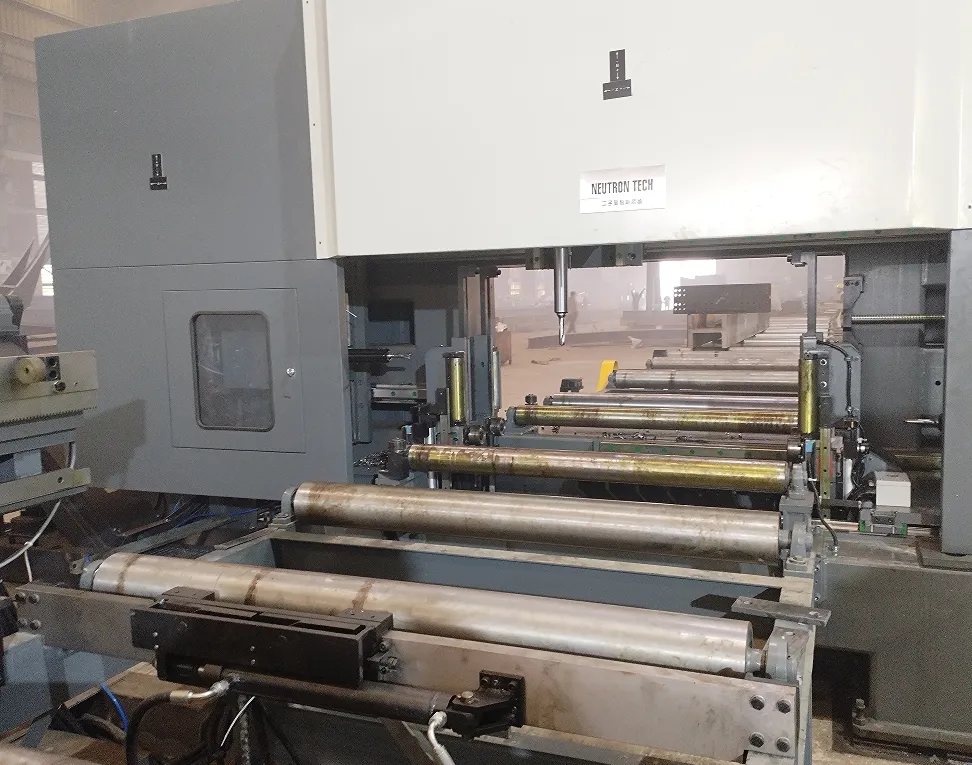

Display 6
🤝 Customer Visit & Certifications
Customer Visit
Certifications
🛠️ Our Service

Pre-sale Service

  • Full stock available for short delivery times.
  • OEM and ODM orders accepted.
  • Factory price with professional technical support.

Order Execution

  • Optimized shipping cost calculation.
  • Strict quality re-check before dispatch (1-7 working days).
  • Real-time tracking and logistics assistance.

After-sale Service

  • Continuous product and price optimization based on feedback.
  • Rapid response to technical inquiries.
  • On-site engineer repair available if required.
📦 Packaging & Shipping

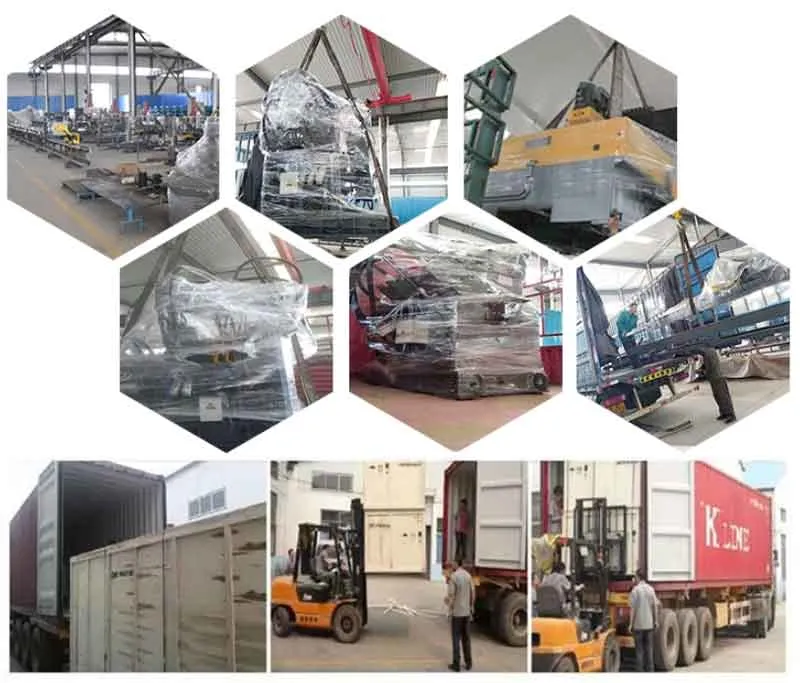

Packaging & Shipping
FAQ
How can I get a quotation?
Leave us a message with your purchase requirements and we will reply to you ASAP. You may also contact us directly via the online manager.
When can you arrange shipment?
We usually arrange shipment within 10 to 30 days depending on the specific machine requirements.
Do you provide training for CNC machine operation?
Yes, free training is available at our factory to ensure your operators are fully proficient.
What are your warranty terms?
We supply replacements for parts that prove to be defective for a period of 18 months, starting from the machine's bill of lading date.
What is the standard delivery time and package?
Normally delivery takes about 30-45 days. All CNC machines are packed in sea-worthy packaging for safe transit.
How do you handle technical problems?
We can send free replacement components if the machine is under warranty, or dispatch engineers to repair your equipment on-site.
