Customization: Available
After-sales Service: 1 Year
Warranty: One Year
Send Inquiry

Product Description

📋 Basic Info.
Model NO.
HBD500
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, Beam Drilling Sawing
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.09~0.1(mm)
Performance
High-End CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Voltage
380V or 415V
Origin
China
HS Code
8459210000
Production Capacity
50
💻 Product Description

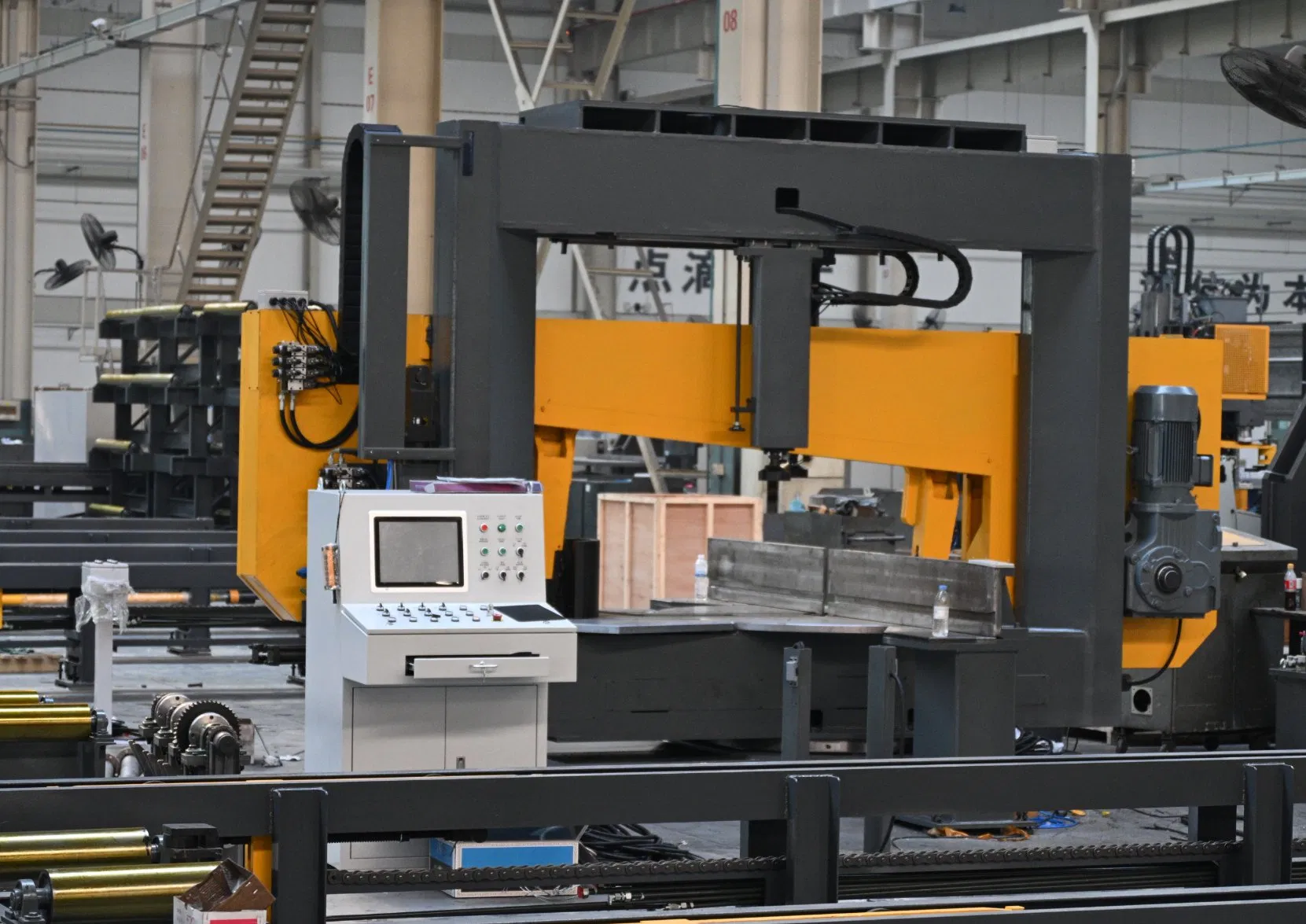

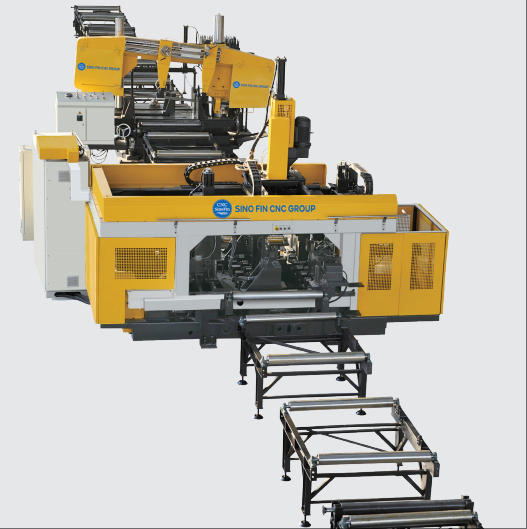

CNC Machines for H Beam and Steel Beam Drilling

This line is mainly used for processing holes and sawing on H-beam, channel beam with high speed.

Key Features:

  • All three spindles are driven by servo motor.
  • Adopted spindle servo motor, controlled by CNC system.
  • In-feeding by CNC carriage, ensuring high efficiency and high precision.
  • Widely used in construction, bridge, and other heavy industries.
📏 Specification

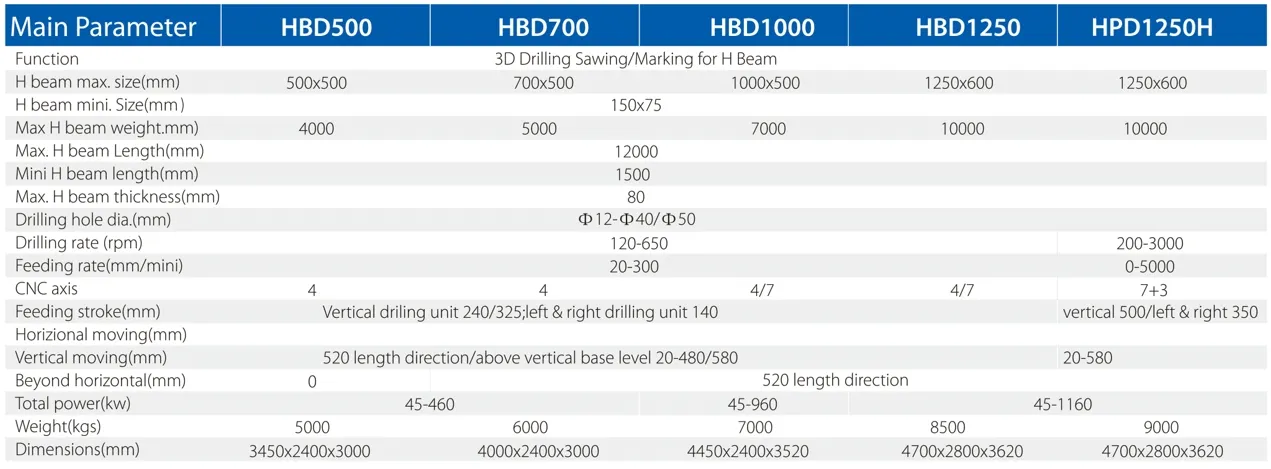

CNC Machine Specification
🔍 More Details

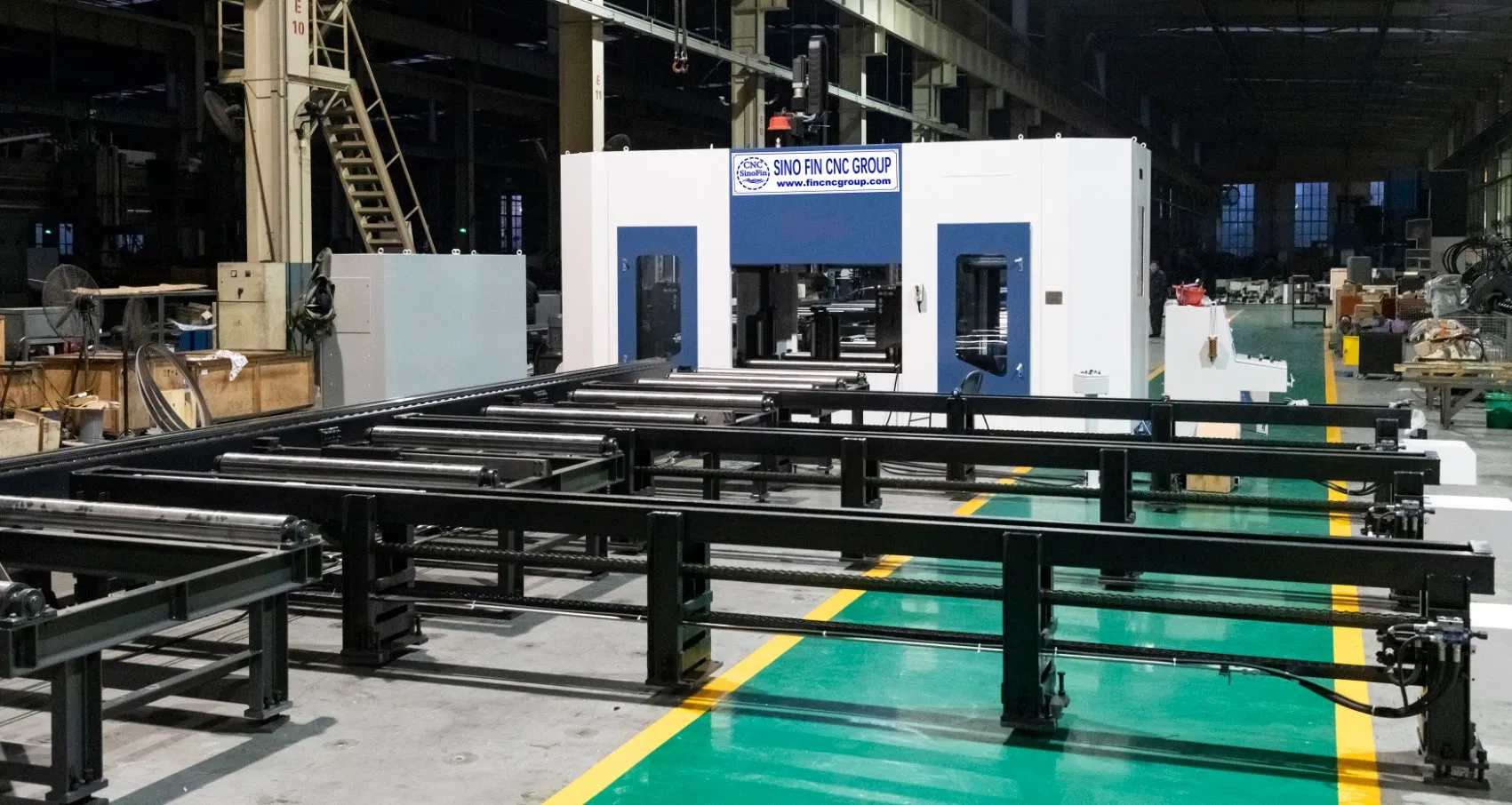

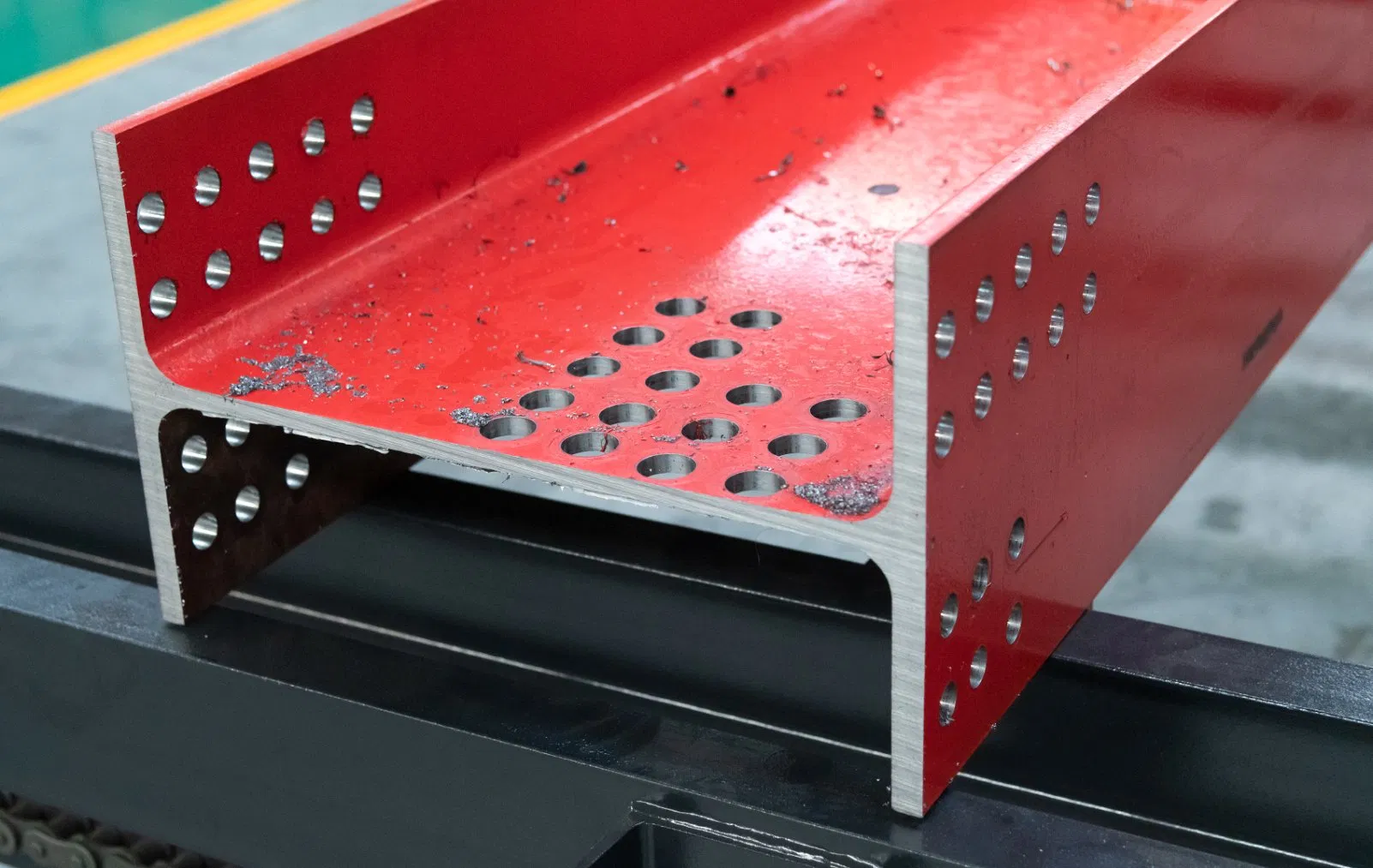

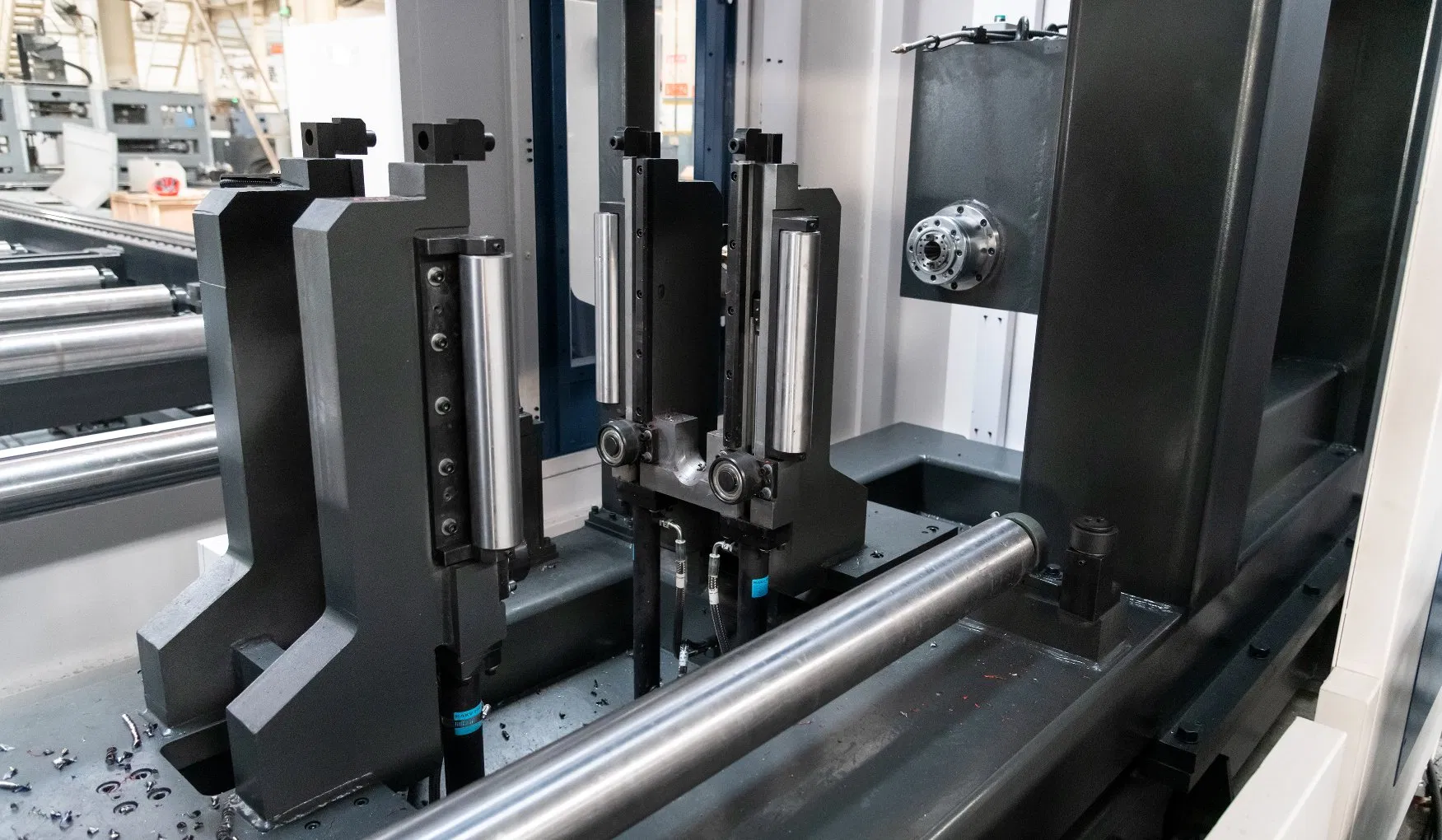

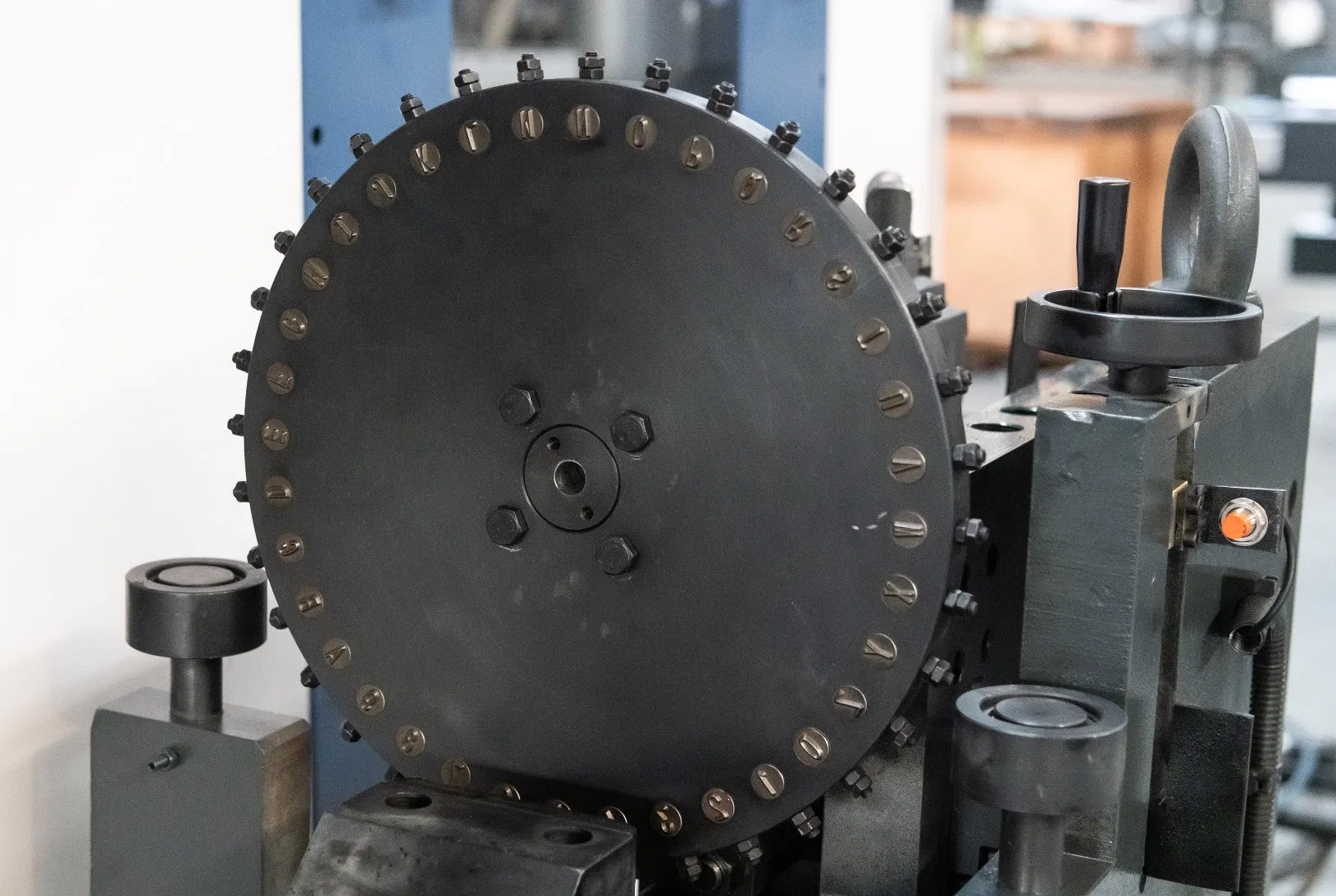

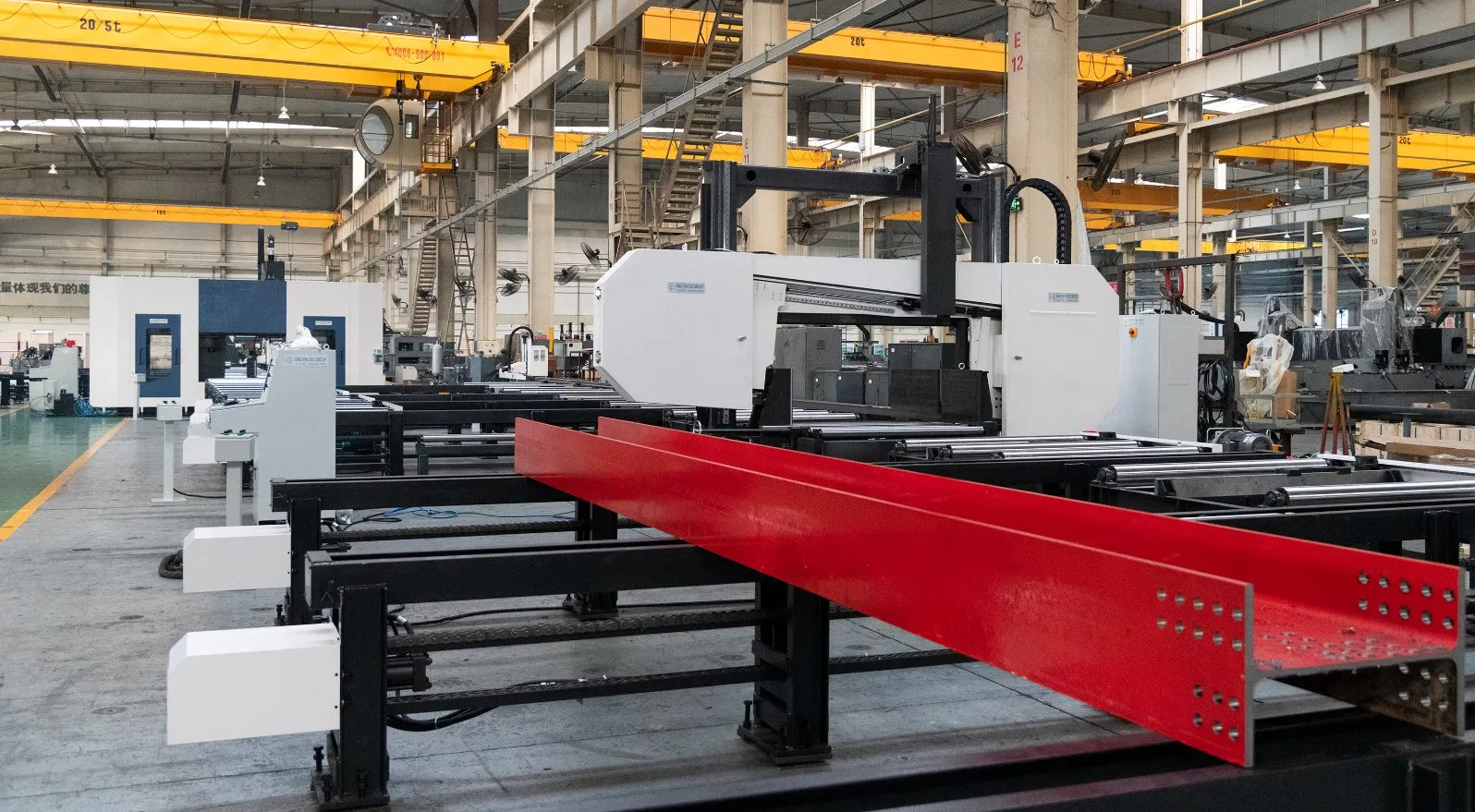

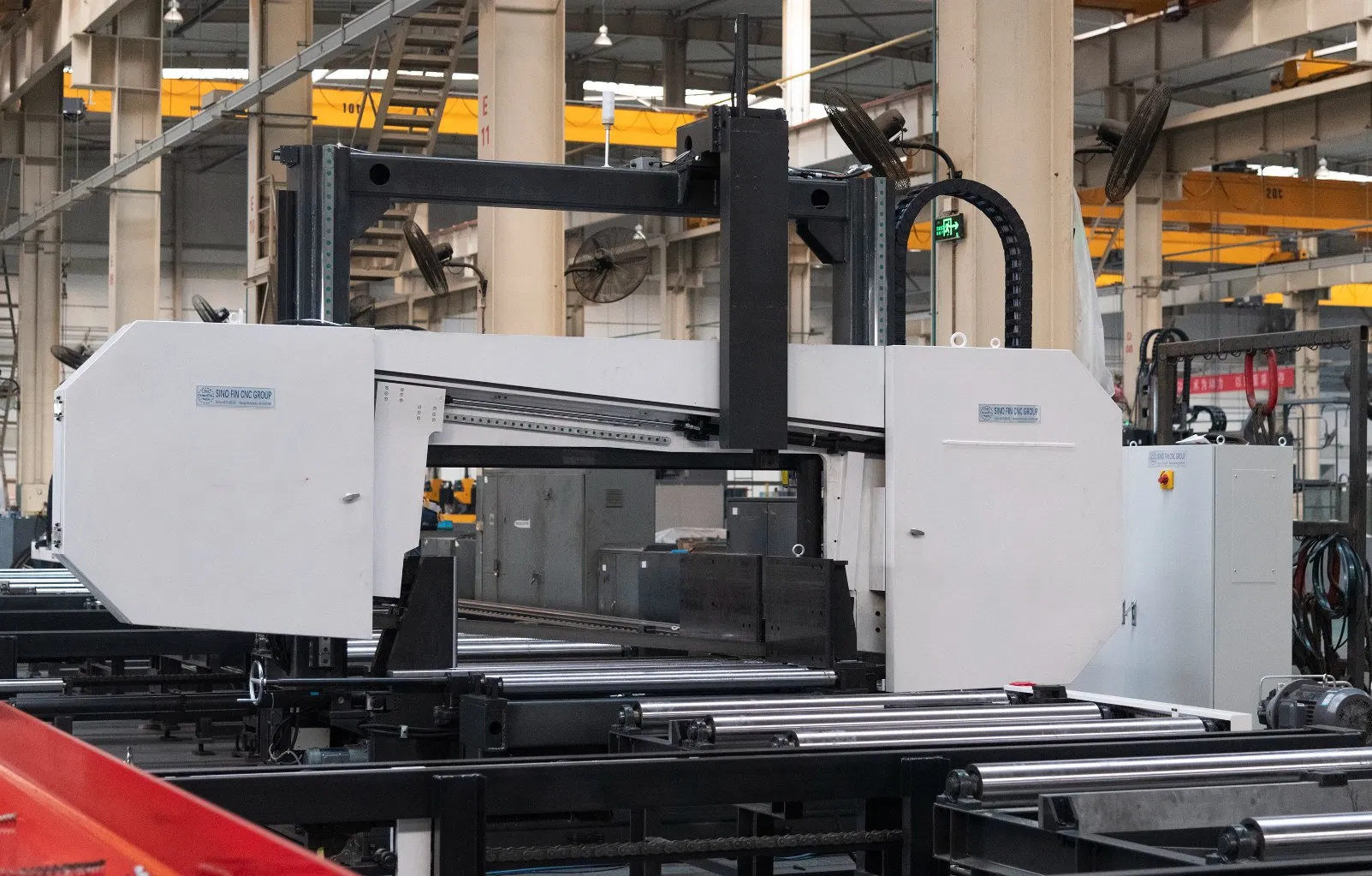

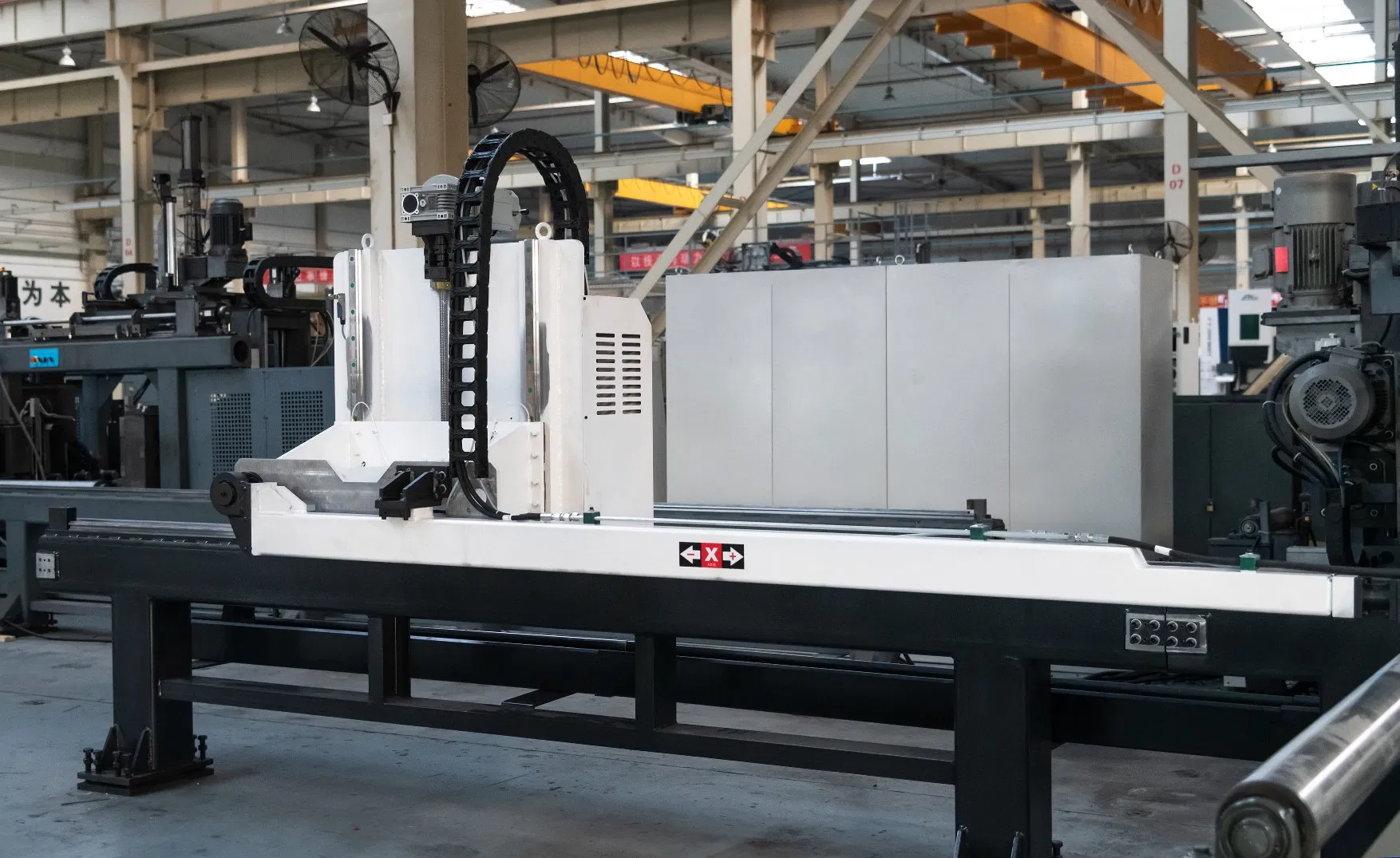

Detailed View 1 Detailed View 2 Detailed View 3 Detailed View 4 Detailed View 5 Detailed View 6 Detailed View 7
🏭 Company Profile
Profile Image 1 Profile Image 2

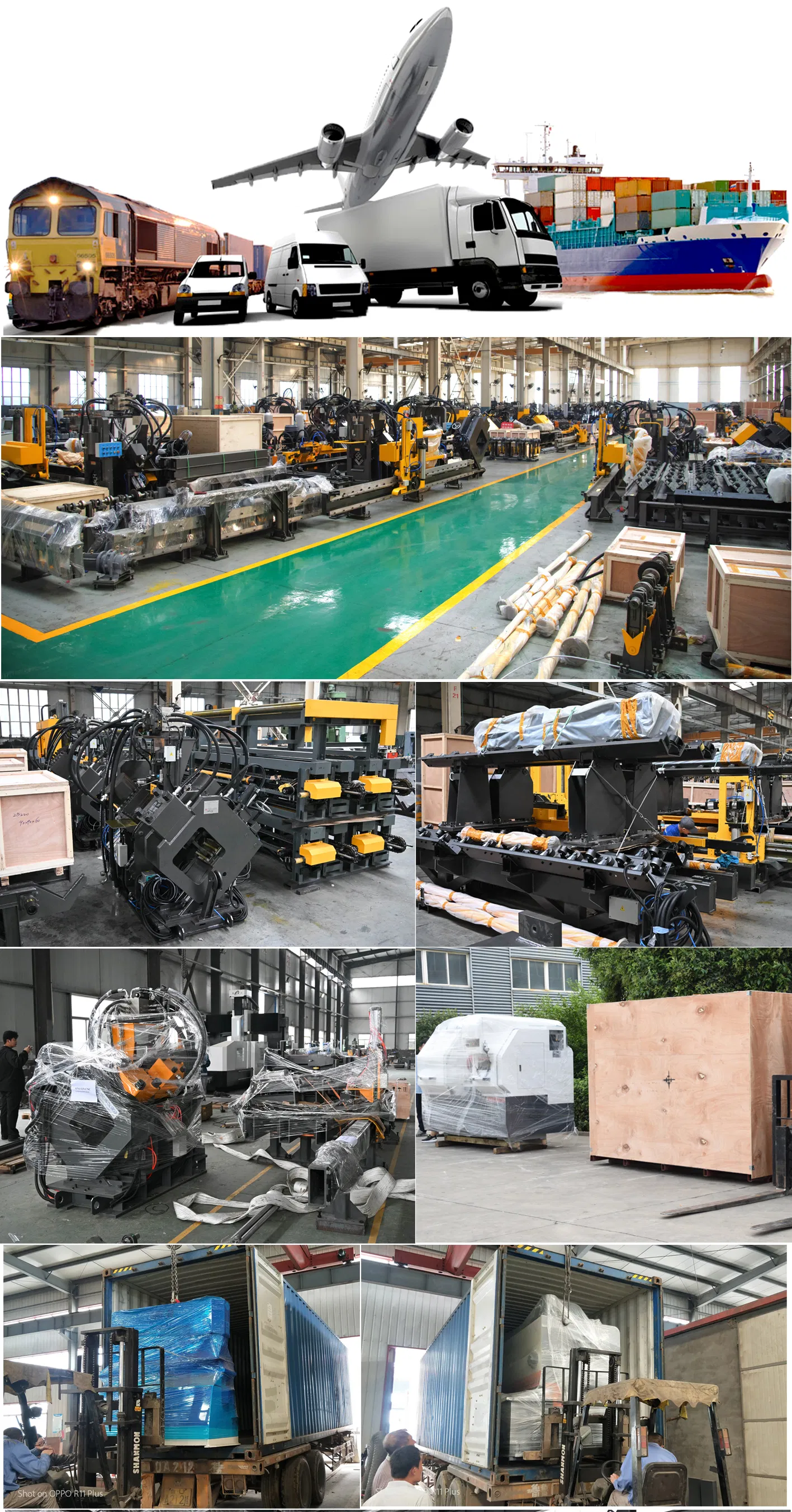

📦 Packaging & Shipping
Packaging Detail 1 Packaging Detail 2
Shipping Banner
Frequently Asked Questions
What is the primary application of the HBD500 CNC machine?
The HBD500 is specifically designed for high-speed hole processing and sawing of H-beams and channel beams, widely used in the construction and bridge industries.
What kind of precision can I expect from this machine?
The machine offers high processing precision ranging between 0.09mm to 0.1mm, thanks to its closed-loop CNC control system.
What are the power requirements for the HBD500?
The machine operates on a voltage of either 380V or 415V, depending on your industrial setup.
Is the machine certified for international standards?
Yes, the HBD500 holds several key certifications including GS, CE, RoHS, and ISO 9001, ensuring compliance with international quality and safety standards.
How is the beam feeding handled in this system?
The system utilizes a CNC carriage for in-feeding and features three spindles driven by servo motors for maximum efficiency and control.
What is the production capacity for this model?
The production capacity is rated at 50 units, making it a robust solution for high-end CNC metal processing needs.
