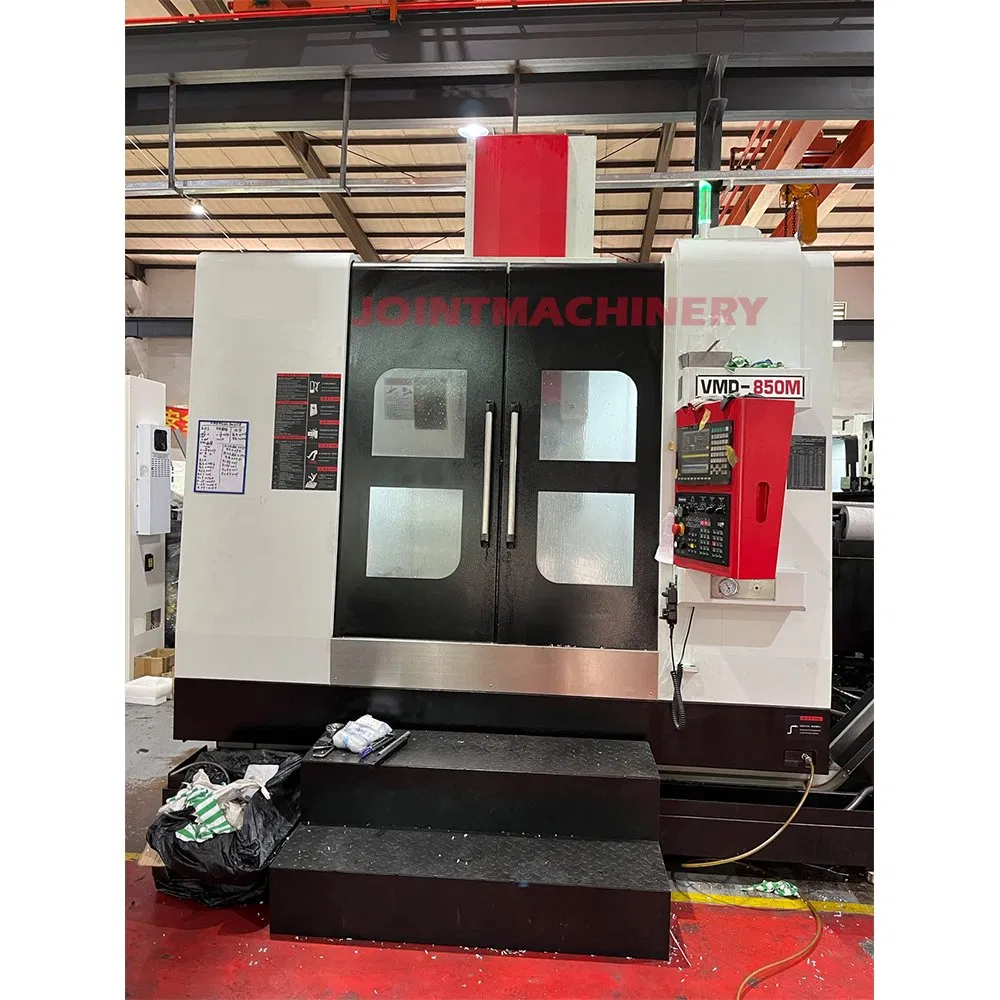

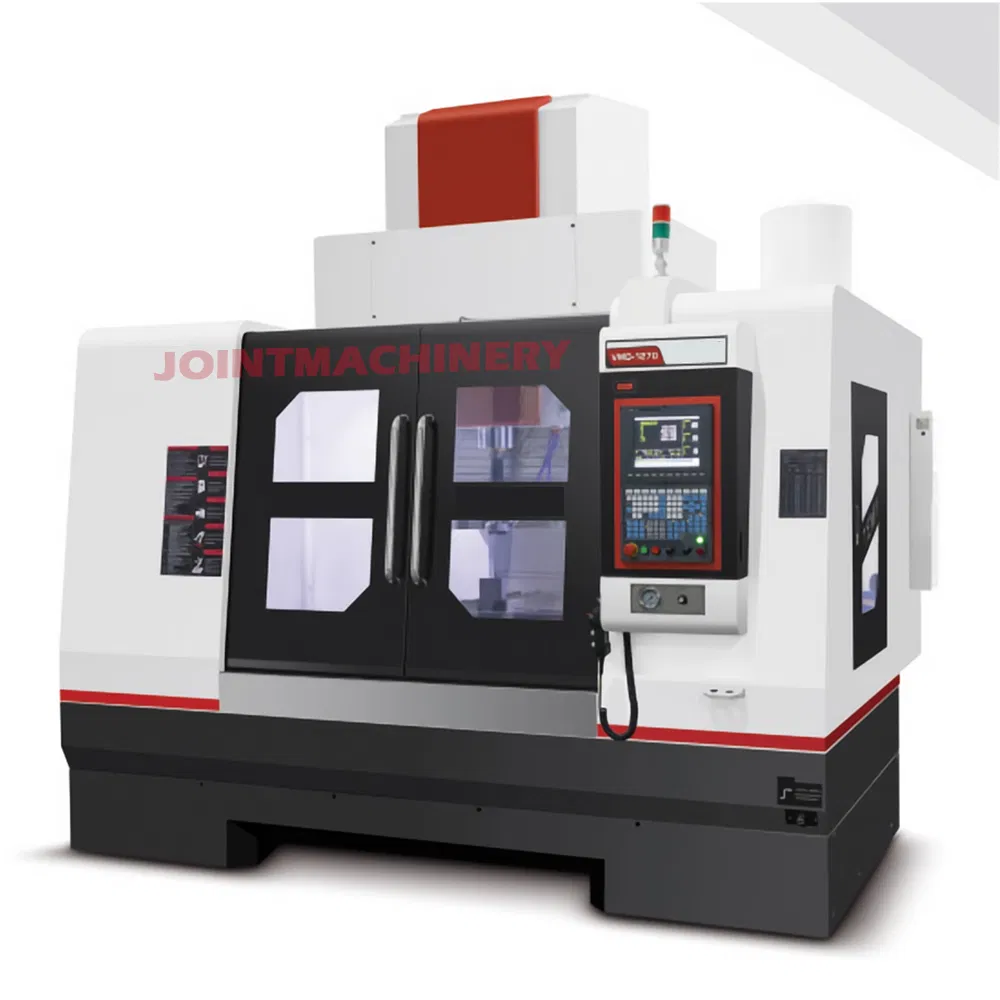

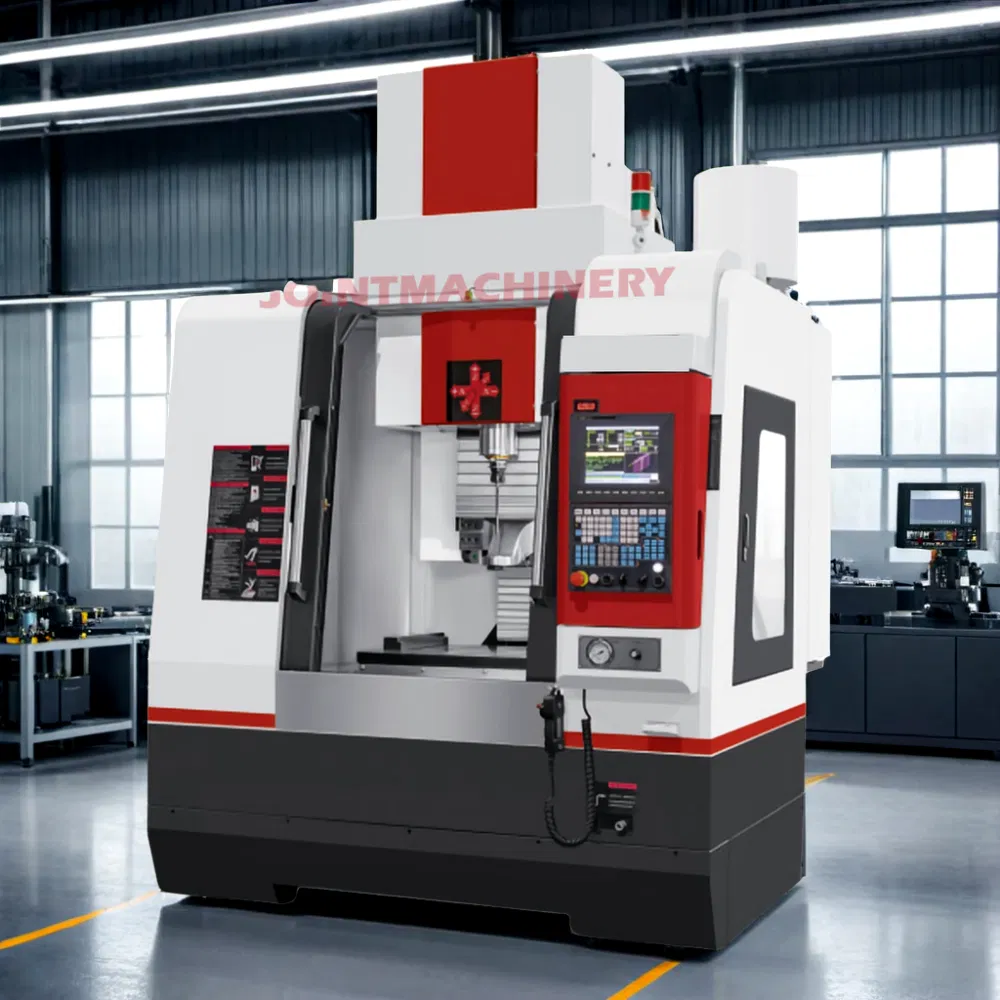

Chinese Professional High Rigidity Vmd-650 Vertical CNC Deep Hole Drilling Machine
Chinese Professional High Rigidity Vmd-650 Vertical CNC Deep Hole Drilling Machine
Chinese Professional High Rigidity Vmd-650 Vertical CNC Deep Hole Drilling Machine
Chinese Professional High Rigidity Vmd-650 Vertical CNC Deep Hole Drilling Machine
Chinese Professional High Rigidity Vmd-650 Vertical CNC Deep Hole Drilling Machine
1 / 5
Chinese Professional High Rigidity Vmd-650 Vertical CNC Deep Hole Drilling Machine
Chinese Professional High Rigidity Vmd-650 Vertical CNC Deep Hole Drilling Machine
Chinese Professional High Rigidity Vmd-650 Vertical CNC Deep Hole Drilling Machine
Chinese Professional High Rigidity Vmd-650 Vertical CNC Deep Hole Drilling Machine
Chinese Professional High Rigidity Vmd-650 Vertical CNC Deep Hole Drilling Machine

Chinese Professional High Rigidity Vmd-650 Vertical CNC Deep Hole Drilling Machine

Customization: Available
After-sales Service: Online After-Sale Service
Warranty: 1 Year
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
VMD-650
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Certification
CE, ISO 9001
Condition
New
Inner Diameter of Drilling
1.5-20mm
Max Drilling Depth
220mm
Table Size
700*520mm
X/Y/Z Axis Travel
600 / 500 / 300 mm
Z2 Axis Travel
300mm
Drilling Cutting Speed
1-300mm/Min
Spindle Taper
BT40
Max Spindle Speed
10000rpm
Load Weight
500kgs
Origin
China
M

Product Overview

VMD-650 Vertical CNC Deep Hole Drilling Machine
Drilling is the most basic process in machining operation and is also the process with the widest range in the application field. Traditional drilling equipment like bench drills and radial drills often limit efficiency and quality. With the arrival of the CNC era, the birth of the CNC depth drill has thoroughly changed the situation. It frees labor, solves the bottleneck of depth drill processing, and ensures that one-time drilling can achieve high processing quality with automatic chip removal and CNC positioning.
G

Series Variations

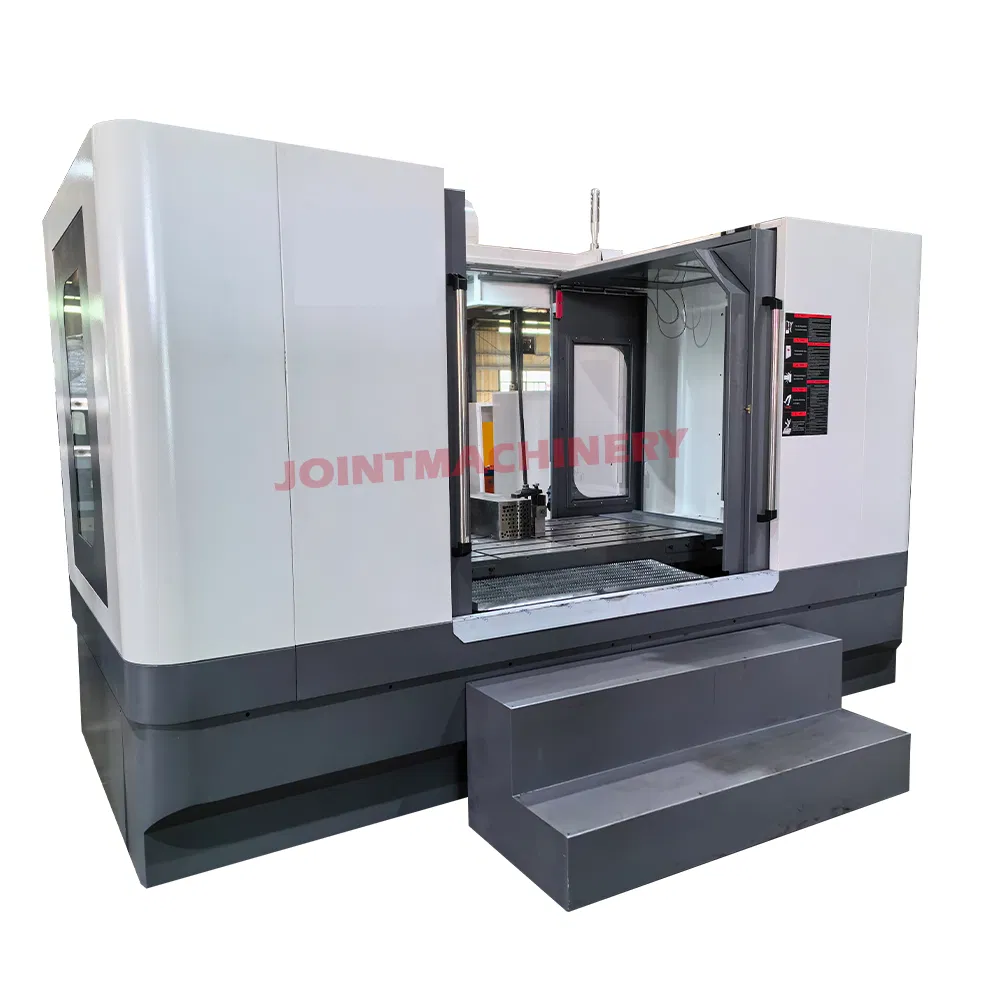

3 Axis CNC Deep Hole Drilling Machine
3 Axis CNC Deep Hole Drill

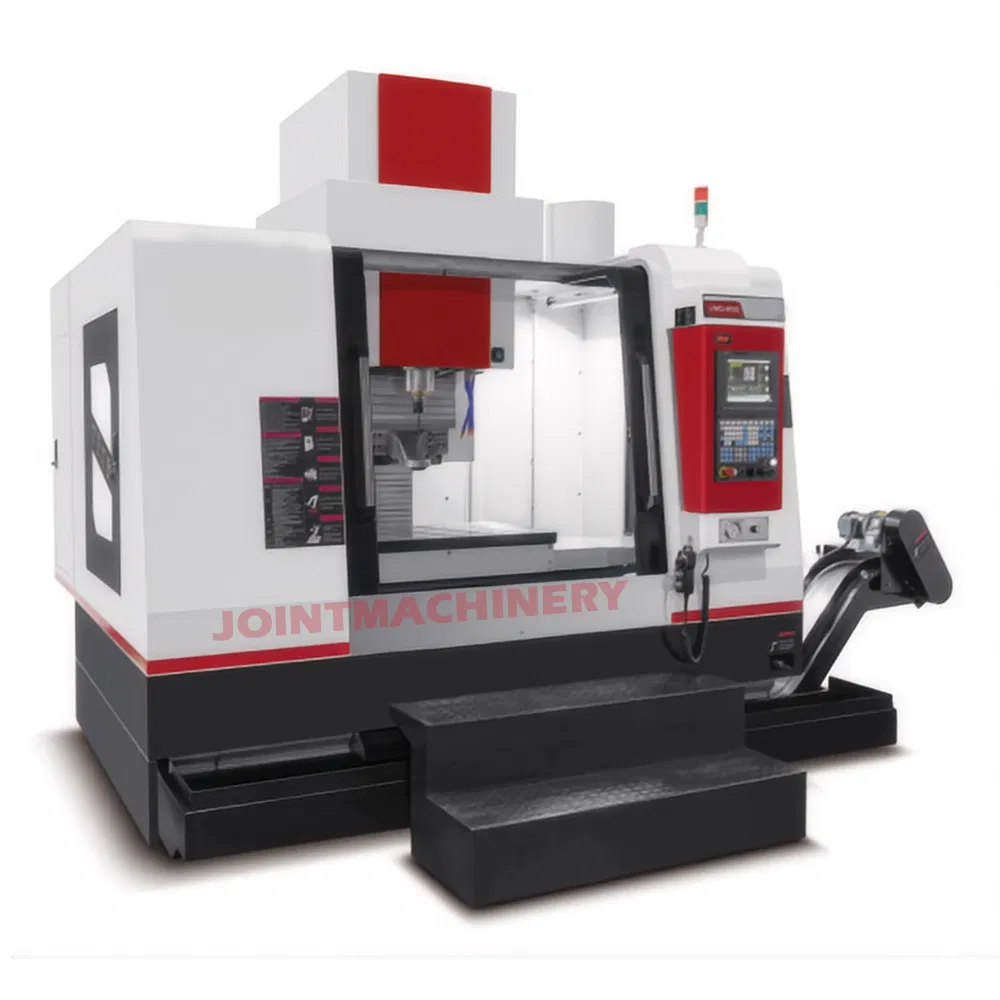

4 Axis Vertical CNC Deep Hole Drilling Machine
4 Axis Vertical CNC Deep Hole Drill

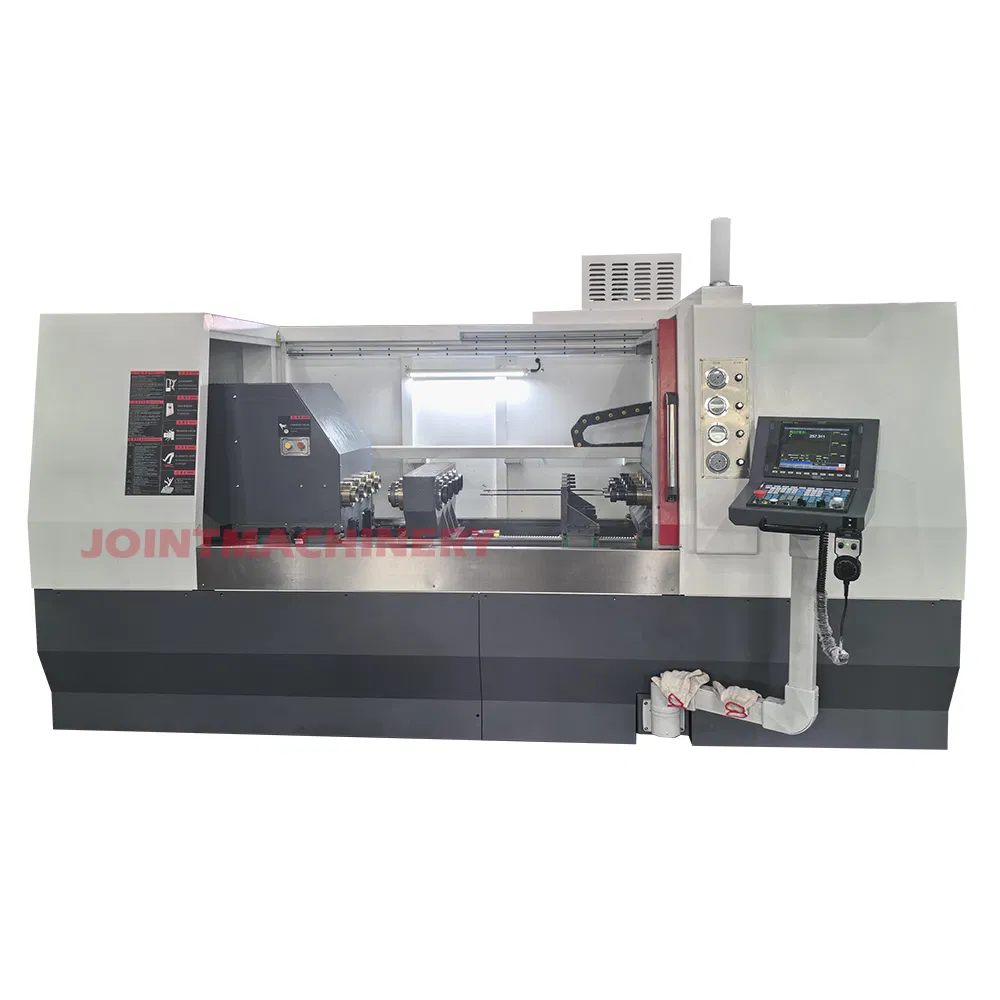

Multi-Spindle CNC Deep Hole Drilling Machine
Multi-Spindle CNC Deep Hole Drill

4-Axis Vertical CNC Deep Hole Drilling Machine

Equipped with a special short gun drill to work on small hole processes, especially for inject pinhole batch processing. This machine offers high precision, high speed, and easy operation while saving manpower. It is widely used for medical equipment, spaceflight, hydraulic oil pumps, and auto spare parts.

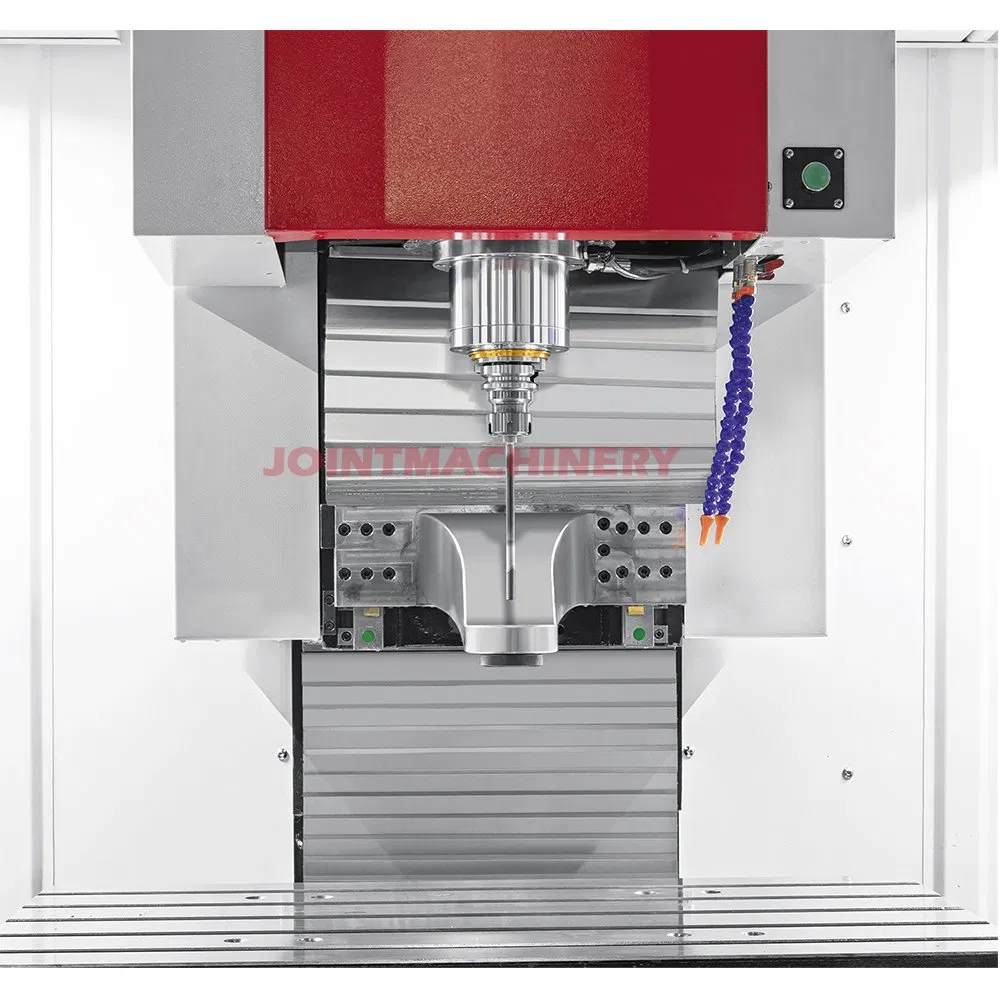

4-Axis Detail
T

Technical Parameters

Parameter Item Unit VMD-650 Value
Inner diameter of drillingmm1.5-20
Max drilling depthmm220
Table sizemm700*520
X/Y/Z axis travelmm600*500*300
Z2 axis travelmm300
Drilling cutting speedm/min1-300
Spindle taper-BT40
Max spindle rotary speedrpm10000
Spindle motor powerkw7.5-11
X/Y/Z axis motorkw2.4/3.1/3.9
Z2 axis motorkw3.9
Load weightkgs500
Machine weightkgs4500
C

Core Advantages & Packaging

Our machines incorporate core technologies combined with state-of-the-art production processes to deliver superior product quality and reliability. Known for outstanding performance in terms of precision, stability, and dependability, these units meet various complex and high-demand machining requirements globally.

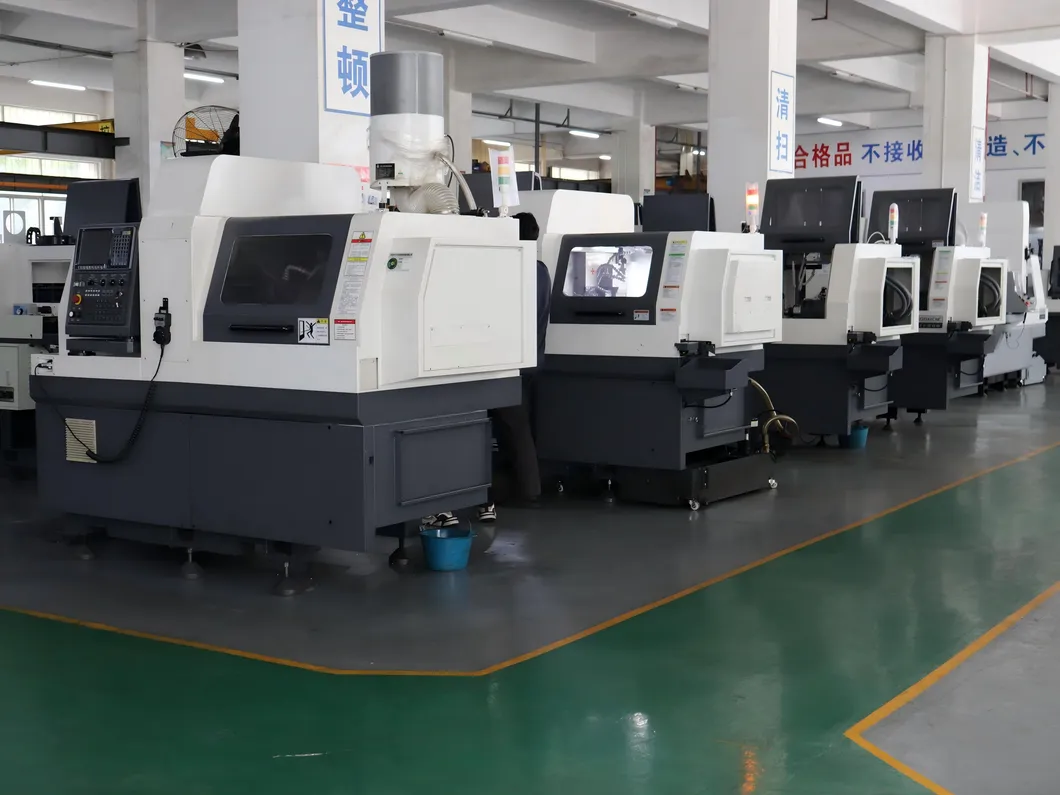

Production Detail 1

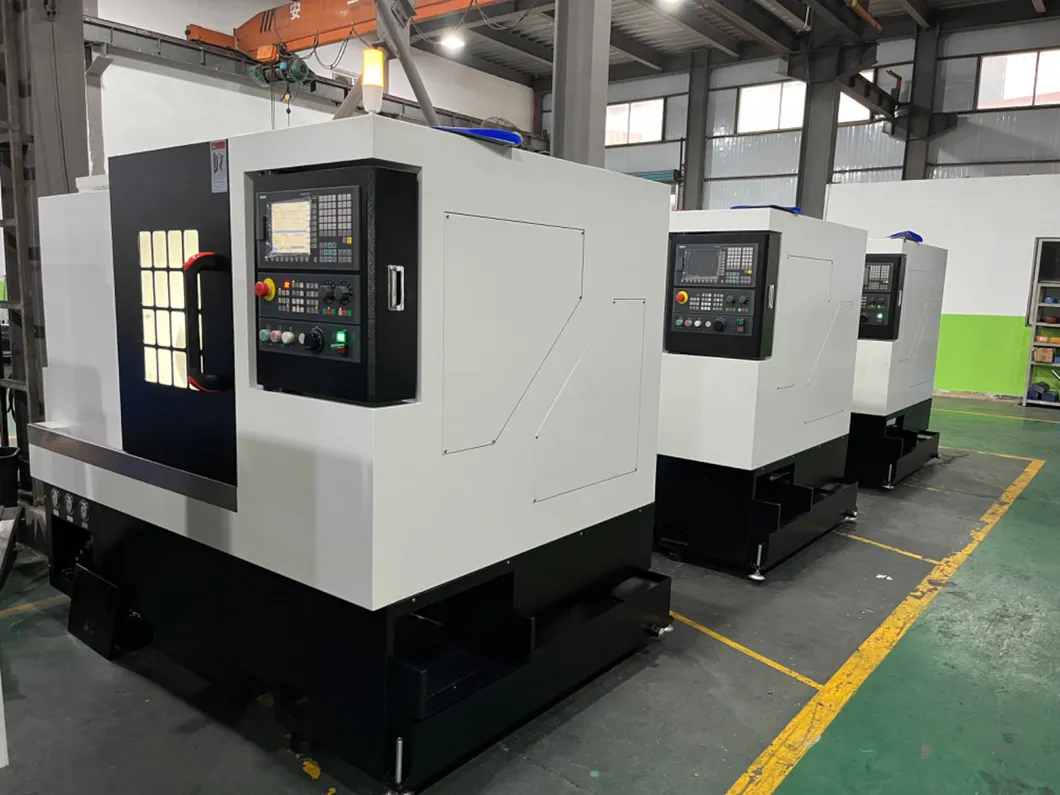

Production Detail 2

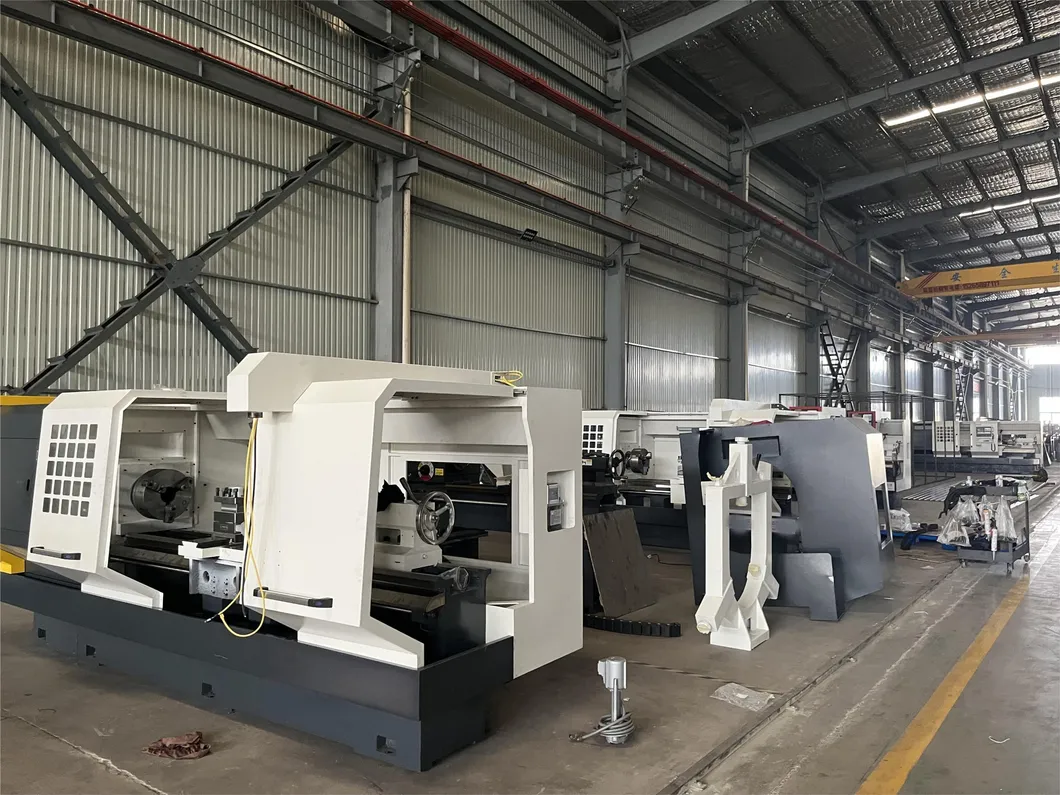

Production Detail 3

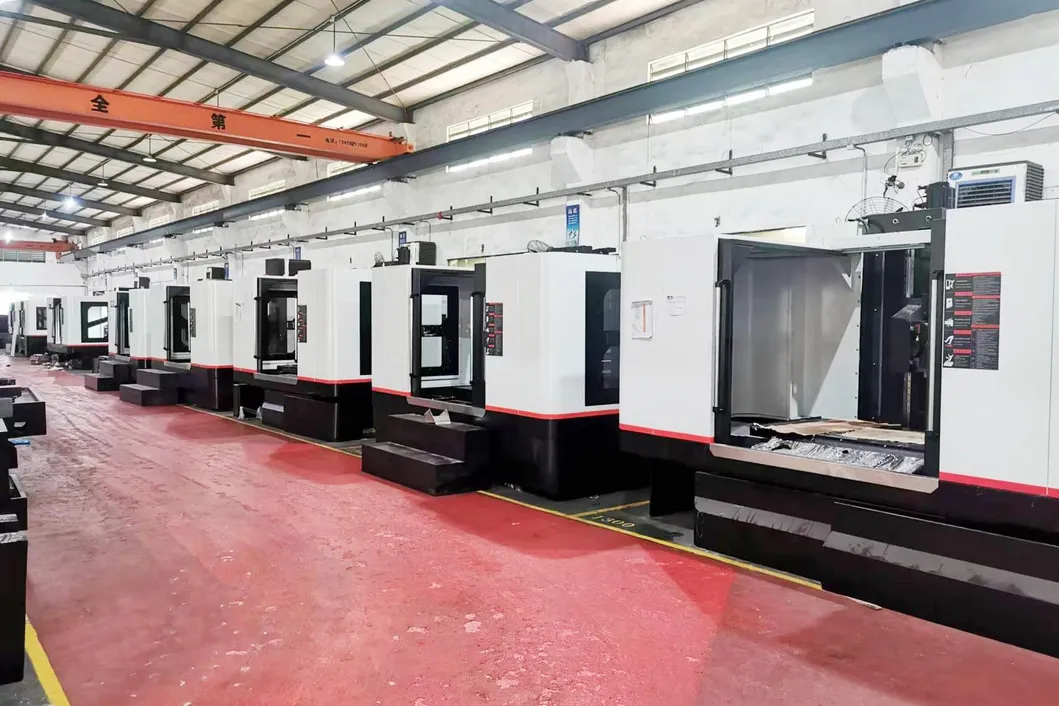

Packaging Detail 1

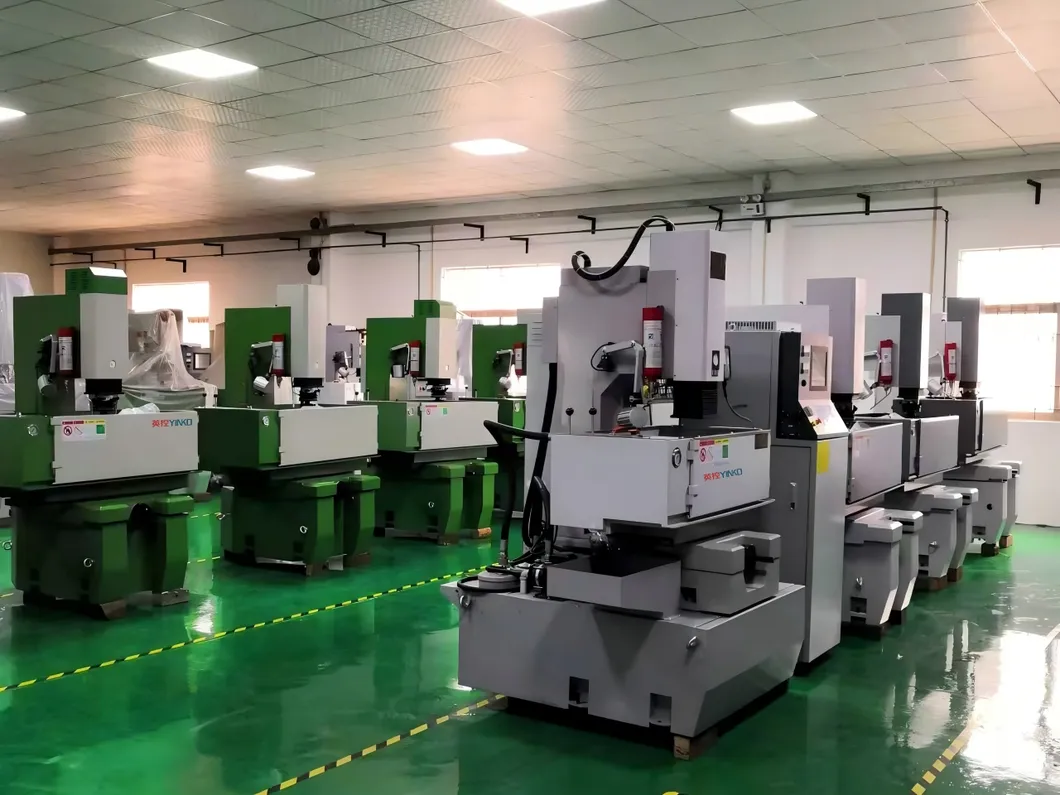

Packaging Detail 2

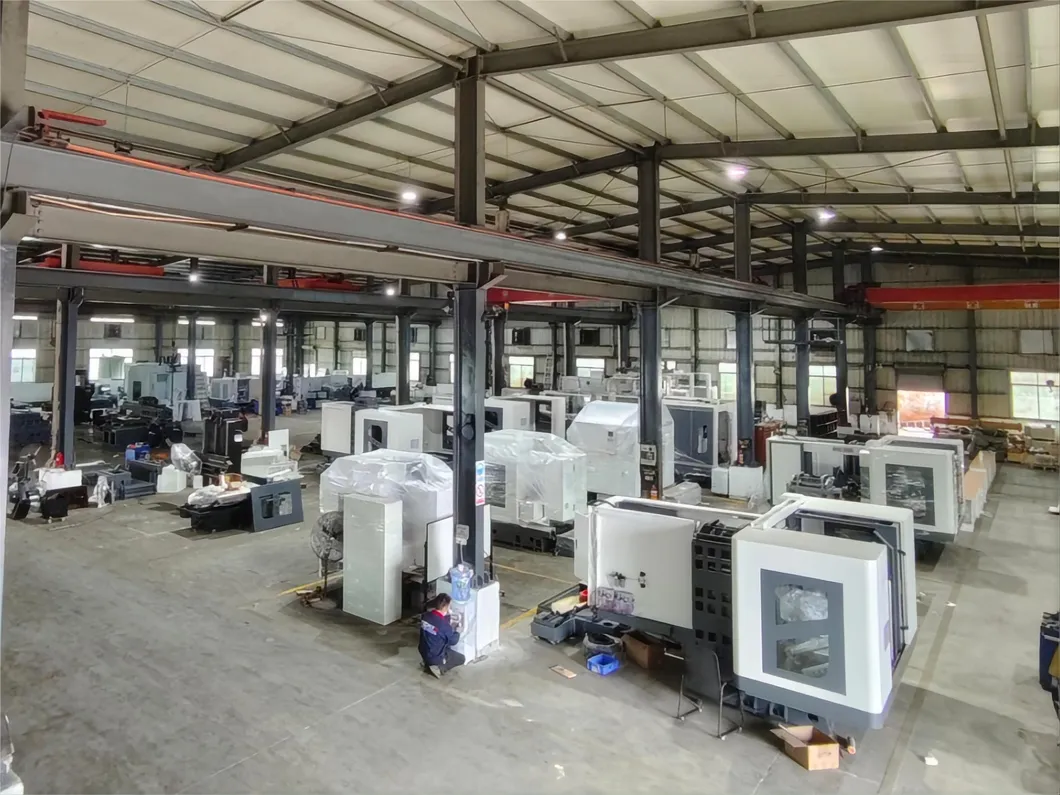

Packaging Detail 3
F

Frequently Asked Questions

Are you a trading company or manufacturer?
We are a factory and professional manufacturer of CNC machinery.
What are your terms of payment?
Our standard terms are 30% as a deposit, with the remaining 70% to be paid before delivery.
How can I choose the most suitable machine for my needs?
Please provide your specific requirements or product drawings. Our engineers will analyze your needs and help you choose the most suitable model.
What kind of packaging is used for shipment?
Machines are packed using exporting standard packages that are waterproof and anti-rust, ensuring safety during overseas transportation.
How long is the warranty period for the machines?
The warranty period is 12 months. We provide free repair parts for any quality-related issues during this period.
What industries use the VMD-650 CNC Drilling Machine?
It is widely used in medical equipment manufacturing, aerospace components, hydraulic oil pumps, and automotive spare parts production.
