Product Description

Overview
Model NO.
DD50/2
Structure
Horizontal Drilling Machine
Controlling Mode
CNC
Number of Shaft
3
Automatic Grade
Automatic
Precision
High Precision
Hole Diameter
>200mm
Drilling Depth
750mm
Spindle Speed
200-2500r/min
Machine Weight
75ton
Product Description

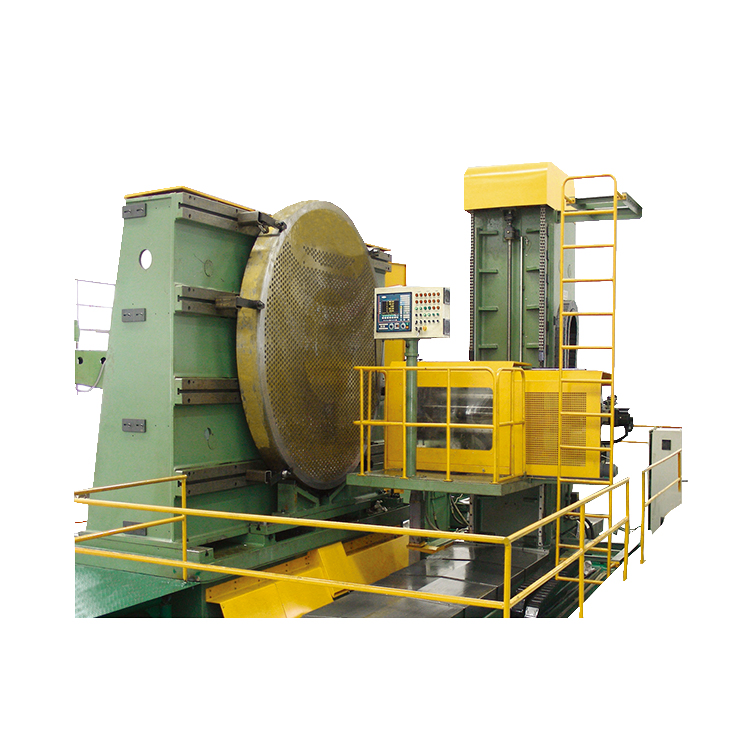

DD50/2 CNC Horizontal Double-Spindle Deep Hole High-Speed Hydraulic Drilling Machine

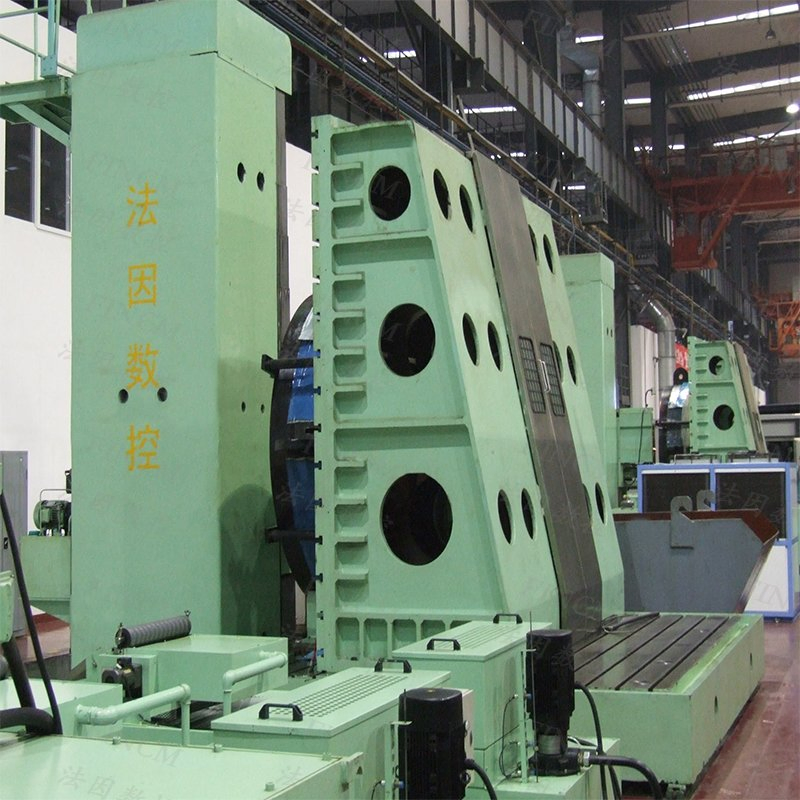

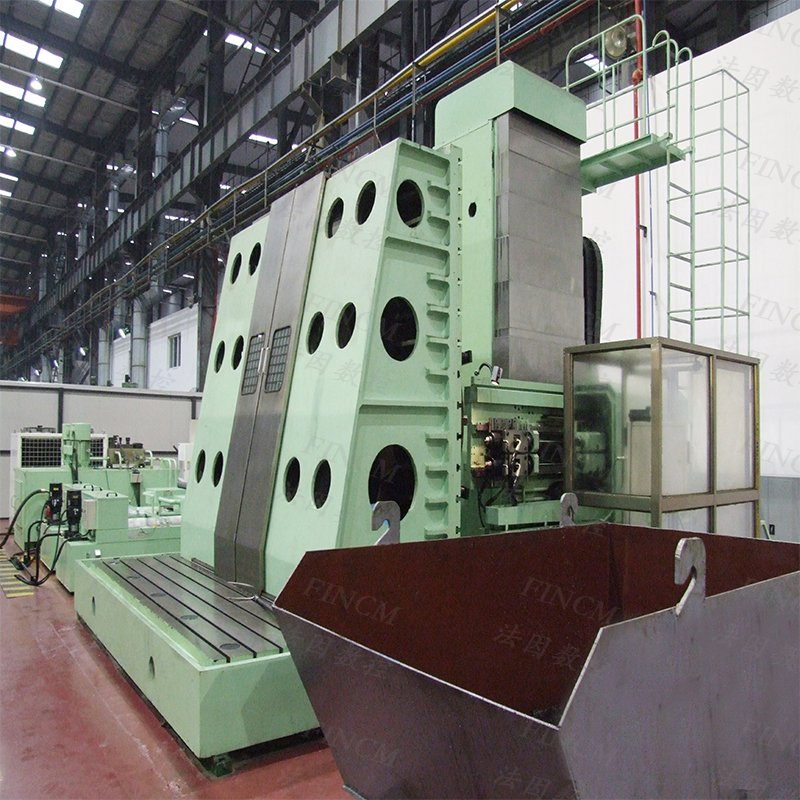

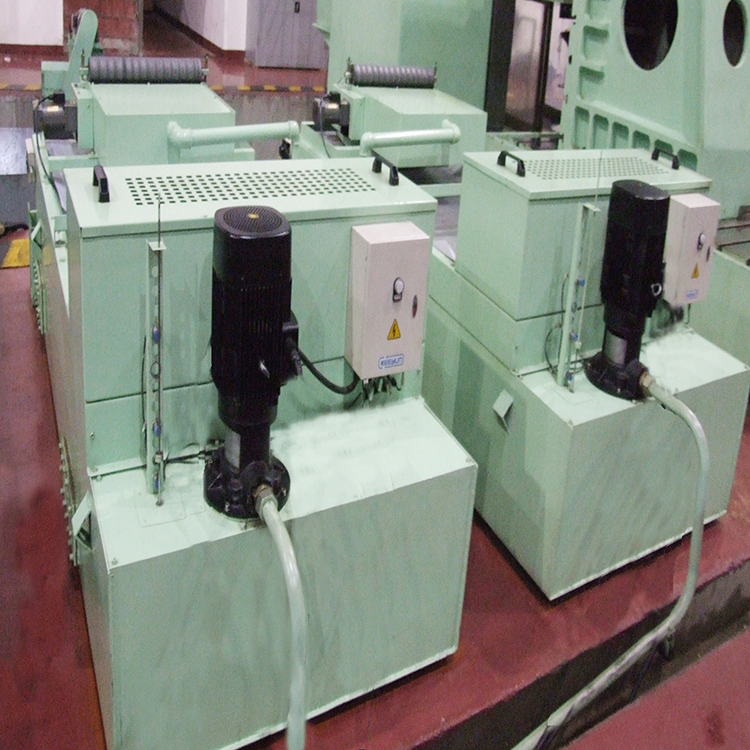

This high-performance equipment is mainly composed of a longitudinal sliding table, vertical column sliding table, double-spindle feed sliding table, worktable and bending plate, hydraulic system, cooling system, automatic lubrication system, electrical system, and chip conveyor.

The DD50/2 is specifically designed for processing holes on tube plates for shell and tube heat exchangers used in petroleum, chemical, pharmaceutical, thermal power station, and nuclear industries. It supports a maximum workpiece diameter of φ4000mm (with 180° turn) and a maximum drilling depth of 750mm.

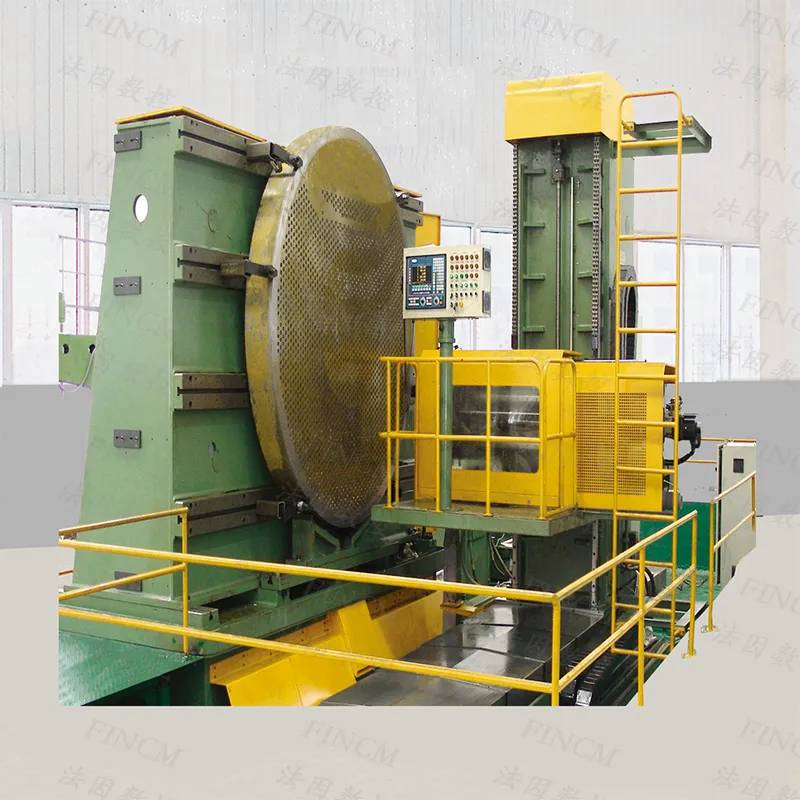

CNC Deep Hole Drilling Machine

⚡ Equipment Advantages

  • Horizontal deep hole drilling design with high stability.
  • X, Y, and Z axes utilize linear roller guides for high load capacity and dynamic response.
  • Worktable separated from the bed to eliminate vibration impact during clamping.
  • Dual spindles allow simultaneous operation, nearly doubling production efficiency.
  • Equipped with FAGOR8055 numerical control system and electronic handwheel for precision management.
  • Comprehensive detection functions: Torque, Flow, Pressure, Liquid Level, Temperature.
  • Reliable components including ball screw pairs, servo motors, and planetary reducers.
Detailed Photos

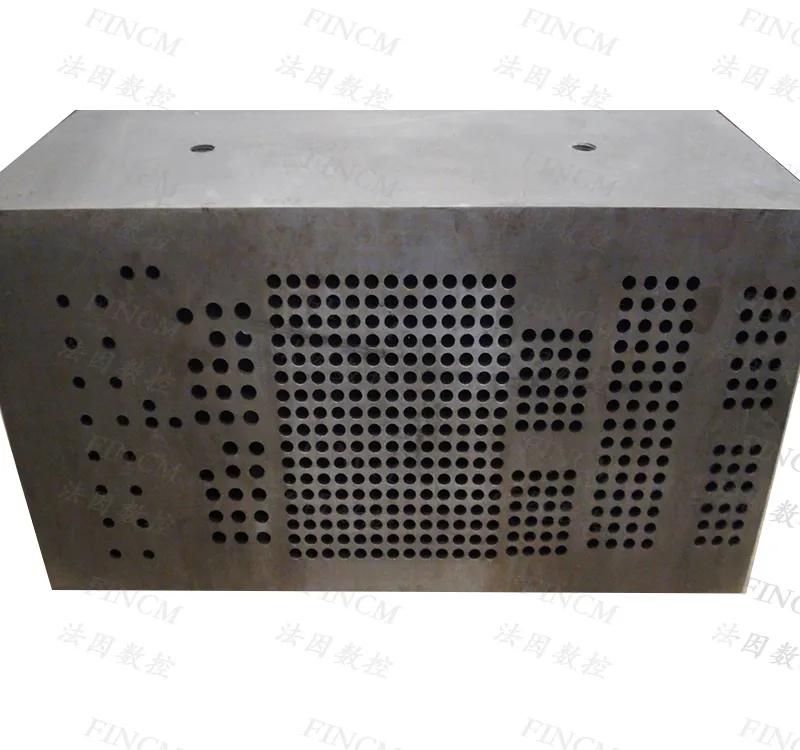

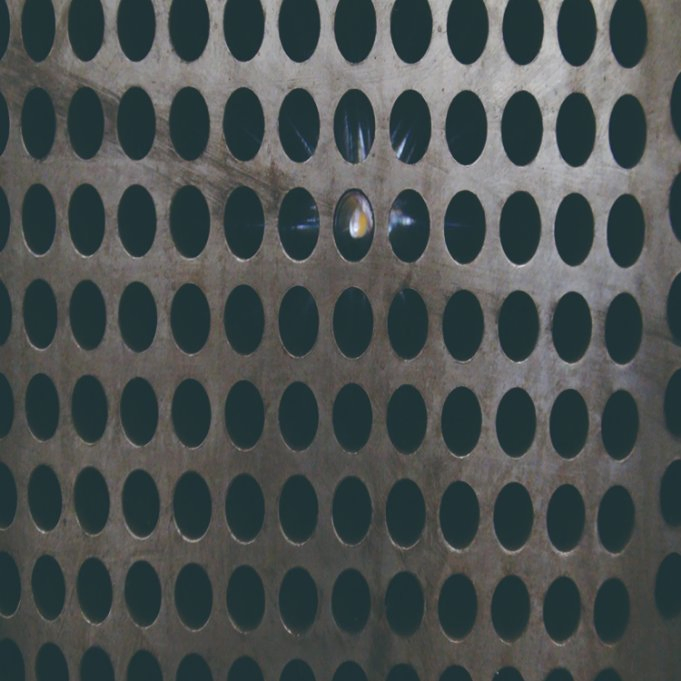

Detail 1 Detail 2 Detail 3
Main Technical Specifications
Parameter Project Detail Value
Maximum Workpiece DiameterProcessing RangeΦ5000mm
Borehole DiameterBTA DrillΦ14~Φ40mm
Maximum Drilling DepthLimit750mm
Drilling Head QuantitySpindles2
Spindle Center DistanceAdjustable170~220mm
Spindle SpeedRange200~2500r/min
X-axis TravelLongitudinal4000mm
Y-axis TravelVertical2000mm
Z-axis TravelFeed900mm
Positioning AccuracyX-axis0.10mm
RepeatabilityY-axis0.04mm
Key Outsourced Components
  • Hydraulic Valve
    • Name Brand Origin
    Linear Guide RailHIWIN/PMITaiwan
    CNC SystemFAGOR8055Spain
    Planetary ReducerAPEXTaiwan
    Internal Cooling JointDEUBLINUSA
    ATOSItaly
    Feed Servo MotorPanasonicJapan
    Electrical SwitchSchneider/ABBFrance/Germany
    Production & Global Presence
    Process Control
    Product Range Suppliers
    Sales Network
    Frequently Asked Questions
    When can you arrange shipment?
    For machines available in stock, shipment can be arranged within 15 days after advance payment. For non-stock machines, shipment is typically arranged within 60 days.
    What is the support procedure if the machine has problems?
    We provide free components during the warranty period, 24-hour online service, and can assign engineers to your site for technical support if required.
    Do you provide machine operation training?
    Yes, professional engineers can be sent to your site for installation, commissioning, and comprehensive operator training.
    How do I choose the right machine model?
    Please share your material dimensions and specific processing requests. Our technical team will recommend the most suitable and cost-effective model for your needs.
    What is the market presence of these machines?
    These machines hold a significant market share of approximately 70% in the domestic market and have been exported to over 50 countries worldwide since 1998.
    What industries are these machines suitable for?
    They are ideal for heat exchanger production, petroleum, chemical, pharmaceutical, and power plant industries requiring deep-hole drilling of tube sheets.
