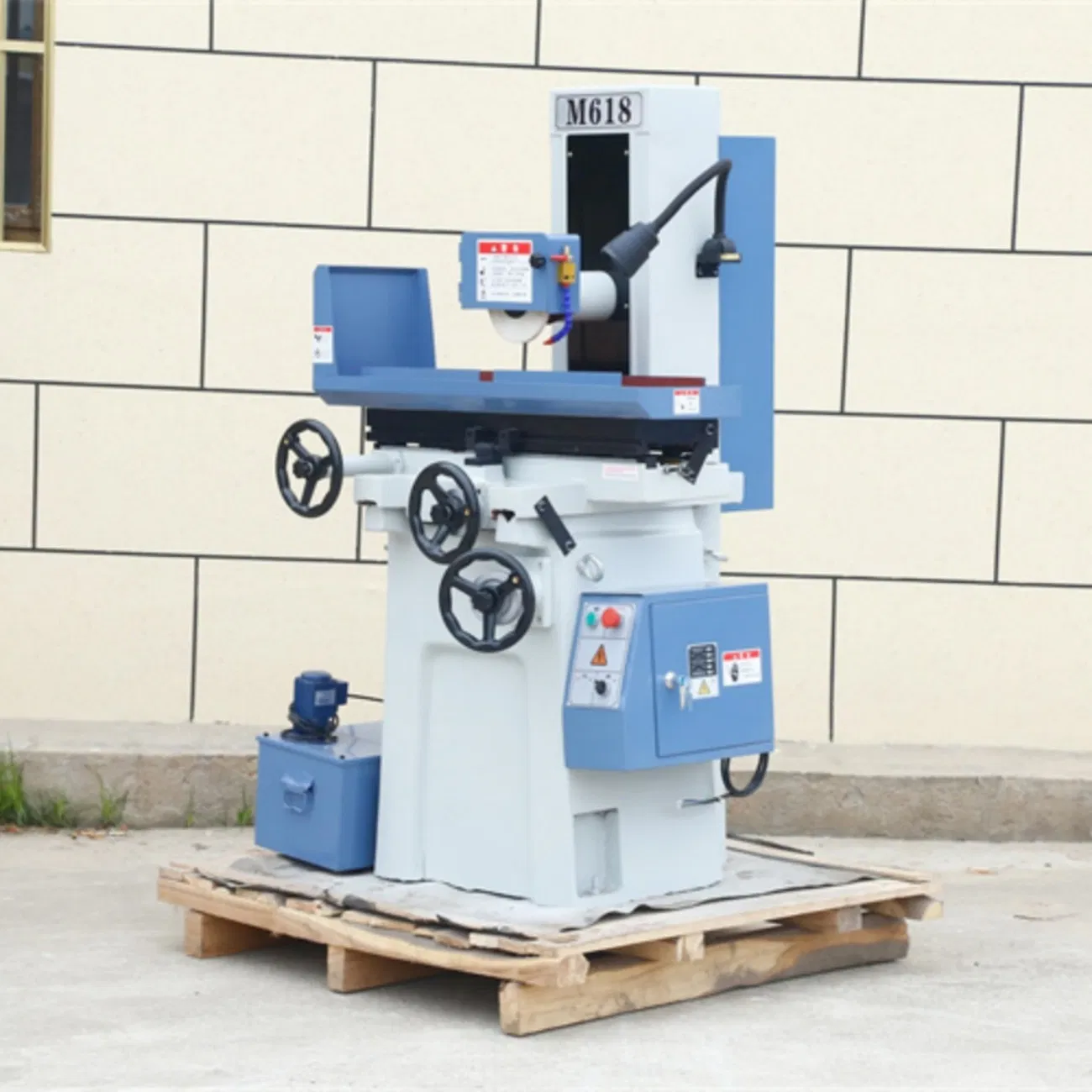

Hot Selling CNC Surface Grinding Machine Saddle Moving Type Surface Grinding

Customization: Available
After-sales Service: Online Coaching, Video Conferencing
Warranty: 1 Year

Product Description

!

Basic Info

Model NO. M618
Application Metal
Process Usage Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method Contour Control
Control Method Closed-Loop Control
Numerical Control CNC/MNC
Certification GS, CE, ISO 9001
Condition New
Worktable Size 450*150mm
Max Travel of Worktable 490mm
Max Load Capacity 200 Kg
Origin China
i

Product Description

Surface Grinding Machine Overview 1
Surface Grinding Machine Overview 2
Machine Structure
M618 precision surface grinder adopts a cross-plate movable type with a large span and high thickness symmetrical plate structure. It offers small thermal deformation, stable movement, and low noise. This machine is characterized by its compact structure, convenient operation, stable performance, and high rigidity. It is suitable for grinding various planes and inclined surfaces for small molds, daily hardware, instruments, and the plastic industry.
P

Detailed Photos

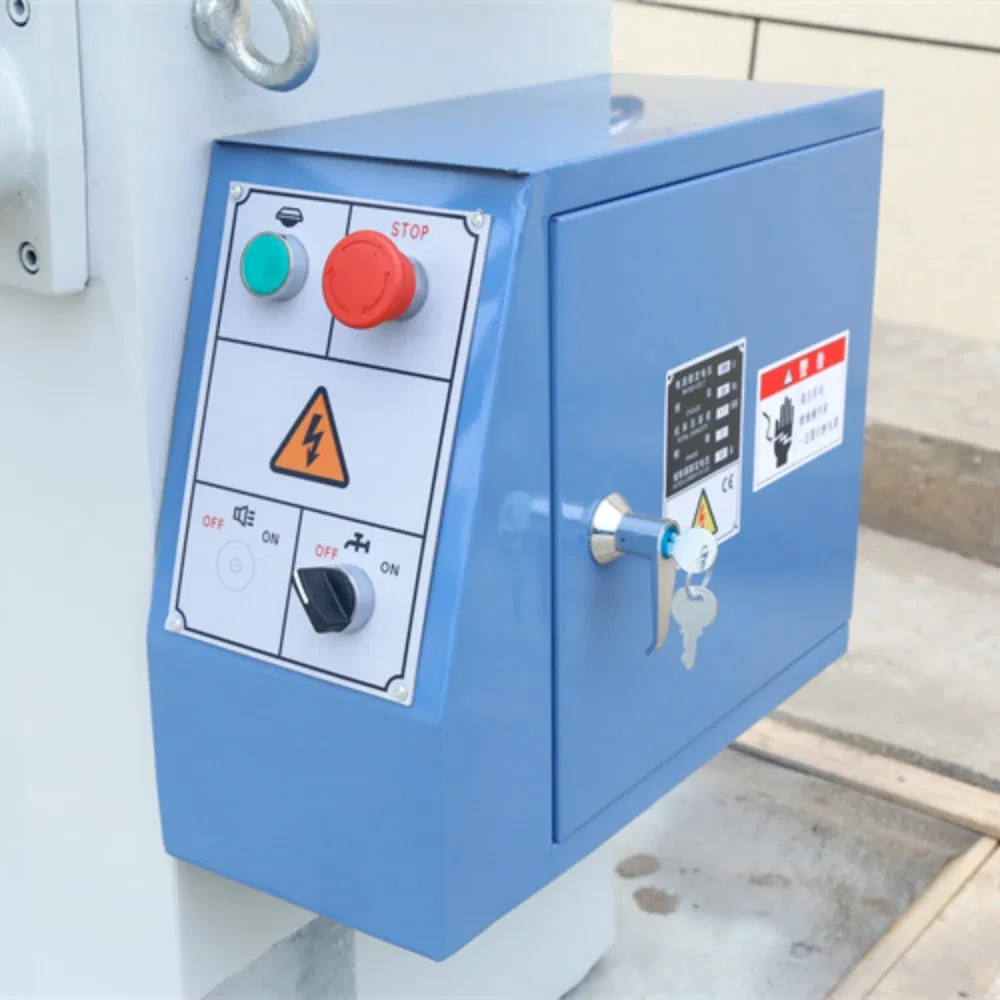

Detail 1

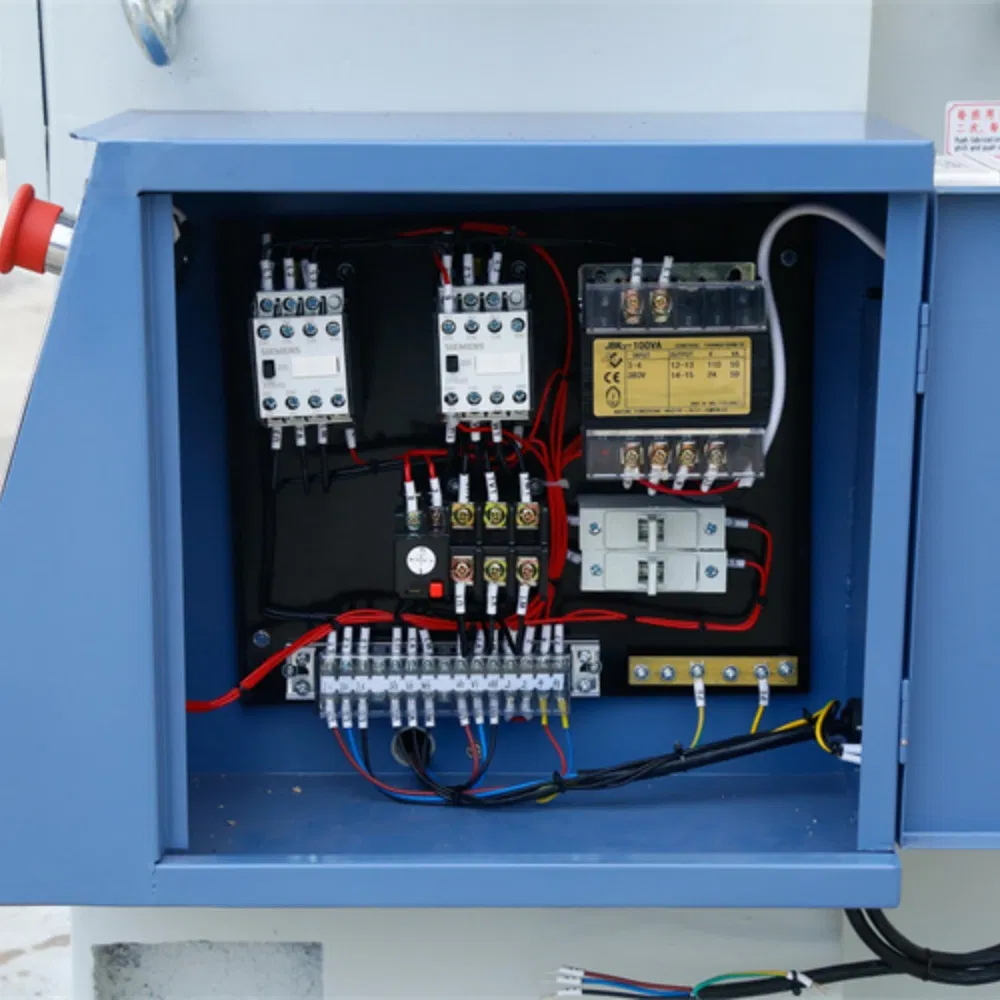

Detail 2

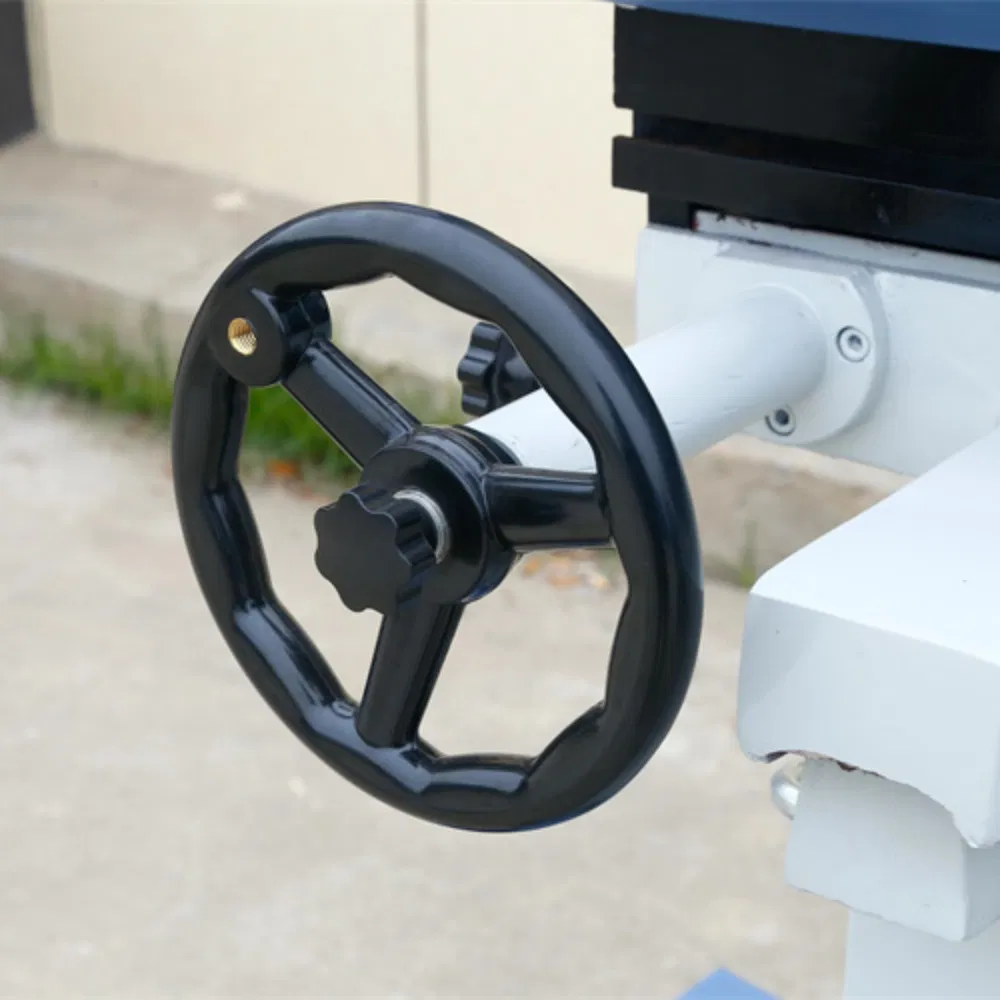

Detail 3
Detail 4

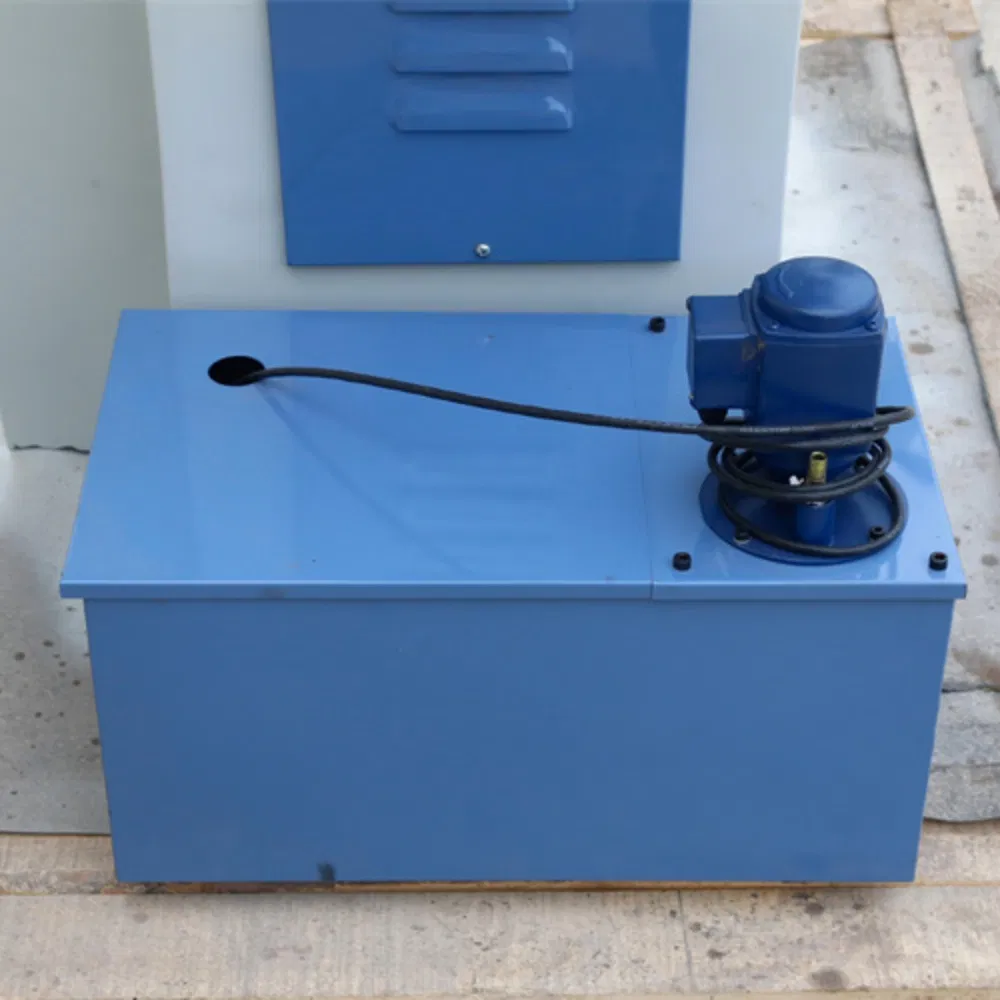

Detail 5
Detail 6

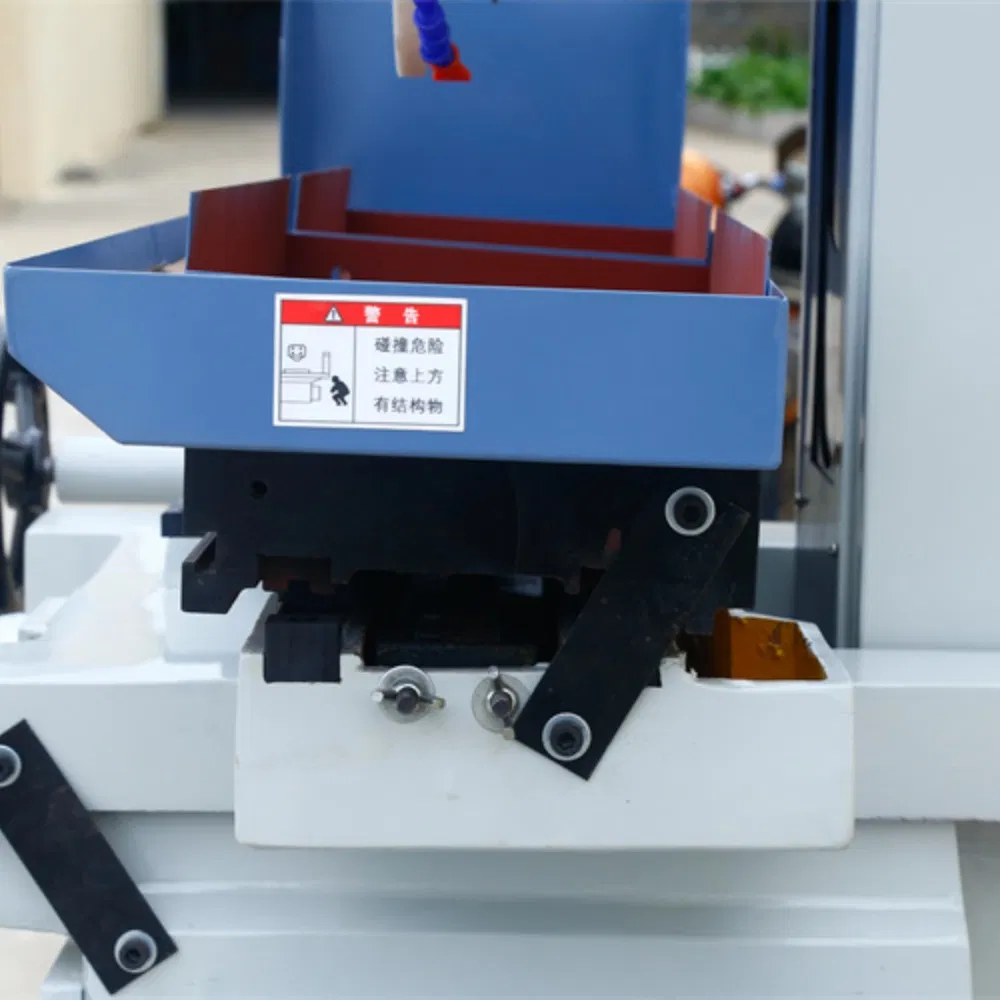

Detail 7

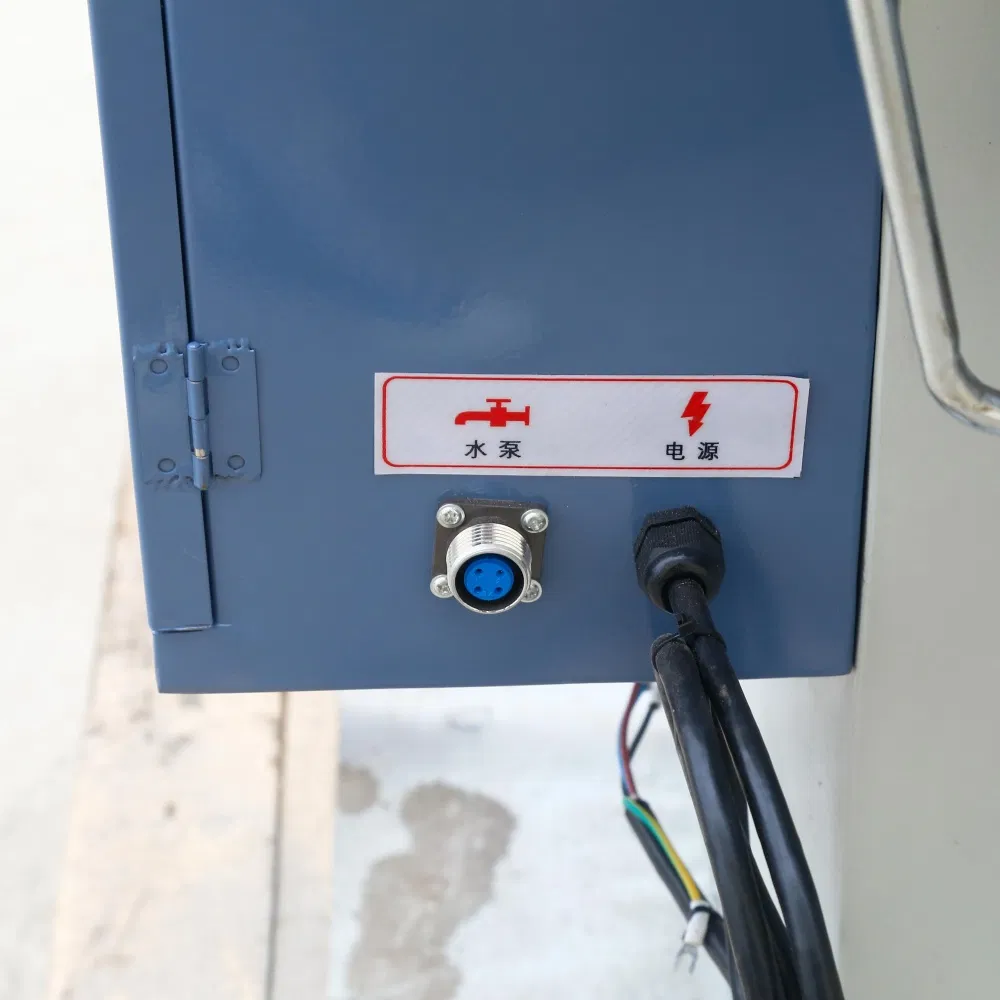

Detail 8

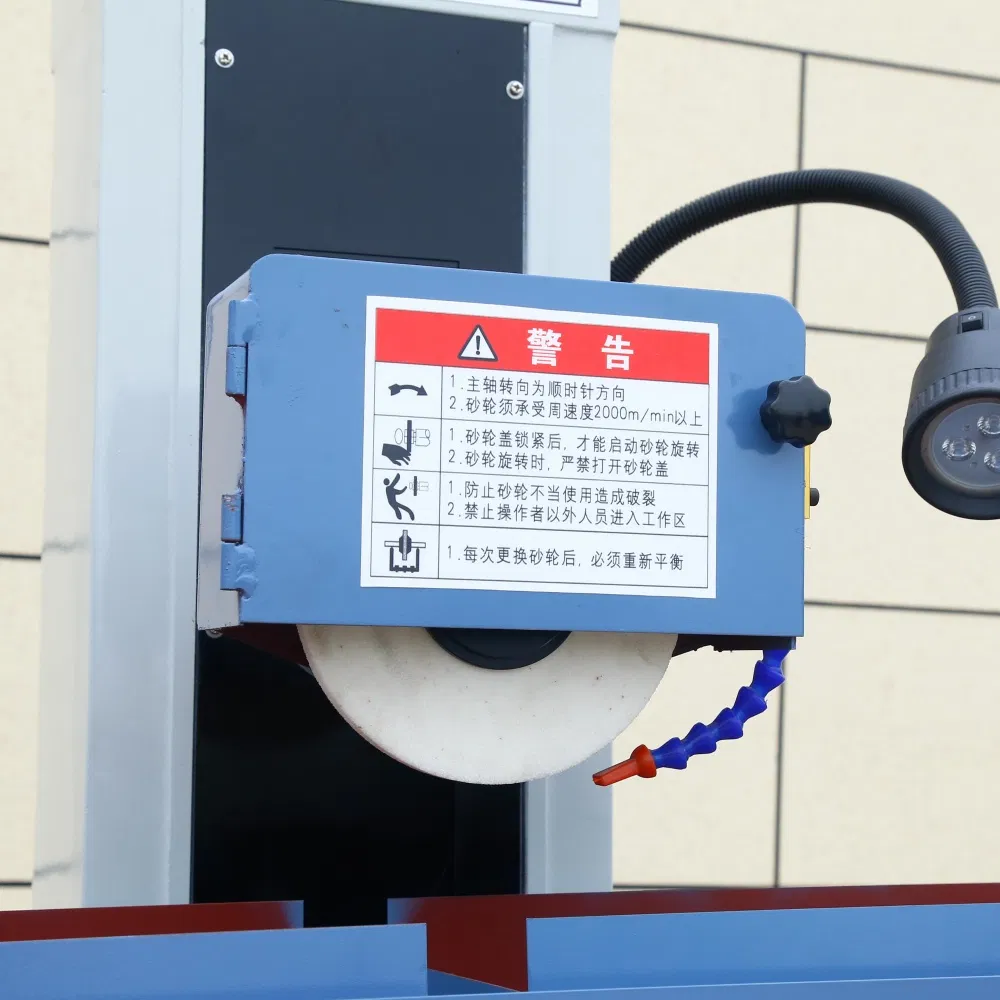

Detail 9
S

Product Parameters

Specification Item Model M618 Data
Work surface size (L x W)450*150mm
Max distance from spindle center to table460mm
Max travel of worktable left and right490mm
Max travel of workbench180mm
Max load-bearing capacity200mm
Hand wheel feed per revolution (Vertical)2.0mm
Hand wheel feed per grid (Vertical)0.01mm
Spindle motor1.1kw
Grinding wheel speed2850rpm
Grinding wheel sizeφ180*16*φ31mm
Machine gross weight750kg
Machine tool dimensions1550*1110*1650mm
C

Certifications

Certification 1
Certification 2
V

Customers Visit

Customer Visit Documentation
?

FAQ

Why choose our grinding machine?
We offer high quality at competitive prices, backed by a professional R&D team and 23 years of export experience to over 60 countries with full CE and ISO certification.
What are your quality control standards?
We have established a strict quality control department to guarantee the precision and safety of every machine before shipment.
What is the Minimum Order Quantity (MOQ)?
The MOQ is 1 set for most of our machinery.
What are the payment terms?
We accept T/T (30% advance, 70% before shipment), irrevocable LC at sight, Western Union, and MoneyGram.
How does the machine warranty work?
The warranty period is one year after delivery. We also provide lifetime technical support and service for all our machines.
Do you provide overseas technical support?
Yes, we have engineers available for problem-solving and installation support globally, alongside 24-hour online service.
