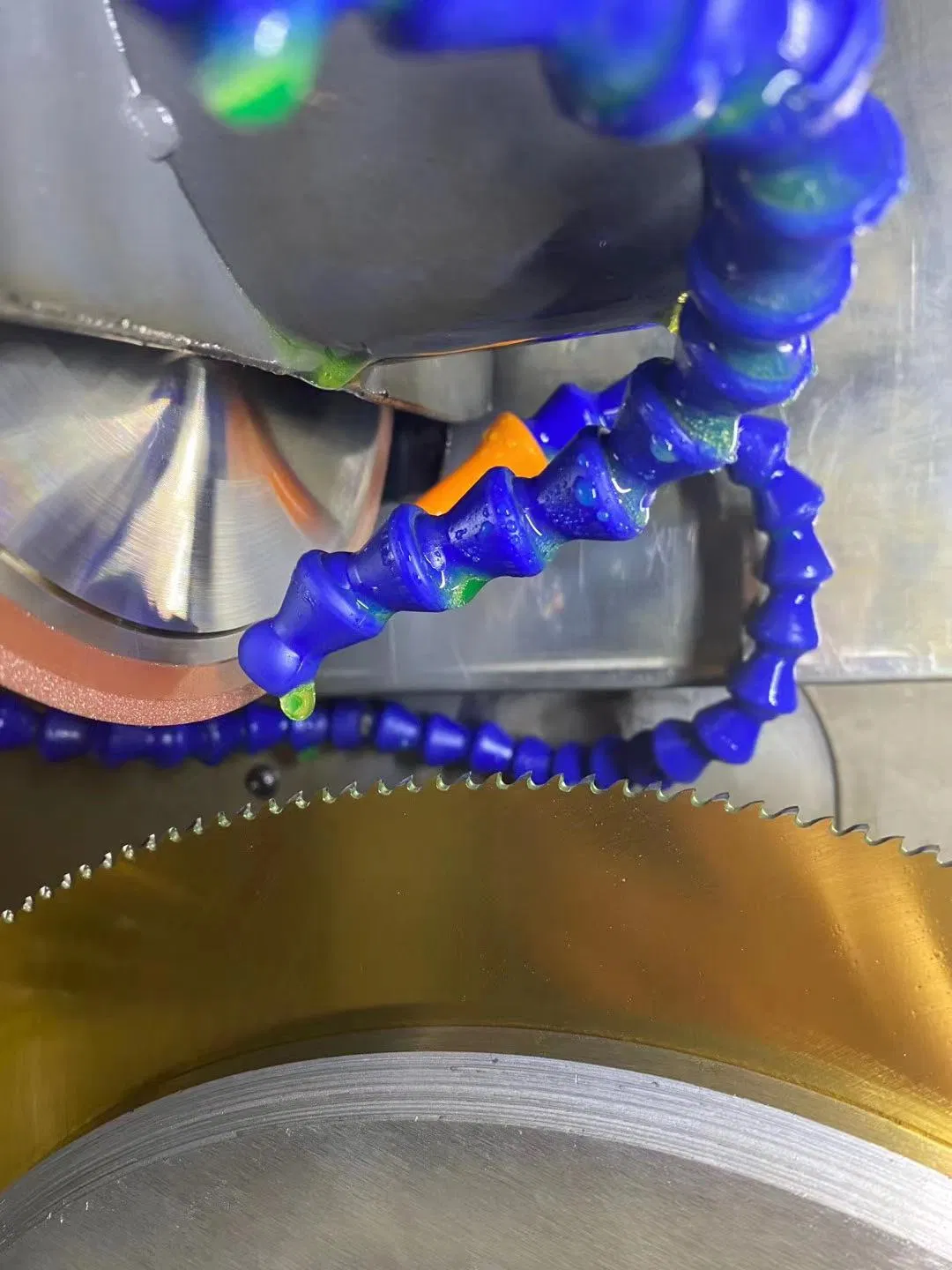

CNC HSS Saw Blade Sharpening Machine: A professional solution for sharpening Circular Saw Blades, Alloy Saw Blades, Carbide (TCT) Saw Blades, and Metal cutting blades.

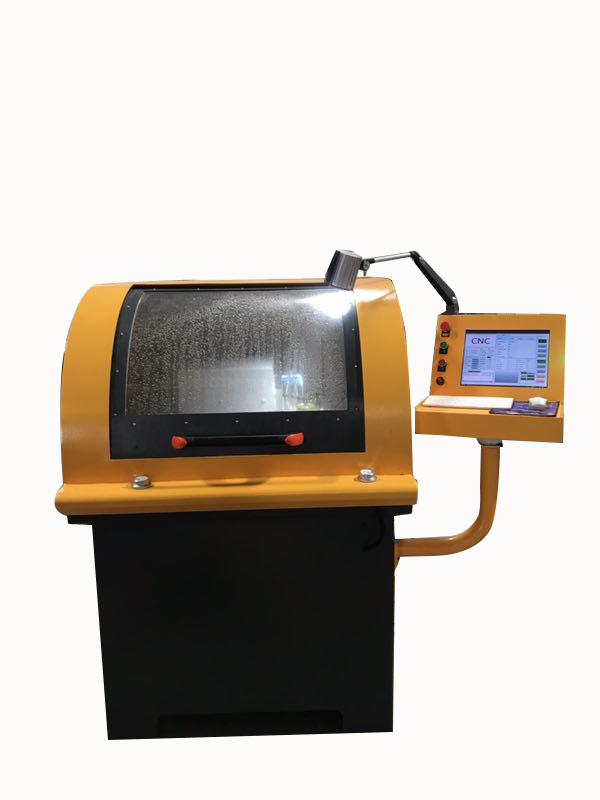

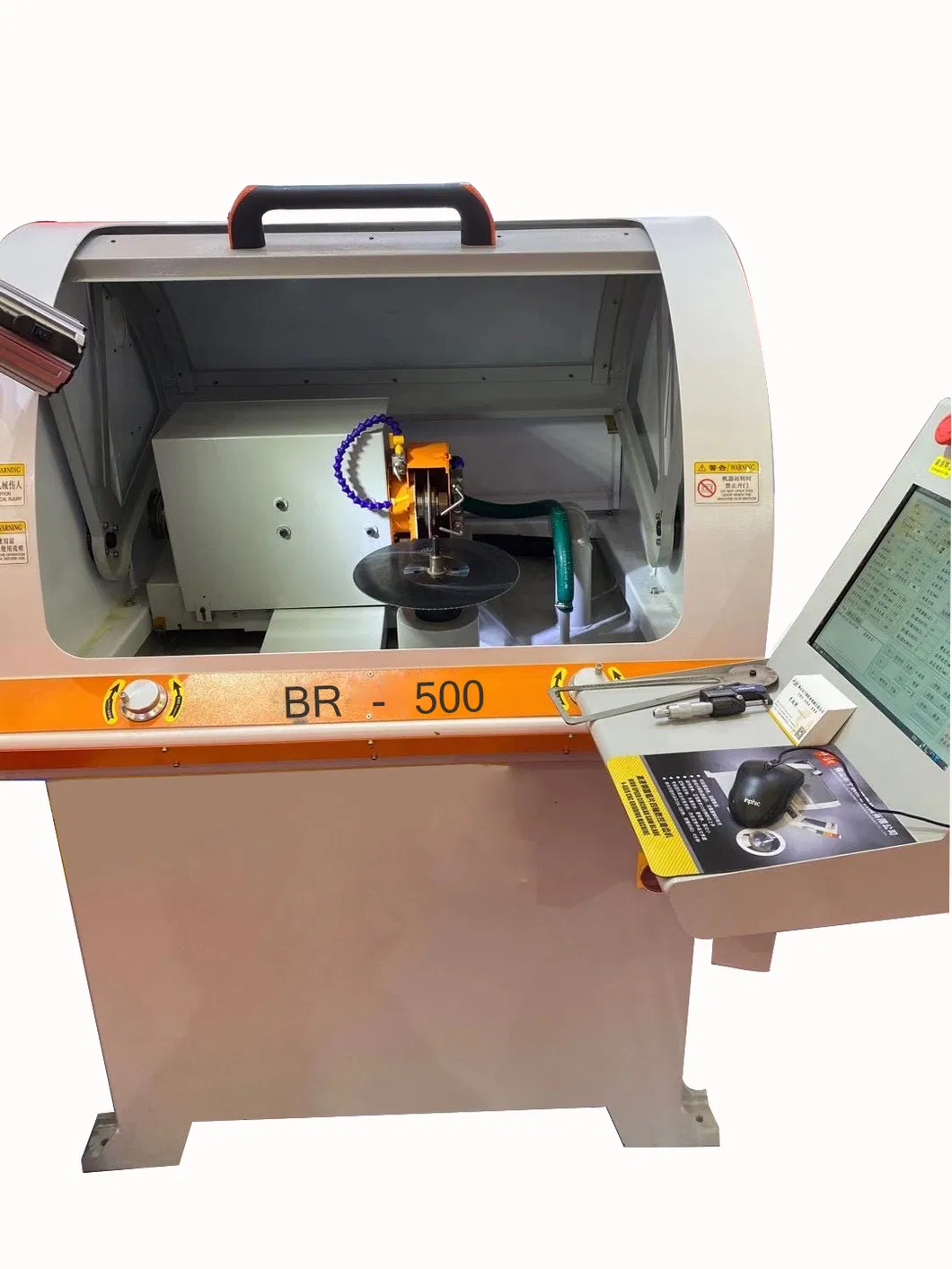

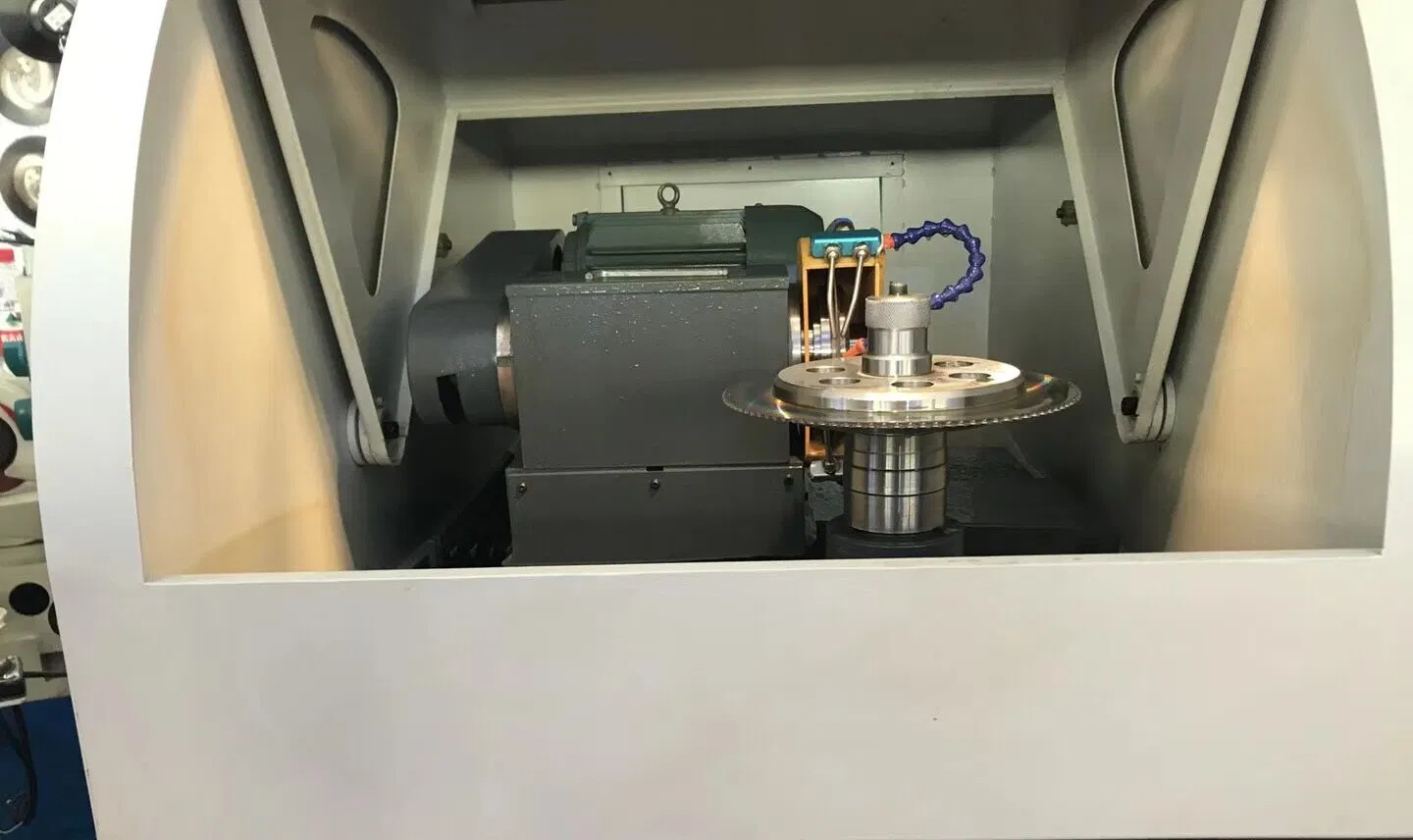

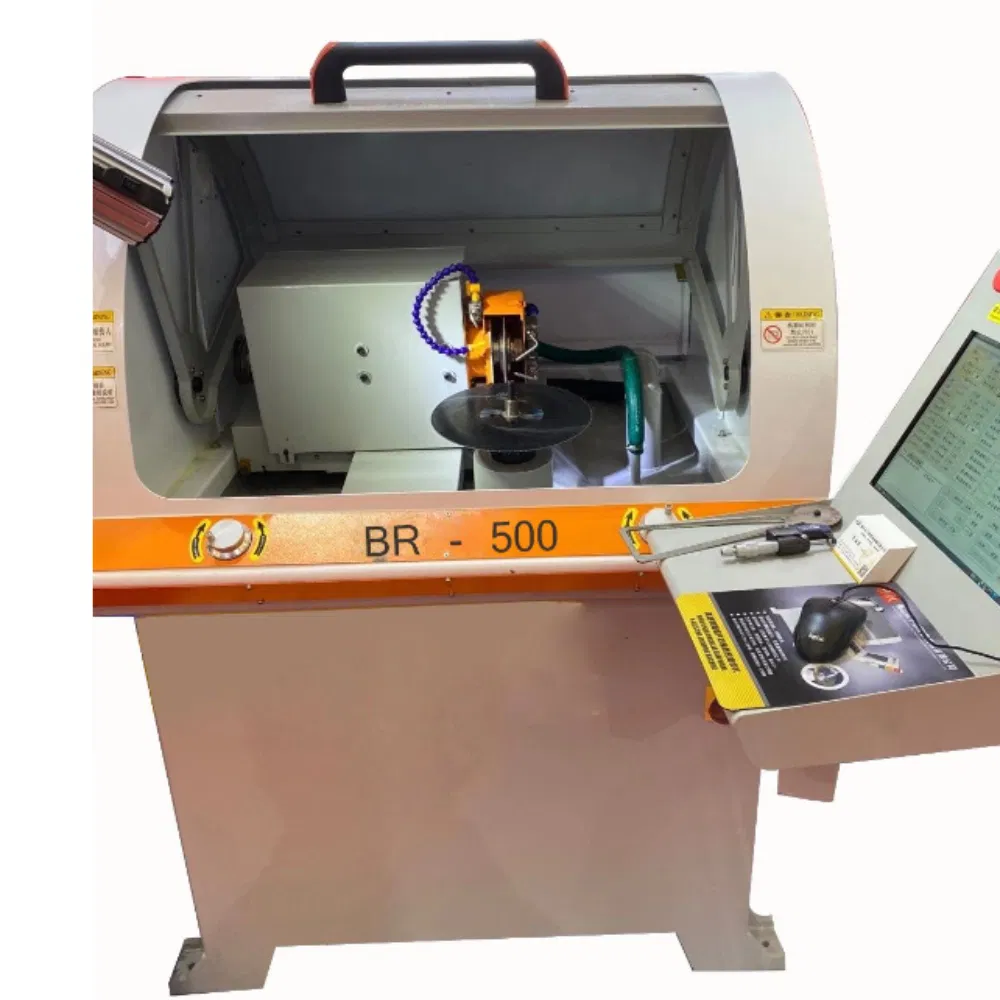

The BR-500 is a 4-axis CNC fully automatic saw blade sharpening machine. It is engineered for high speed and high accuracy, capable of sharpening a wide variety of tooth geometries to meet diverse industrial requirements.
| No. | Item Name | Specification | Remarks |
|---|---|---|---|
| 1 | Saw blade diameter | Φ80-450mm | Special parts needed <140mm |
| 2 | Max Saw blade thickness | 6mm | - |
| 3 | Saw blade hole | Φ22-25 , 4-32-40-50 | - |
| 4 | Teeth type | BW, CW > Φ200 | - |
| 5 | Degree | -10º to 28º | - |
| 6 | Teeth distance | Max 24mm | - |
| 7 | Teeth quantity | 10-999 teeth | - |
| 8 | Speed | 1-50 teeth/min | - |
| 9 | Grinding wheel power | 4 KW | - |
| 10 | Grinding wheel type | Cubic Boron Nitride (CBN) | - |
| 11 | Grinding wheel size | Φ200 | - |
| 12 | Feeding servo power | 0.75KW | - |
| 13 | Total Motor power | 6 KW | - |
| 14 | Machine size | 1500 X 1430 X 1690mm | - |
| 15 | Machine weight | 1380 kgs | - |
