Advanced CNC Glass Edge Grinding and Polishing System
Advanced CNC Glass Edge Grinding and Polishing System
Advanced CNC Glass Edge Grinding and Polishing System
Advanced CNC Glass Edge Grinding and Polishing System
Advanced CNC Glass Edge Grinding and Polishing System
1 / 5
Advanced CNC Glass Edge Grinding and Polishing System
Advanced CNC Glass Edge Grinding and Polishing System
Advanced CNC Glass Edge Grinding and Polishing System
Advanced CNC Glass Edge Grinding and Polishing System
Advanced CNC Glass Edge Grinding and Polishing System

Advanced CNC Glass Edge Grinding and Polishing System

Customization: Available
After-sales Service: 24 Hours Online
Warranty: One Year
Send Inquiry

Product Description

Basic Specifications
Model NO.
Zxx-C2010
Type
Glass Process Center
Processing Precision
0.01mm
Application
Glass Cabinet Table, Sinks, Shower Doors
Control System
PLC / Semi-Closed Loop
Max Motion Range
2700*1650mm
Glass Thickness
3-25mm
Functions
Drilling, Milling, Grinding, Polishing, Engraving
Power
13kw / 380V
Certification
CE, ISO 9001
Packaging & Delivery
Package Size
560.00cm * 320.00cm * 230.00cm
Gross Weight
4600.000kg
Lead Time
10 days (1 Unit); 45-60 days (Multi-units)
Product Description
Advanced CNC Glass Edge Grinding and Polishing System
Description Unit Parameter
Model Options-ZXX-C2010 / C2515 / C3015 / C4020 (Customizable)
Column StructureSetHeavy iron
Control SystemSetLEETRO
Spindle RPMRPM24000 (Water Cooled)
Spindle PowerKW7.5KW
Max Grinding Sizemm2500*1450mm
Max Milling Sizemm2700*1650mm
Positioning Accuracymm0.01
Max Process SpeedM/MIN3M/MIN
Stroke ProtectionPCOmron, Japan
Guide Screw/BearingPCHIWIN
LubricationSetAutomatic thermostat cooler

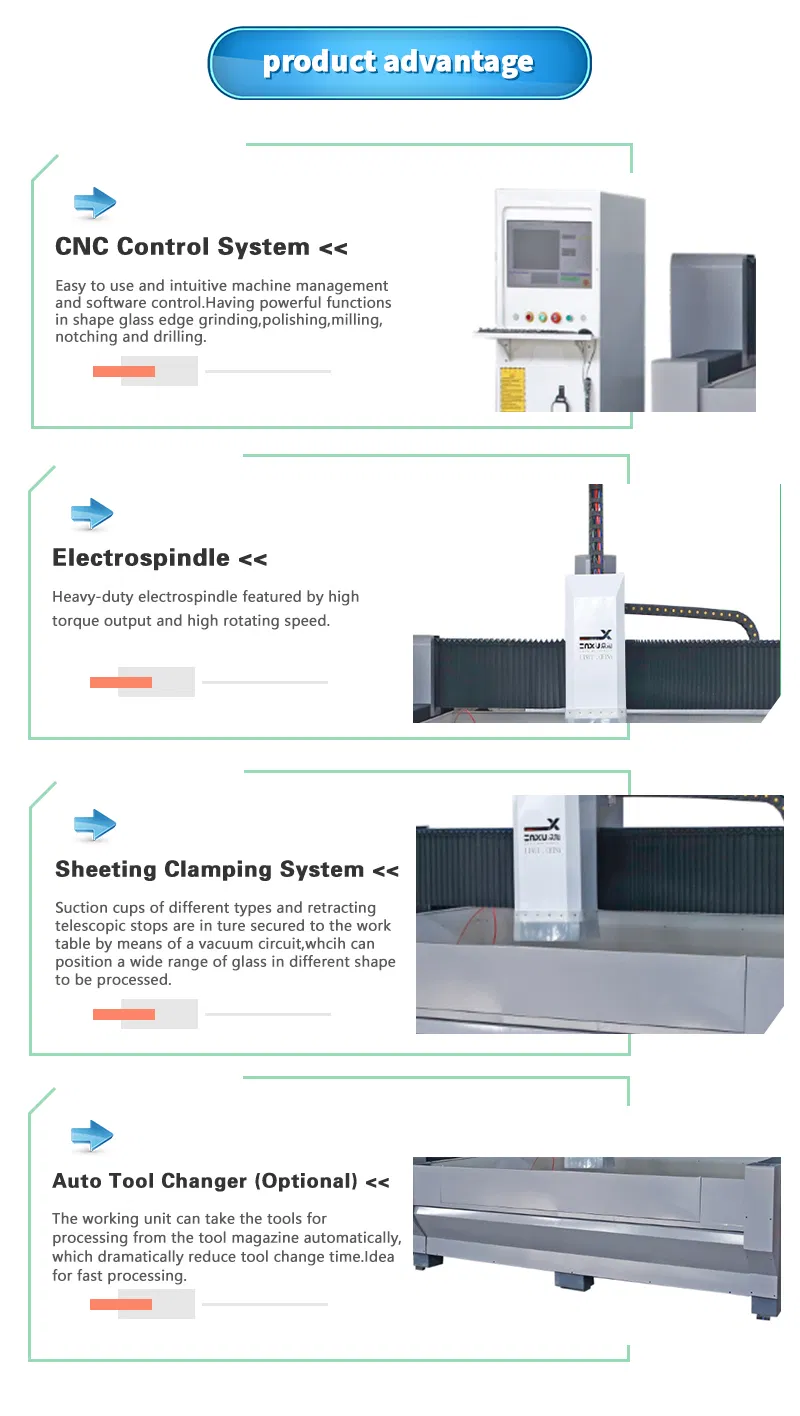

Machine Detail
Processing Samples

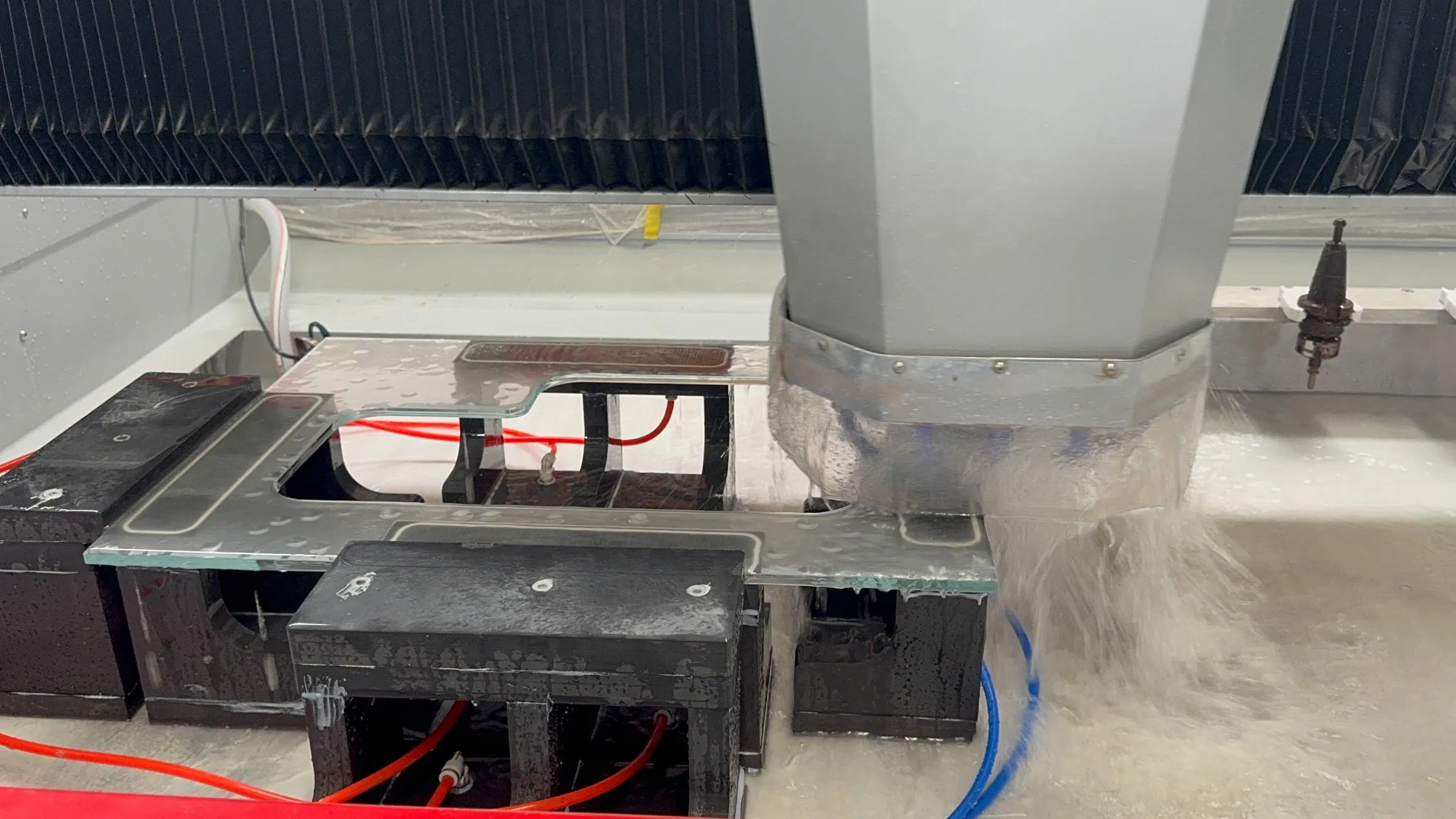

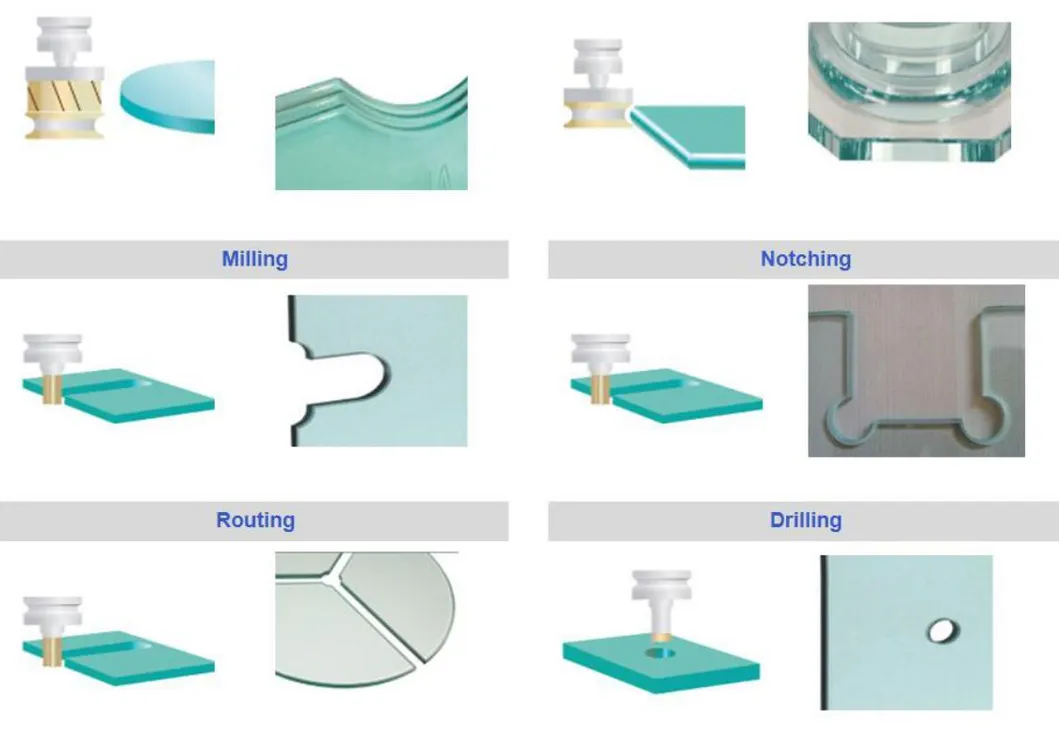

Processing 1

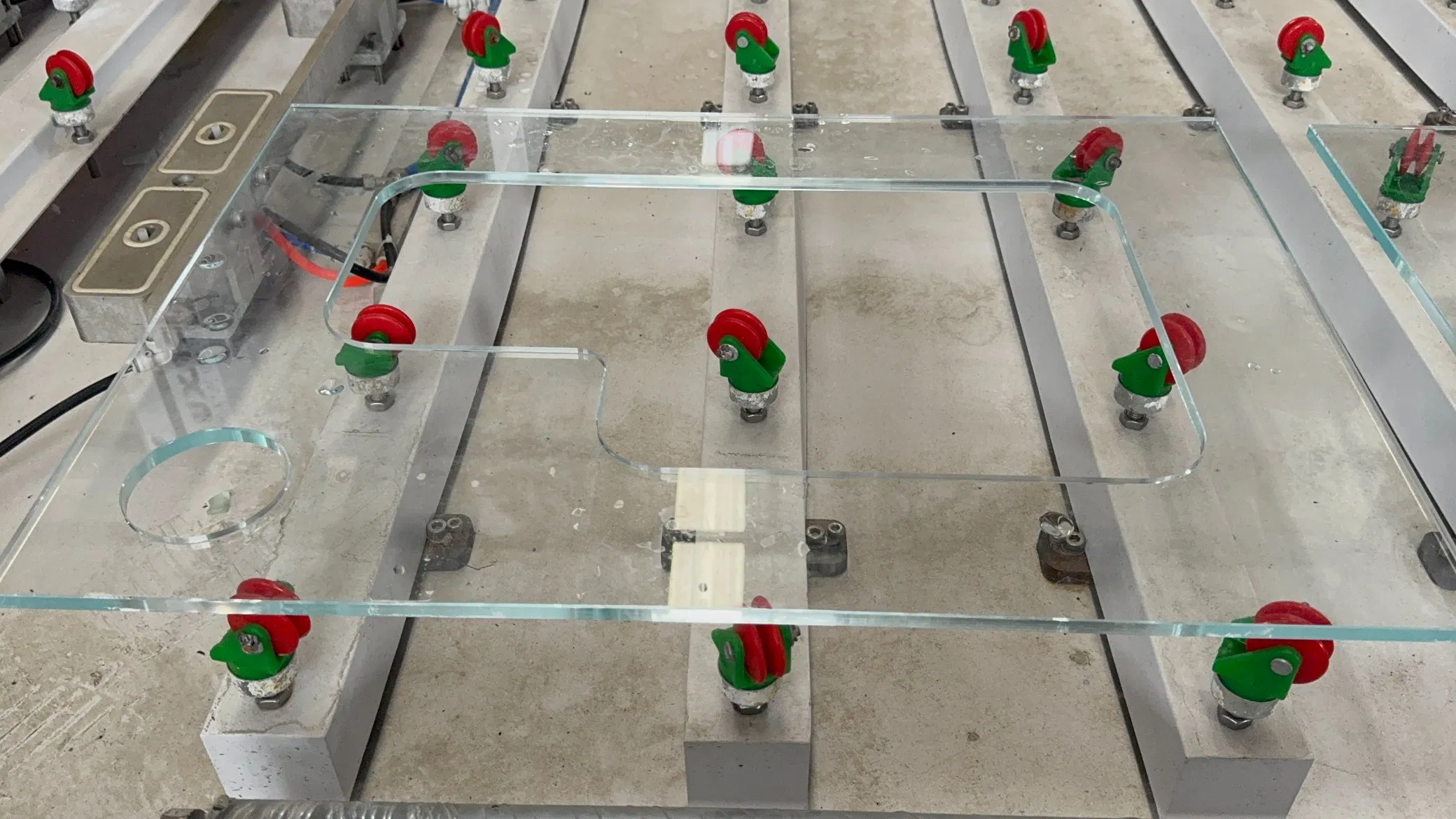

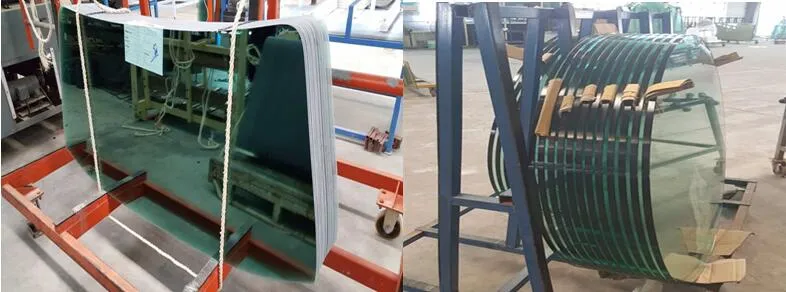

Processing 2

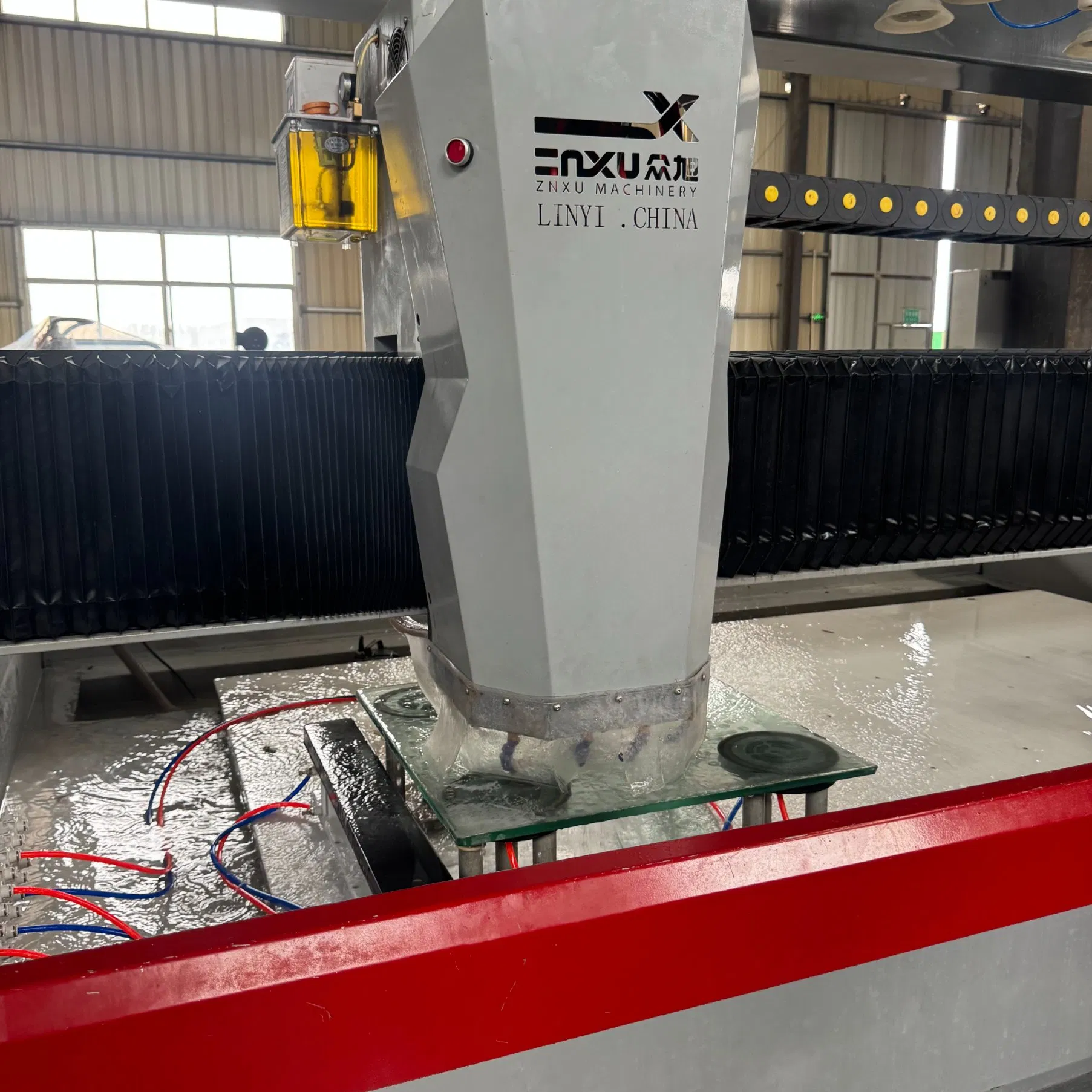

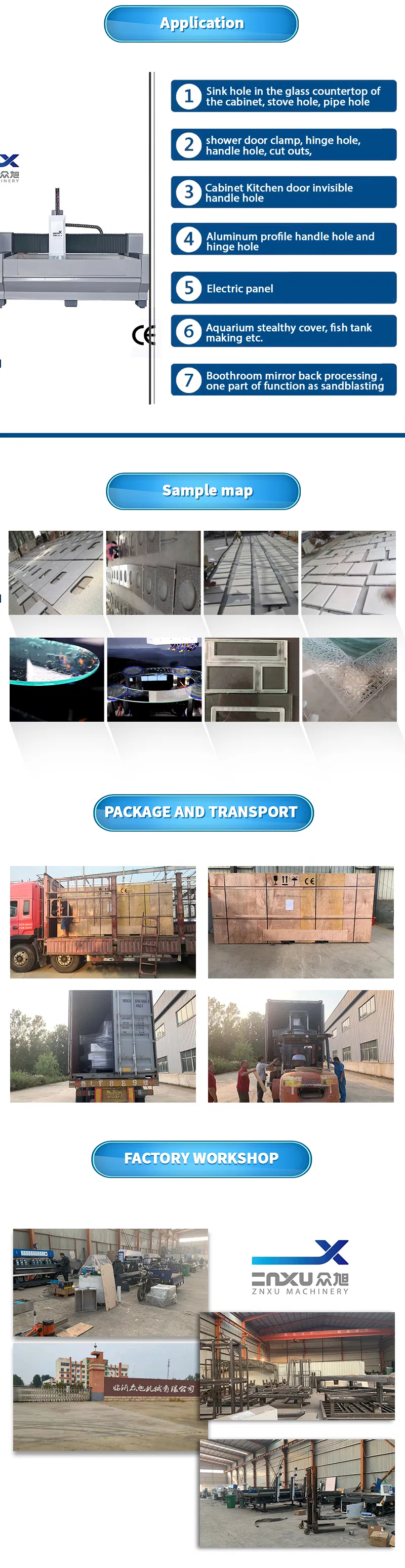

Sample Display
Detailed Dimensions
Service & Support
✔ On-site installation and after-sales support provided.
✔ Comprehensive operation manual and CD included.
✔ Free training and accommodation at our facility.
✔ One-year warranty with life-long maintenance.
✔ 24-hour technical support via online channels.
Machine Overview
Frequently Asked Questions
Q1: What is the processing precision of the Zxx-C2010? A: The machine offers high-end precision with a positioning accuracy of 0.01mm.
Q2: What thickness of glass can this machine handle? A: It is designed to process glass with a thickness ranging from 3mm to 25mm.
Q3: Which functions are integrated into this glass process center? A: This all-in-one system handles drilling, milling, grinding, polishing, and engraving.
Q4: Does the machine require complex assembly upon arrival? A: No, the machine is shipped as one whole part to ensure structural integrity and easy setup.
Q5: What kind of warranty and technical support do you offer? A: We provide a one-year warranty on main parts and 24-hour technical support via email or online messaging tools.
Q6: Can the machine's voltage be customized? A: Yes, the standard is 380V/50Hz, but it can be adjusted according to specific regional requests.
