Rowdai Factory Price CNC Vertical Machining Center Vmc 1160 CNC Milling Machine
Rowdai Factory Price CNC Vertical Machining Center Vmc 1160 CNC Milling Machine
Rowdai Factory Price CNC Vertical Machining Center Vmc 1160 CNC Milling Machine
Rowdai Factory Price CNC Vertical Machining Center Vmc 1160 CNC Milling Machine
Rowdai Factory Price CNC Vertical Machining Center Vmc 1160 CNC Milling Machine
1 / 5
Rowdai Factory Price CNC Vertical Machining Center Vmc 1160 CNC Milling Machine
Rowdai Factory Price CNC Vertical Machining Center Vmc 1160 CNC Milling Machine
Rowdai Factory Price CNC Vertical Machining Center Vmc 1160 CNC Milling Machine
Rowdai Factory Price CNC Vertical Machining Center Vmc 1160 CNC Milling Machine
Rowdai Factory Price CNC Vertical Machining Center Vmc 1160 CNC Milling Machine

Rowdai Factory Price CNC Vertical Machining Center Vmc 1160 CNC Milling Machine

Customization: Available
After-sales Service: Video Call Videos Pictures Calls Emails
Warranty: 1 Year
Send Inquiry

Product Description

📋 Basic Information
Model NO.
VMC1160
Application
Metal
Numerical Control
CNC/MNC
Processing Precision
0.005mm
X Axis Travel
1100mm
Y Axis Travel
600mm
Z Axis Travel
600mm
Table Size
1200*600mm
Max. Loading
800kgs
Spindle Speed
8000-12000rpm
🔍 Product Description

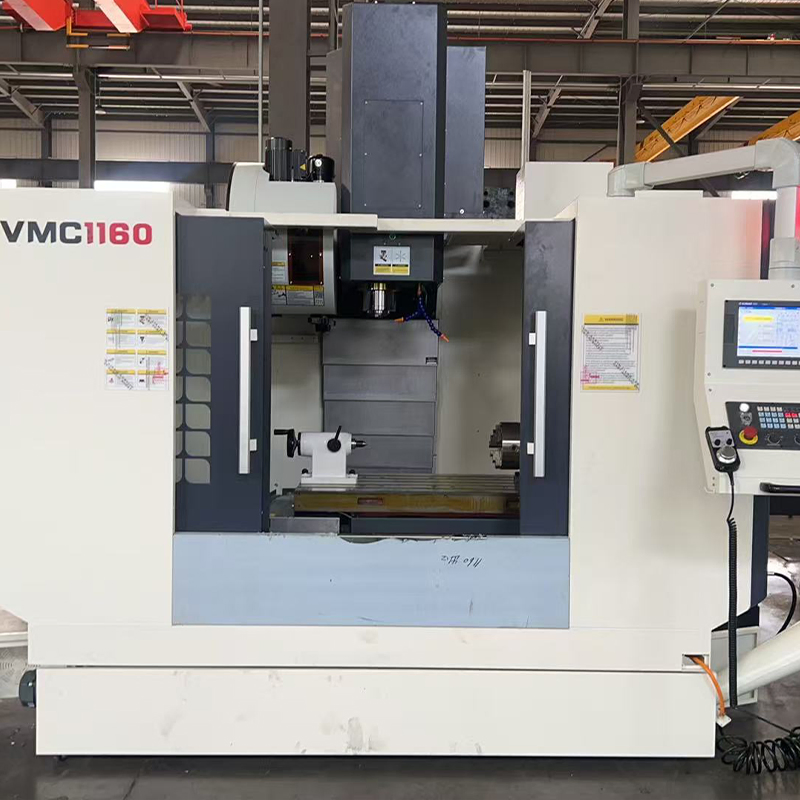

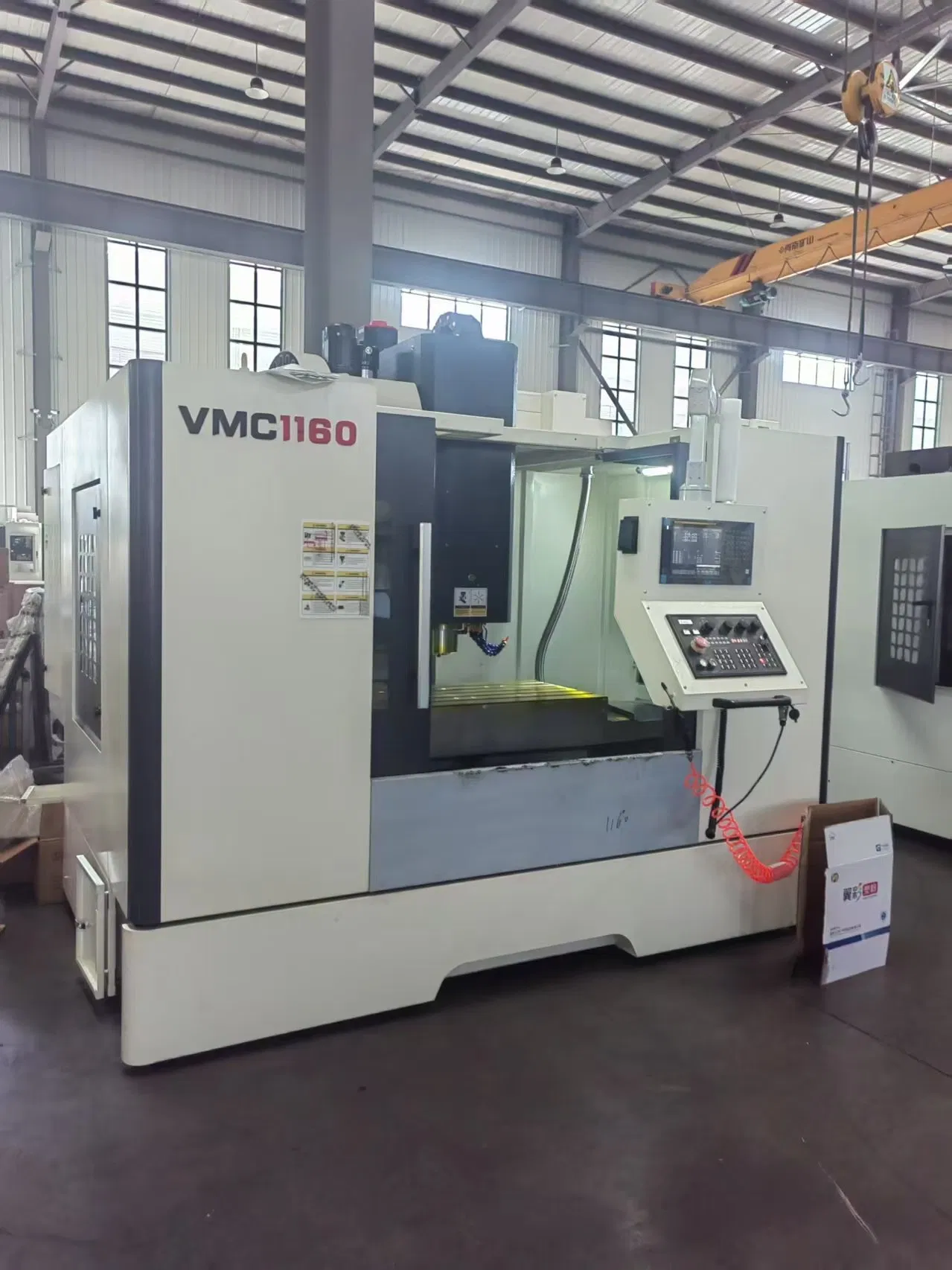

CNC Vertical Machining Center / CNC Milling Machine

The machining centre features high-precision X, Y, and Z axis control, driven by a powerful servo motor. Equipped with a tool magazine capacity of 16-24 tools (optional), it is designed for efficiency and versatility.

It performs complex operations including drilling, milling, boring, reaming, and tapping on components such as discs, plates, housings, and moulds in a single setup.

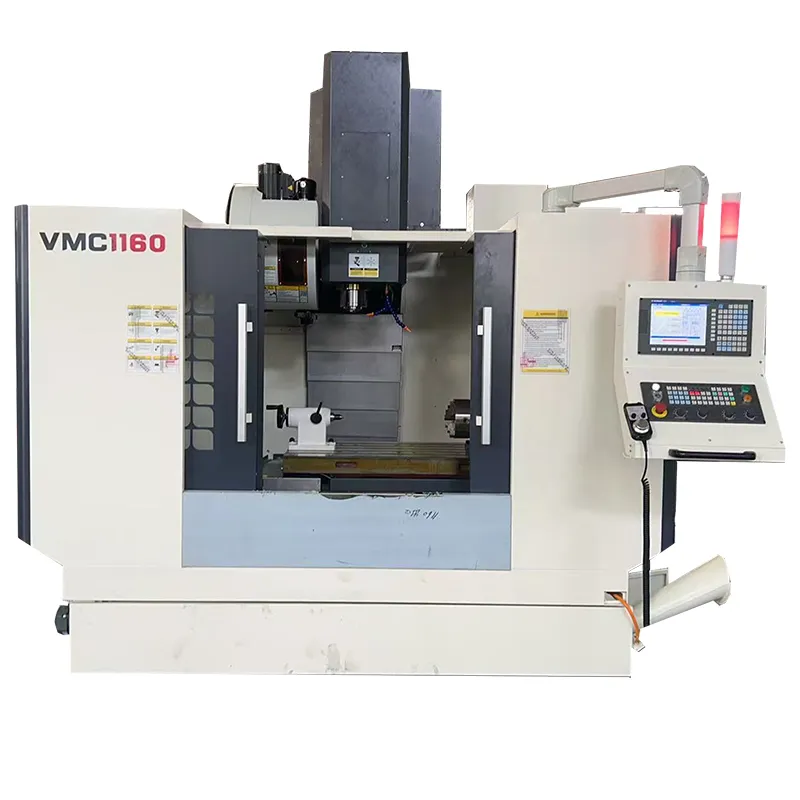

CNC Vertical Machining Center
🚀 Key Applications
  • Automotive: Engine blocks, gearbox housings, wheel hubs, and molds.
  • Aerospace: Impellers, blades, and aircraft structural components.
  • Energy: Turbine impellers and steam turbine rotors.
  • 3C Electronics: Mobile phone casings and precision electronics parts.
  • Medical: Precision instruments, artificial joints, and surgical tools.
🛠️ Technical Components

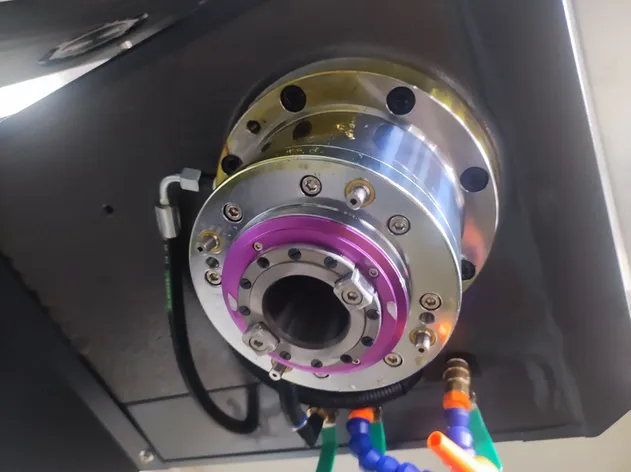

Spindle Unit
High-Speed Spindle

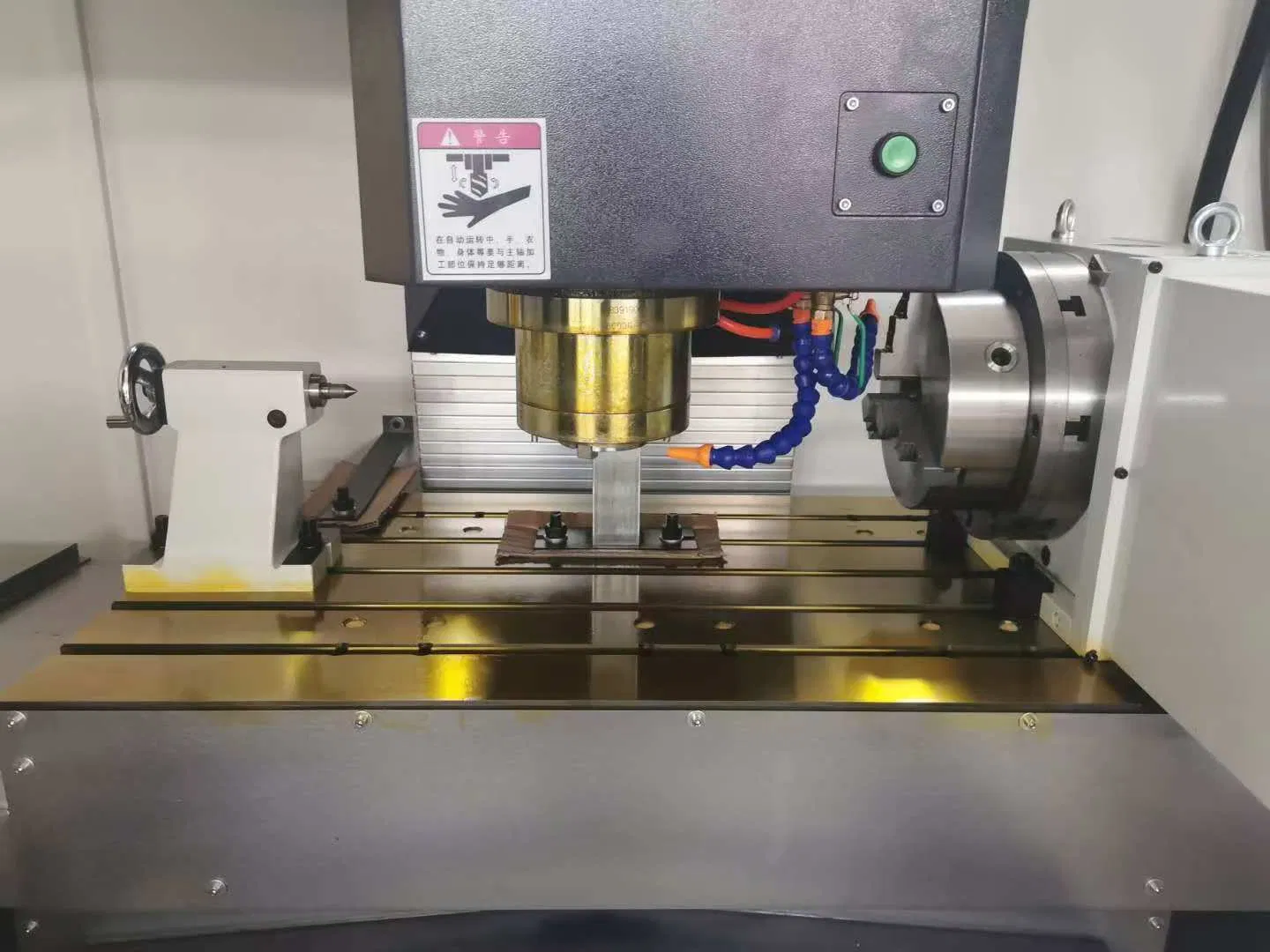

4th Axis
Optional 4th-Axis

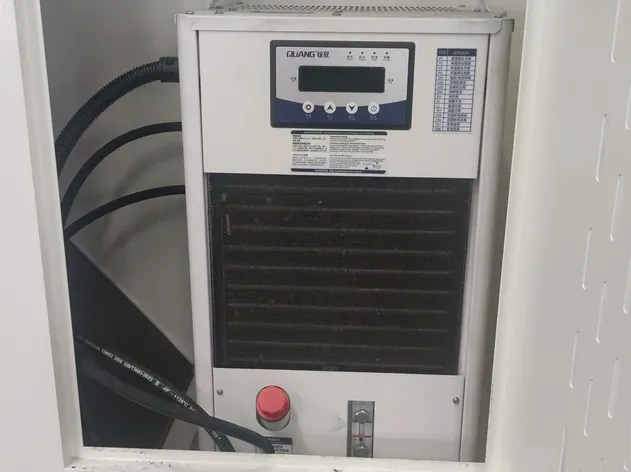

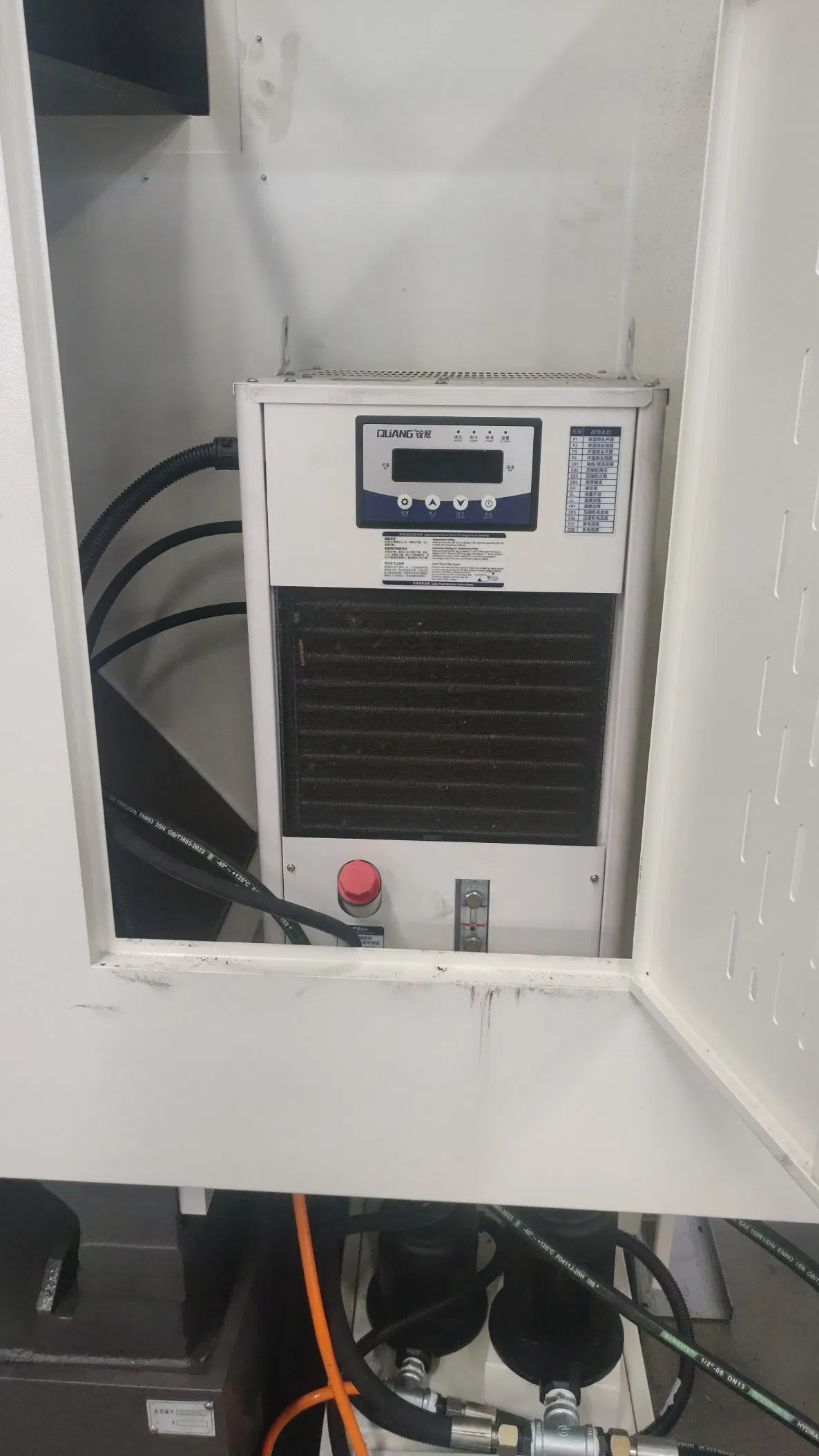

Oil Cooler
Precision Oil Cooler

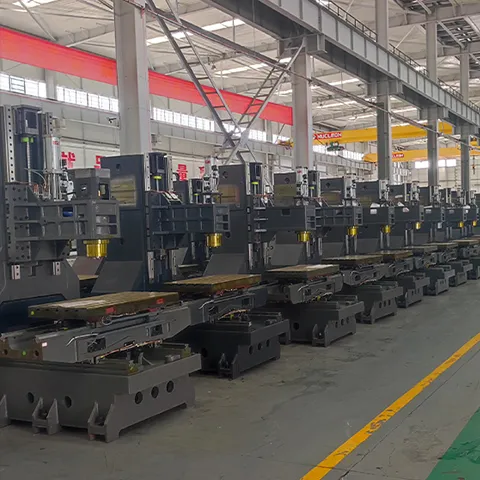

HT300 Casting Bed
HT300 Stable Casting Bed
Tool Magazine
24PCS Tool Magazine

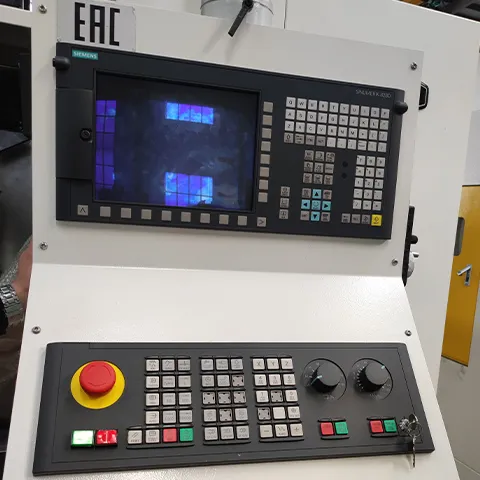

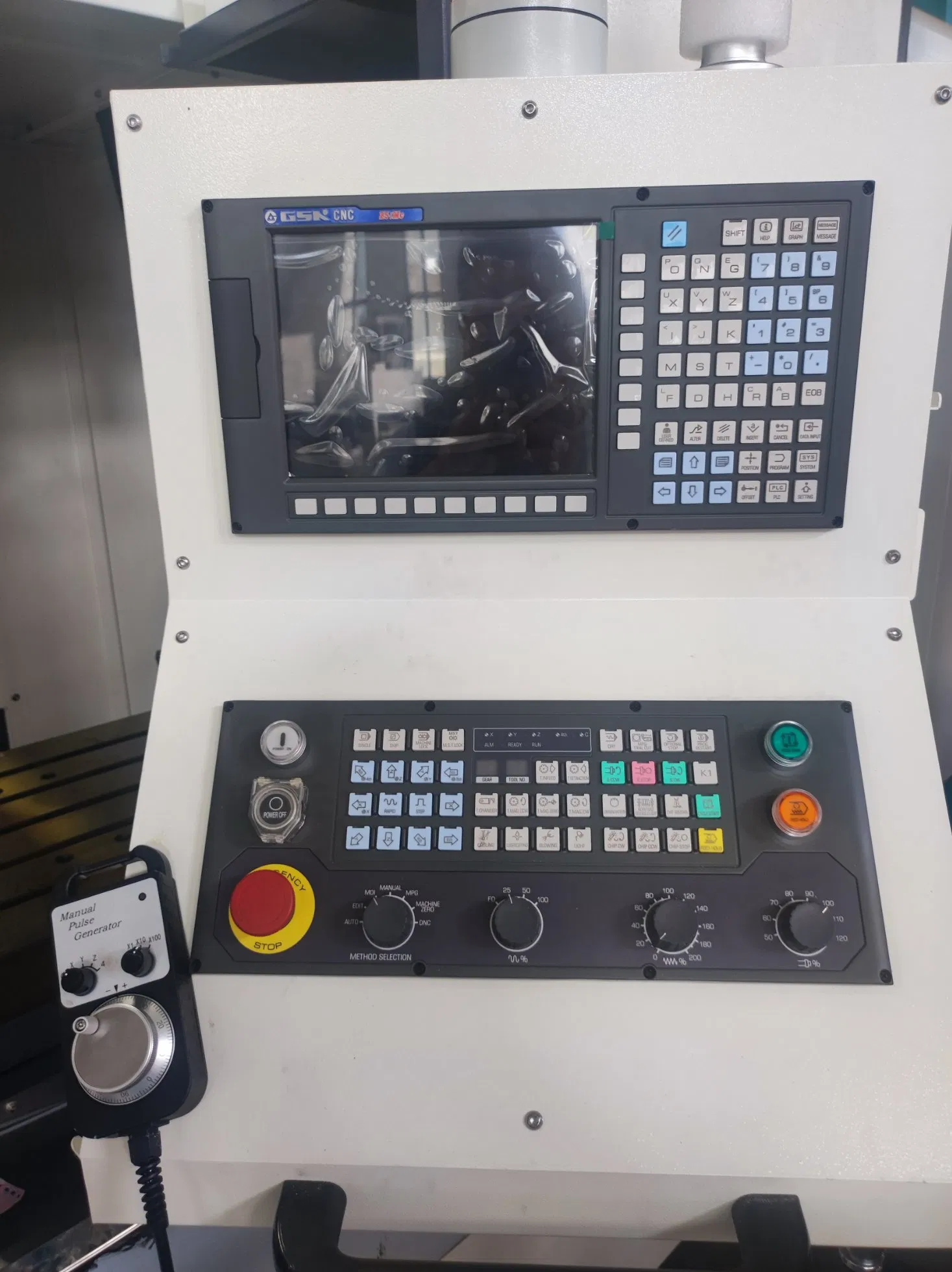

Control System
CNC Systems (FANUC/Siemens)
📊 Technical Specifications
No. Specification Unit VMC1160 Detail
1X/Y/Z axis Travelmm1100*600*600
2Distance from spindle nose to tablemm120-720
3Worktable sizemm1200*600
4Max. loadingkg800
5Spindle taper-BT40-150
6Spindle speedrpm8000 belt type
7Spindle motorKw11
8Rapid move speed (X/Y)m/min24
9Cutting speedmm/min1-10000
10Positioning accuracymm±0.008

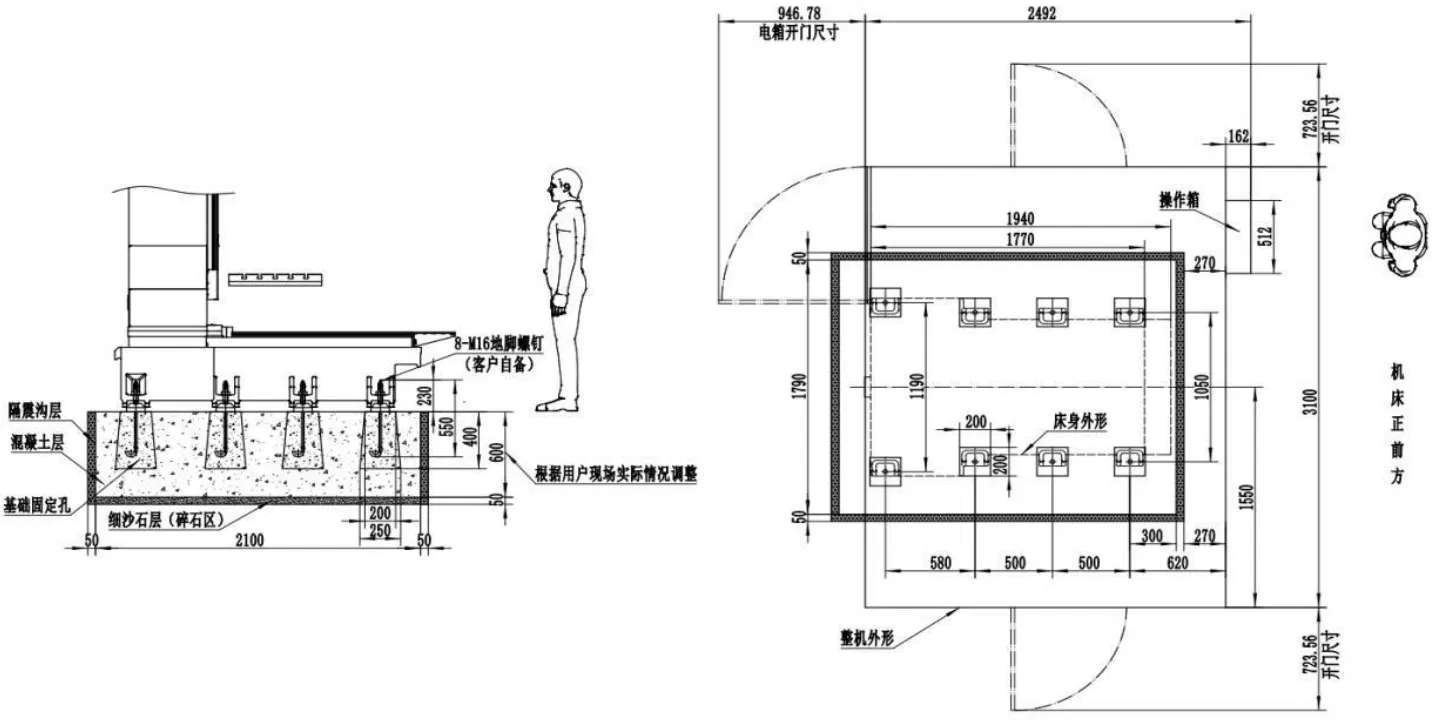

📐 Drawings & Dimensions

Foundation and detailed dimension drawings are available for download to assist with site preparation and installation.

Dimensions Drawing
🛡️ After Sales Service
  • Standard Warranty: 12 months comprehensive coverage.
  • Global Support: 24/7 technical assistance and spare parts supply.
  • Training: Comprehensive on-site or remote operation and maintenance training.

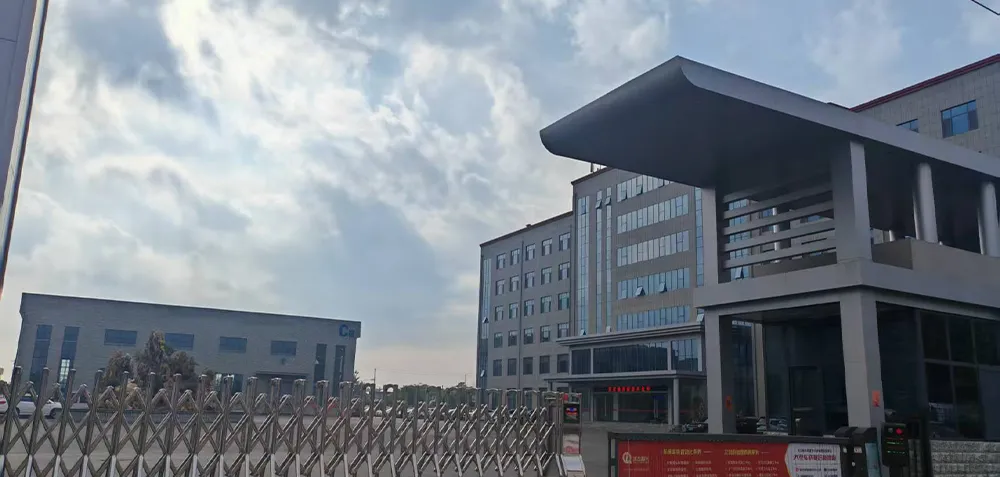

Facility View
❓ Frequently Asked Questions
What's the lead time for orders?
Standard models ship in 15–25 days; customized units require 30-35 days depending on complexity.
What are your main products?
We offer a wide range of machinery including CNC Lathes, Milling Machines, Vertical and Horizontal Machining Centres, Boring Machines, and EDM Machines.
What is your warranty policy?
We provide a 1.5-year warranty, and there is no time limit for technical support regarding operational issues.
Do you provide custom-made services?
Yes, we provide OEM/ODM services based on your specific drawings and processing requirements.
What is the Minimum Order Quantity (MOQ)?
The MOQ is just one set!
Which trade terms do you accept?
We accept EXW, FOB, CIF, and DDP terms to suit your logistics preferences.
