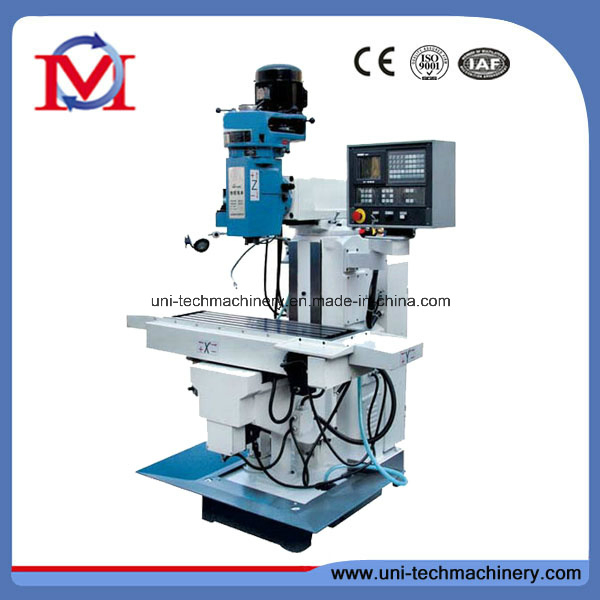

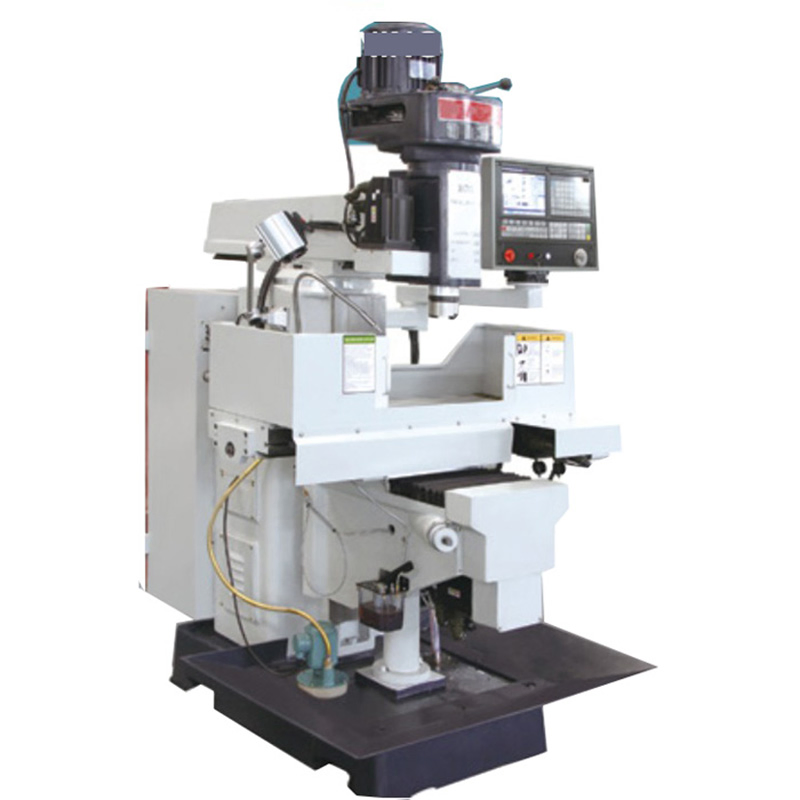

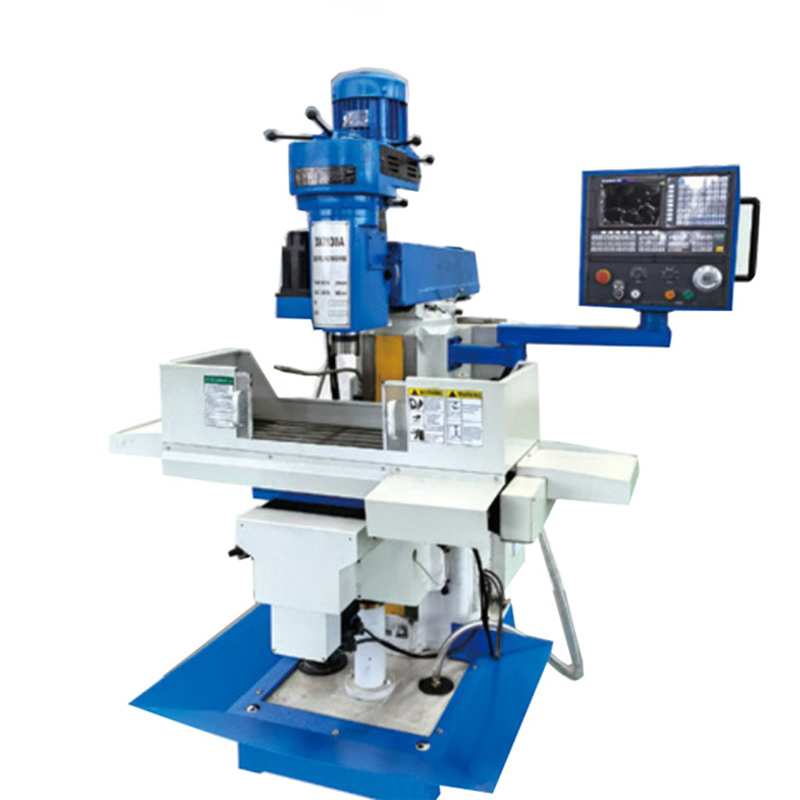

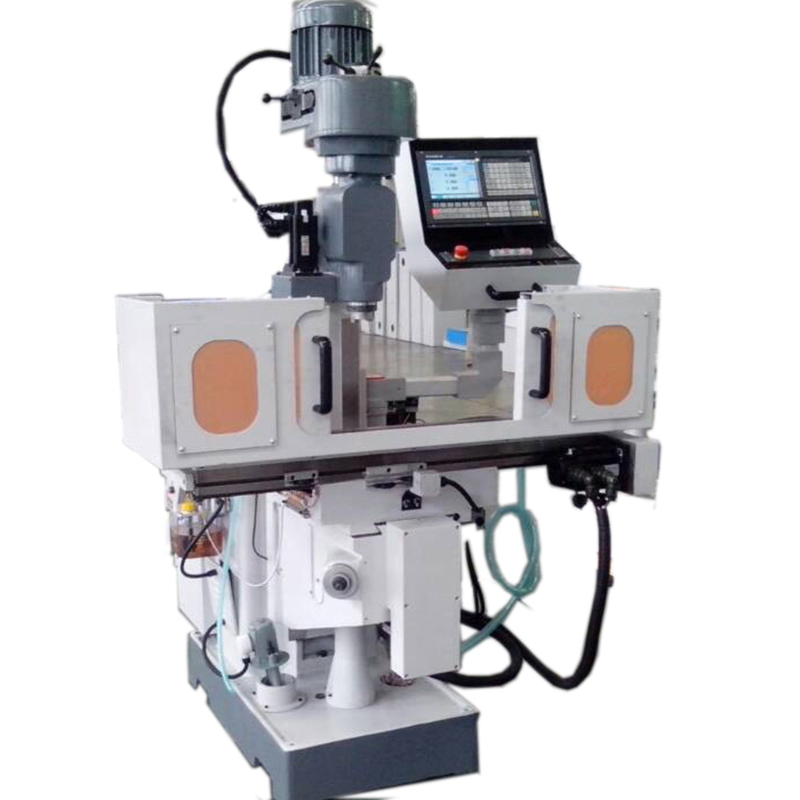

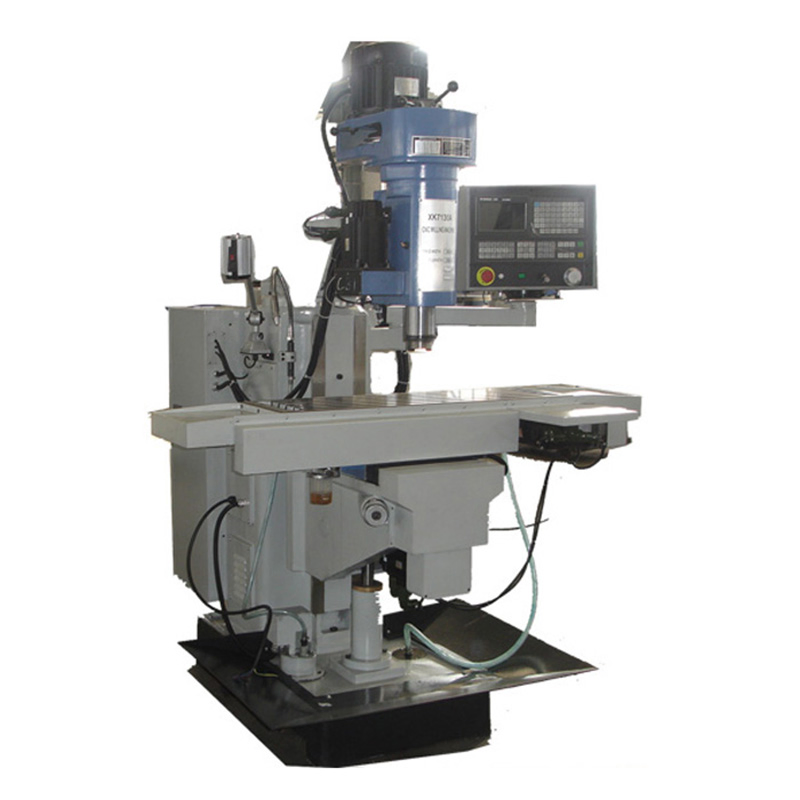

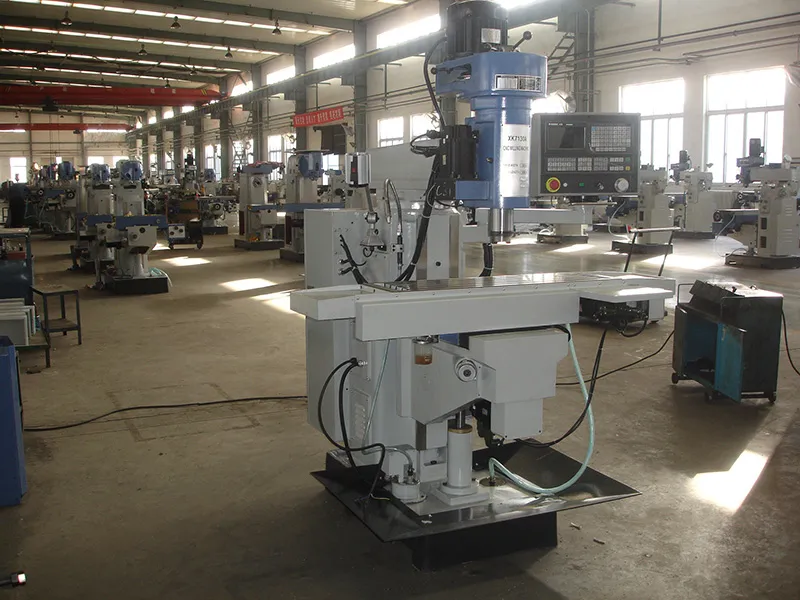

CNC Turret Milling Machine (XK7130A)
This CNC Milling Machine is a versatile tool designed for milling, boring, and drilling operations. It is exceptionally suitable for performing various procedures including plane surface machining, inclined surface work, slotting, gear cutting, spline, and groove creation. It meets the rigorous demands of maintenance and manufacturing across various enterprises, specifically for manufacturing tools, fixtures, and dies.
Composed of high-quality base, table, column, and milling head for maximum stability.
Equipped with standard GSK980MDA CNC system for efficient automatic processing.
Includes built-in lubrication and cooling systems for prolonged tool life.

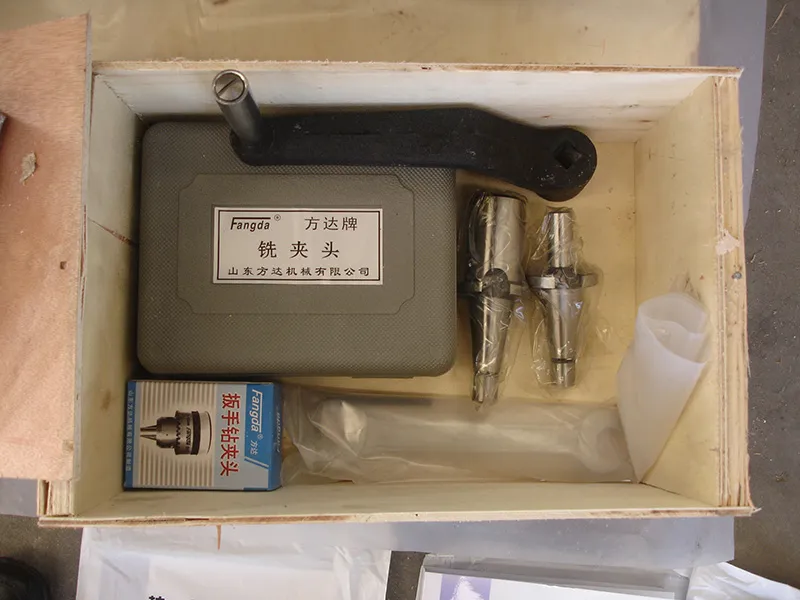

Standard Configuration:
Optional Configuration:
HNC-18i/21MD, GSK-983M or KND-100Mi CNC systems are available upon request.
| Specification | Unit | XK7130A |
|---|---|---|
| X-axis travel | mm | 460 |
| Y-axis travel | mm | 210 |
| Z-axis travel | mm | 360 |
| Spindle nose to table | mm | 120-480 |
| Spindle center to column guide-way face | mm | 200-500 |
| High speed feeding of X, Y axis | mm/min | 3000 |
| Feeding speed | mm/min | 1-2000 |
| Size of working table | mm | 1000× 280 |
| Max. loading capacity of rotary table | mm | 100 |
| T-slot NO. /width/distance of rotary table | 3× 14× 63 | |
| Spindle speed range/step | r/min | 66-4540/16steps |
| Main motor rated power | Kw | 2.2(3HP) |
| Spindle hole taper | 7: 24 ISO30 | |
| Net Weight | KG | 1300 |
| Overall dimension | mm | 1540× 1340× 2130 |
