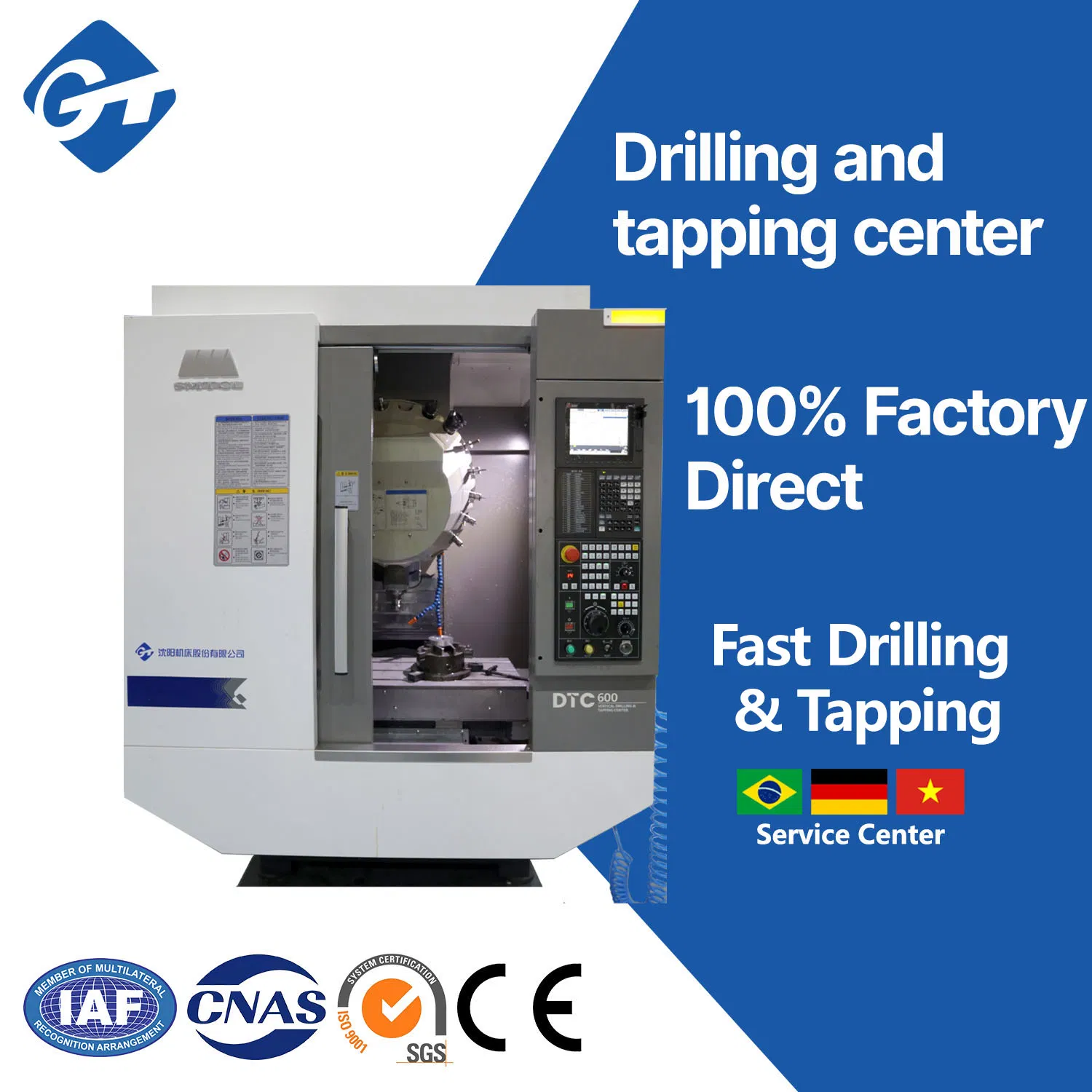

Small Vertical Machining Center Fresdaora CNC Drilling and Tapping Center
Small Vertical Machining Center Fresdaora CNC Drilling and Tapping Center
Small Vertical Machining Center Fresdaora CNC Drilling and Tapping Center
Small Vertical Machining Center Fresdaora CNC Drilling and Tapping Center
Small Vertical Machining Center Fresdaora CNC Drilling and Tapping Center
1 / 5
Small Vertical Machining Center Fresdaora CNC Drilling and Tapping Center
Small Vertical Machining Center Fresdaora CNC Drilling and Tapping Center
Small Vertical Machining Center Fresdaora CNC Drilling and Tapping Center
Small Vertical Machining Center Fresdaora CNC Drilling and Tapping Center
Small Vertical Machining Center Fresdaora CNC Drilling and Tapping Center

Small Vertical Machining Center Fresdaora CNC Drilling and Tapping Center

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📊 Overview - Basic Information
Model NO.
DTC600
Application
Metal
Process Usage
Metal-Forming CNC Machine Tools
Movement Method
Point to Point Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.4~0.6
Certification
CE, ISO 9001
Worktable Size
700×420mm
Max Travel (X/Y/Z)
600mm / 400mm / 330mm
Package Size
1800.00cm * 2400.00cm * 2600.00cm
Gross Weight
3200.000kg
⚙️ Product Description

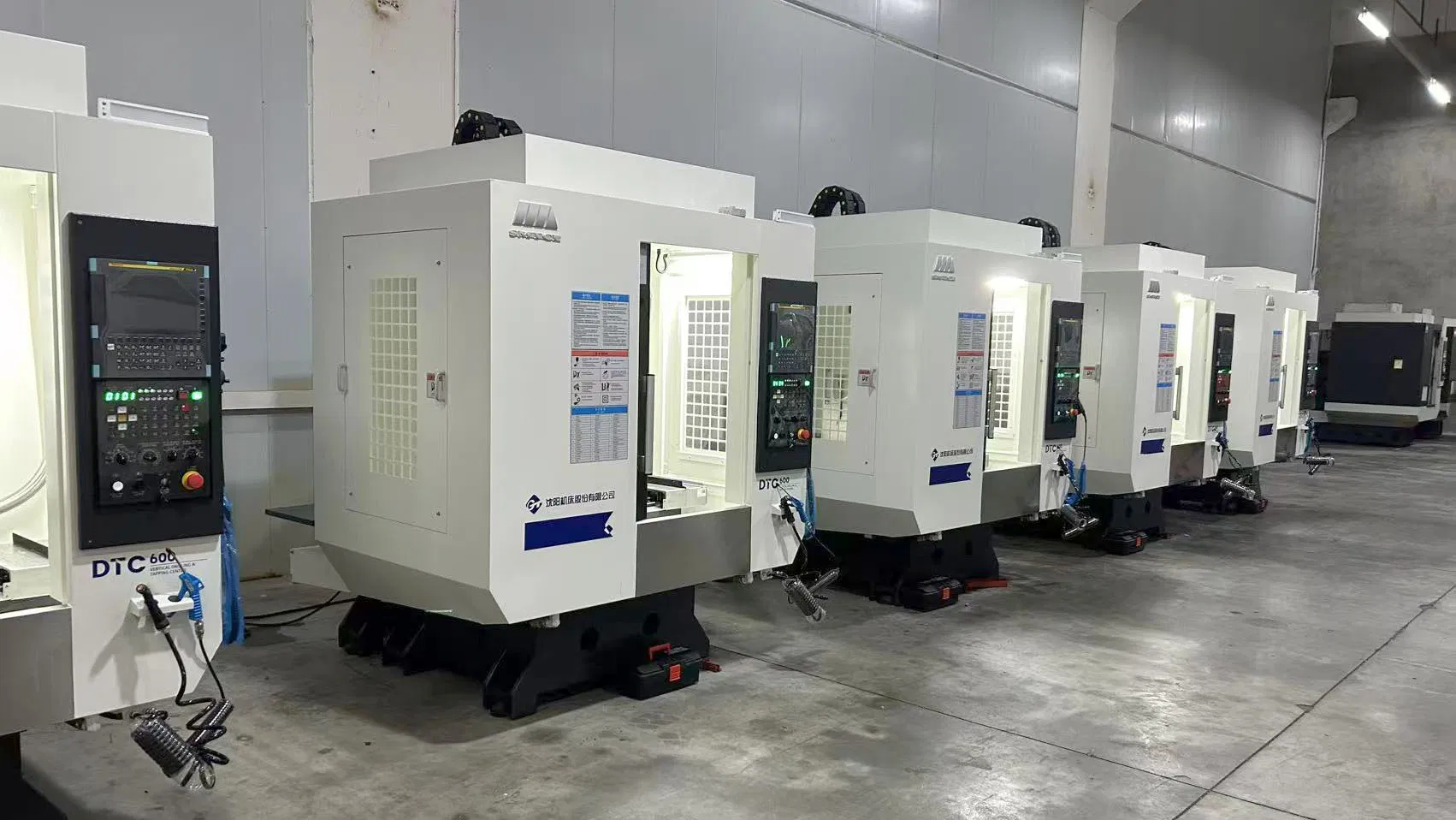

Vertical Machining Center

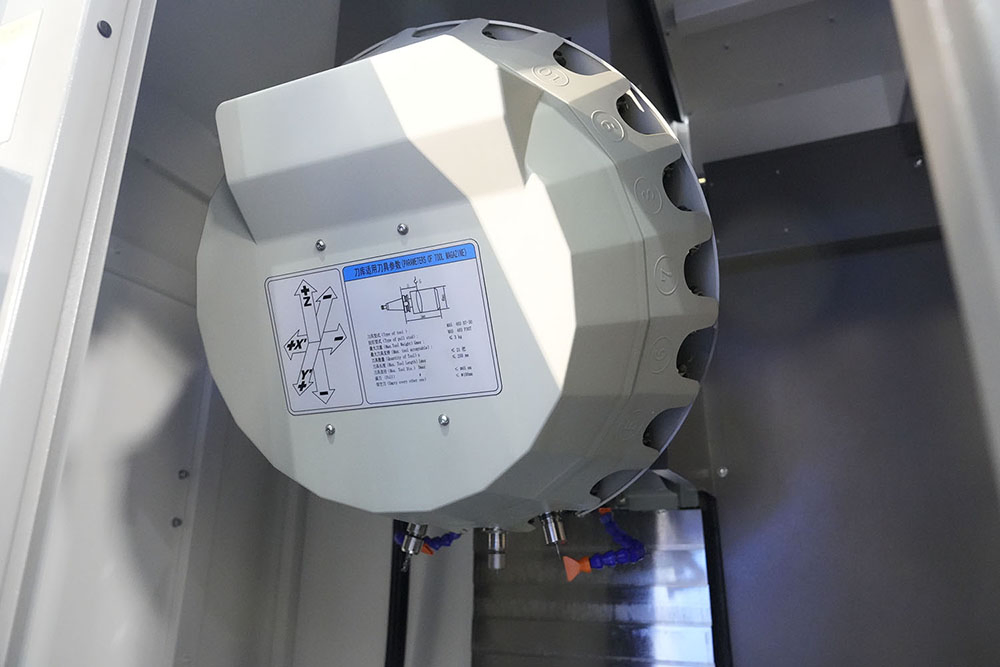

Tool Changer Detail

Automatic tool changer enables fast switching

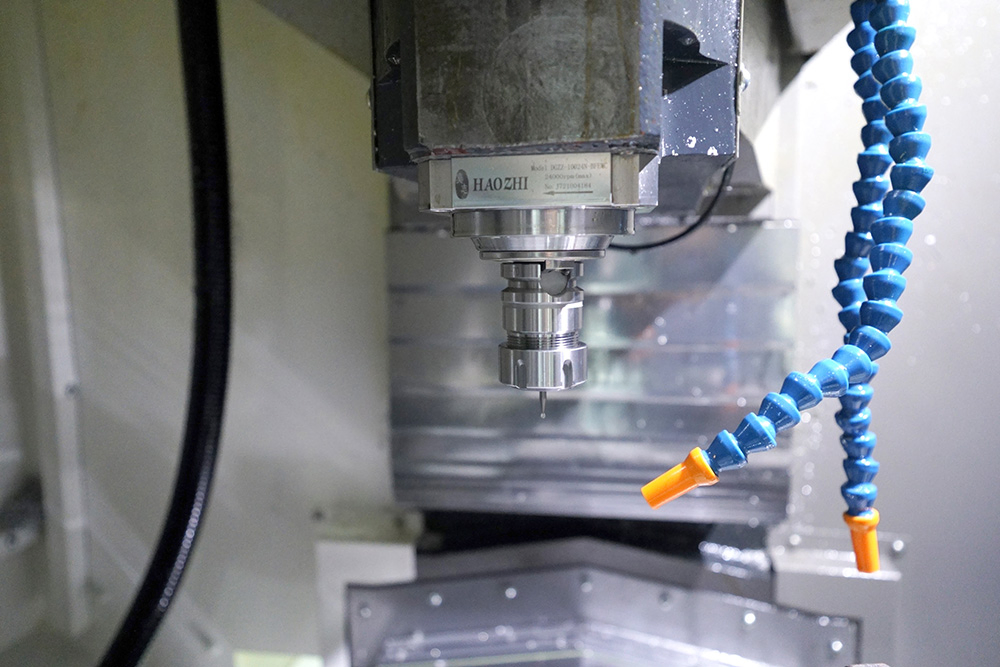

Spindle System

High-speed spindle with coolant system

  • 🔹 High Efficiency CNC Drilling & Tapping Center for Precision Machining
  • 🔹 Equipped with high-speed spindle and advanced CNC system
  • 🔹 Optimized machine structure with high rigidity casting
  • 🔹 Automatic tool changer (ATC) significantly reduces non-cutting time
  • 🔹 Suitable for aluminum, steel, copper and other metal parts

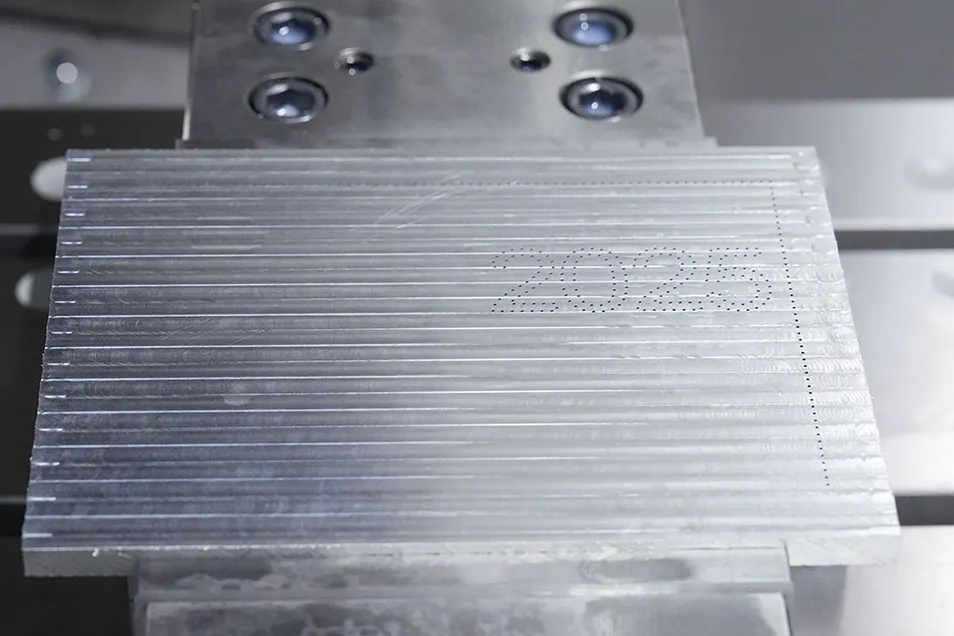

Precision Machining

Ensures high precision machining

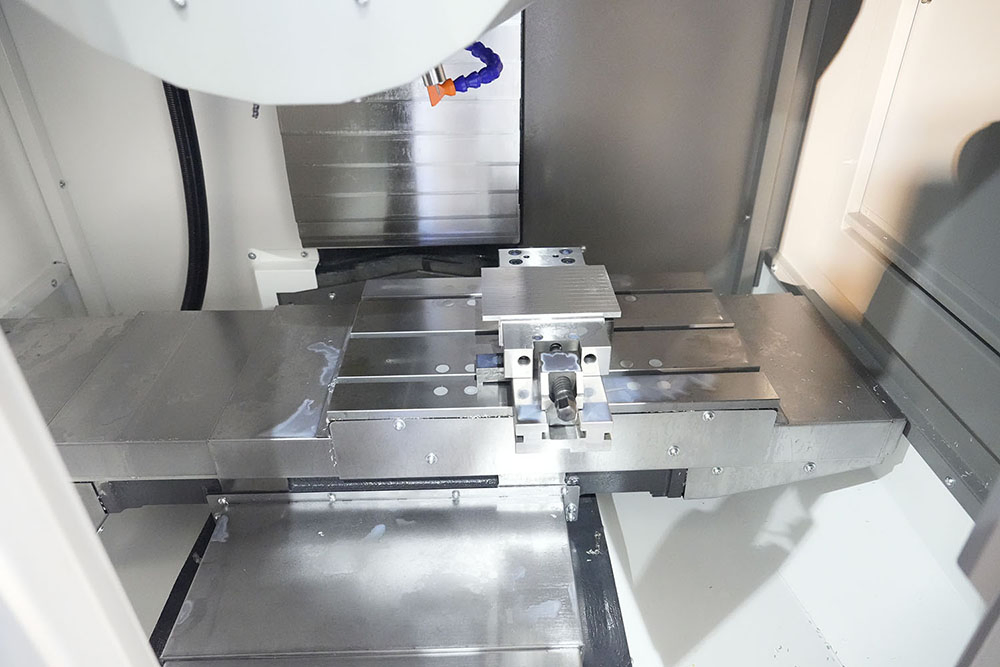

Stable Worktable

Rigid worktable for stable clamping

📋 Technical Specifications
Item Unit DTC500 DTC600
Worktable Sizemm650×400700×420
Maximum allowable loadkg250250
Max travel of table-x axismm500600
Max trave of slide-Y axismm400400
Max travel of spindle-Z axismm300330
Spindle Taper-BT30BT30
Max speedr/min2000020000
Motor power (S1/S2)kW3.7/5.53.7/5.5
Rapid traverse (X/Y/Z)m/min48/48/4848/48/48
Tool Magazine CapacityPcs2121
Tool change time (T-T)s1.61.6
Machine weightkg28003200
🏢 Workshop & Production
Factory View 1

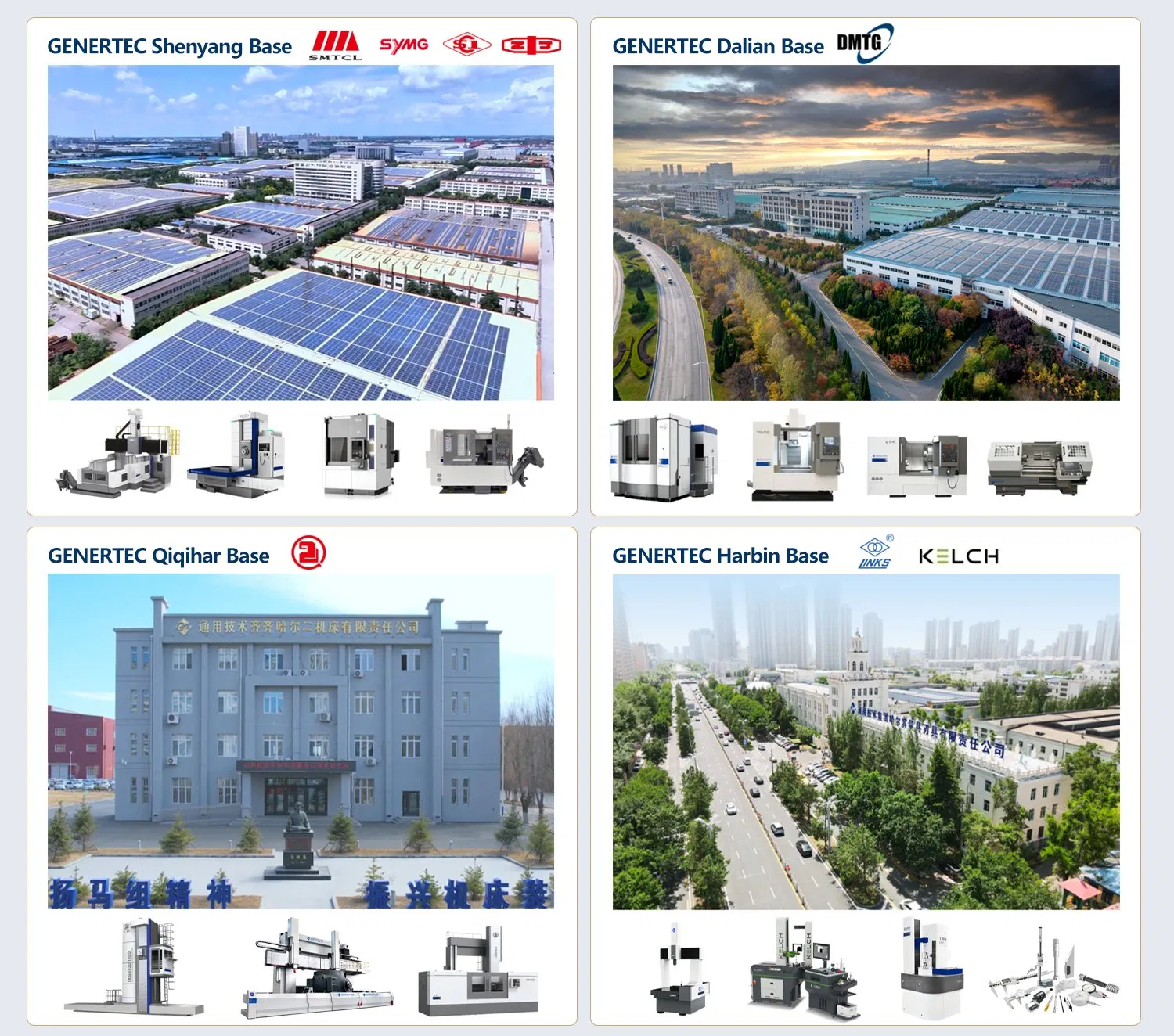

Factory View 2

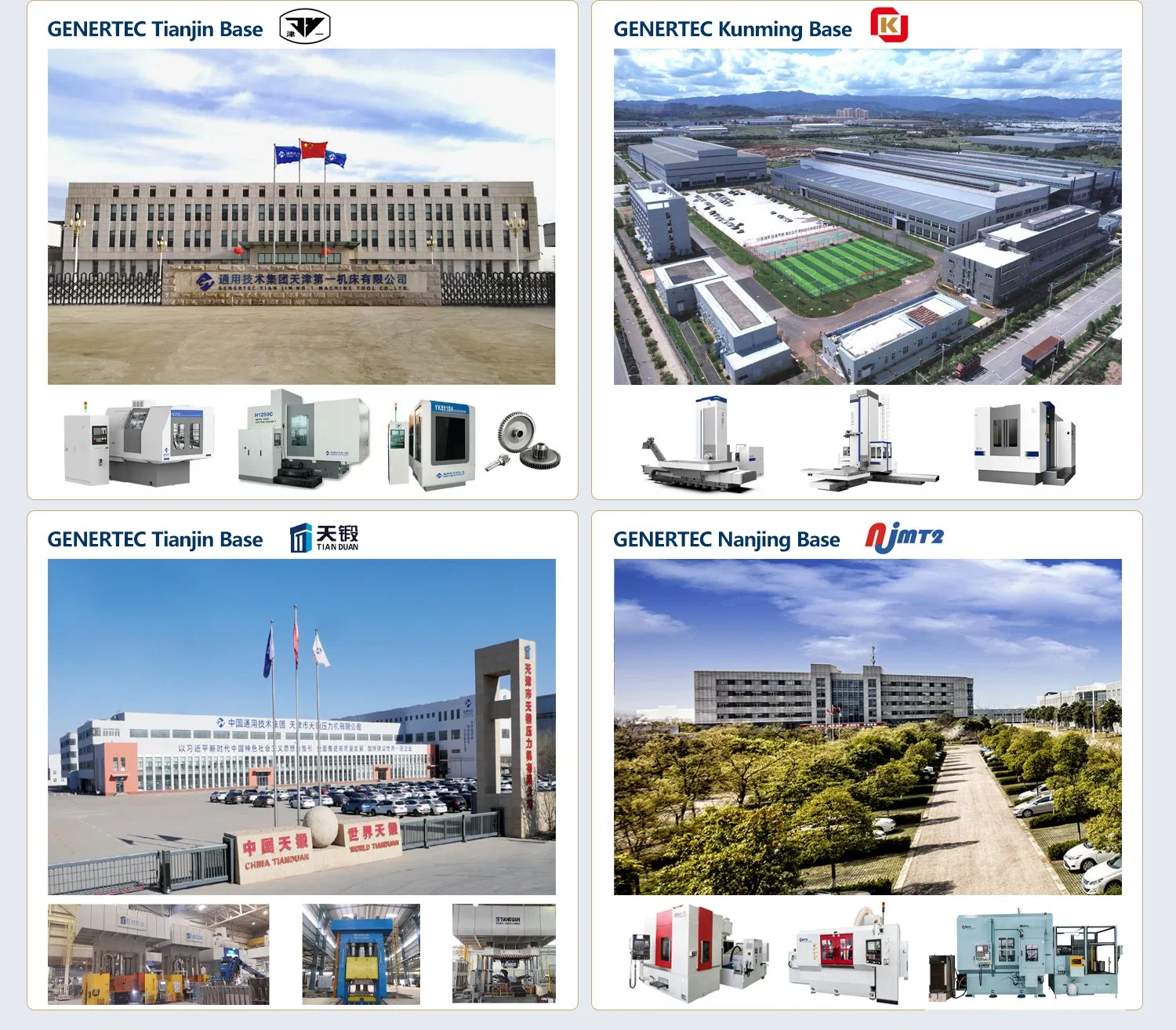

Factory View 3
🛠️ Service & Exhibition
After Sales Service
Technical Support
Exhibition 1
Exhibition 2
📜 Certifications
CE ISO Certifications
Frequently Asked Questions (FAQ)
❓ What materials can the DTC600 process?
The DTC600 is highly versatile and suitable for drilling, tapping, and milling of various metals including aluminum, steel, and copper.
❓ How fast is the tool change process?
The machine features a turret-type servo tool magazine that achieves a tool-to-tool (T-T) change time of just 1.6 seconds.
❓ What is the maximum spindle speed of this center?
The high-speed spindle can reach a maximum of 20,000 r/min, ensuring excellent surface finish and high efficiency.
❓ Does the machine come with any quality certifications?
Yes, the machine is fully certified with CE and ISO 9001 standards, ensuring international quality and safety compliance.
❓ What is the lead time for a standard order?
The standard lead time is approximately 30 days for a single unit. For larger quantities, the delivery schedule can be negotiated.

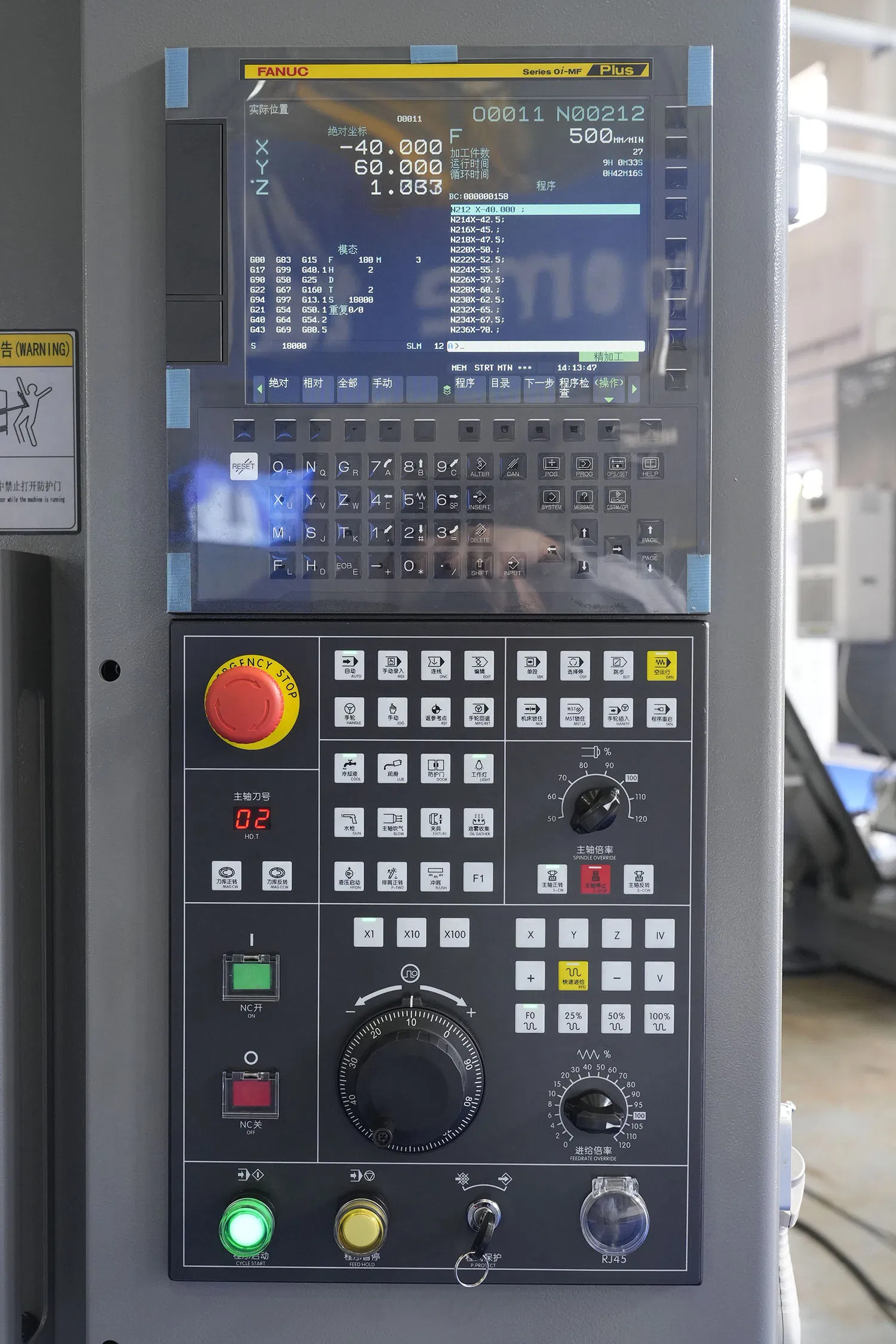

❓ Is the control system user-friendly?
Absolutely. It uses an advanced CNC control system designed for easy operation and efficient programming, which helps reduce operator training costs.
