Suitable for processing large and medium-sized parts in various high-demand industries including machinery, steel, energy, automotive, aerospace, shipbuilding, and machine tool castings.
| Item | PM-6042L | PM-8042L |
|---|---|---|
| Workbench size (W x L) (mm) | 3000x6000 | 3000x8000 |
| X-axis Stroke (mm) | 6000 | 8000 |
| Y-axis Stroke (mm) | 4200 (with 4800 side trips) | |
| Z-axis Stroke (mm) | 1250 | |
| Slider dimensions (mm) | 500x500 | |
| Spindle specifications | BT50/Ø 210 | |
| Rapid traverse speed | 6 m/min | |
| Cutting feed rate | 5 m/min | |
| Workbench load capacity | 28t | 32t |

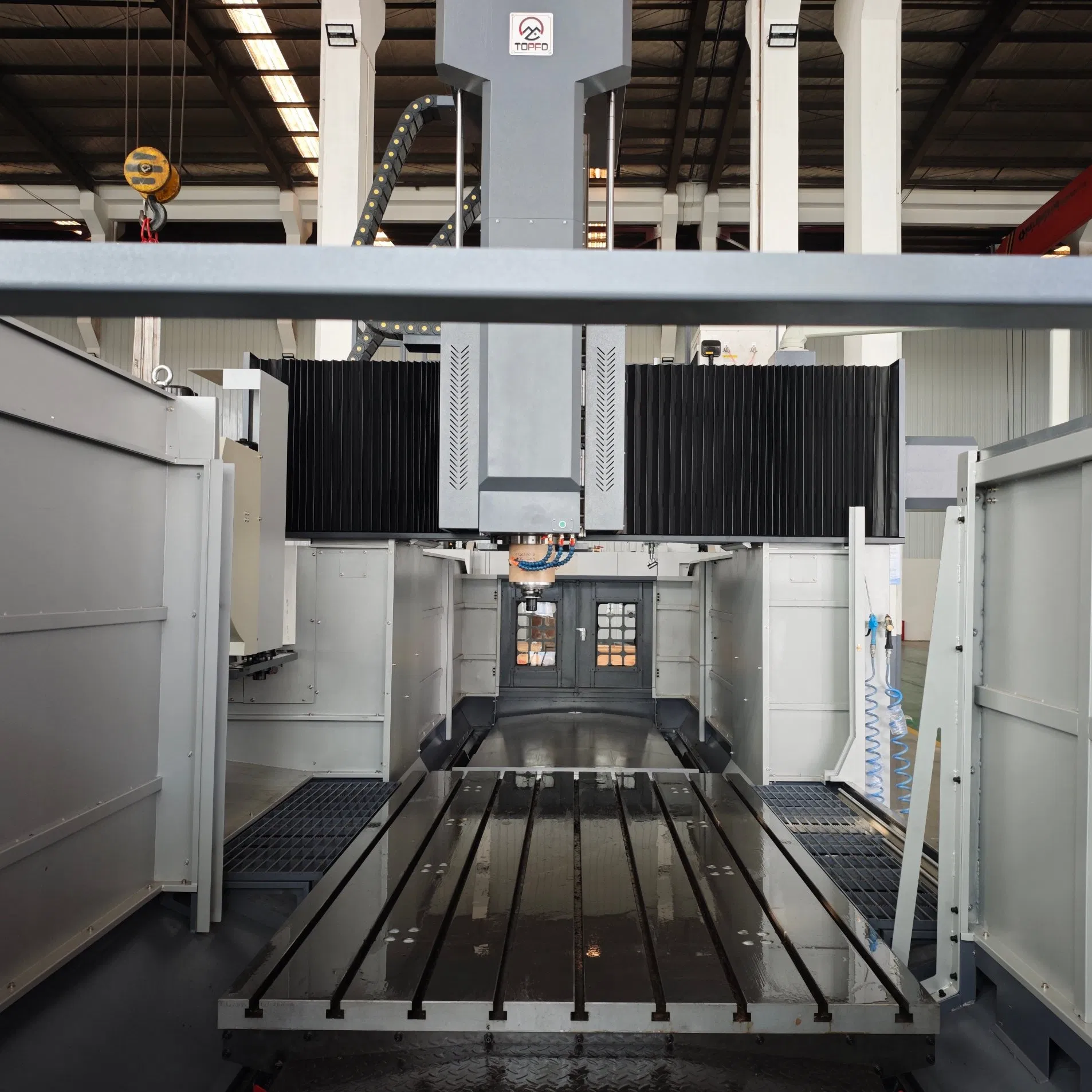

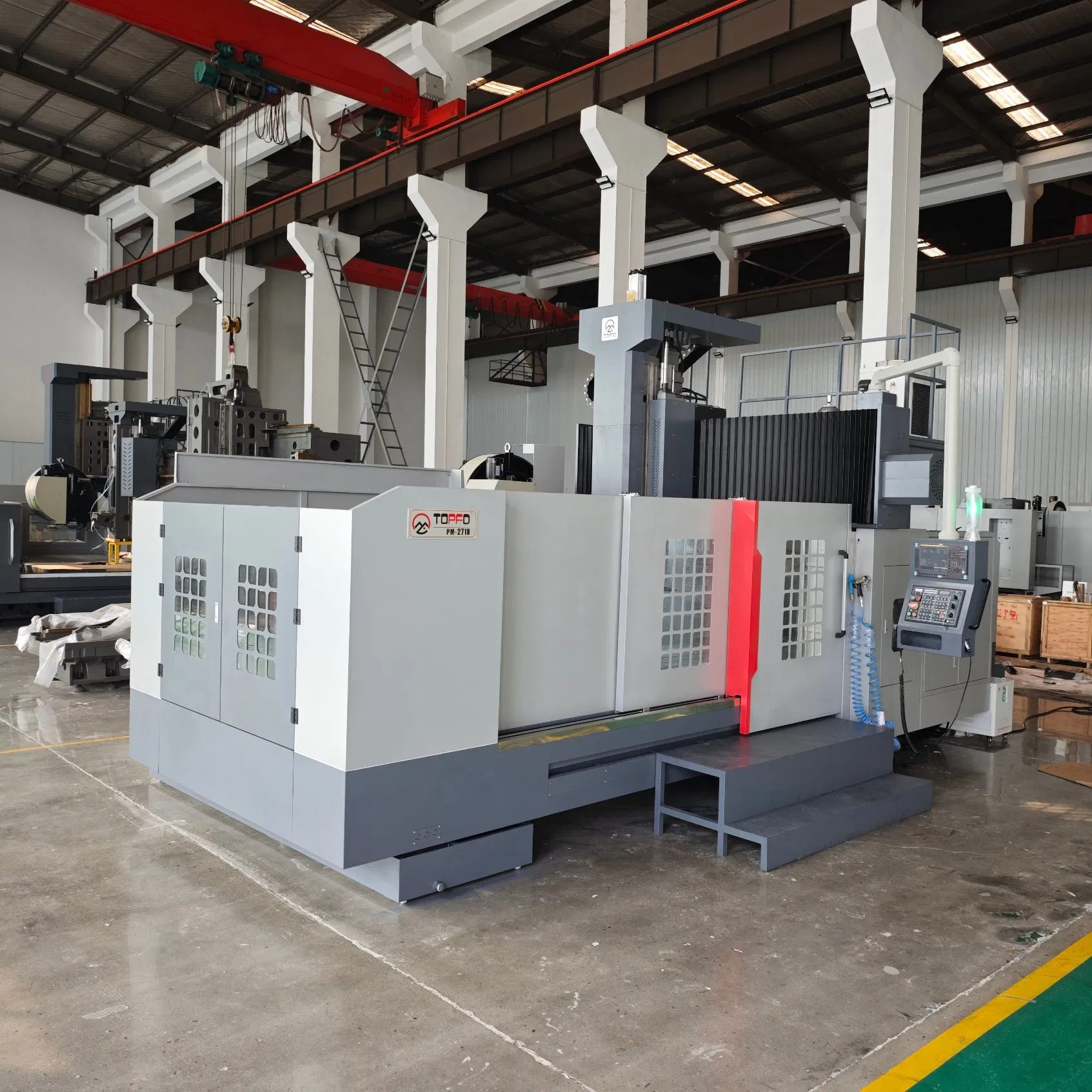

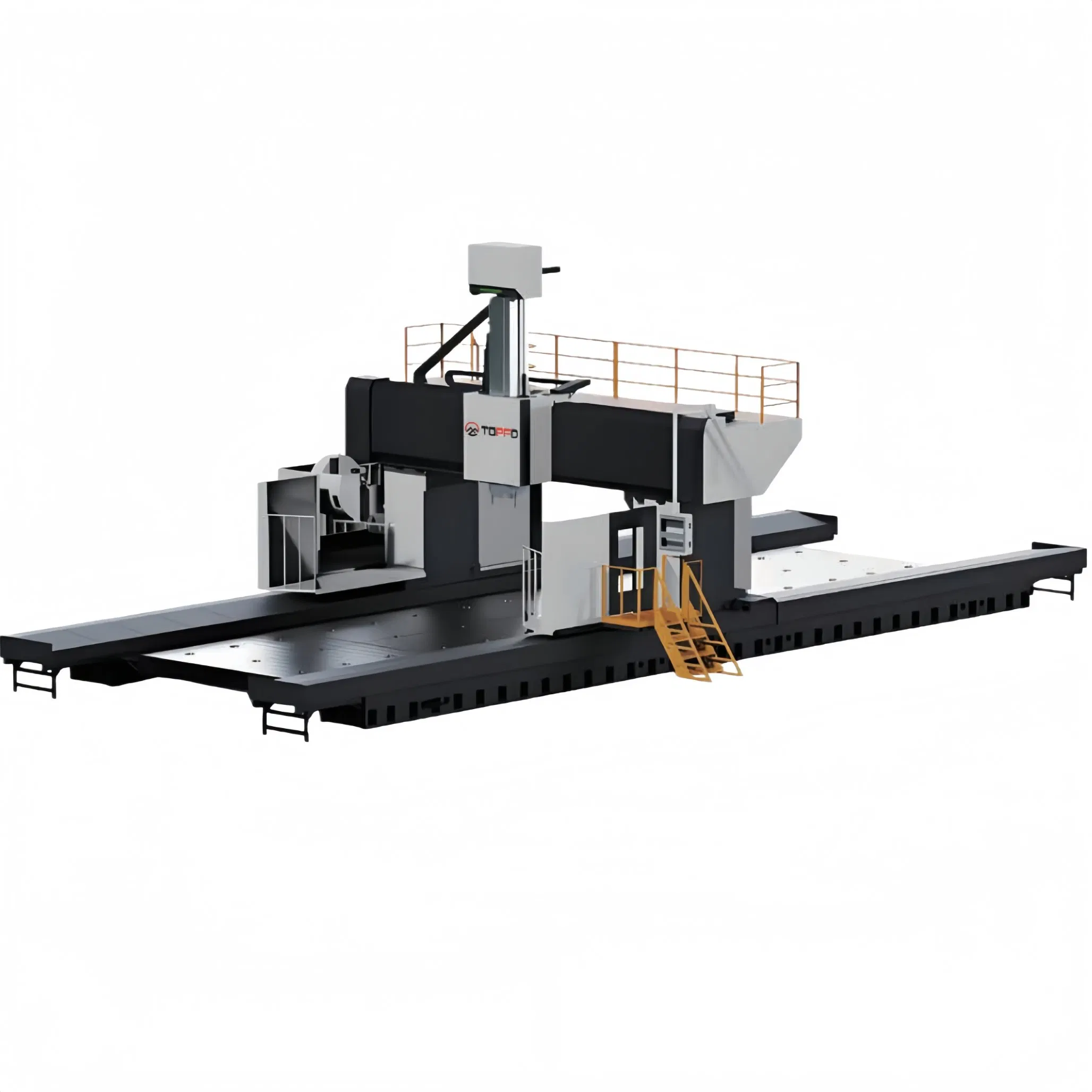

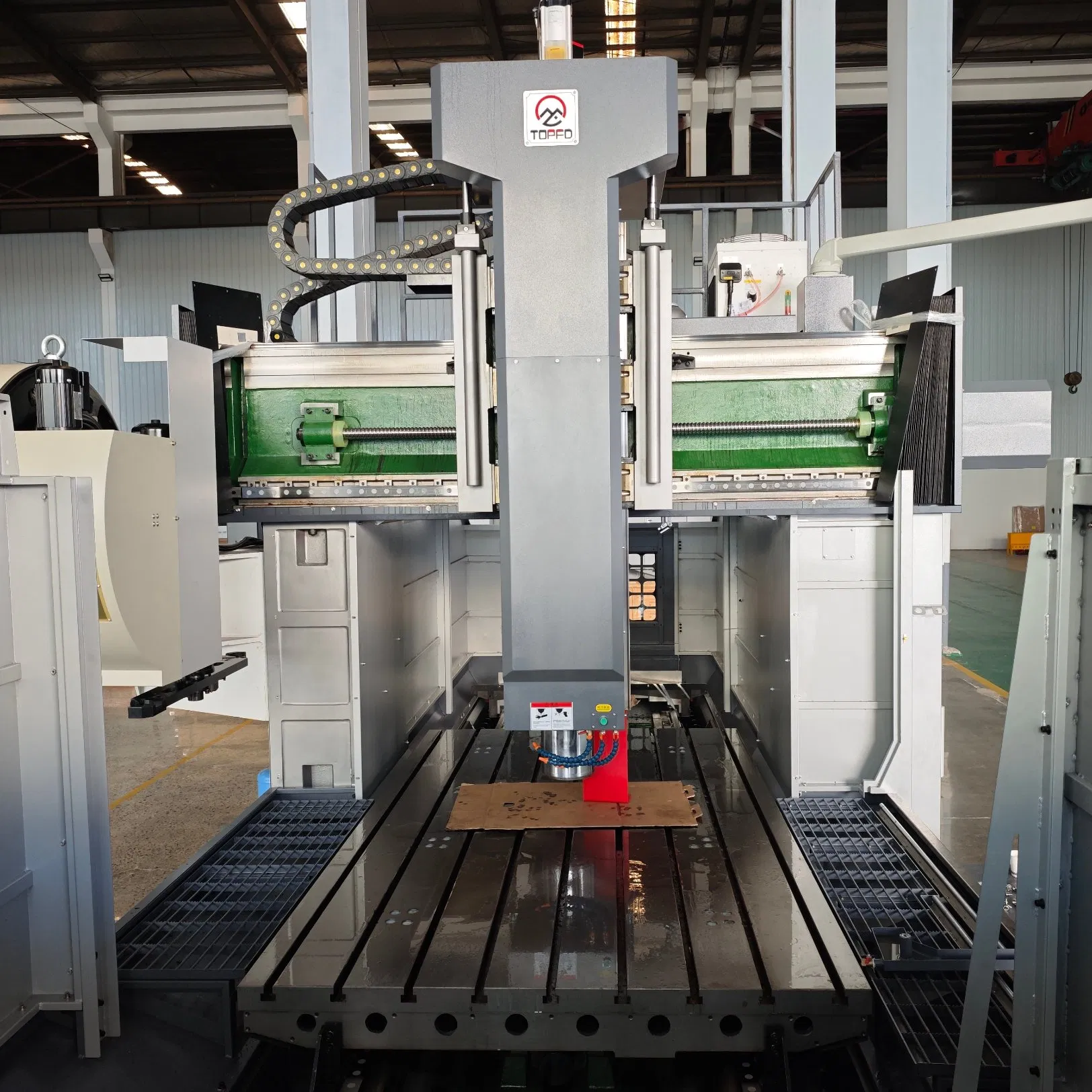

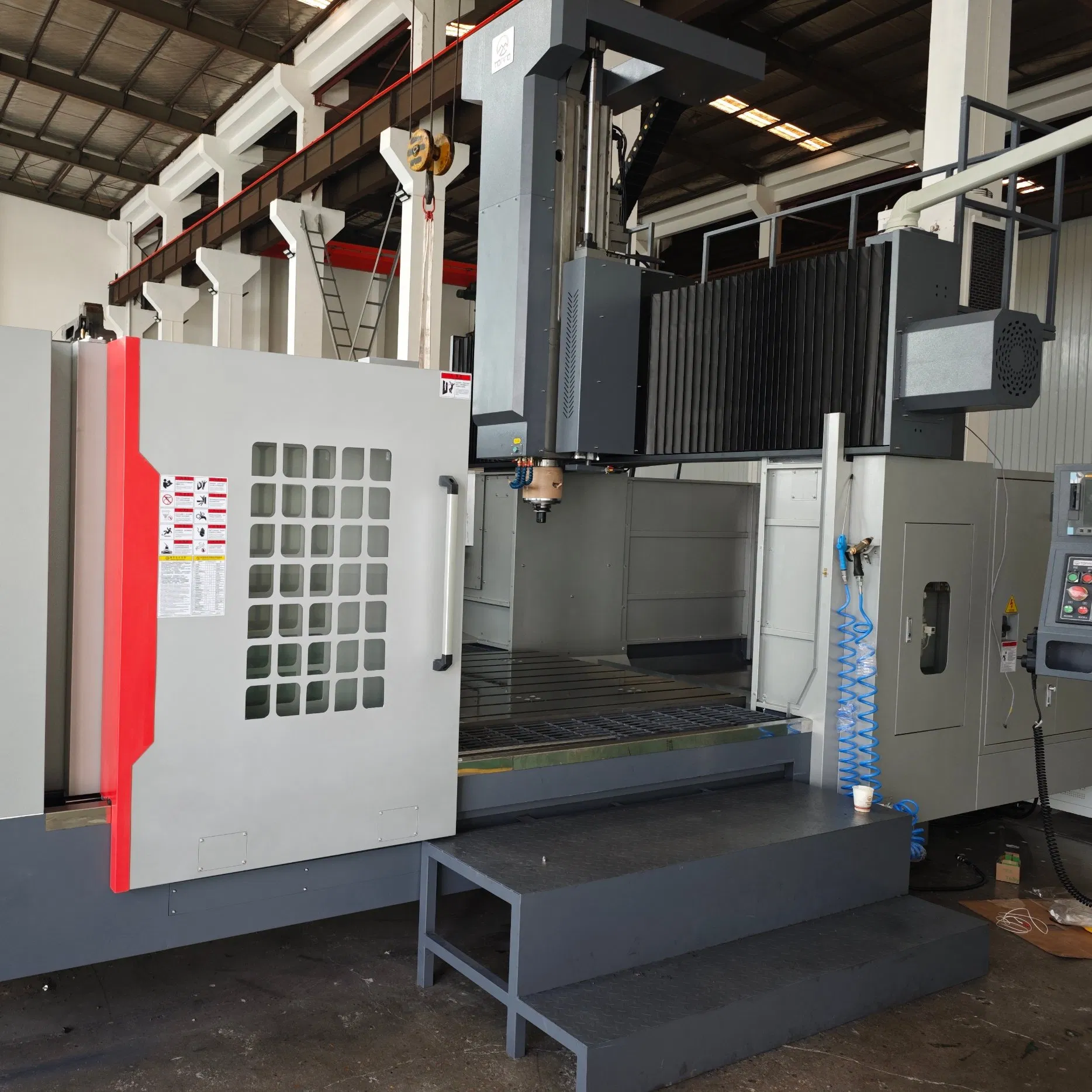

Featuring a single column fixed structure and mobile worktable, these components offer high rigidity and low weight. Capable of completing milling, boring, drilling, and tapping in a single clamping operation.
| 3C Industry: Mobile phone frame | Communication: Filter components | Rail: Aluminum hydraulic parts | Energy: Drill bits |
| Automobiles: Wheel hubs | Industrial: Valve & Connector plates | Mould: Stamping dies | Aerospace: Landing gear |
Comprehensive technical support, economical equipment configuration solutions, and factory planning assistance.
Free installation and debugging, 24/7 quick response, and lifelong maintenance support.

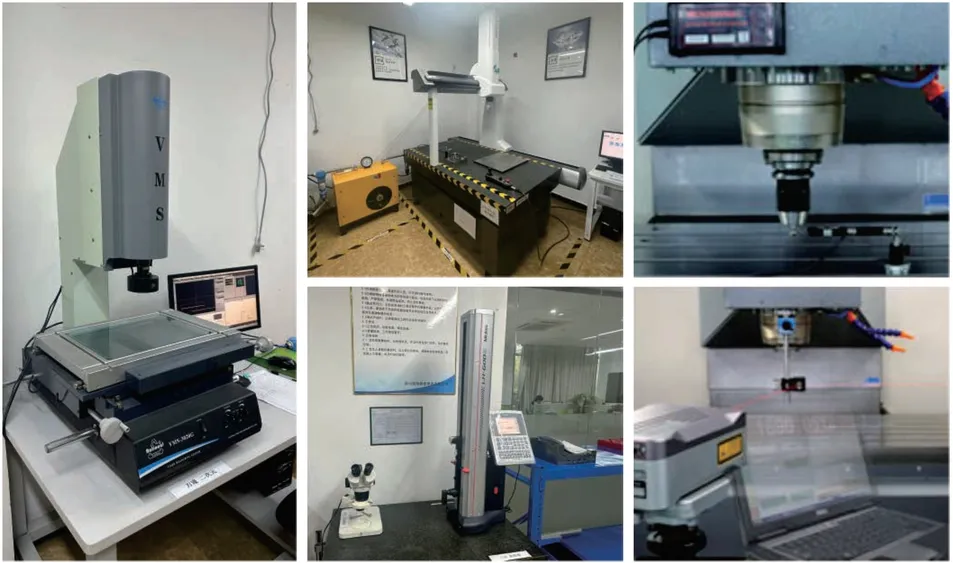

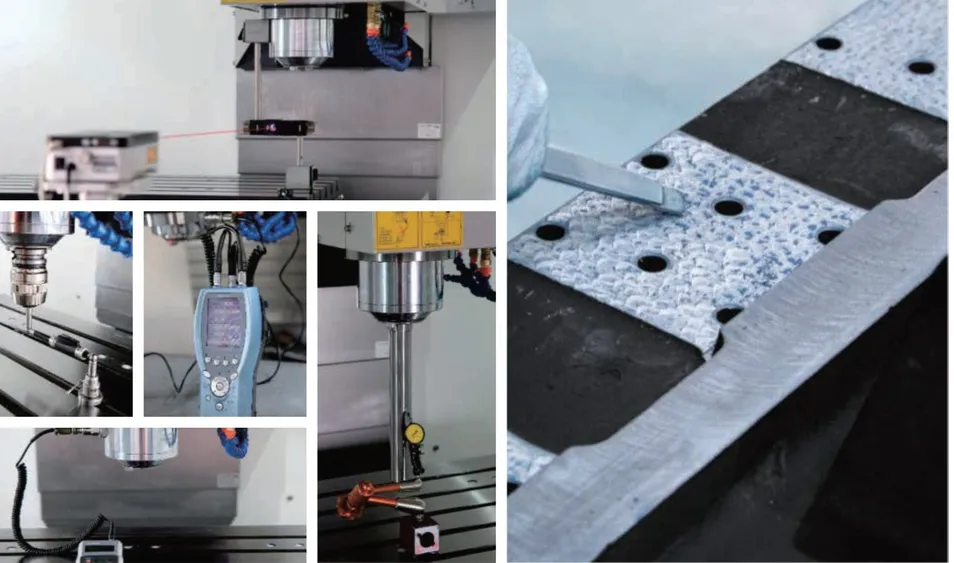

Using world-renowned processing equipment and strict inspection processes including laser interferometers, roundness meters, and heavy cutting tests to ensure stable performance.
We are a professional CNC machine tool manufacturer specializing in high-speed drilling, vertical and horizontal machining centers, and gantry machining centers. Every component is meticulously crafted to deliver maximum value through precision engineering.
