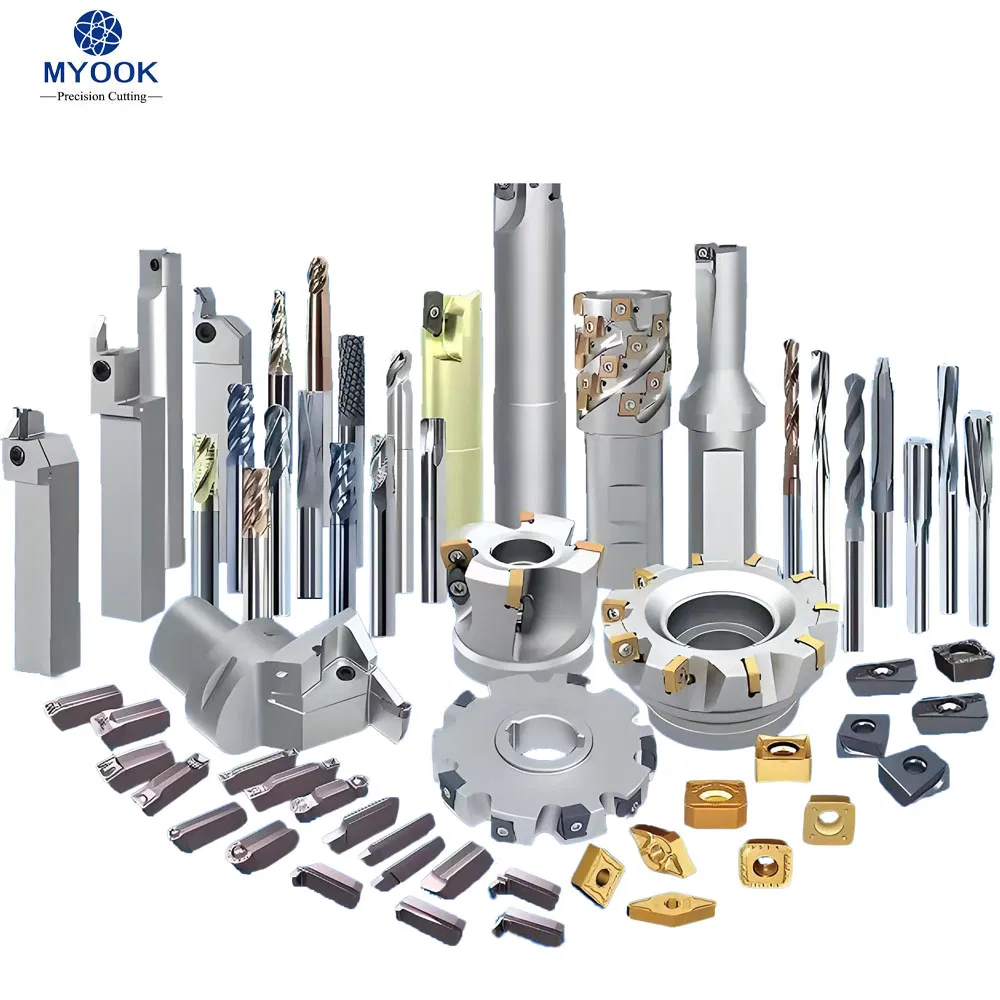

Our group possesses strong technical expertise in CNC Indexable tool holders and carbide inserts. Our range includes Turning tool holders & Milling tool holders (for both external & internal machining), Threading tool holders, and Grooving tool holders, along with all compatible sizes of carbide inserts.

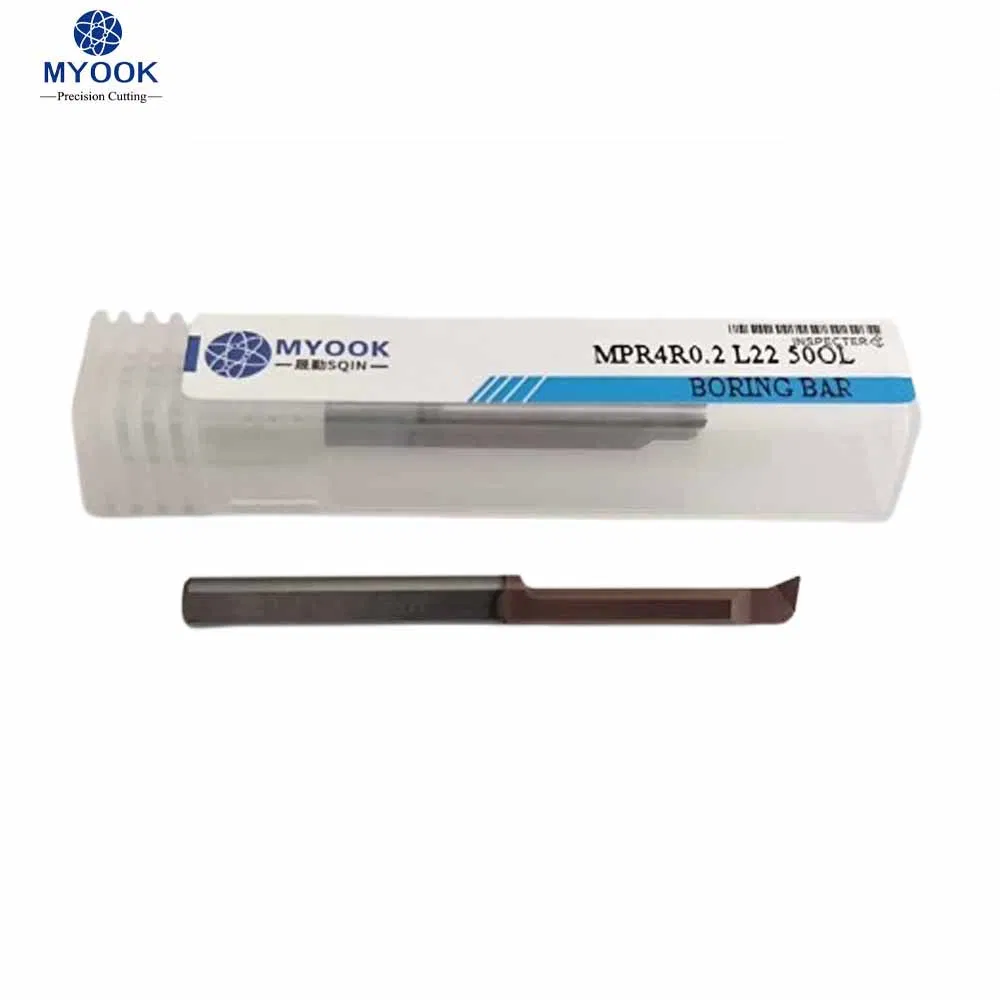

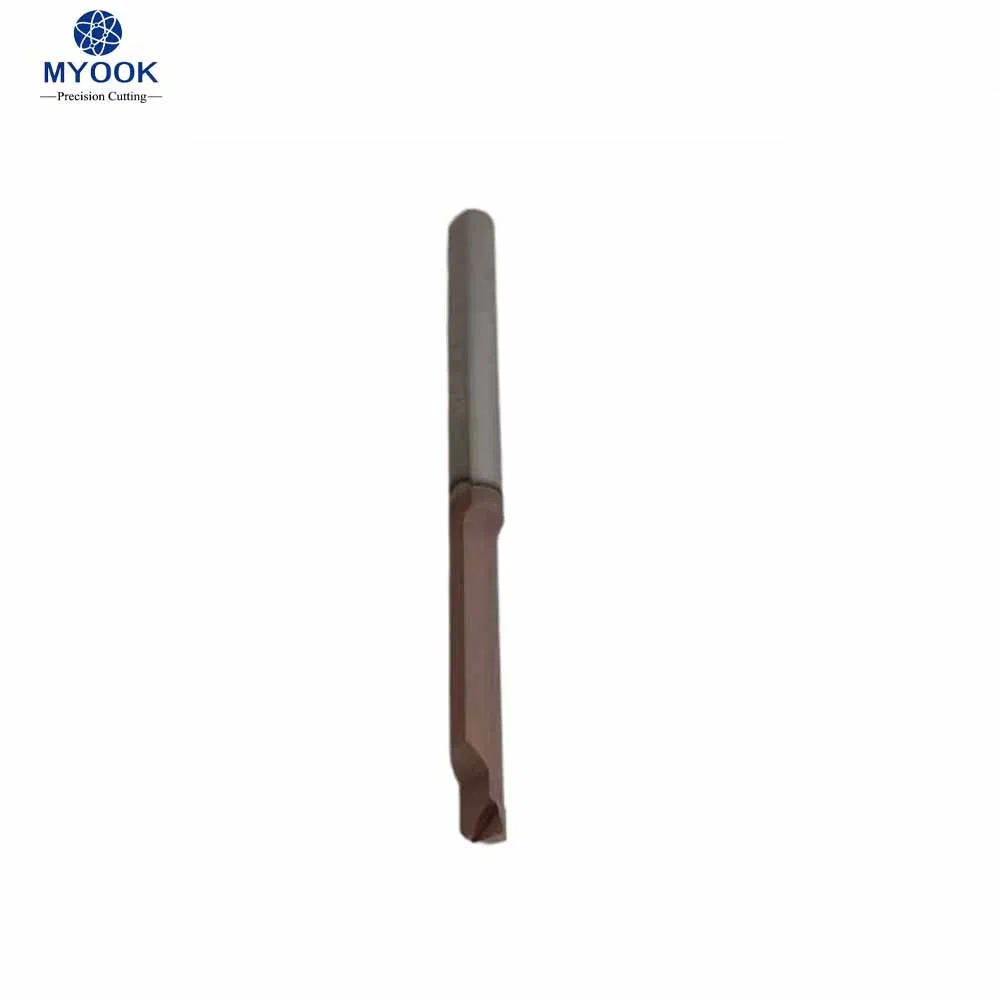

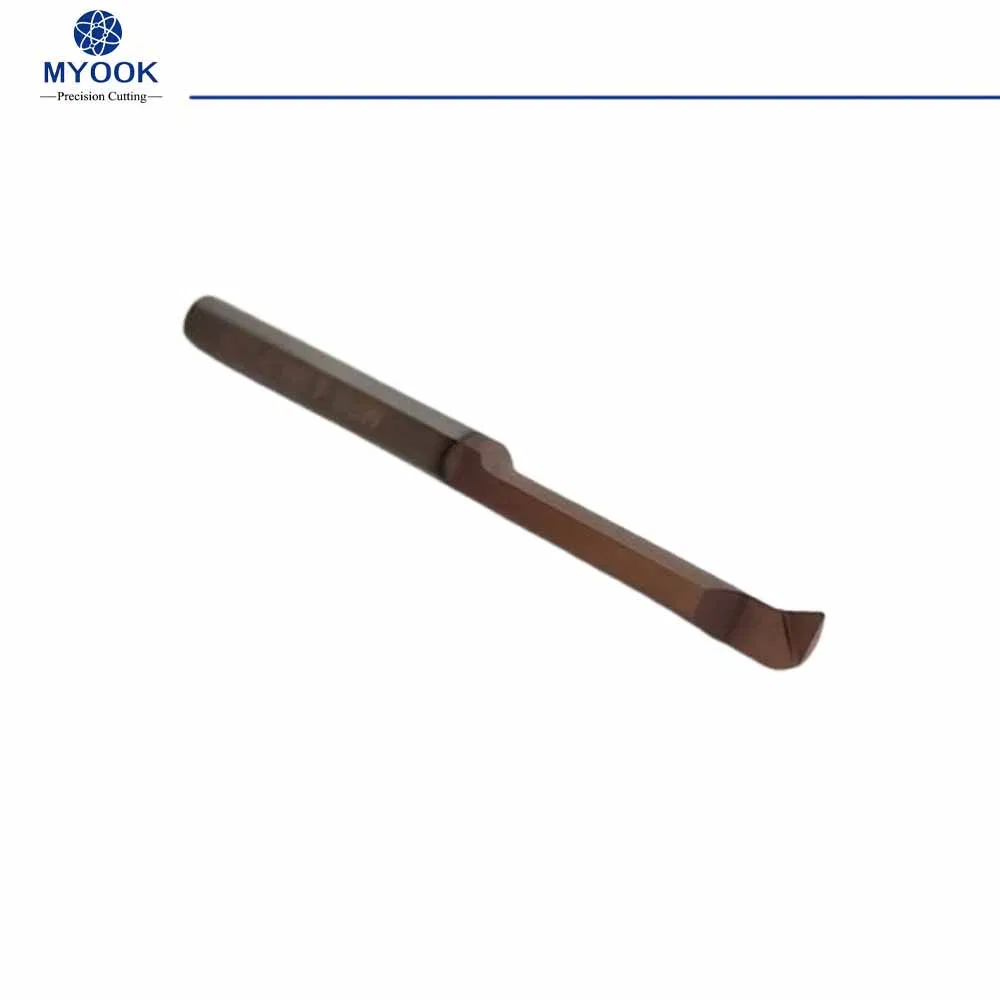

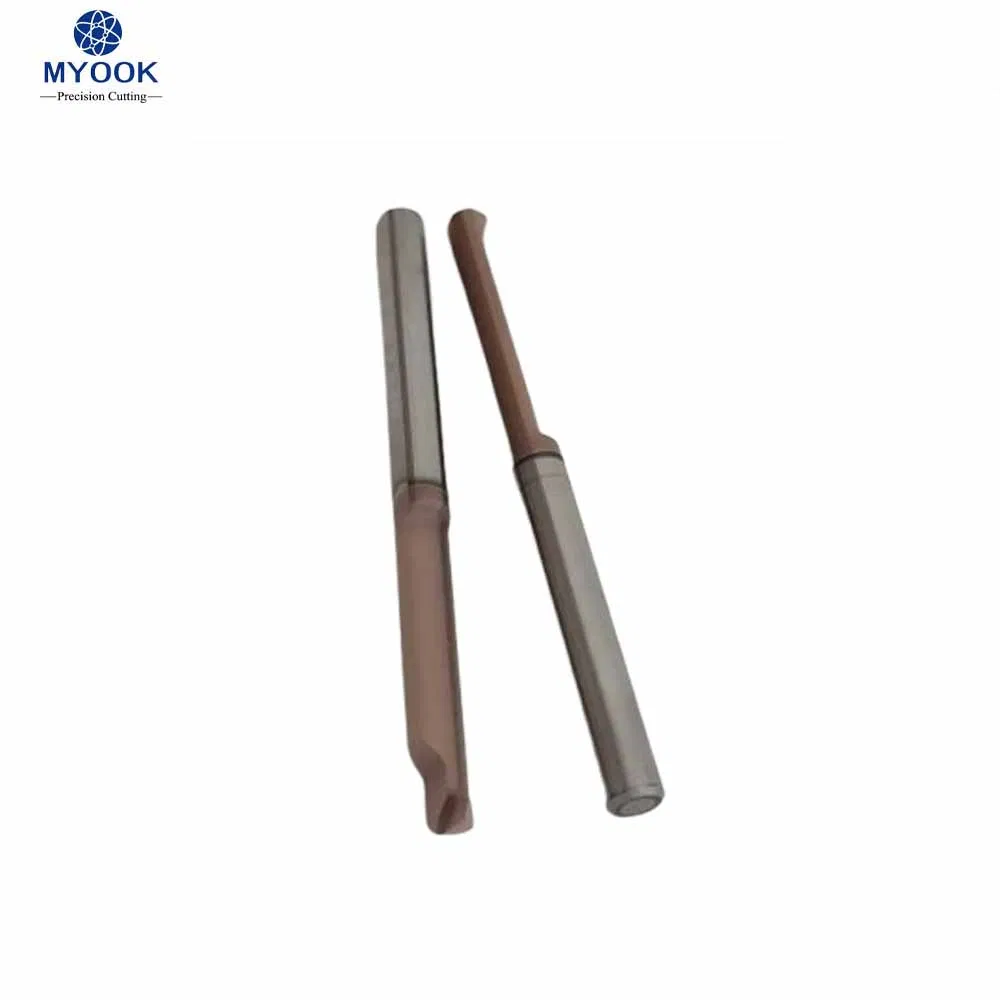

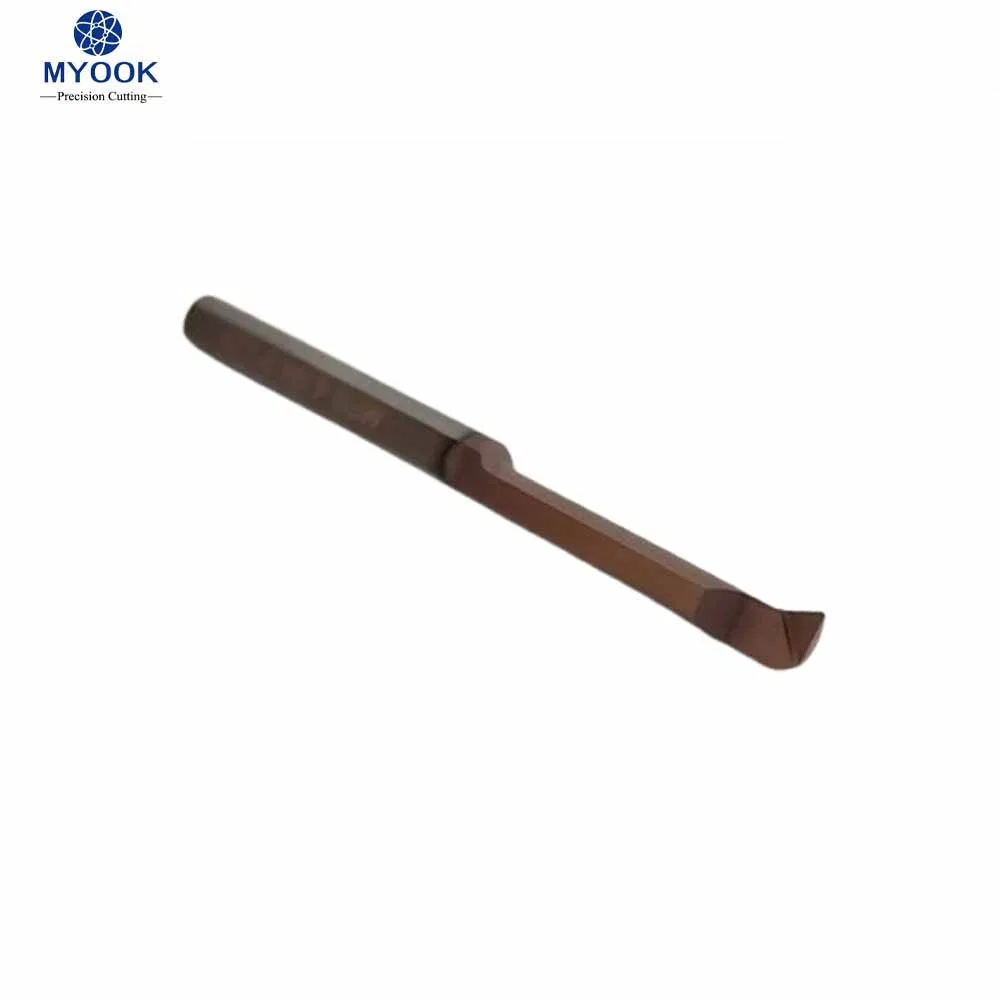

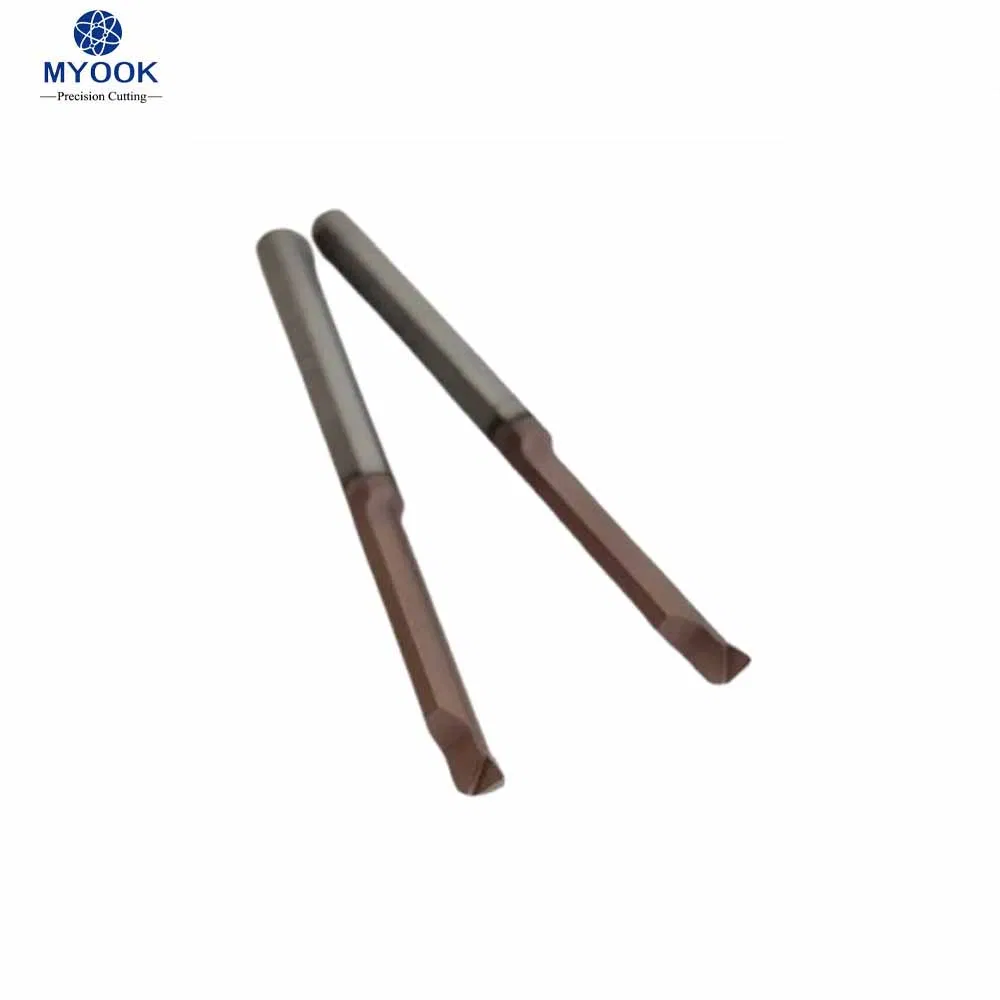

Key Features:Details of Solid Carbide MPR4R0.2 L22 50OL CNC Lathe Machining Internal Turning Angle R0.2 Micro-Groove Boring Bar are as follows:
We also produce various related models. The following data represents standard model specifications. If you have specific requirements for other standard or customized models, please feel free to reach out.

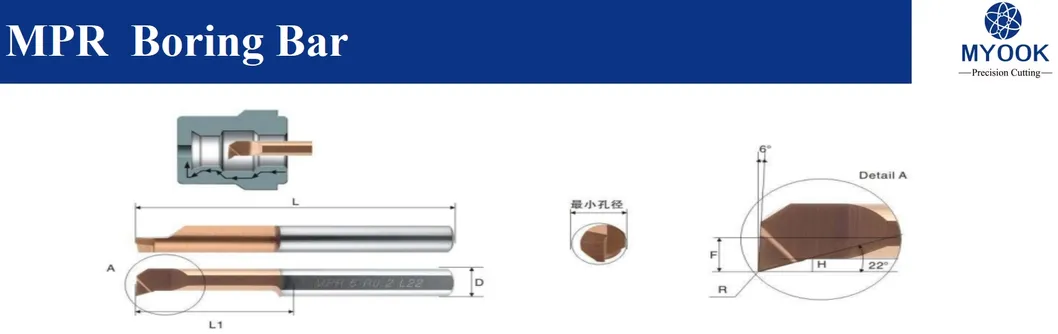

| D | Type | L | L1 | R | H | F | Minimum Bore |
|---|---|---|---|---|---|---|---|
| 2.0 | MPR 2 R0.1 L10 | 50 | 10 | 0.10 | 0.5 | 0.8 | 2.1 |
| MPR 2 R0.15 L5 | 50 | 5 | 0.15 | 0.5 | 0.8 | 2.1 | |
| MPR 2 R0.15 L10 | 50 | 10 | 0.15 | 0.5 | 0.8 | 2.1 | |
| MPR 2 R0.15 L15 | 50 | 15 | 0.15 | 0.5 | 0.8 | 2.1 | |
| 3.0 | MPR 3 R0.15 L15 | 50 | 15 | 0.15 | 0.7 | 1.3 | 3.1 |
| MPR 3 R0.2 L15 | 50 | 15 | 0.20 | 0.7 | 1.3 | 3.1 | |
| MPR 3 R0.2 L22 | 50 | 22 | 0.20 | 0.7 | 1.3 | 3.1 | |
| 4.0 | MPR 4 R0.2 L10 | 50 | 10 | 0.20 | 0.8 | 1.7 | 4.1 |
| MPR 4 R0.2 L15 | 50 | 15 | 0.20 | 0.8 | 1.7 | 4.1 | |
| MPR 4 R0.2 L22 | 50 | 22 | 0.20 | 0.8 | 1.7 | 4.1 |
