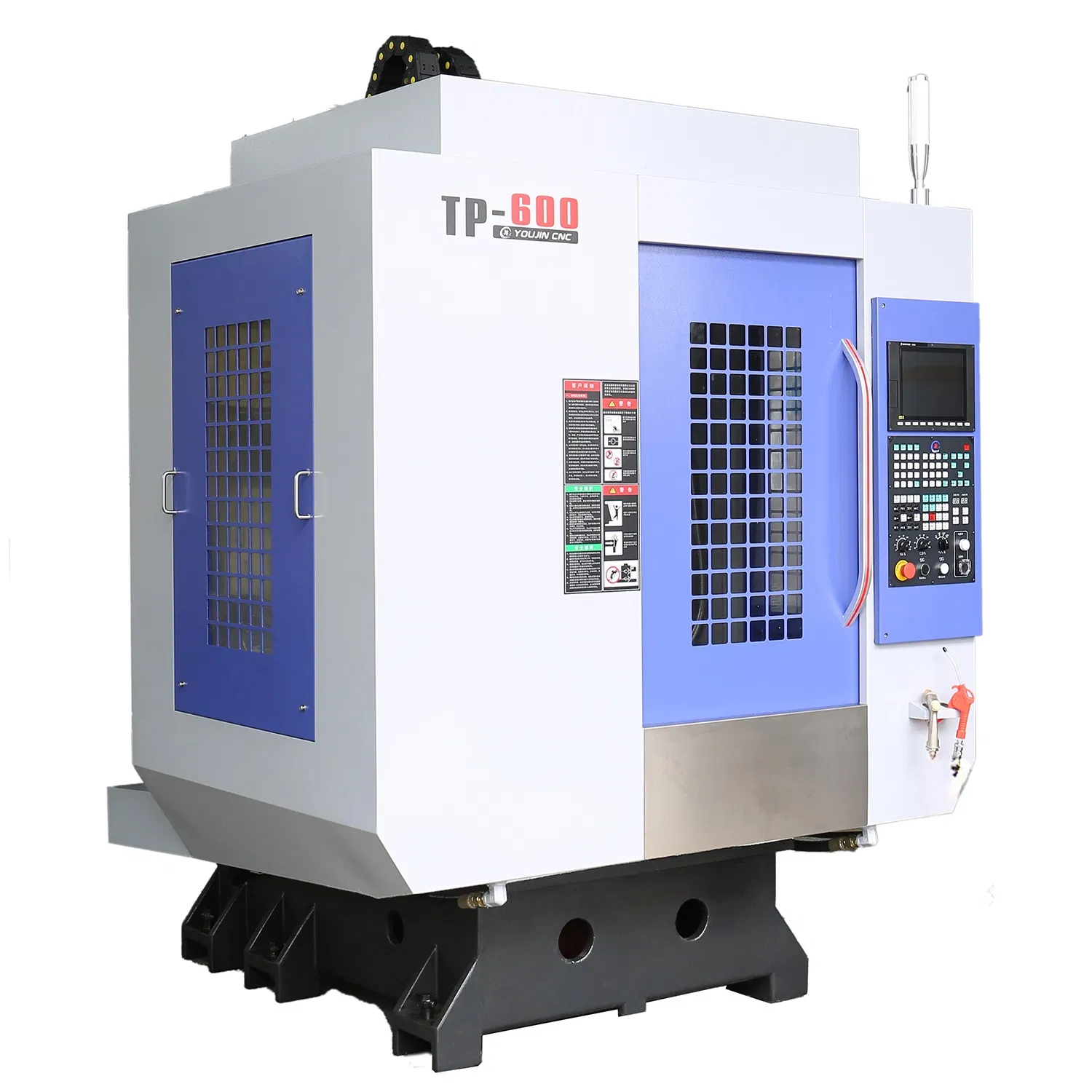

TP-600/700/800/1000 Series
The drilling and tapping machine is characterized by high speed, high precision, high efficiency, and compact structure. It is mainly used for drilling, tapping, milling, and other precision machining processes, widely applied in 3C products, auto parts, hardware, and small metal components.
| Item | TP-600 | TP-700 | TP-800 |
|---|---|---|---|
| X-axis travel | 600mm | 700mm | 800mm |
| Y-axis travel | 400mm | 400mm | 500mm |
| Z-axis travel | 350mm | 350mm | 420mm |
| Spindle Nose To Table | 145-495mm | 145-495mm | 150-570mm |
| Table Size | 700x420mm | 800x420mm | 1000x500mm |
| Max Loading | 300kg | 300kg | 350kg |
| Spindle Speed | 20000/24000rpm | 20000/24000rpm | 20000/24000rpm |
| Spindle Motor | 5.5kw | 5.5kw | 5.5kw |
| Rapid Feed Rate | 48000mm/min | 48000mm/min | 48000mm/min |

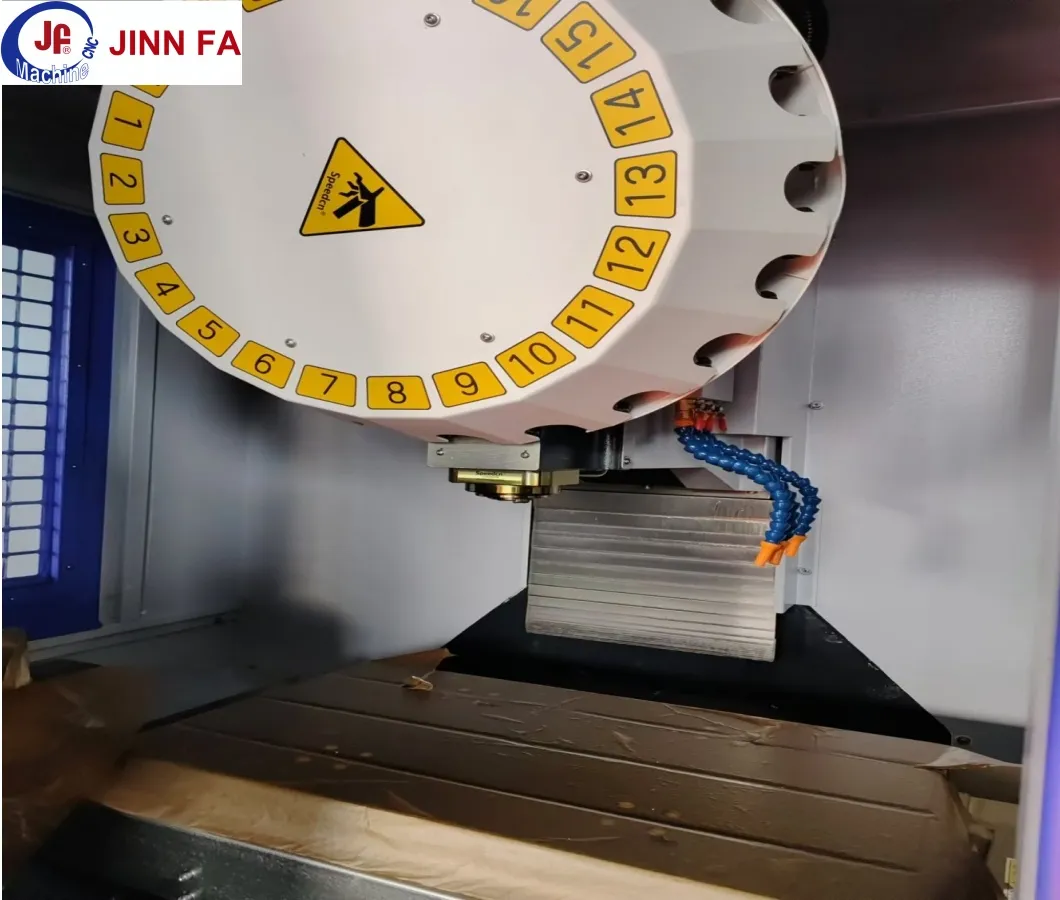

| Magazine Capacity | 21T | 21T | 21T |
| Positioning Accuracy | ±0.005/300mm | ±0.005/300mm | ±0.005/300mm |
| Repeatability | ±0.003/300mm | ±0.003/300mm | ±0.003/300mm |
| Machine Weight | 2800kg | 2800kg | 3500kg |
Cost-effective tool change process utilizing standard axis servos, reducing motorized turret expenses.
Simpler moving parts reduce tolerance stack-up, making it ideal for short-distance precision movements.
Utilizes slide motion for incredibly fast tool changes, eliminating the need for turret indexing.
Fast setup times with simple tool sets and easy block switching for various drill sizes.
Robust design with fewer moving parts leads to less prone errors and long-term reliability.
We ensure the quality of our machines meets international standards through rigorous inspection procedures conducted throughout all phases of the manufacturing process. This commitment to quality and expert workmanship enables us to offer machines that fully meet strict requirements of performance.

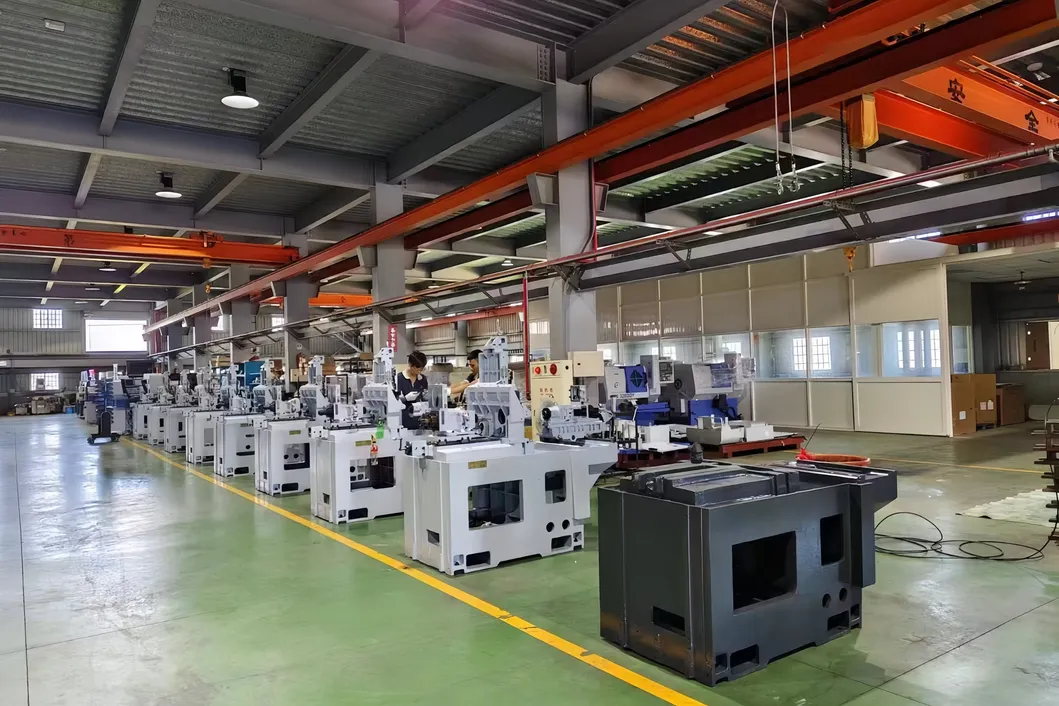

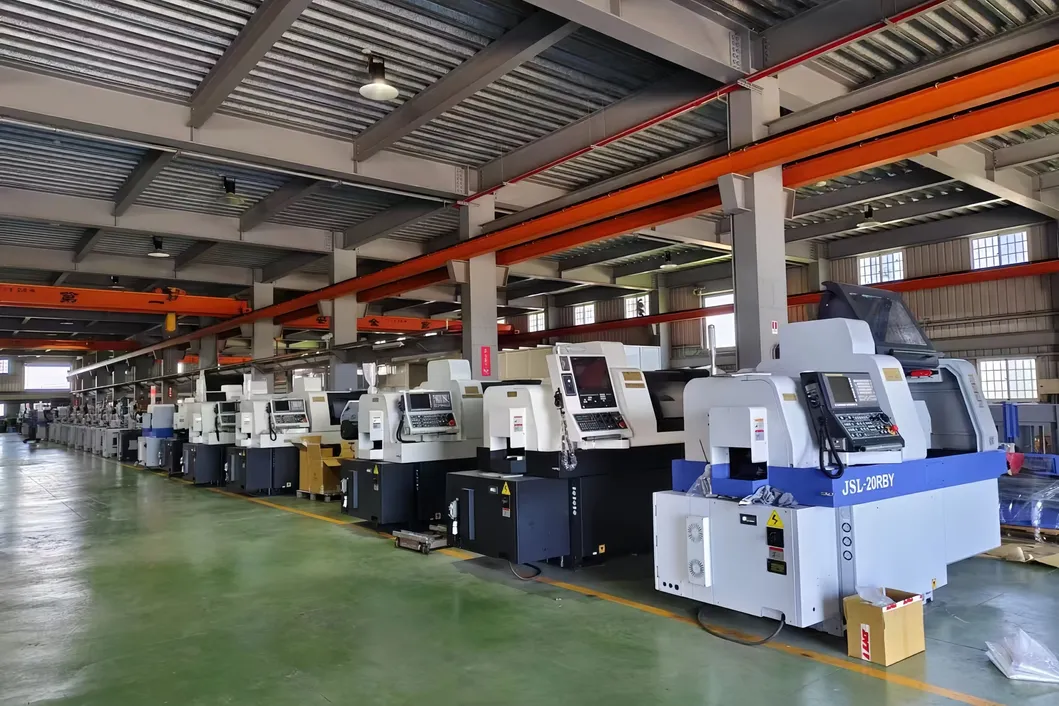

Established as a precision metal lathes manufacturer, we design and produce a wide range of auto lathes, CNC machining centers, and special purpose machines. Our products are sold globally, manufactured to the highest versatility and quality standards to provide a competitive edge for parts machining.
