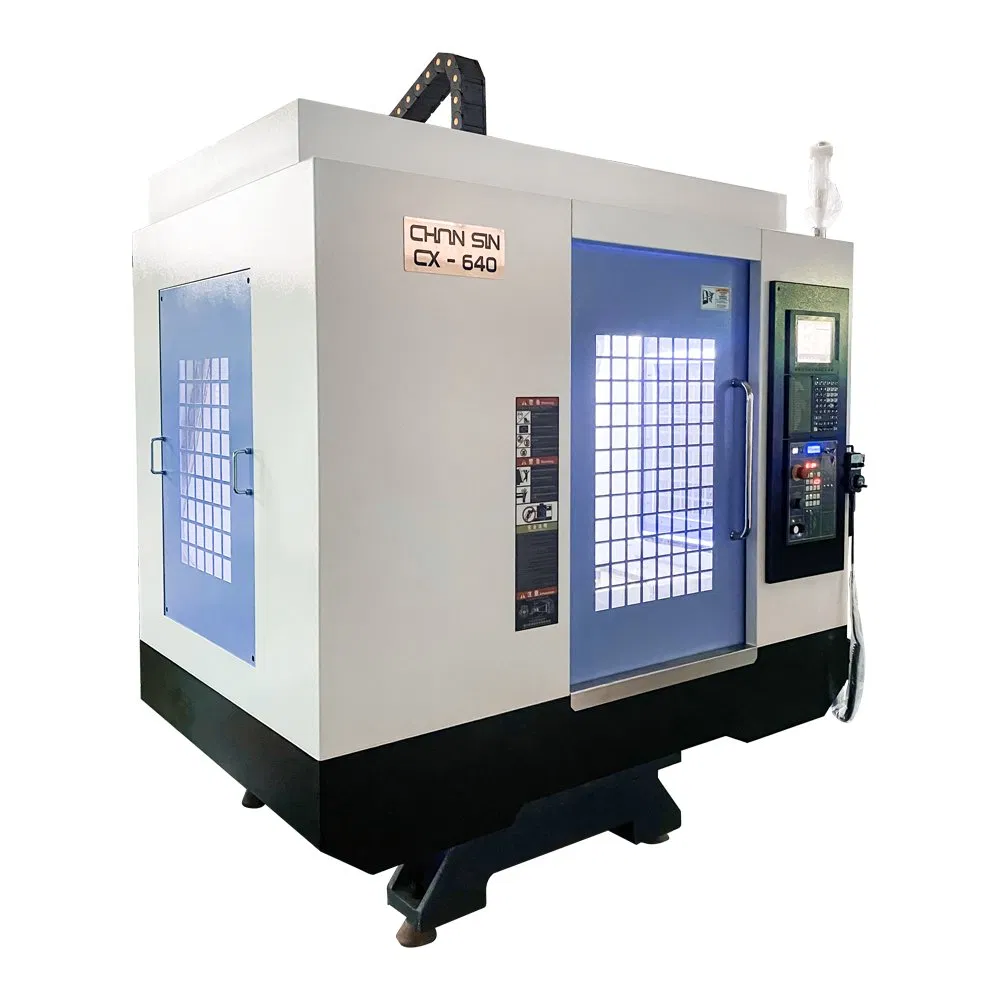

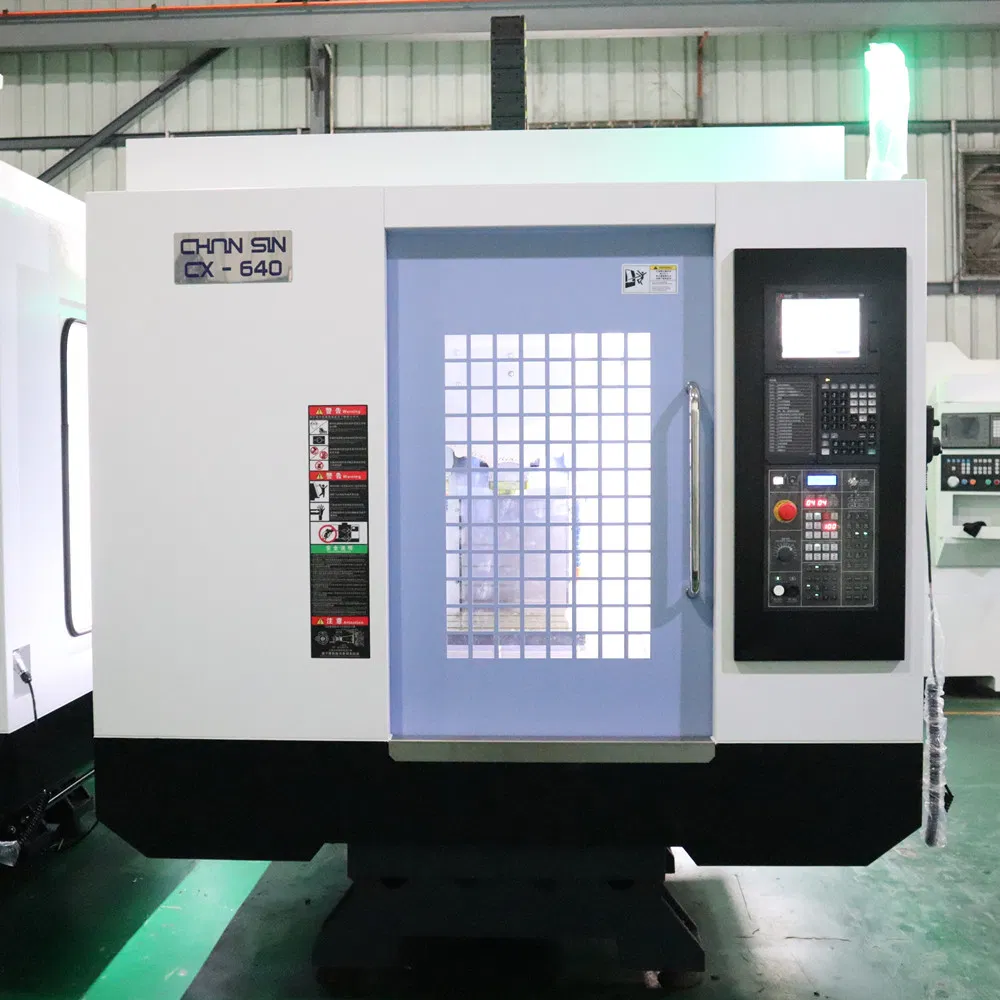

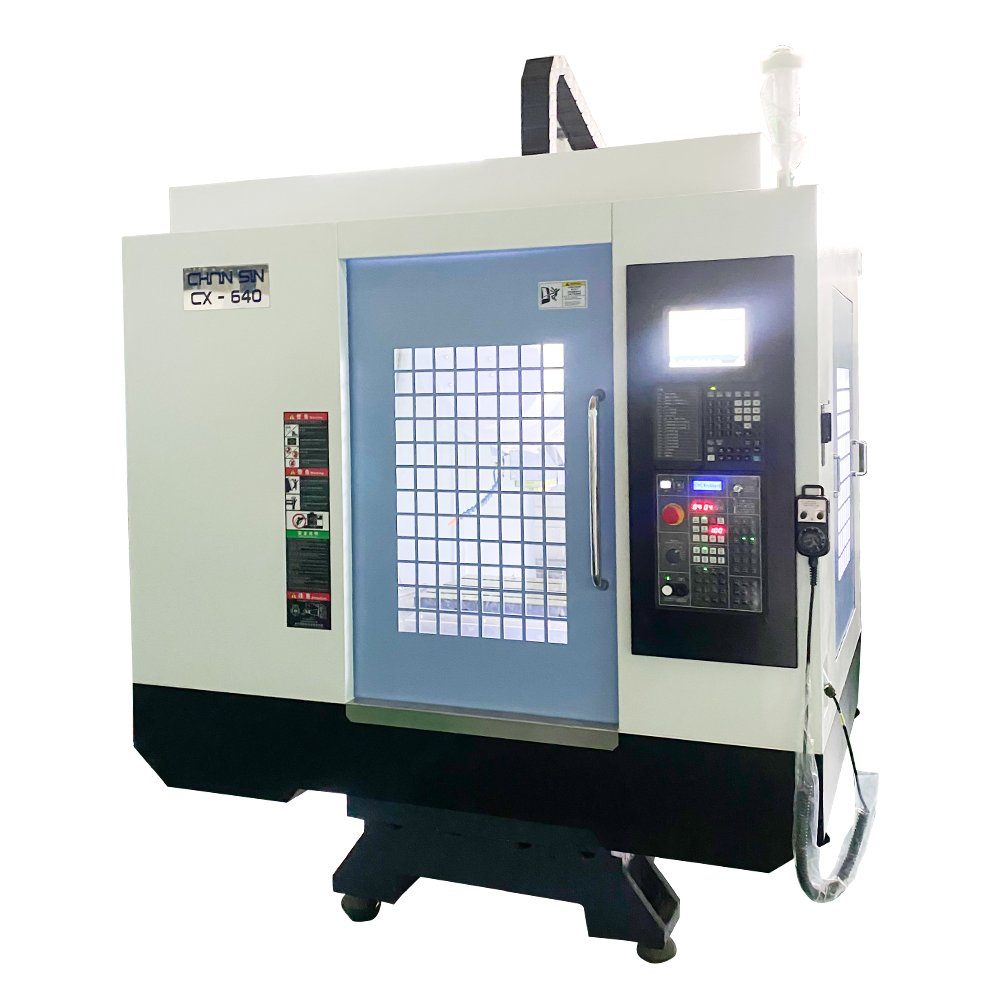

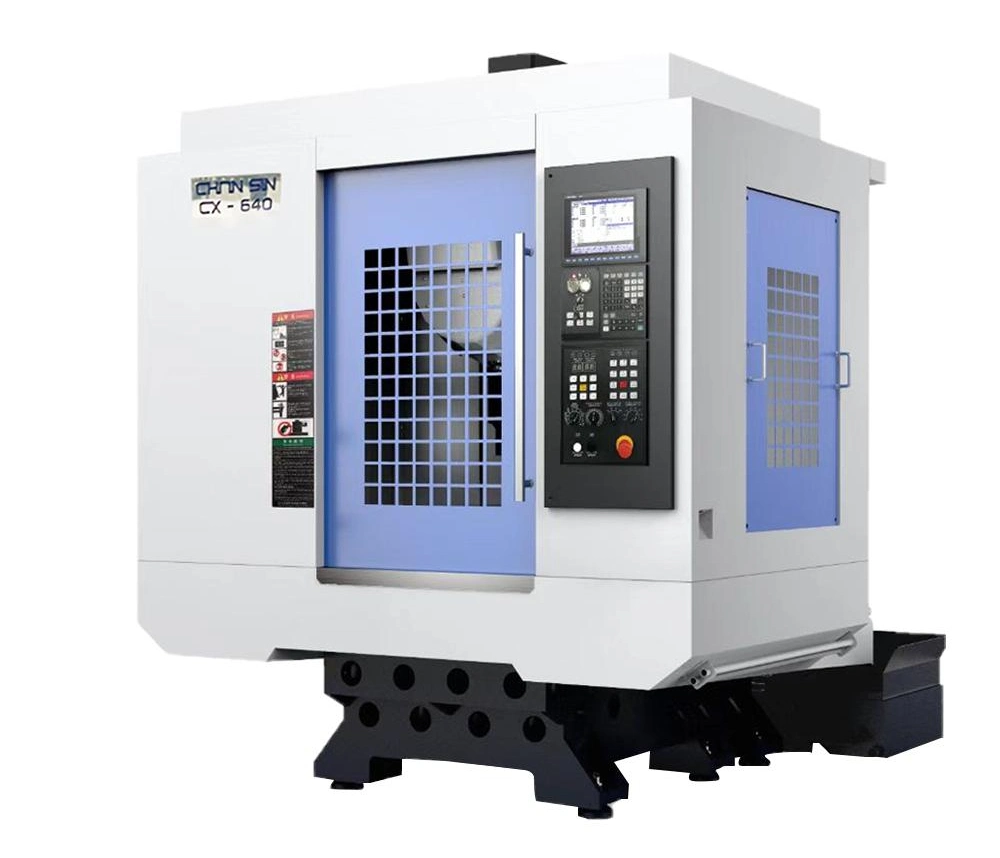

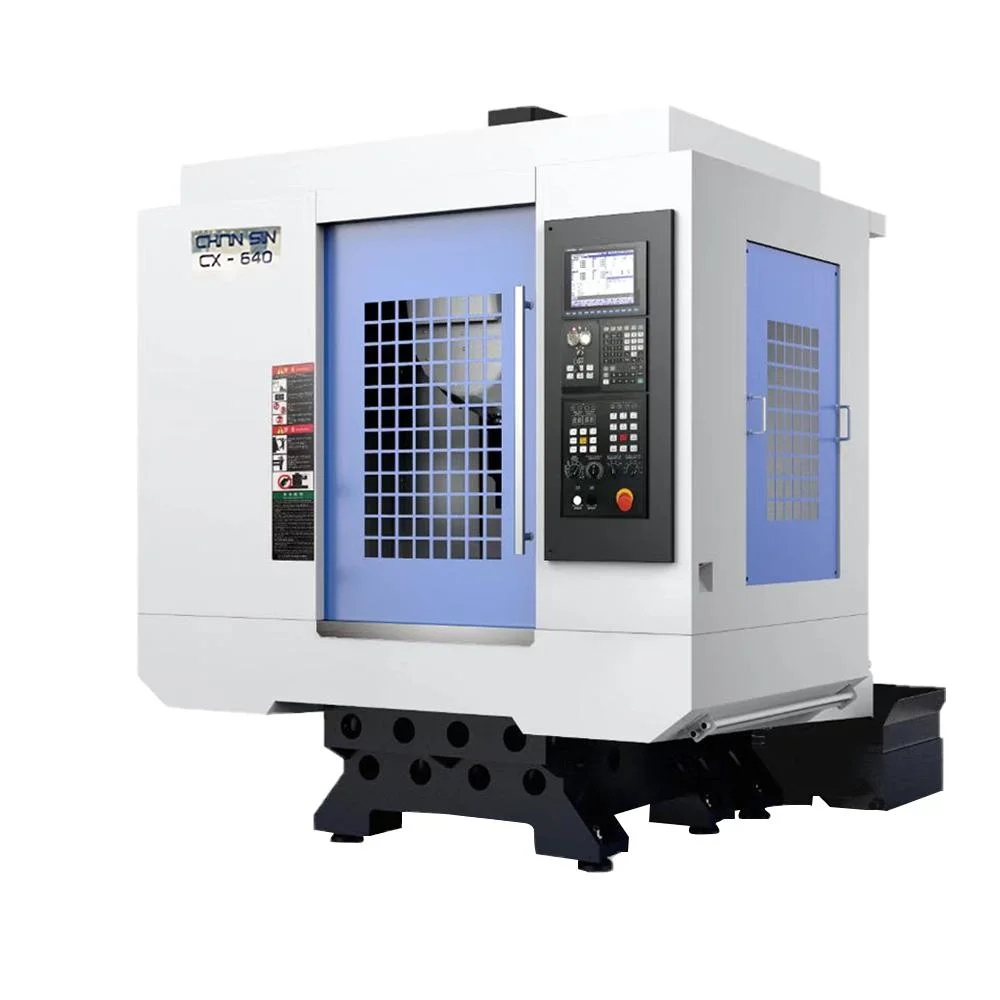

Vertical CNC Milling Machine Center VMC CX-640/T6/T600

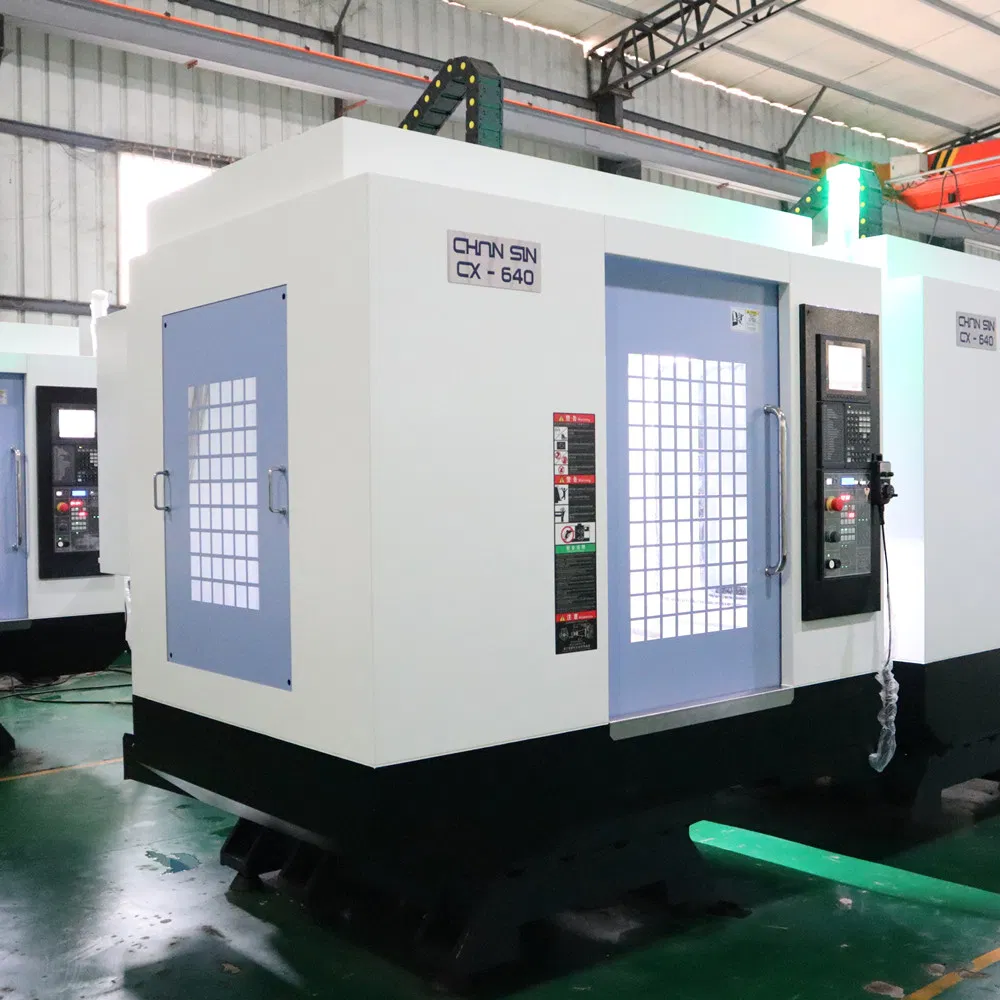

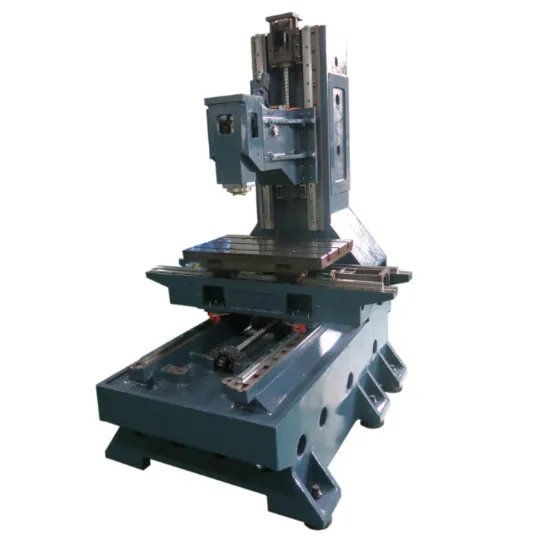

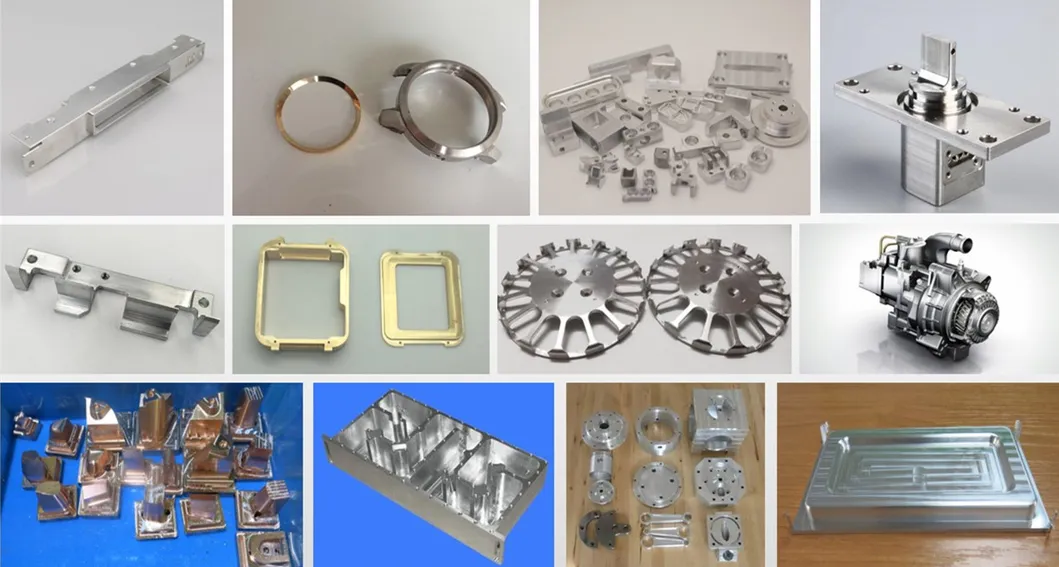

The CX-640 vertical drilling and tapping center is a high-speed machine tool specially designed for the parts processing industry. It meets high-speed drilling, tapping, and milling requirements, particularly for IT and automotive component manufacturing. The machine features excellent rigidity, a symmetrical structure, rapid dynamic response, and high precision stability.

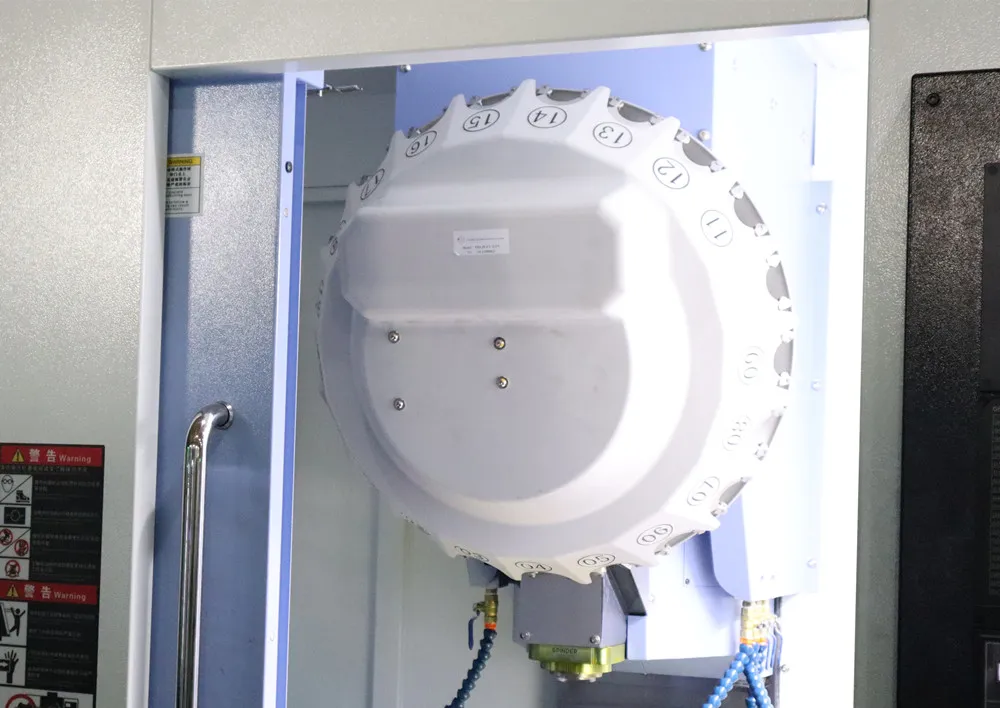

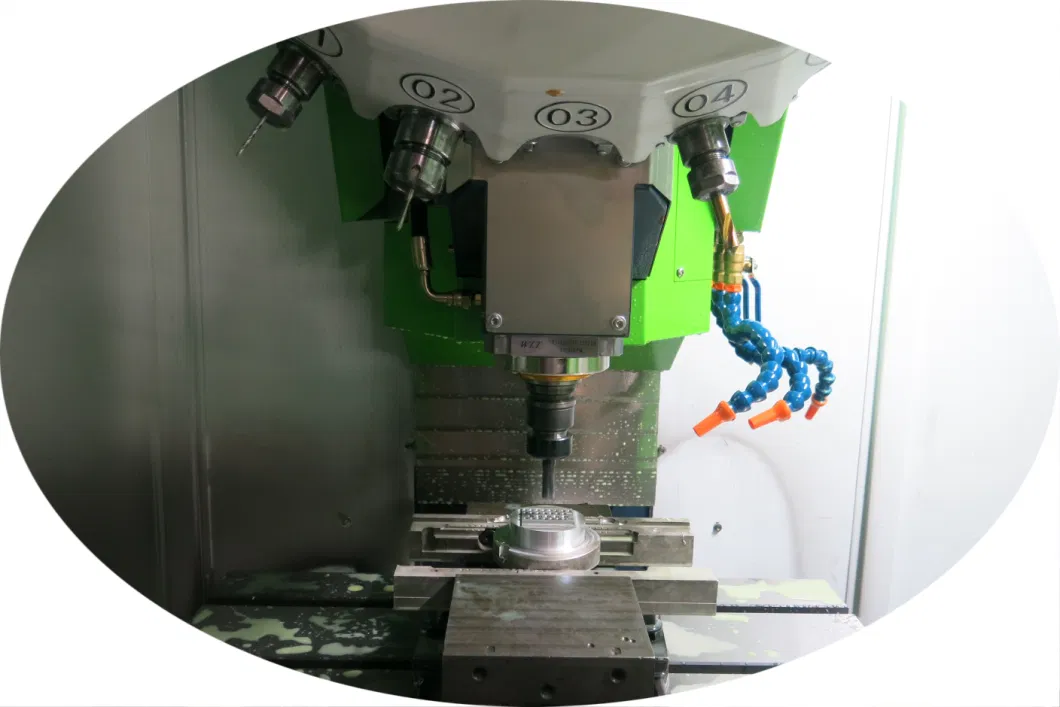

High-Speed Servo Tool Magazine: Equipped with a 21T flying saucer type BT30 tool magazine. Features accurate positioning and servo linkage tool changes. Tool-to-tool exchange time is only 0.8 seconds.
Advanced Control System: Standard configuration features the latest high-speed bus system. Options for Mitsubishi or Fanuc systems are available to meet complex four-axis linkage requirements.

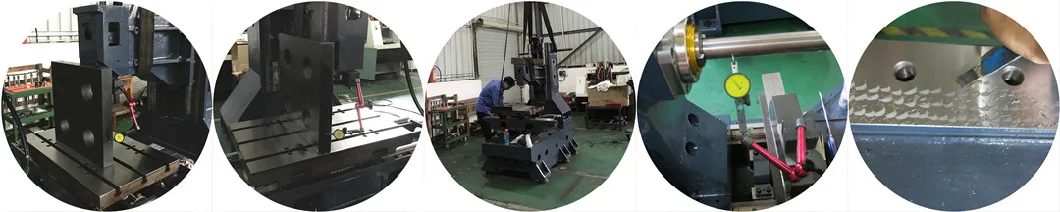

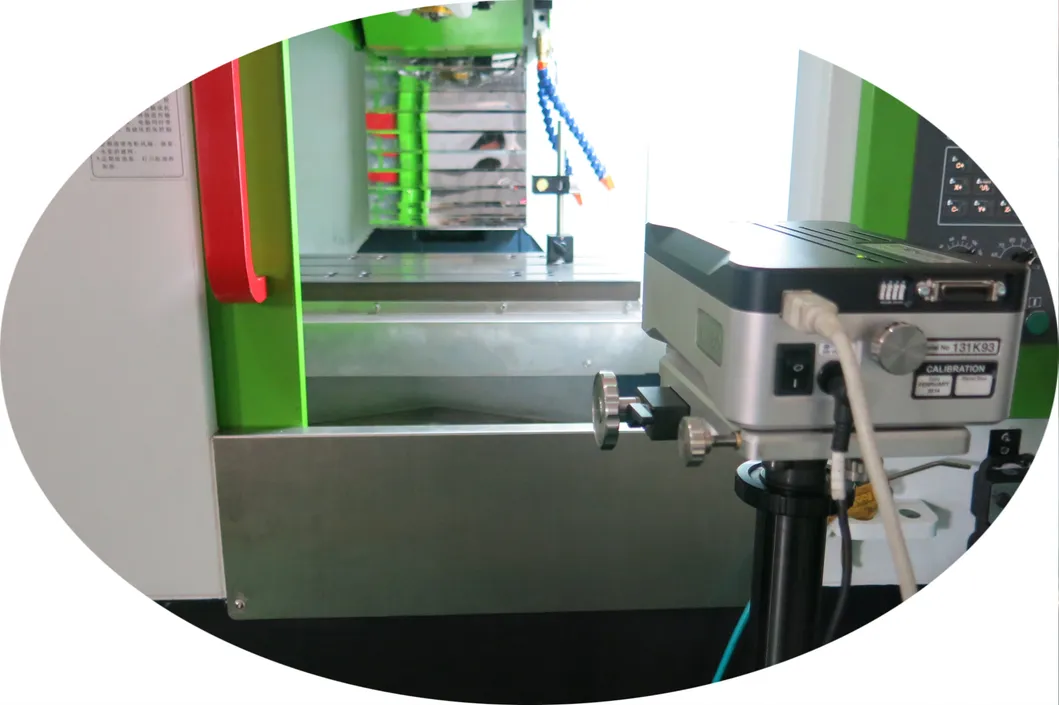

To ensure absolute machine accuracy, every joint surface is manually scraped. We conduct rigorous horizontal and vertical testing along with specialized laser inspections.
| Feature | Units | Specifications | |
|---|---|---|---|
| Table | Size | mm | 700*420 |
| Travel (X/Y/Z) | mm | 600/400/300 | |
| Max Load | kg | 350 | |
| Spindle | Taper | - | BT30 |
| Max Speed | rpm | 20000 | |
| Motor Power | kw | 5.5 | |
| Accuracy | Positioning | mm | ±0.005/300 |
| Repeatability | mm | ±0.003/300 | |
| Feed Rate | Rapid Feed | mm/min | 48000 |
| Cutting Feed | mm/min | 20000 | |
| Weight | Total Weight | kg | 4000 |
