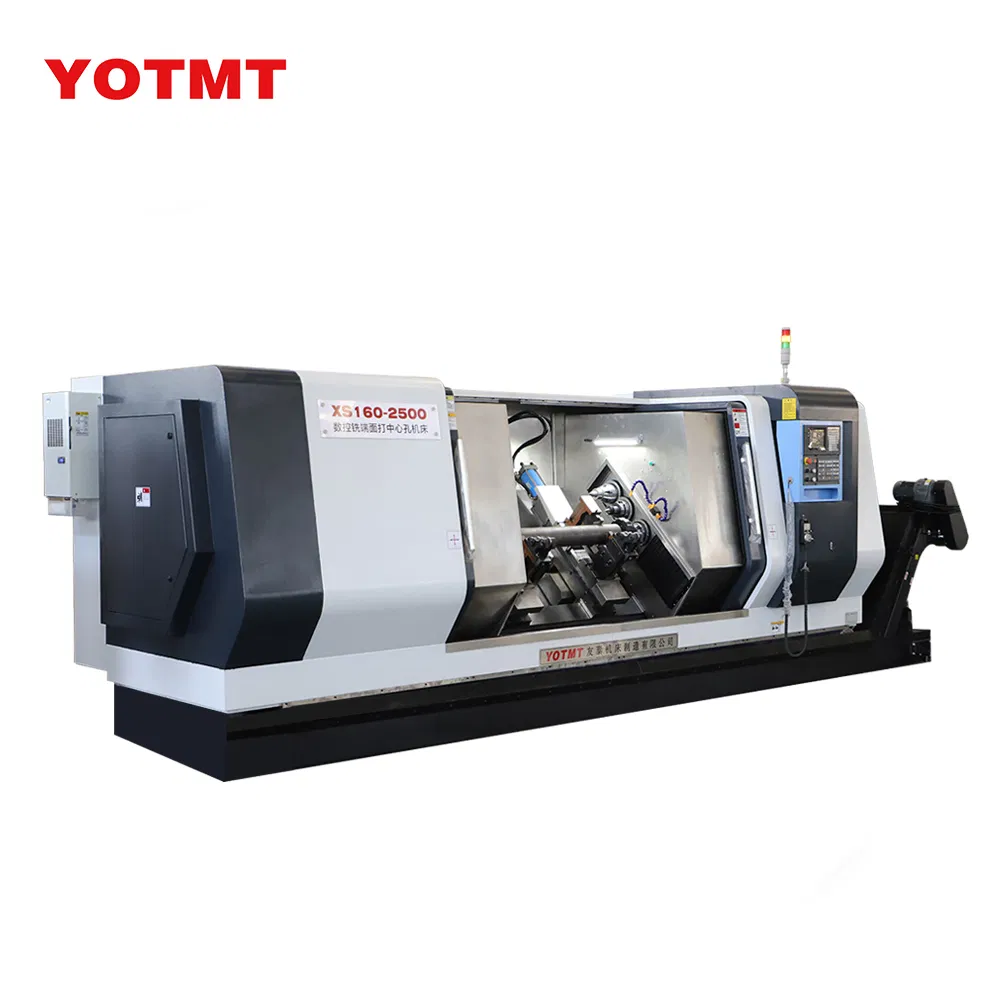

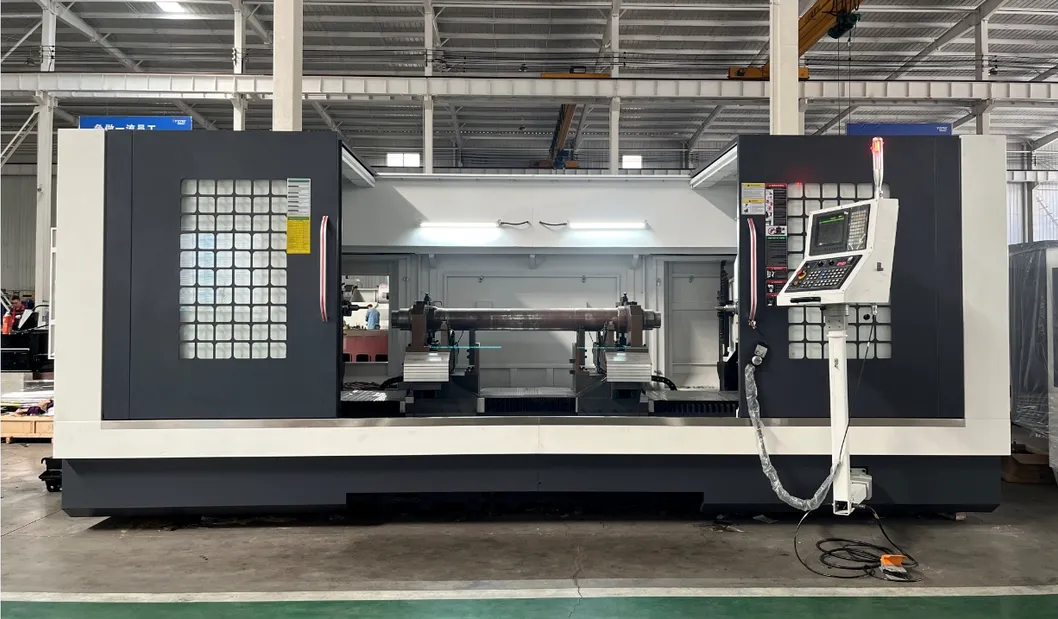

Double Sided CNC End Face Milling and Centering Machine with Hole Tapping
4 Axis Design: Self-centering fixture, one-time clamping to complete processing.

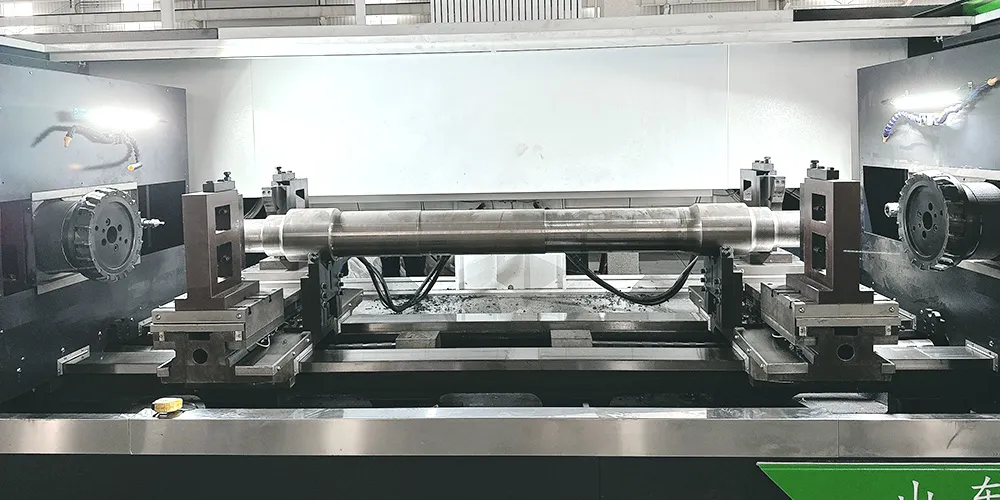

The double-end centering machine is a special CNC machine tool mainly used for processing the end face and center hole of shaft parts. It can be clamped at one time and complete milling, drilling, tapping, chamfering and other processes on both ends of the workpiece at the same time, improving processing efficiency and accuracy.

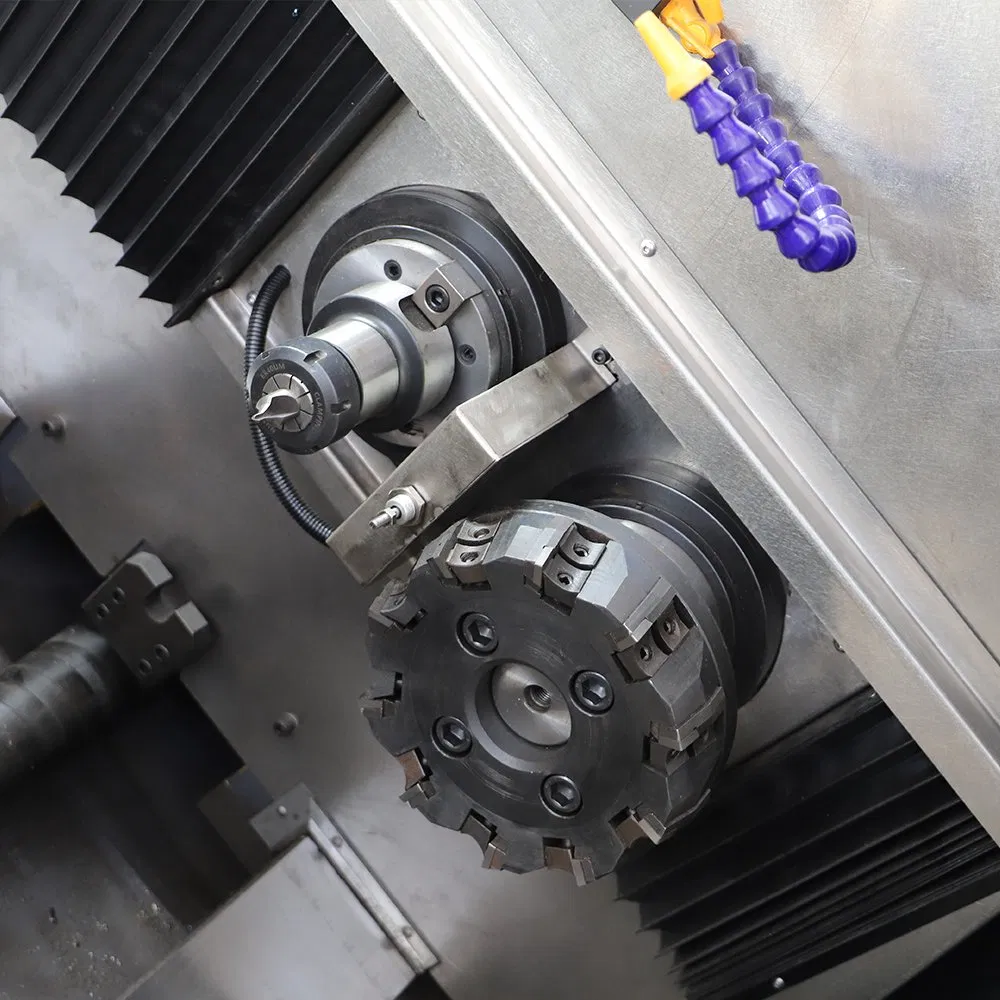

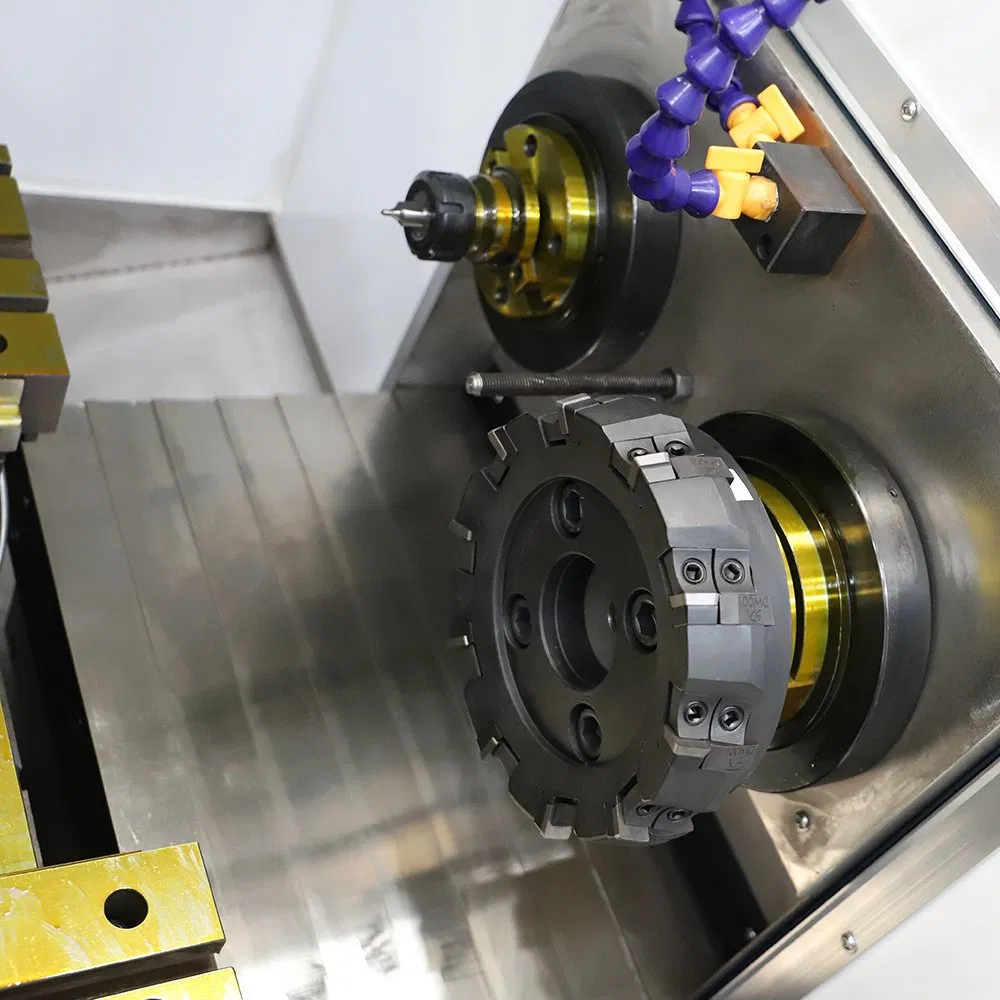

Both ends of the machine use milling spindles, drilling spindles, and threading spindles, which also have functions such as chamfering and end cylindrical turning. The same spindle can be used at both ends, or spindles with different functions can be deployed separately to process both ends of the workpiece simultaneously.
| PRODUCT NUMBER | MILLING PIN DIAMETER RANGE (mm) |
|---|---|
| ST80-1000 | 150-1000 |
| ST10-1000/1200/1600/2000 | 150-2000 |
| ST16-1200/1600/2000/2500 | 200-2500 |
| ST20-1200/1600/2000 | 200-2100 |
| ST26-2000/3000/4000 | 200-4100 |
| Project | Unit | ST30-2000 | ST30-3000 | ST30-4000 |
|---|---|---|---|---|
| Processing length range | mm | 200-2100 | 200-3100 | 400-4100 |
| Milling diameter range | mm | φ30-350 | φ30-350 | φ30-350 |
| Drilling diameter | mm | φ30 | φ30 | φ30 |
| Spindle speed | rpm | 200-1500 | 200-1500 | 200-1500 |
| Repeatable positioning accuracy | mm | 0.006 | 0.006 | 0.006 |
| End surface roughness | Ra | 3.2 | 3.2 | 3.2 |

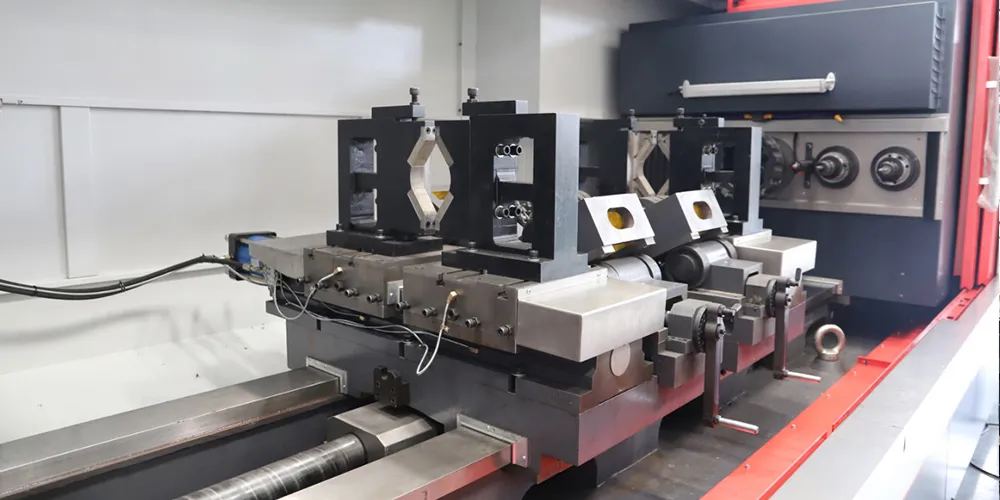

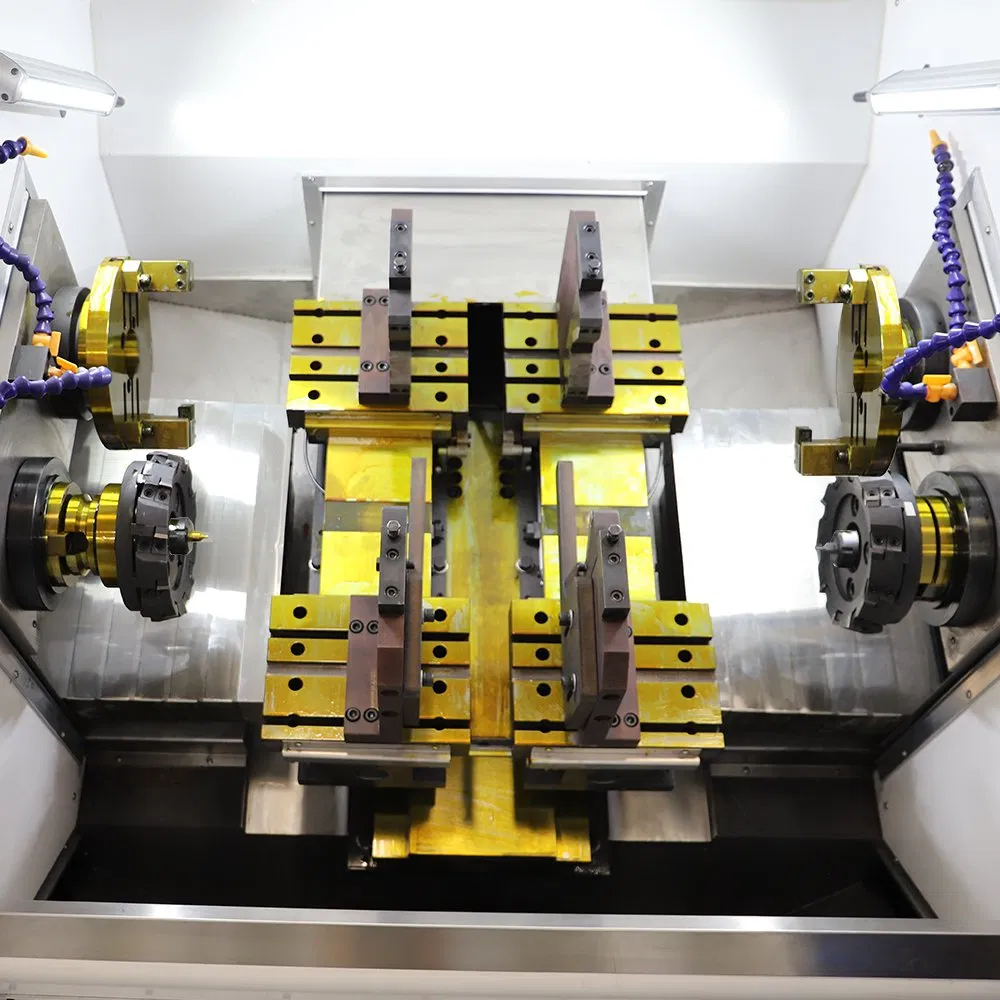

TWO-WAY HYDRAULIC CLAMP: Self-centering hydraulic vise adapted to various specifications.

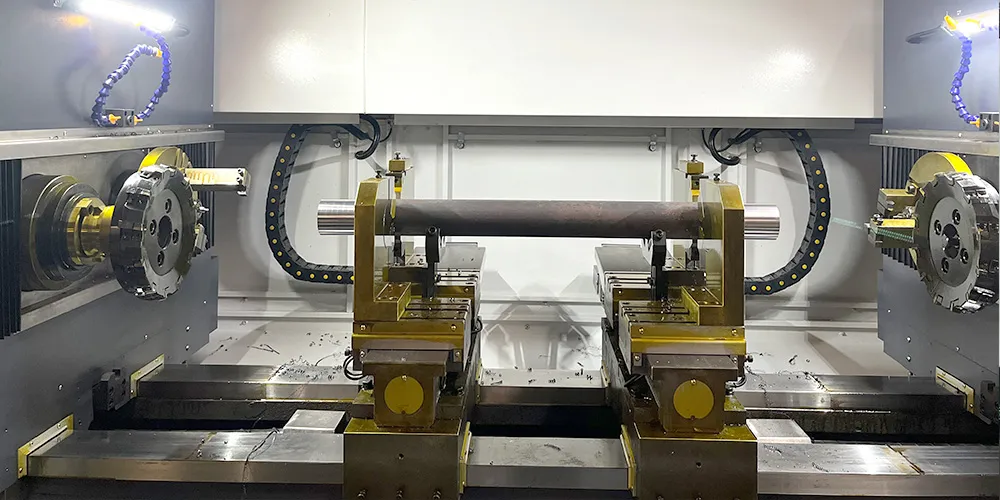

SPINDLES AND FUNCTIONS: Double-ended spindle box with high coaxiality and scalability.

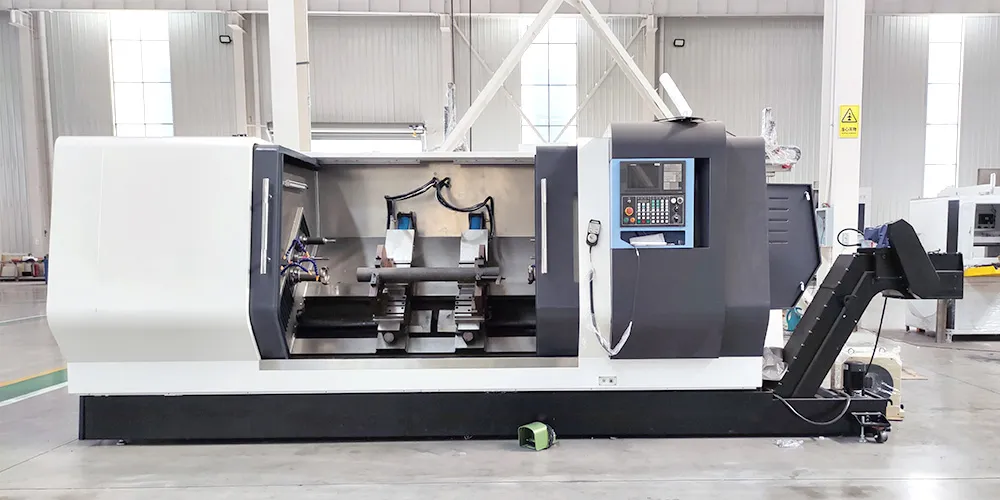

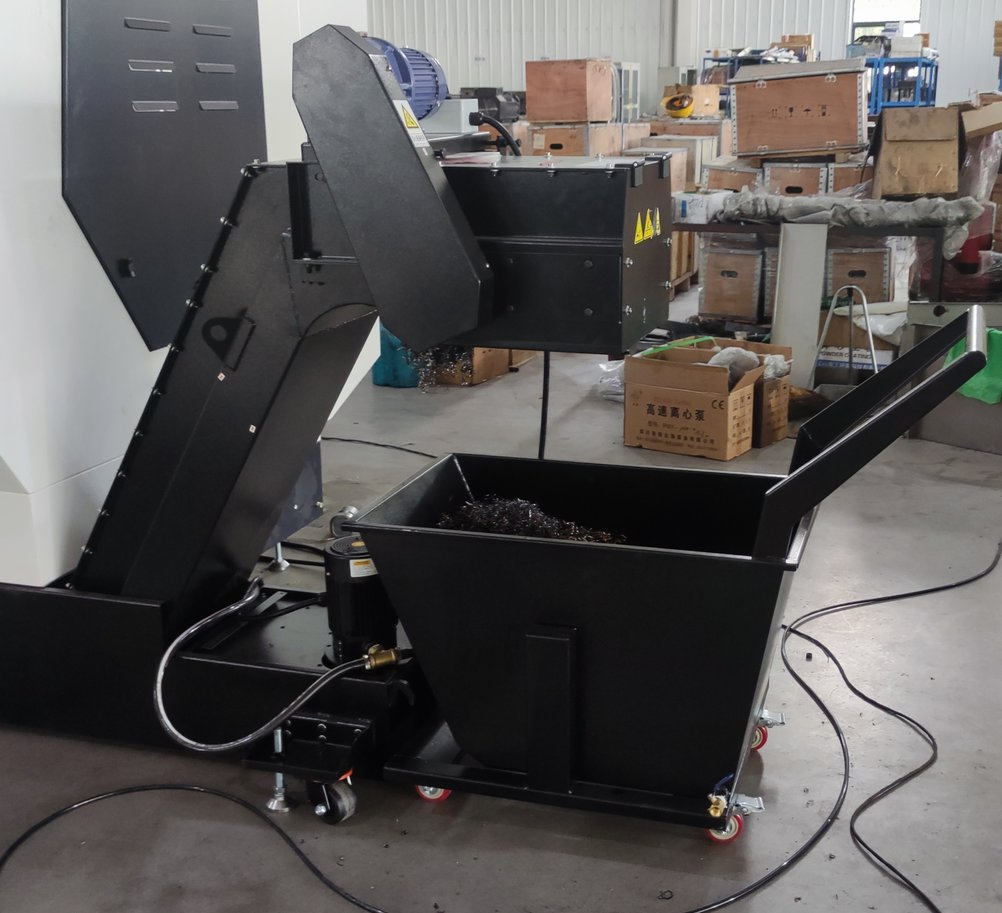

AUTOMATIC CHIP REMOVAL: High-quality chain scraper type automatic conveyor.

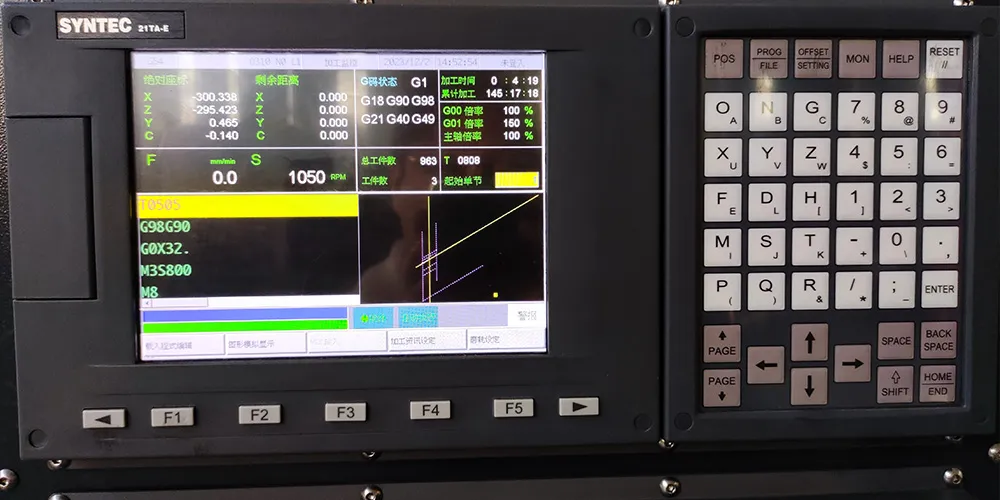

CNC SYSTEM: Bus absolute value servo system, no reset required when turning on.
Recognized as a leading manufacturer of CNC machine tools for double-sided processing, backed by hundreds of technical patents, specializing in drilling, milling, and turning shaft parts with exceptional precision.

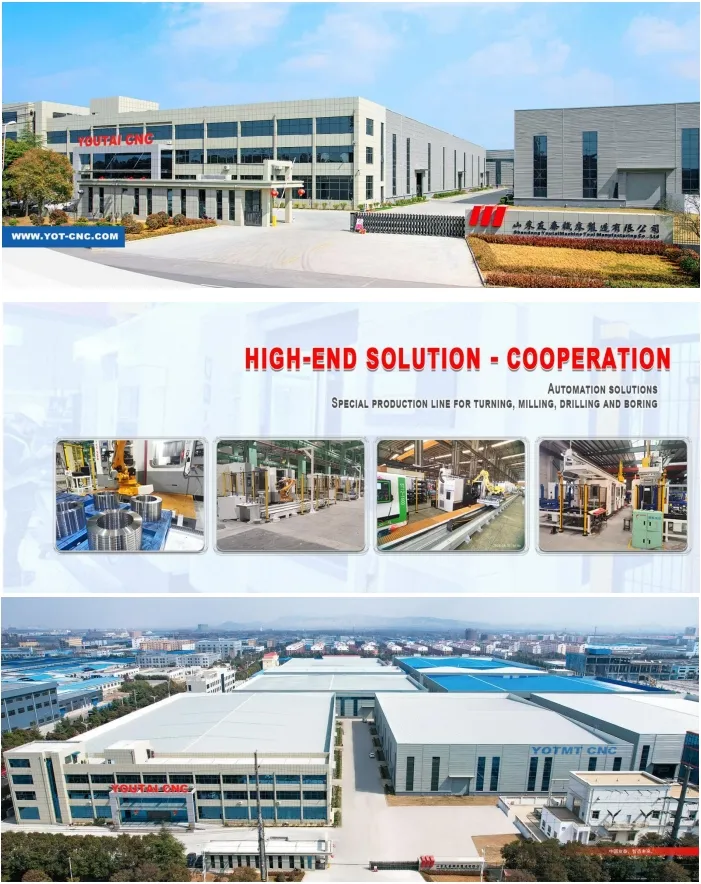

Focusing on crafting high-end CNC machine tools and specialized machines for diverse industries. Spanning over 50 acres, the facilities include over 30,000 square meters of cutting-edge workshops and offices. Sophisticated precision machines like gantry machining centers and CNC guide rail grinders are utilized to ensure superior product quality.
Facing and Centering Machine
Double Side Machining Center with ATC
Double Spindle / Turret CNC Lathe

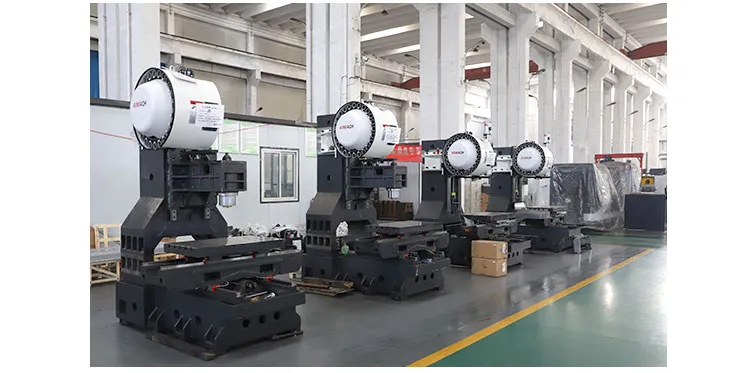

Vertical Machining Center
