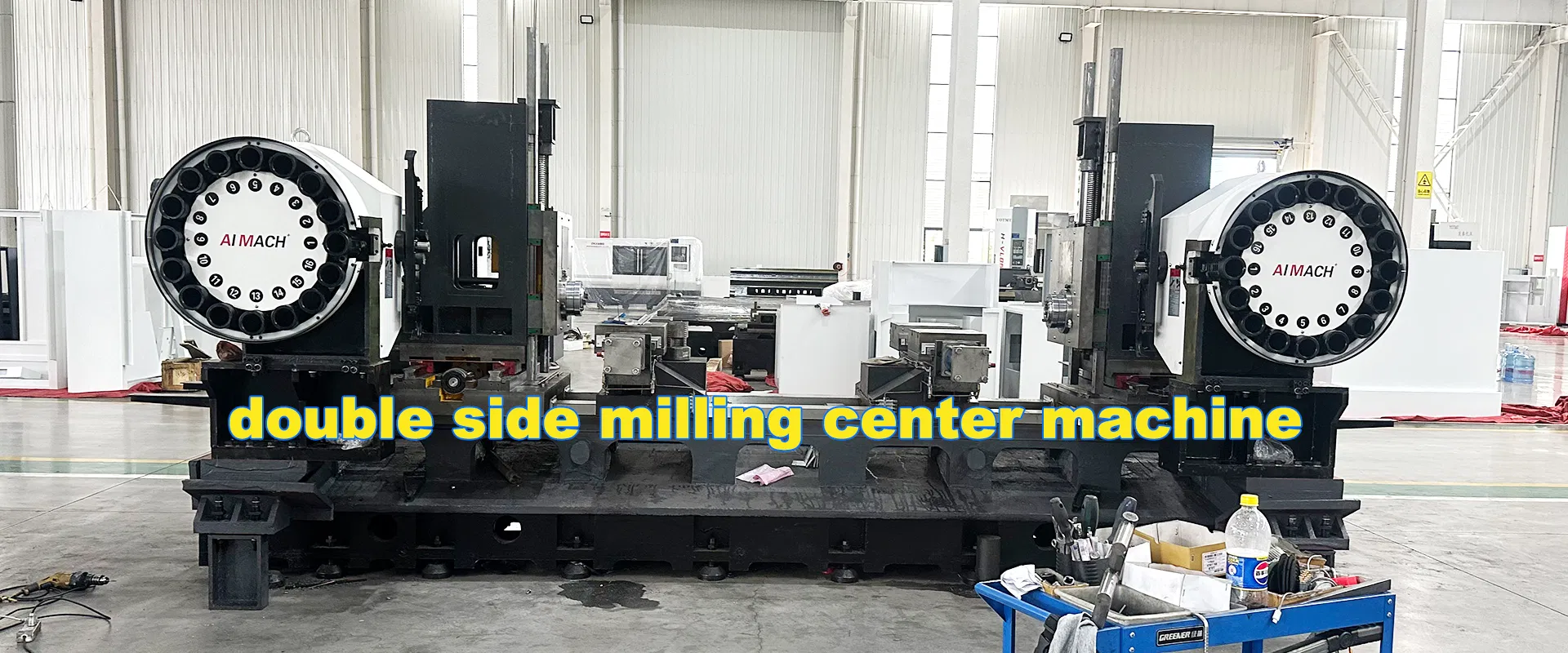

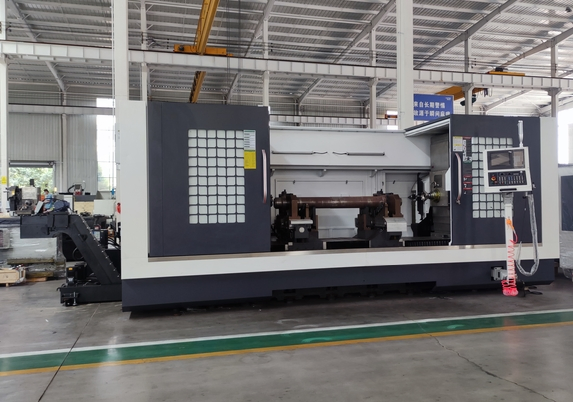

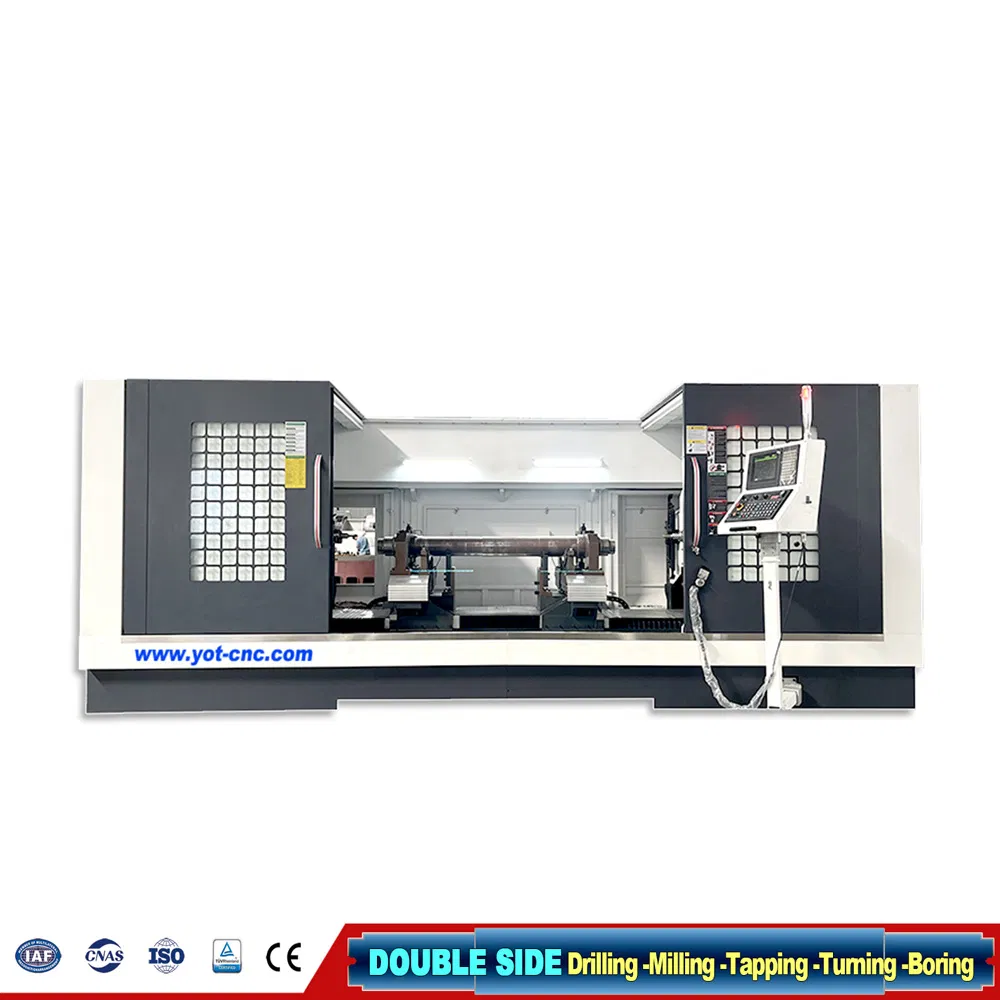

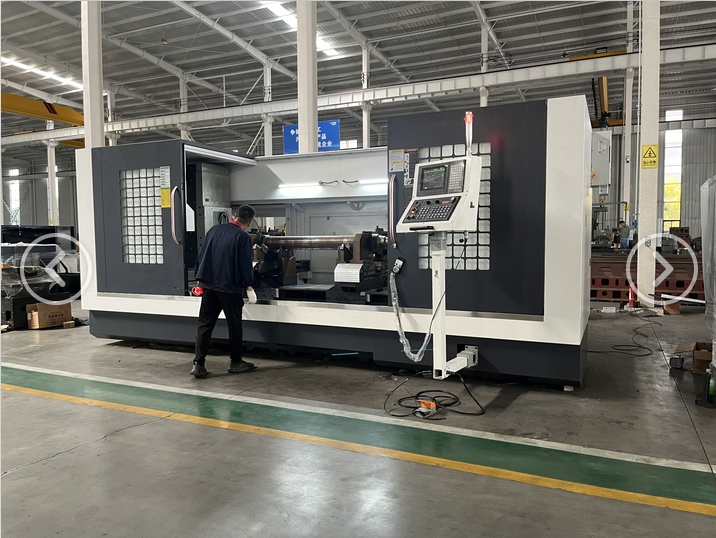

Double Side Spindles CNC Milling Machine with Drilling Tapping Automatic Cutting Tool Change

1 / 5

Double Side Spindles CNC Milling Machine with Drilling Tapping Automatic Cutting Tool Change

Customization:	Available
After-sales Service:	on Site / Online
Warranty:	1 Year

Send Inquiry

Product Description

Overview & Basic Info

Model NO.	HMDB	Type	Double Side Spindle CNC Milling Machine
Structure	Horizontal CNC Machining Center	Object	Hardware
Controlling Mode	CNC	Automatic Grade	Automatic
Certification	GS, CE, RoHS, ISO 9001	Name	Ends Drilling Tapping CNC Machine Center
Core Advantage	Double Side CNC Drilling Milling with Atc	Usage	Railway Axle Rod End Processing
CNC Type	Dual Channel Absolute Value Bus	Origin	China

Product Description

Double Side Spindles CNC Milling Machine: High-efficiency solution featuring drilling, tapping, and automatic cutting tool change capabilities for metal shaft ends.

Technical Parameters
Workpiece Diameter	mm	30 ~ 150
Workpiece Length	mm	500 ~ 1000
Tool Magazine	P	16 / 32
Total Power	kw	Approx. 60
Machine Weight	kg	Approx. 7000

Detailed Presentation

STRUCTURAL DESIGN
Features horizontal spindle box layout with three dynamic moving axes on each side.

SIMULTANEOUS EXECUTION

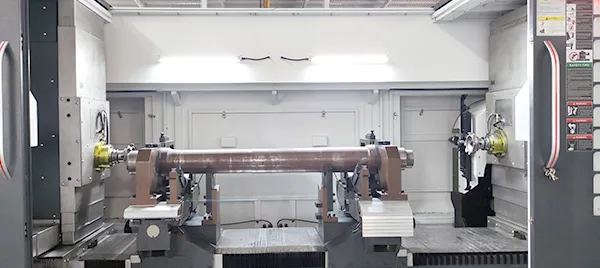

Enables milling, drilling, and tapping on two sections of the workpiece at once.

HARDWARE QUALITY

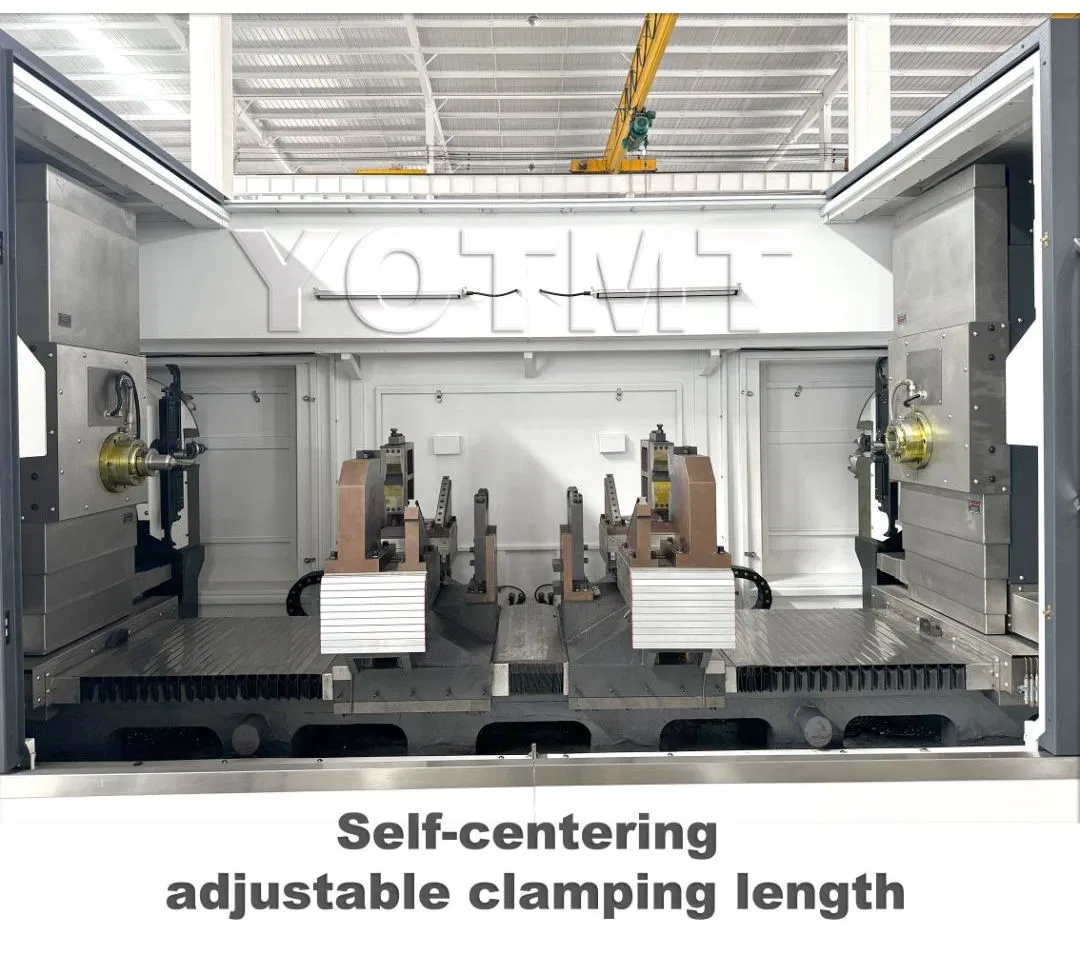

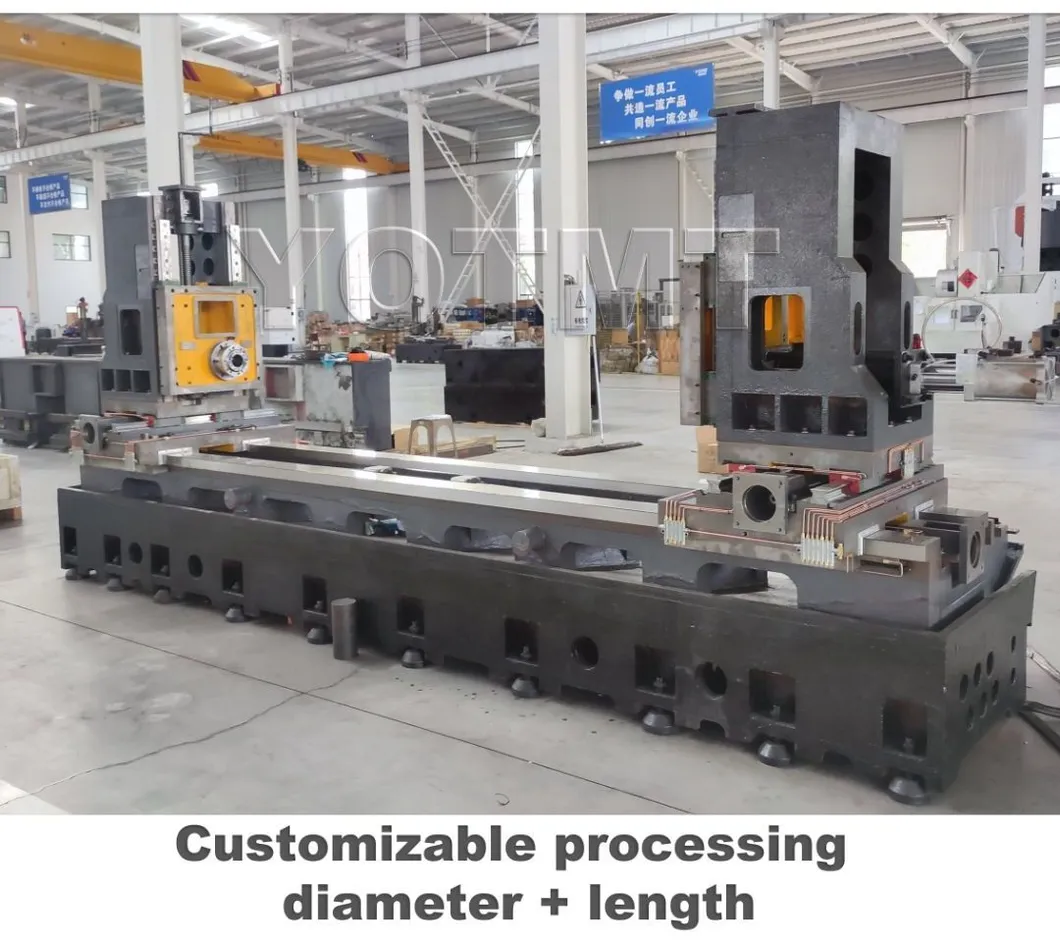

Integrated casting base and spindle box with enclosed double-layer protection.

★

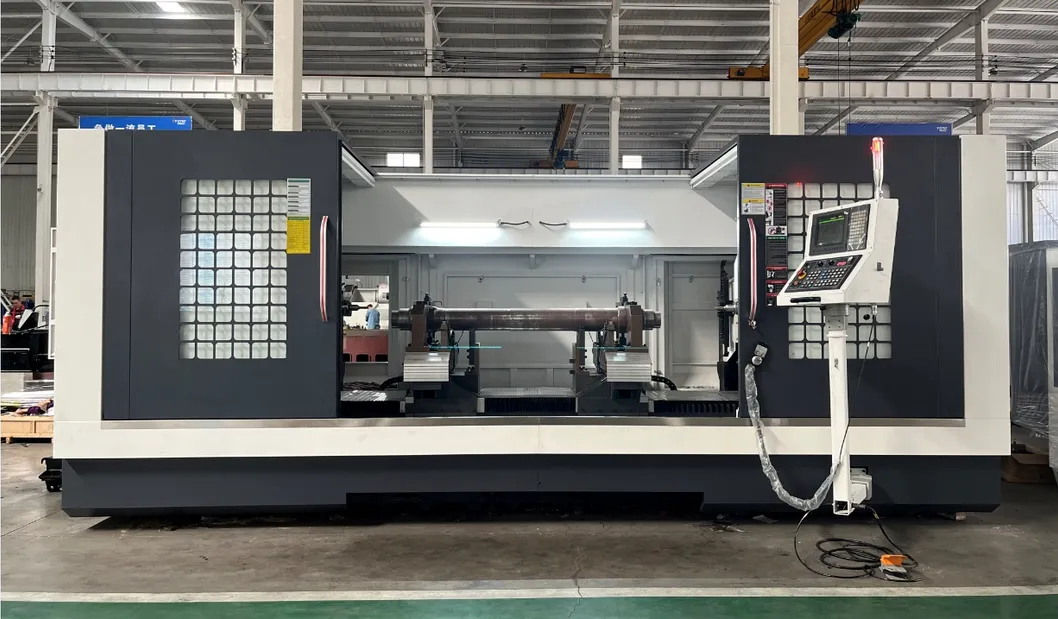

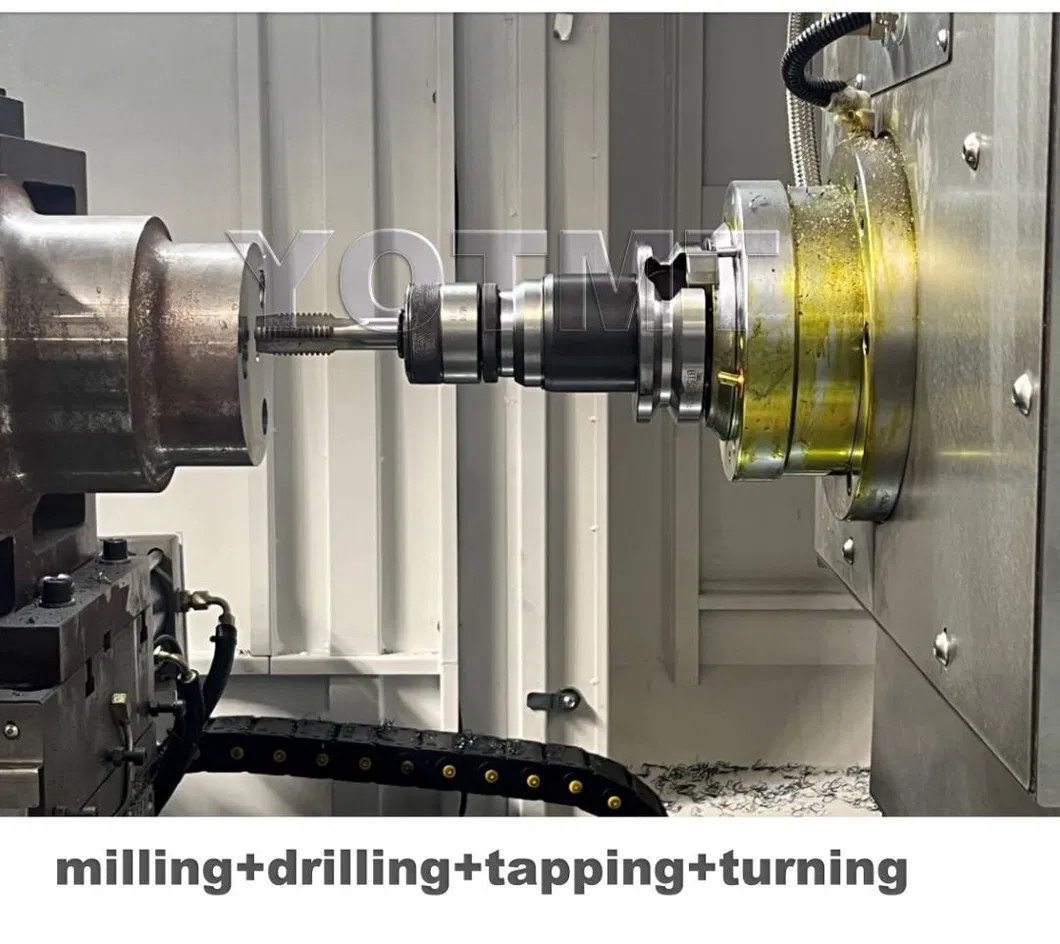

SPINDLE DESIGN: Dual-end face processing with sophisticated automatic tool change (ATC) magazines, accommodating various drilling and tapping needs with high flexibility.

Our Advantages

Design Stage
Structural optimization using finite element analysis, high-precision linear guides, and thermal deformation compensation.

Manufacturing Stage
Strict assembly processes using precision measuring instruments and high-end CNC guide rail grinders.

Performance Testing
Geometric accuracy tests, dynamic performance evaluation, and temperature stability tests for consistent reliability.

More Models Recommended

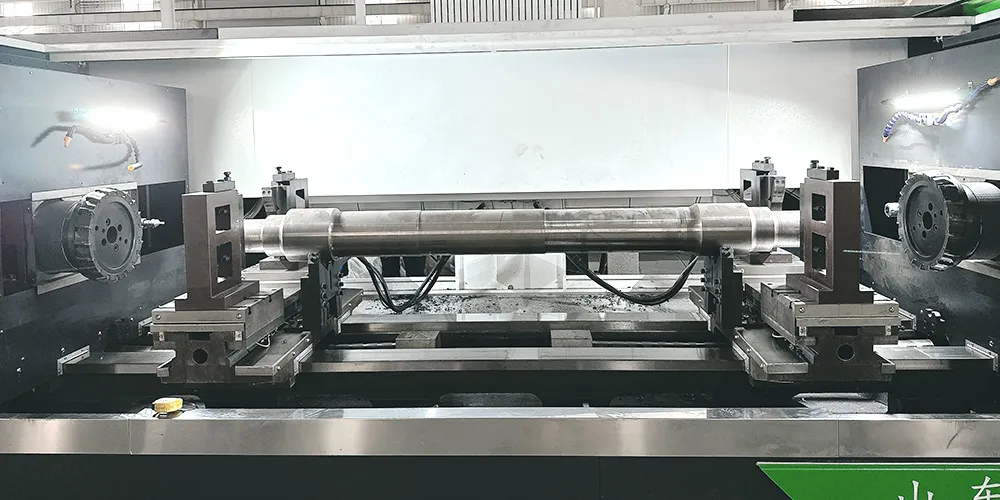

Facing and Centering Machine

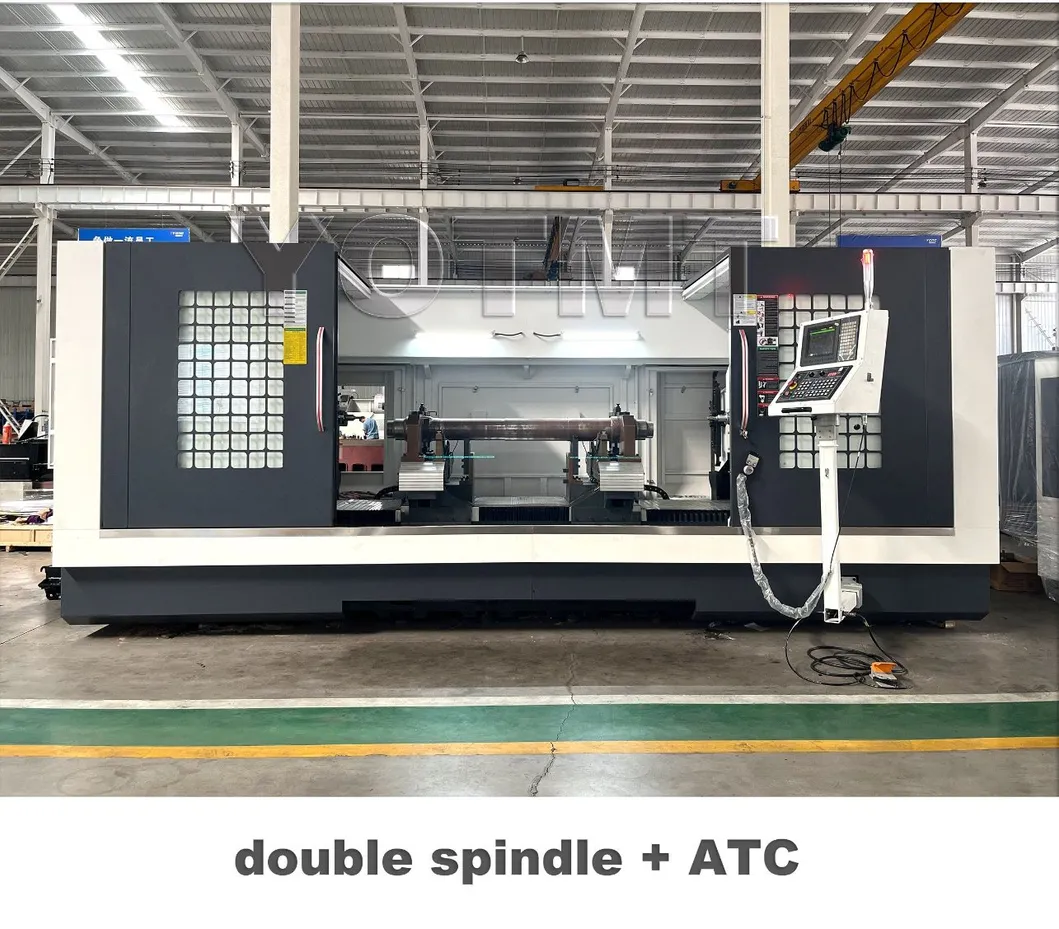

Double side machining center with ATC

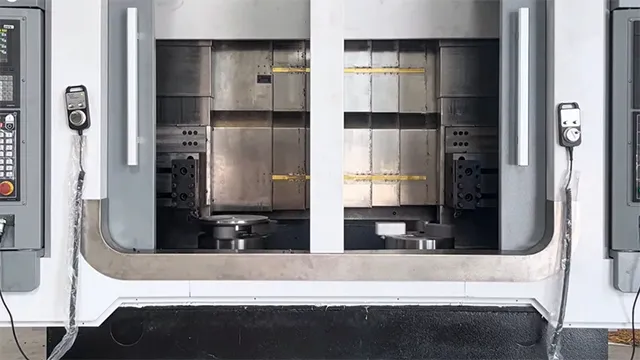

Double spindle / turret CNC lathe

Frequently Asked Questions

What are the primary applications for this double-side CNC machine?

This machine is specifically designed for high-precision processing of shaft parts, such as railway axles, truck axles, rear axles, and piston rods, where both ends require simultaneous milling, drilling, and tapping.

Does the machine support automatic tool changes (ATC)?

Yes, it features a double automatic tool magazine (16/32 positions) which allows for seamless switching between different drilling, tapping, and milling tools without manual intervention.

What workpiece sizes can this machine accommodate?

The standard model handles workpiece diameters from 30mm to 150mm and lengths ranging from 500mm to 1000mm. Custom extensions for lengths up to 3000mm are also available.

What type of CNC control system is used?

The machine utilizes a dual-channel absolute value bus system. We offer optional controllers from reputable brands including KND, GSK, FANUC, and SIEMENS based on customer requirements.

How does the machine ensure processing precision?

Precision is ensured through high-rigidity linear guides, ball screws, an integrated casting base, and strict performance testing for positioning and repeat accuracy. High-pressure coolant systems also prevent thermal deformation.

Is the machine suitable for heavy-duty milling?

Yes, it is equipped with robust BT50 spindles and a high-power design (approx. 60kw) specifically capable of heavy milling and high-efficiency metal removal.
