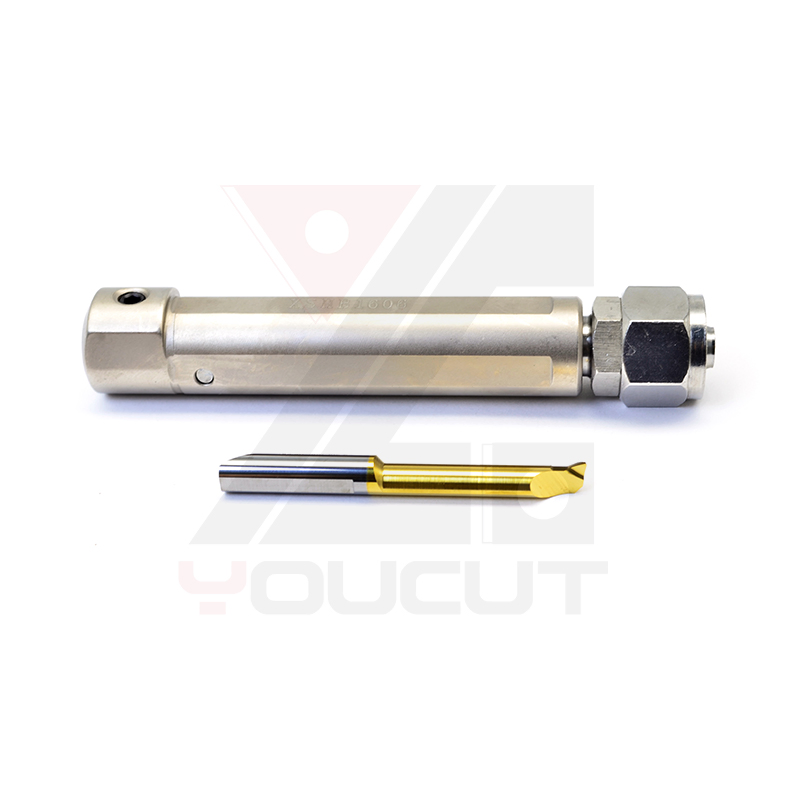

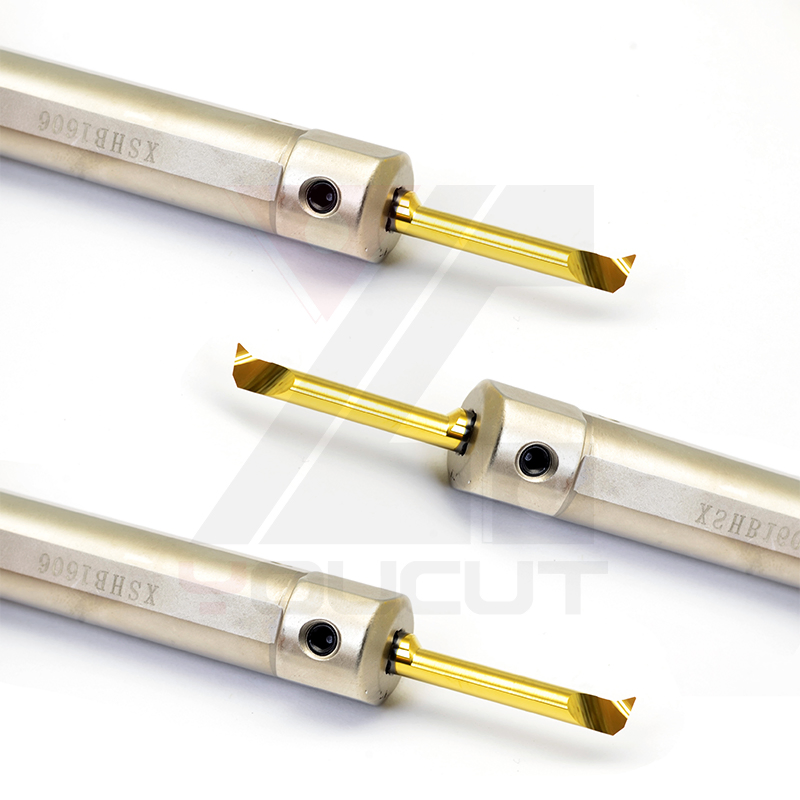

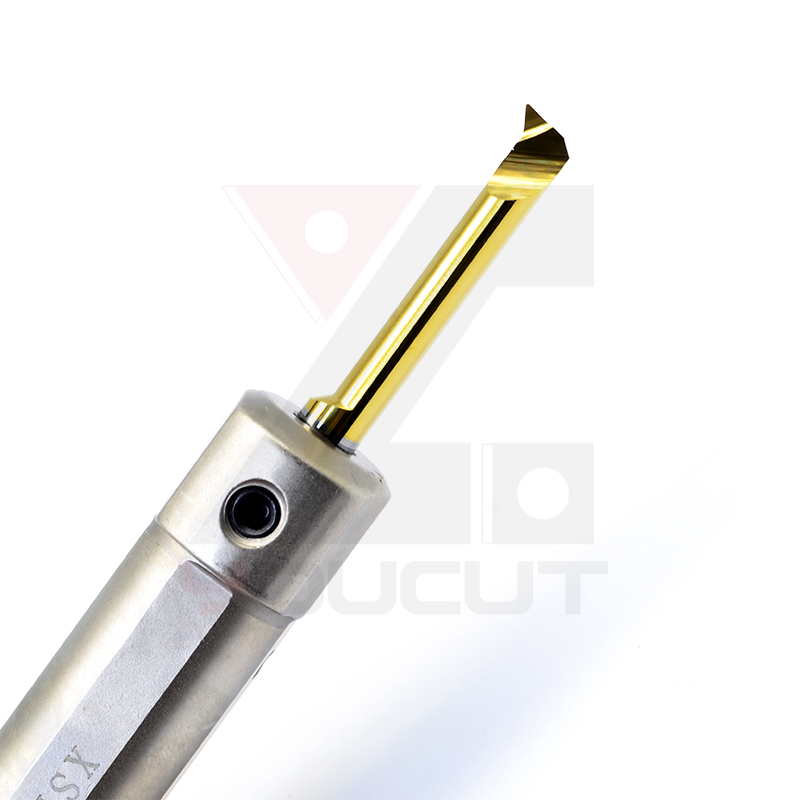

Small Hole Xshb1606 CNC Tungsten Carbide Boring Tool Holder Boring Bar Set with Scpr6 Micro Boring Head Bit
Small Hole Xshb1606 CNC Tungsten Carbide Boring Tool Holder Boring Bar Set with Scpr6 Micro Boring Head Bit
Small Hole Xshb1606 CNC Tungsten Carbide Boring Tool Holder Boring Bar Set with Scpr6 Micro Boring Head Bit
Small Hole Xshb1606 CNC Tungsten Carbide Boring Tool Holder Boring Bar Set with Scpr6 Micro Boring Head Bit
Small Hole Xshb1606 CNC Tungsten Carbide Boring Tool Holder Boring Bar Set with Scpr6 Micro Boring Head Bit
1 / 5
Small Hole Xshb1606 CNC Tungsten Carbide Boring Tool Holder Boring Bar Set with Scpr6 Micro Boring Head Bit
Small Hole Xshb1606 CNC Tungsten Carbide Boring Tool Holder Boring Bar Set with Scpr6 Micro Boring Head Bit
Small Hole Xshb1606 CNC Tungsten Carbide Boring Tool Holder Boring Bar Set with Scpr6 Micro Boring Head Bit
Small Hole Xshb1606 CNC Tungsten Carbide Boring Tool Holder Boring Bar Set with Scpr6 Micro Boring Head Bit
Small Hole Xshb1606 CNC Tungsten Carbide Boring Tool Holder Boring Bar Set with Scpr6 Micro Boring Head Bit

Small Hole Xshb1606 CNC Tungsten Carbide Boring Tool Holder Boring Bar Set with Scpr6 Micro Boring Head Bit

Customization: Available
Coating: Coating
Handle Type: 7:24/Morse/Square Shank
Send Inquiry

Product Description

Basic Specifications
Model NO.
XSHB1606 boring toolholder with SCPR6 boring bit
Structure
Integral
Blade Number
Single-Blade
Material
Tungsten Steel
Coated
PVD/CVD
Workpiece
Steel / Stainless Steel / Cast Iron
HS Code
8202100000
Origin
China
Product Overview

The XSHB1606 Boring Toolholder with SCPR6 Boring Bit is an integrated precision set engineered for seamless compatibility and high-accuracy micro-hole boring in CNC machining. This pre-matched combination eliminates the need for time-consuming toolholder-bit calibration, directly delivering consistent performance for industries like electronics, medical device manufacturing, and aerospace.

The set leverages the strengths of each component: the XSHB1606 toolholder (rear chamfered, 16mm shank compatibility, H7 inner bore tolerance) ensures stable clamping, while the SCPR6 boring bit (optimized for micro-boring, R0.2 nose radius) delivers smooth cuts. Together, they form a reliable solution for 3-10mm diameter hole machining with runout tolerance ≤0.003mm.

Application Scenarios
  • CNC Machining Centers: Ideal for batch production of small precision parts, reducing tool changeover time by 30%.
  • Micro-Hole Boring in Electronics: Perfect for 4-8mm diameter holes in PCB heat sinks, smartphone midframes, and semiconductor packaging.
  • Medical Device Manufacturing: Suitable for precision holes in titanium surgical tools and PEEK implant housings.
  • Aerospace Miniature Components: Processes lightweight alloy parts where hole concentricity is critical.

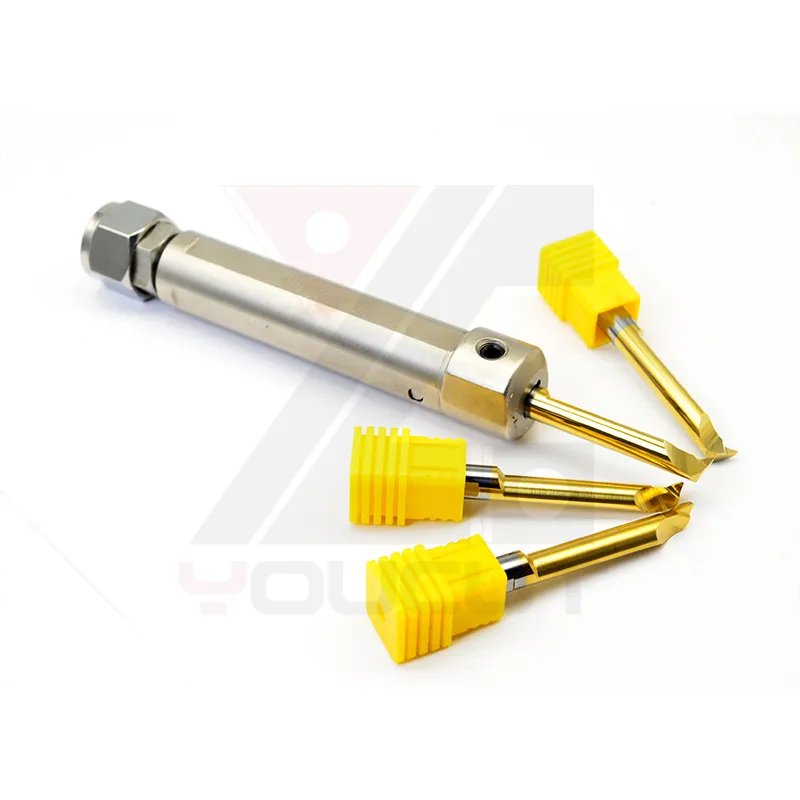

Tool Holder View 1

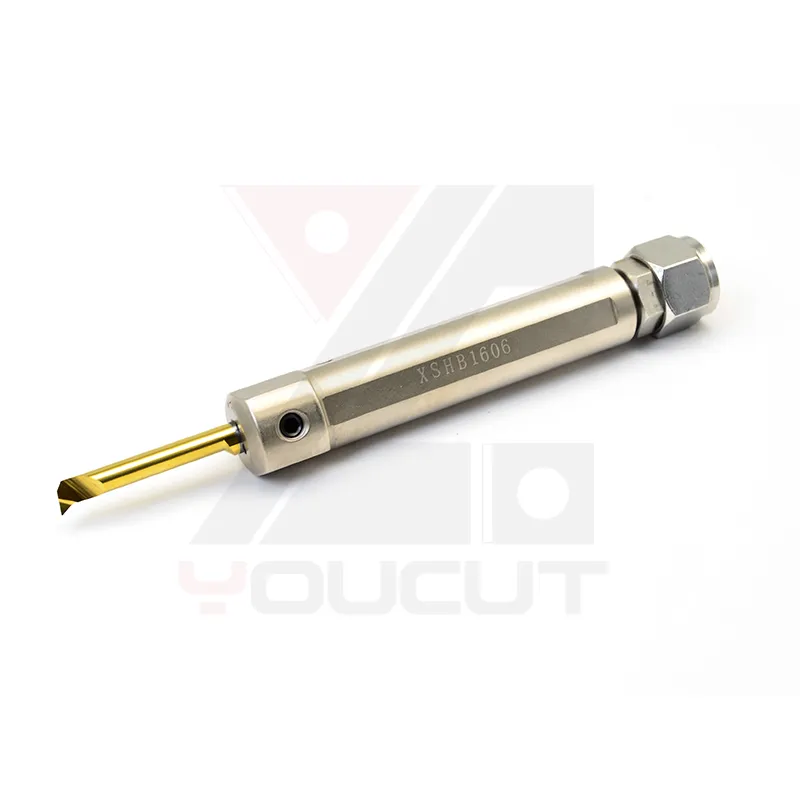

Tool Holder View 2
Core Advantages
  • Perfect Compatibility: Factory-matched components ensure concentricity ≤0.003mm with no on-site adjustment needed.
  • Rear Chamfered Design: 45° rear chamfer guides bits smoothly into the holder, reducing shank wear by 40%.
  • Dual Precision: SCPR6 bit features a sharp cutting edge ground to ±0.001mm tolerance for superior surface finishes.
  • Broad Compatibility: Works with major CNC brands (Fanuc, Siemens, Mitsubishi) and standard ER32 collets.
  • Durable Coating: TiAlN coating enhances heat resistance up to 600°C for extended tool life.

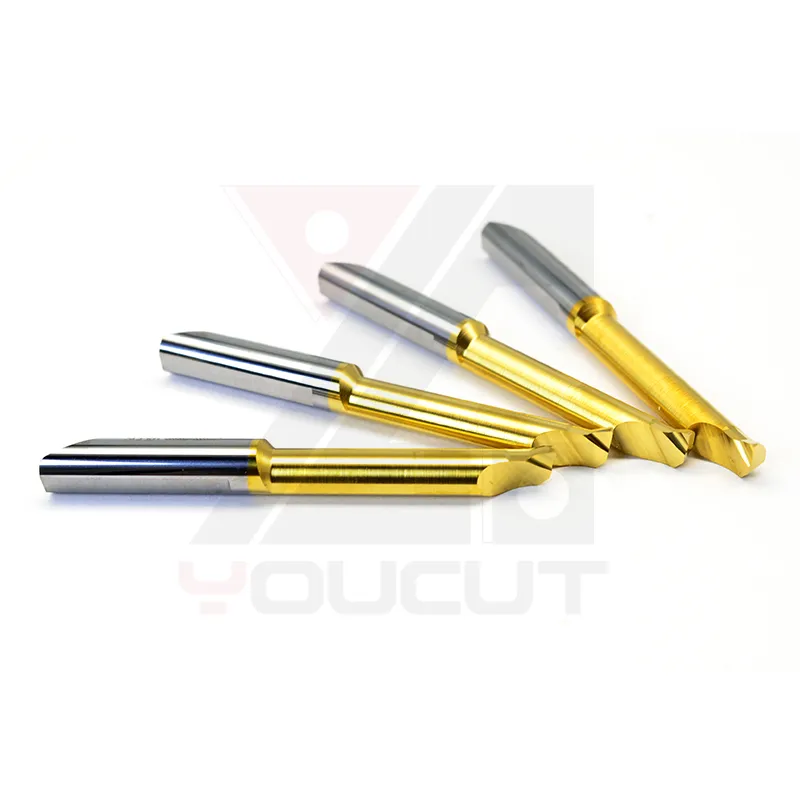

Boring Bit Detail

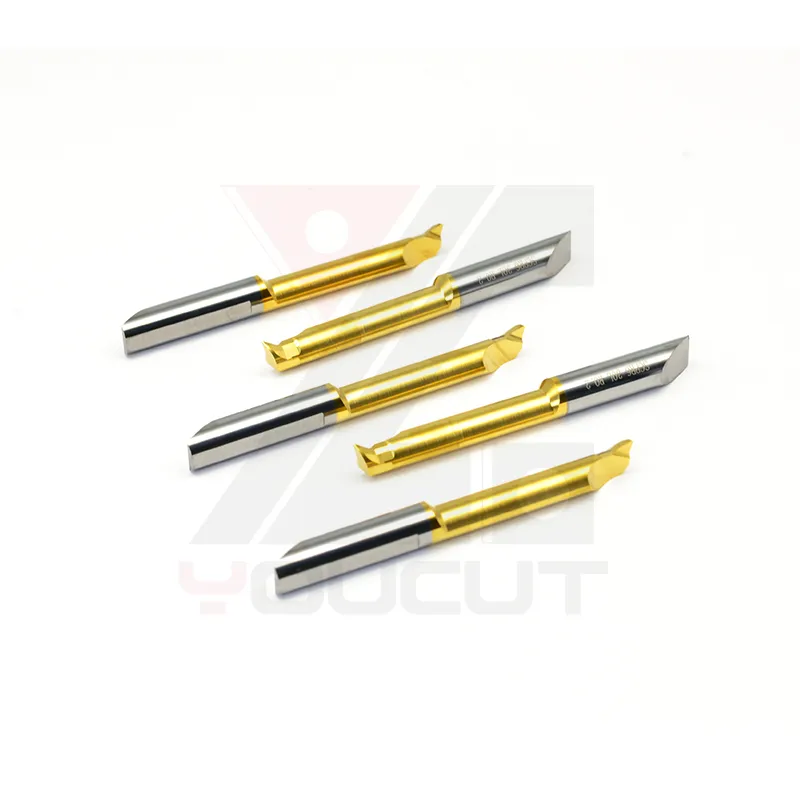

Boring Bit Operation
Technical Specifications
Component Parameter Specification
XSHB1606 ToolholderShank Compatibility16mm diameter tool shanks
XSHB1606 ToolholderInner Bore ToleranceH7 (Tight fit)
XSHB1606 ToolholderMaterial45# hardened steel (HRC 58-60)
SCPR6 Boring BitNose RadiusR0.2mm
SCPR6 Boring BitDiameter Range3-10mm
SCPR6 Boring BitRunout Tolerance≤0.0015mm
System OverallConcentricity≤0.003mm
Performance Comparison
Metric XSHB1606-SCPR6 System Standard System
Total Runout0.003mm0.01-0.02mm
Surface FinishRa 0.1-0.2μmRa 0.8-1.6μm
Tool Life+40% ImprovementBaseline
Setup Time5 minutes15-20 minutes

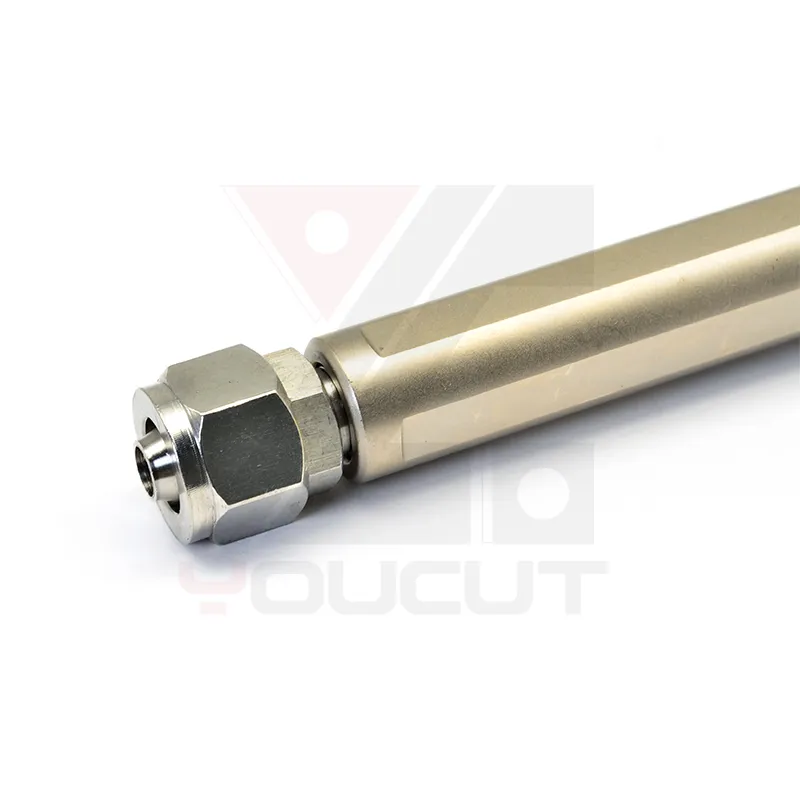

Feature Highlight

Key Features

High Quality Material: Resists corrosion, ensures outstanding durability, and reduces friction to run cooler.

General Purpose: Perfect for machining carbon steel, alloy steel, cast iron, and non-ferrous metals like aluminum and brass.

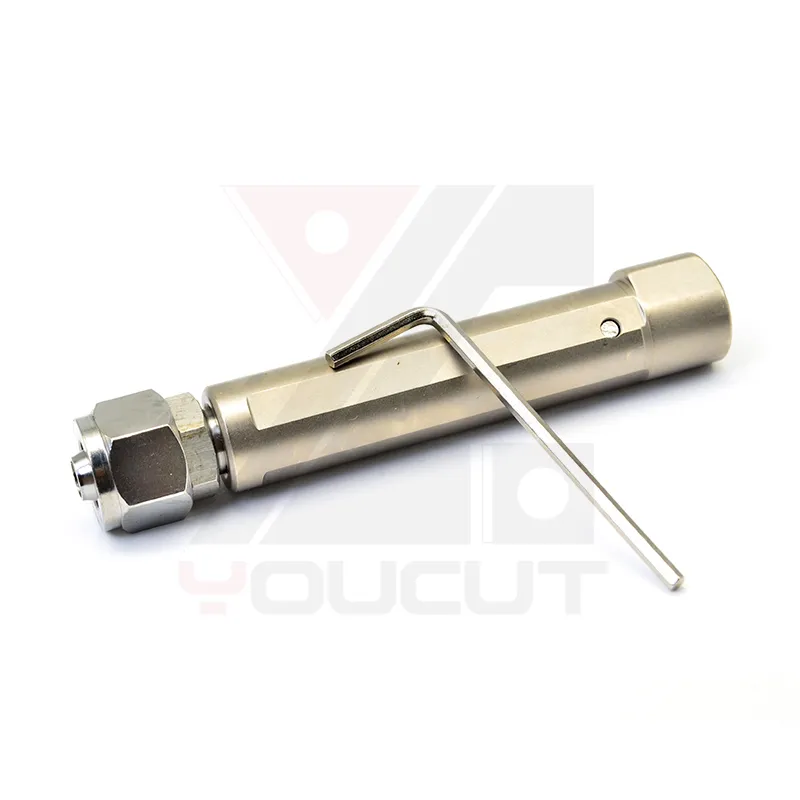

Product Display 1
Product Display 2
Product Display 3
Main Product Line
Category Models/Series
Turning InsertsTNMG/WNMG/CNMG/DNMG/VNMG/SNMG/CCMT/TCMT/VBMT
Threading Inserts16ER/16IR AG60 AG55 /ISO/API/W ect
Grooving InsertsMGMN/MRMN/TDC/TDJ/TDT/TDXU/SP/DGN/N123
Milling InsertsR390/APMT/APKT/BDMT/RCKT/RPMW/RDMT
Drilling InsertsSPMG/WCMX
ToolholdersSER/SNR/MGEHR/L/SPB ect
Packaging & Delivery

Secure Packaging:
1. Product packed in high-grade plastic boxes (10 pcs/box).
2. Individual items protected by bubble wrap.
3. Sealed in thickened hard paper cartons for safe transit.

Fast Shipping:
Global delivery via FedEx, TNT, DHL, or UPS.
Estimated delivery time: 5-15 days worldwide.
Payment: T/T, Western Union available.

Shipping Box
Stock Display
Frequently Asked Questions
What materials can the SCPR6 boring bit process?
It is designed for high-efficiency machining of carbon steel, alloy steel, cast iron, and non-ferrous metals like aluminum and brass, particularly in micro-hole applications.
How does the pre-calibration benefit my production?
The XSHB1606 and SCPR6 are factory-matched to a concentricity of ≤0.003mm. This eliminates manual setup errors, reducing scrap rates by approximately 25%.
What is the advantage of the TiAlN coating?
The TiAlN coating provides excellent heat resistance up to 600°C and superior wear resistance, allowing for higher cutting speeds (up to 80 m/min) and longer tool life.
Can I request non-standard customized tools?
Yes, we provide non-standard customized services for different hardness and geometric requirements based on specific client machining needs.
What are the delivery terms and options?
We support FOB, CIF, EXW, and Express Delivery. Standard specifications are usually in stock and can be delivered within 24 hours of order confirmation.
Is there a warranty on these precision tools?
Yes, we provide a 12-month warranty covering manufacturing defects to ensure reliable performance in your CNC machining operations.
