Professional CNC Honing System Enhanced Surface Finishing

Customization:	Available
After-sales Service:	Provide
Warranty:	1 Years

1

Overview & Basic Info

Model NO.

2M2150

CNC or Not

CNC

Structure

Horizontal

Automatic Grade

Semi-Automatic

Voltage

380V, 220V

Core Components

PLC, Motor

Weight (Kg)

5000

Origin

China

HS Code

846040

Production Capacity

800set/Year

2

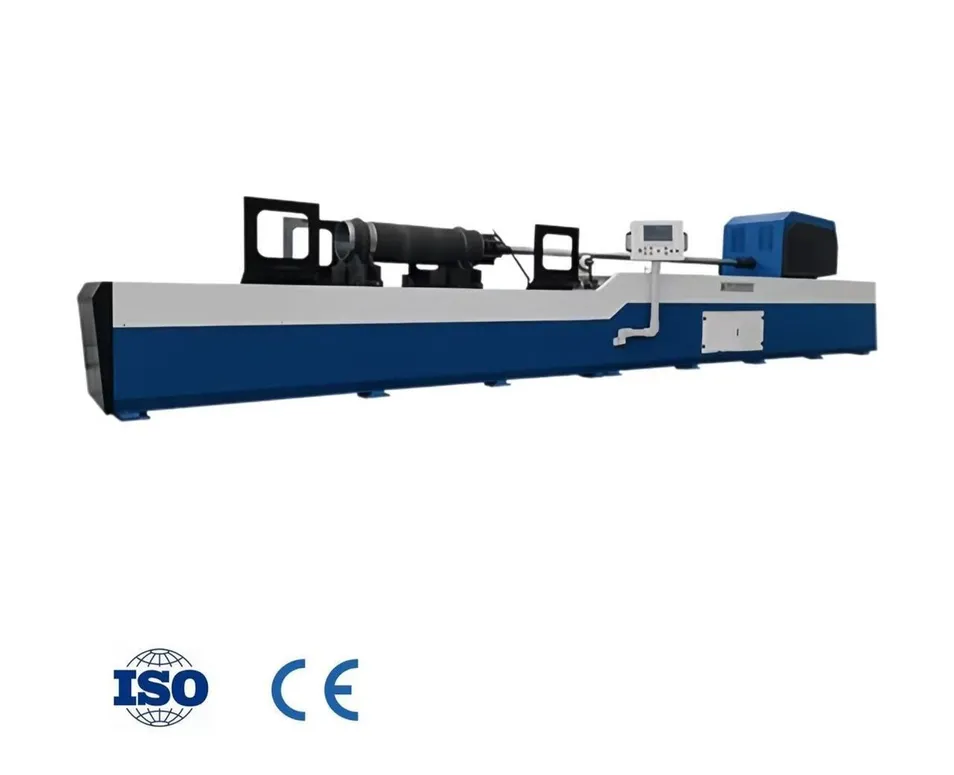

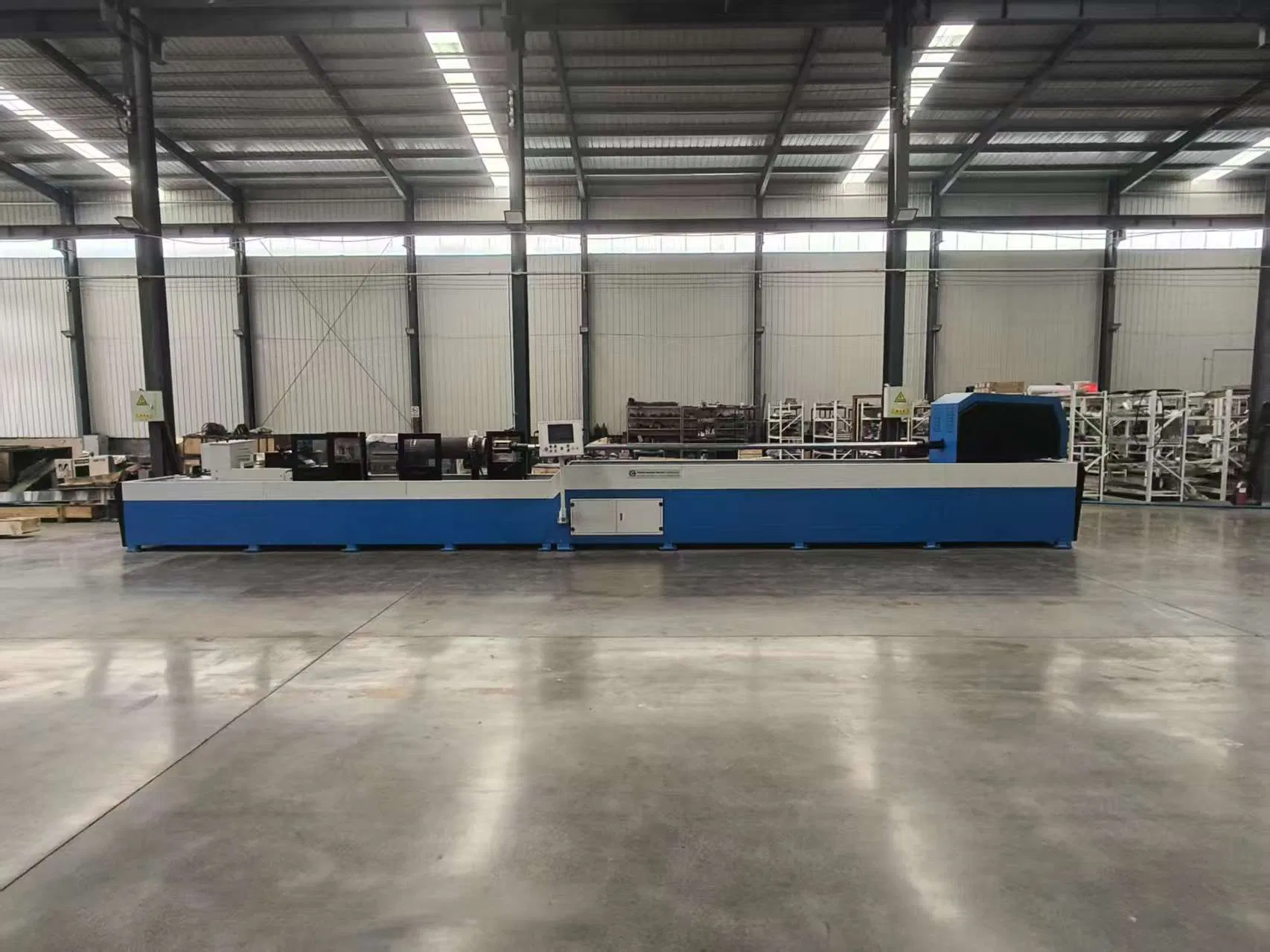

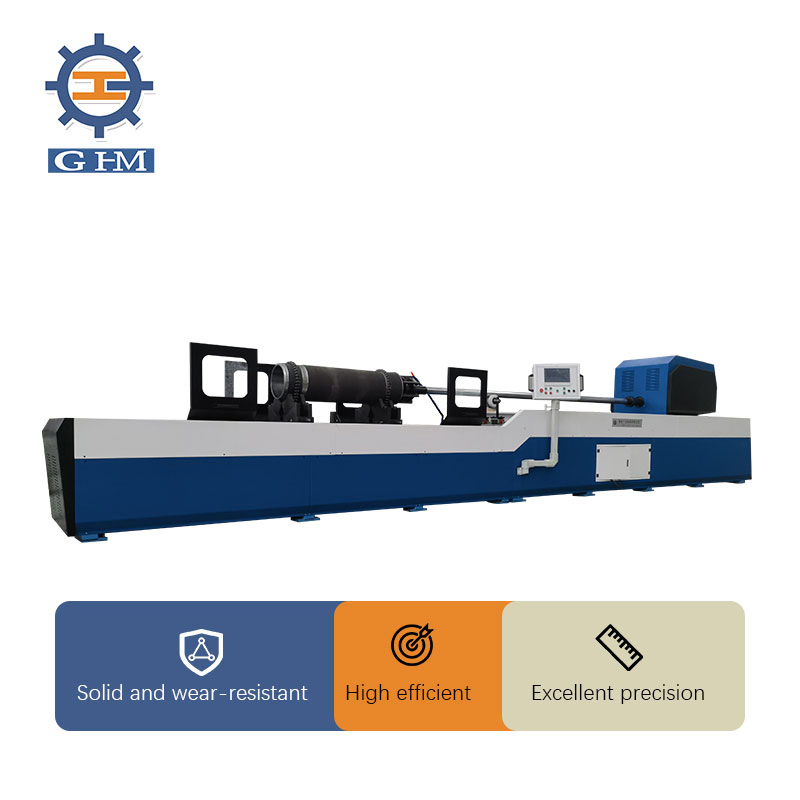

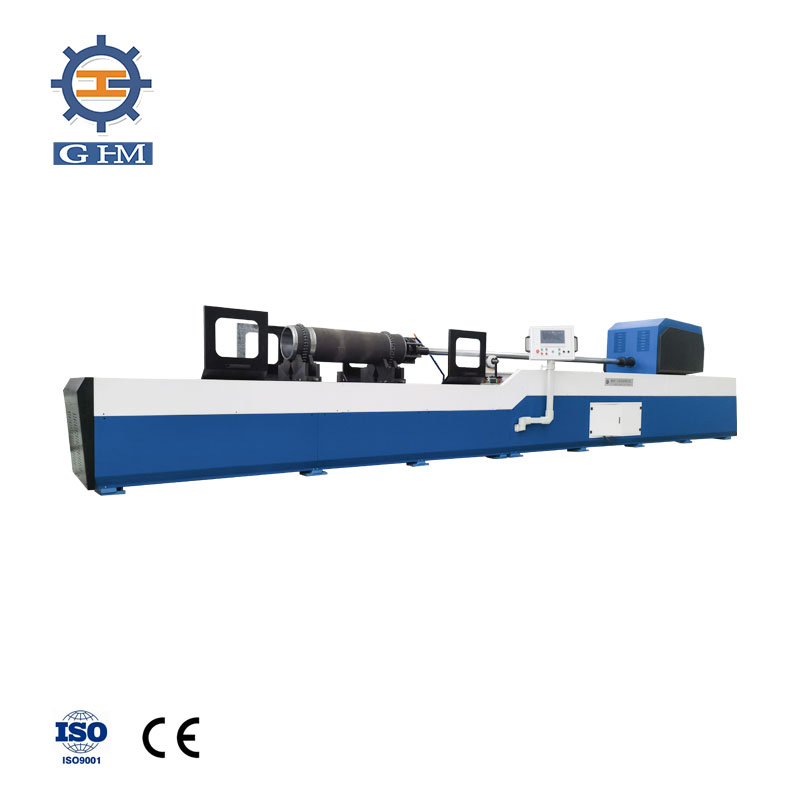

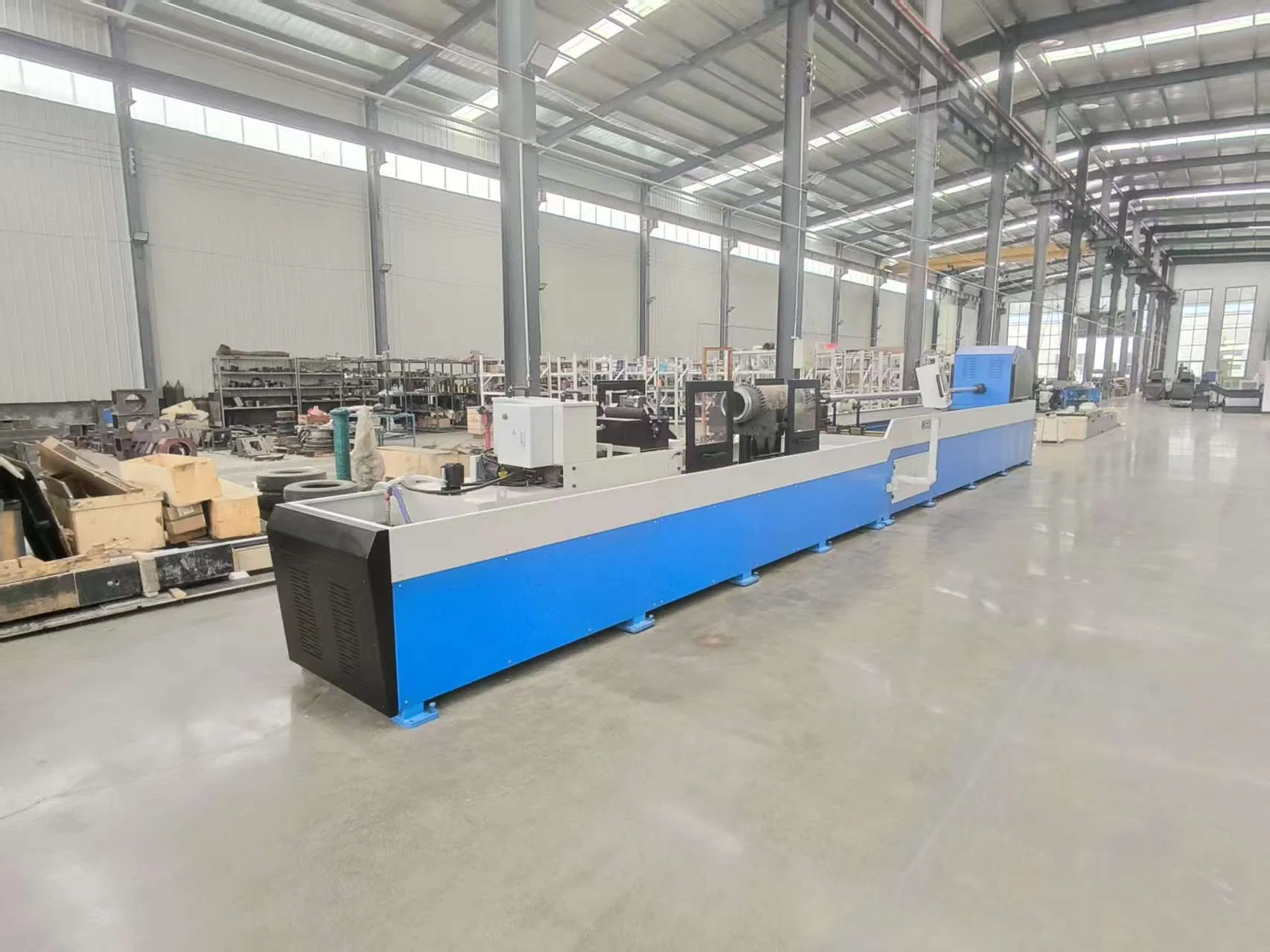

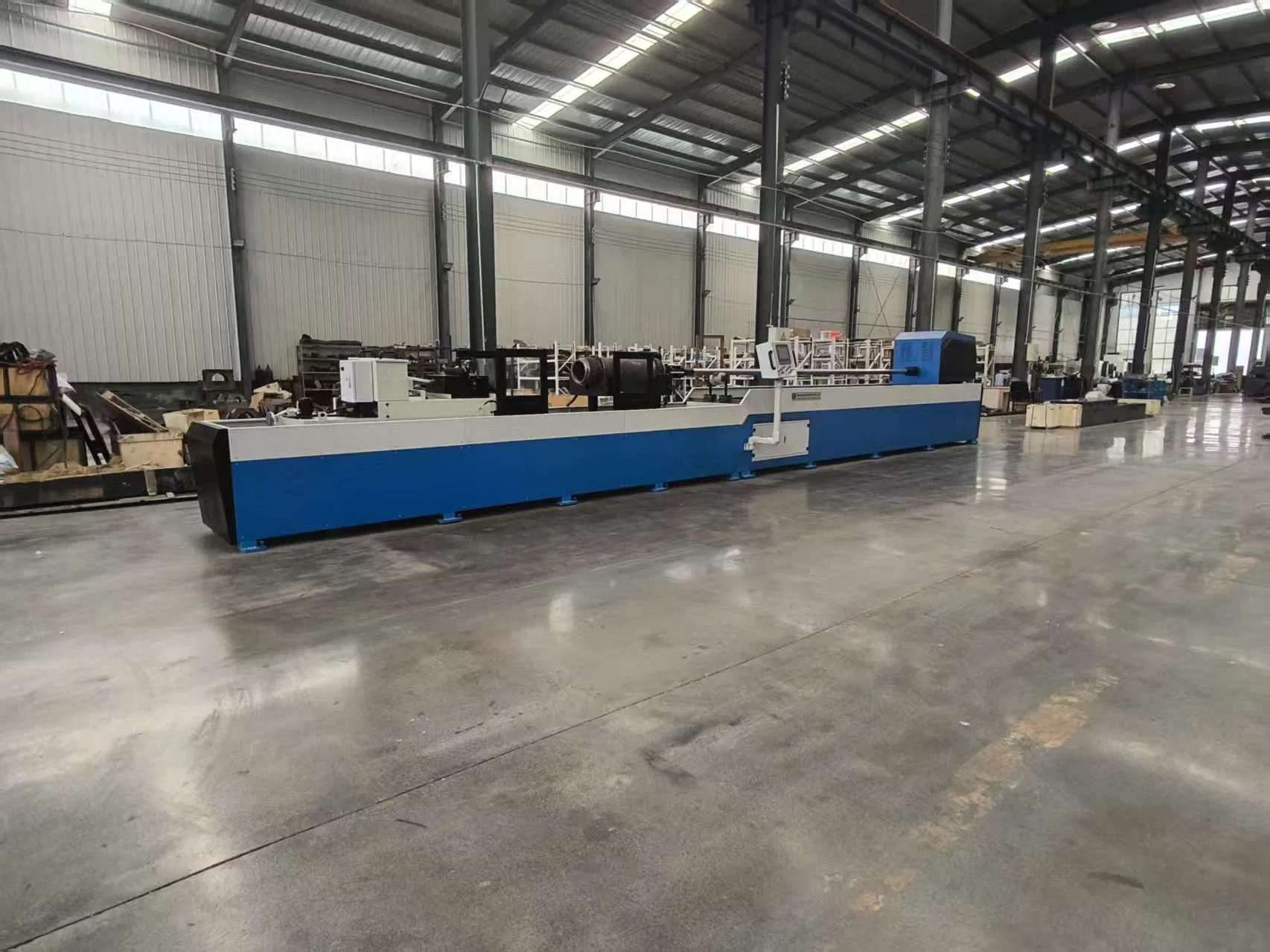

High-Performance Honing Machine

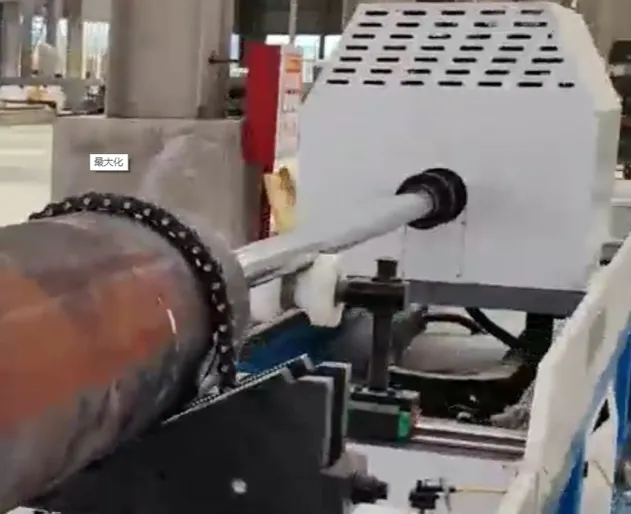

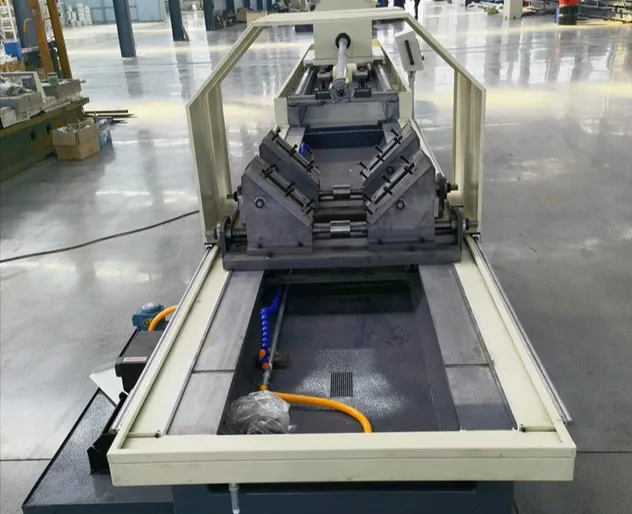

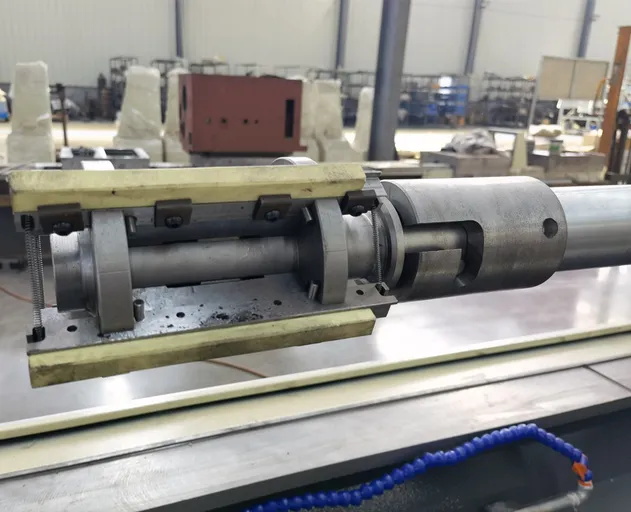

A honing machine specifically designed for precision machining of various hydraulic cylinders. Deep hole honing machine is a specialized equipment for precision machining various cylindrical deep hole parts such as hydraulic cylinders and air cylinders.

✦

High-precision processing: Surface roughness Ra0.2- 0.4μm, roundness ≤0.02mm, ensuring high processing accuracy and excellent surface quality.

✦

Stable control system: Equipped with a PLC numerical control system, easy to operate and provides precise control of the processing cycle.

✦

High-quality cooling system: Features high flow rate (90L/min to 200L/min) with paper filtration to ensure effective chip removal and temperature control.

3

Technical Specifications

Custom configurations are available upon request to meet specific production needs.

Parameter	Specifications
Drilling diameter range	φ40~φ500mm
Maximum depth of honing holes	5000mm
Center height (to flat guide rail)	500mm
Clamping diameter range	φ30-φ800mm
Main shaft speed range	60~350r/min
Reciprocating speed range	0-20m/min
Motor power (grinding rod box)	22kw (servo motor)
Feed motor power	4.5kw
Cooling pump flow rate	100L/min
Control system	Siemens

4

After Sales Service

✓

Standard Warranty: 12 months or 2,000 operating hours.

✓

Global Support: 24/7 technical assistance and spare parts supply.

✓

Training: Comprehensive on-site or remote operation and maintenance training.

5

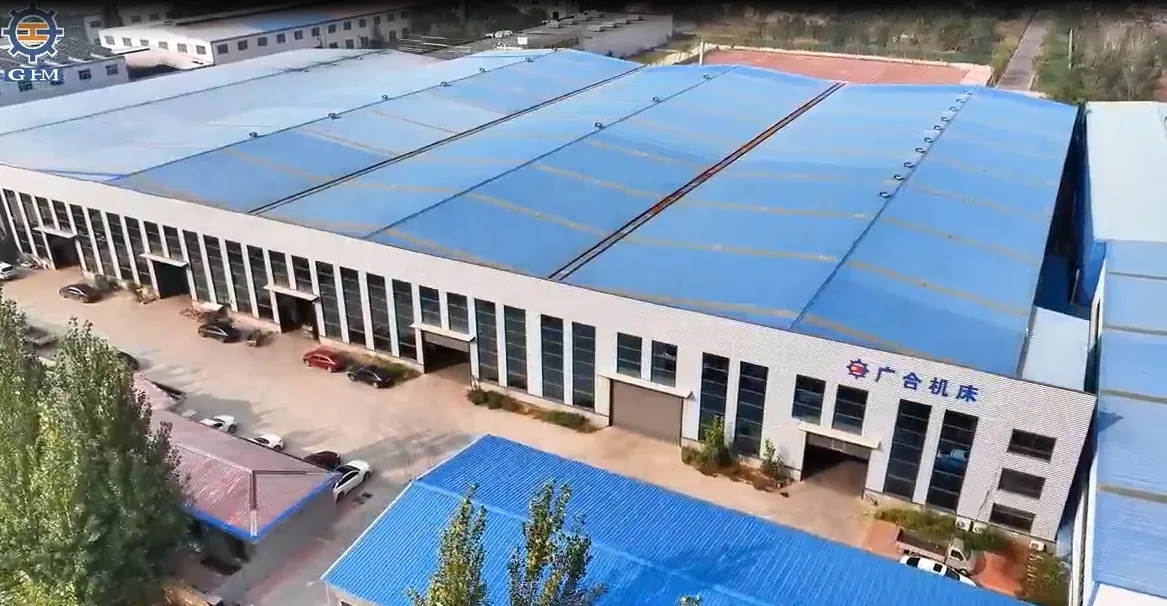

Professional Deep-Hole Equipment

Specializing in R&D, production, and sales of high-precision deep-hole machine tools. Products include deep-hole boring machines, drilling machines, scraping/rolling tools, and CNC honing equipment. These solutions are designed to meet diverse customer requirements with customization options available.

With 17 years of industry experience, the facility operates with a massive R&D and production team, ensuring products remain ahead in quality, technology, and ease of use. All equipment undergoes rigorous layer-by-layer testing from development to production.

?

Frequently Asked Questions

Q: What is the standard warranty period?

A: The complete machine has a one-year warranty and lifetime maintenance support.

Q: Do you provide operator training?

A: Yes, we provide free training at our facility. If required, our engineers are also available for overseas machinery service and training.

Q: How do you ensure the quality of the machines?

A: Every machine is tested layer-by-layer from research to production. Before packing, a final performance test is conducted to ensure no process omissions occur.

Q: What is the typical lead time for an order?

A: It depends on the quantity. Small quantities can usually be shipped within 7-15 days, while large or custom orders take approximately 30 days.

Q: What should I do if I encounter technical problems?

A: Please contact our support team immediately. We provide 24/7 online service to resolve any issues as quickly as possible.

Q: Can custom configurations be requested?

A: Yes, our equipment can be customized according to specific customer needs and technical requirements.
