Product Description

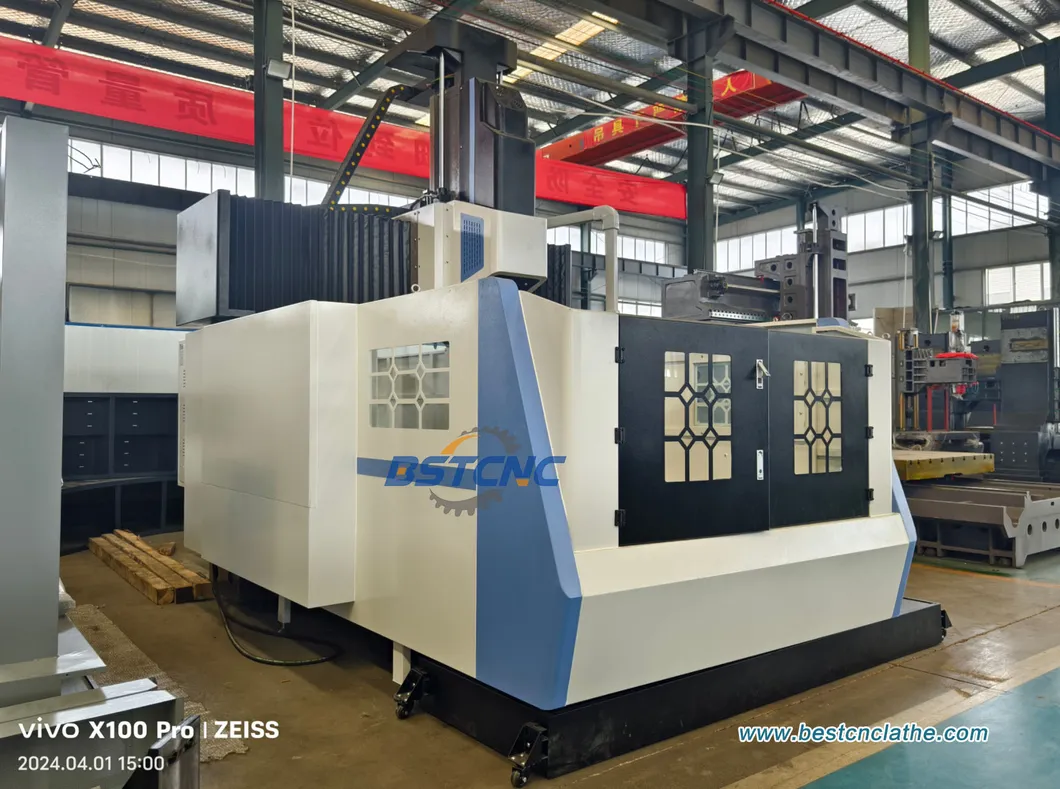

This machine tool adopts a column-beam integrated design and is suitable for CNC milling, boring, drilling, and tapping. It can be widely used in mechanical processing fields such as aviation, aerospace, rail transportation, automobiles, and molds.
Core Features:

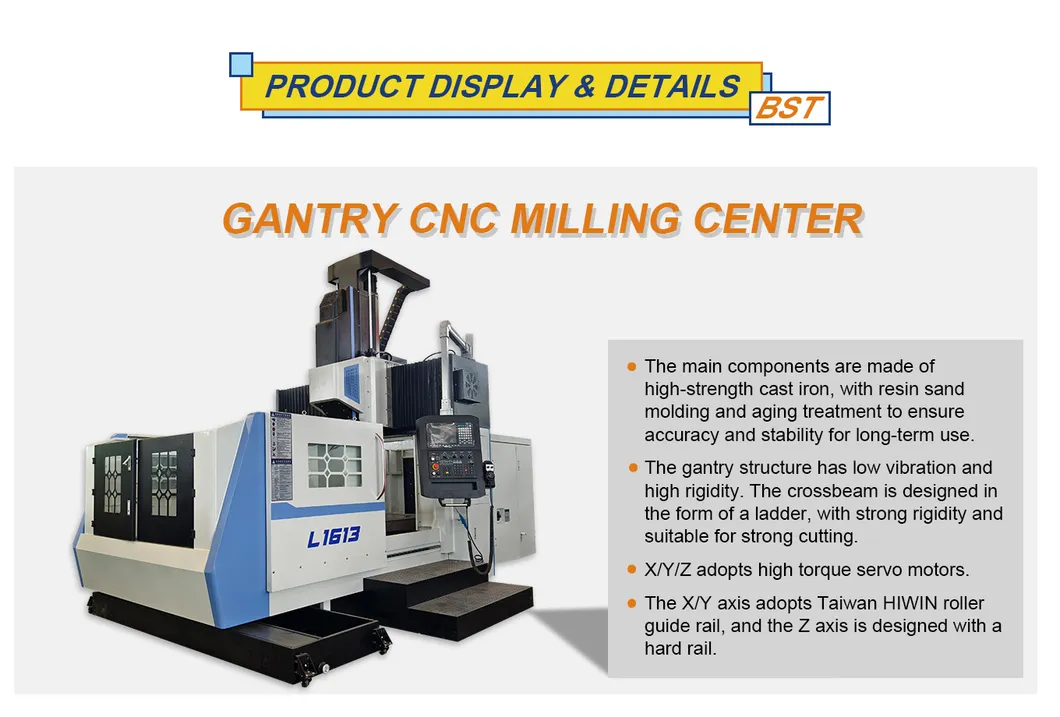

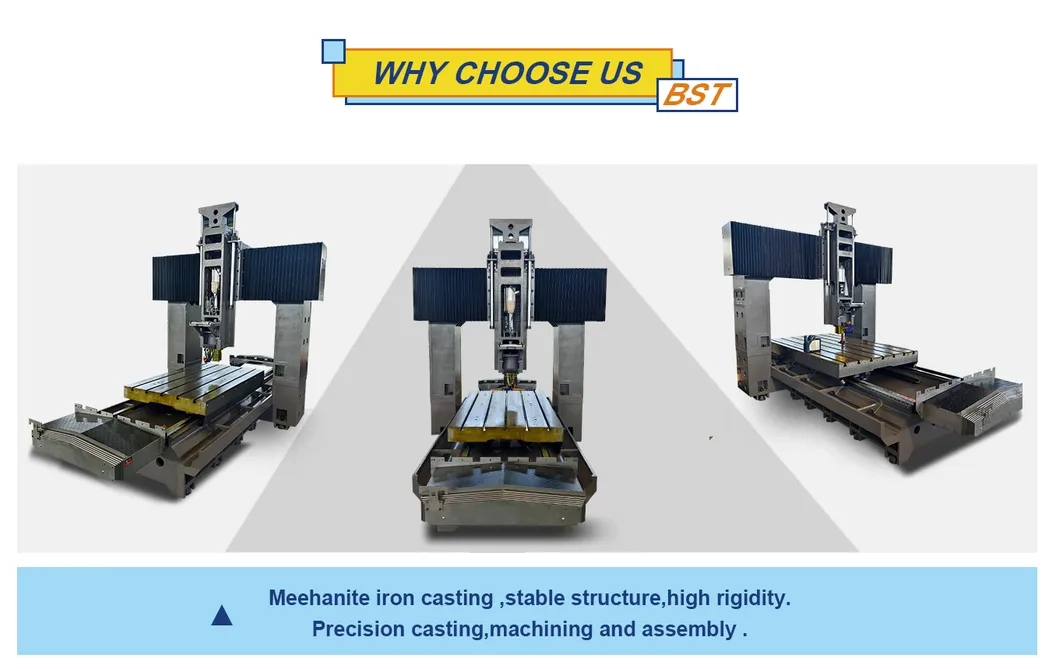

- Optimized Stability: Main components are optimized by finite element analysis and made of high-strength cast iron with resin sand molding. Undergoes aging, sandblasting, and tempering to ensure long-term precision.

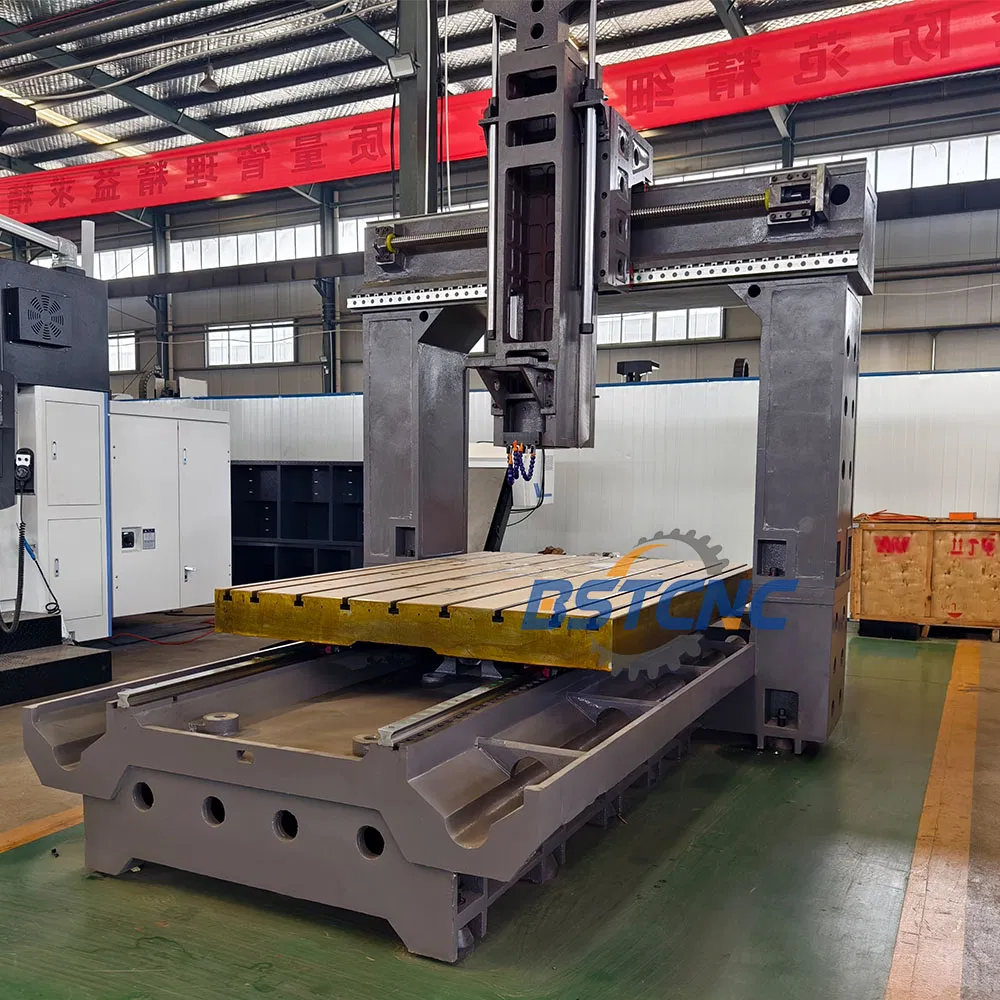

- Rigid Gantry Structure: Shortens distance from spindle center to column, reducing vibration during heavy cutting. Trapezoidal beam design provides extreme structural rigidity.

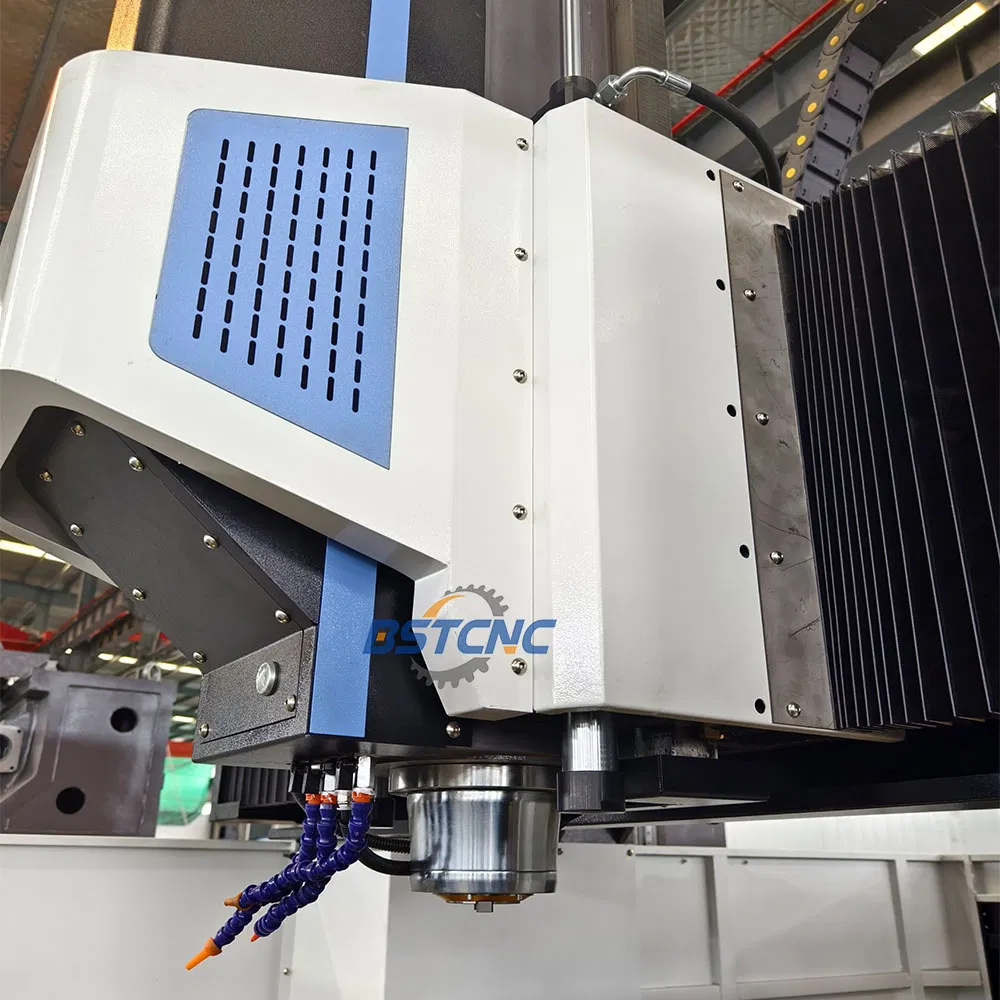

- High-Performance Drive: High-speed and high-rigidity spindle unit combined with servo spindle motors; X/Y/Z axes utilize high-torque servo motors.
- Precision Hardware: Uses high-precision ball screws with special bearings and high-precision locking nuts.
- Advanced Guide Ways: X/Y axes adopt roller linear guide ways; Z-axis uses hard guide rails with high-frequency induction hardening treatment and precision grinding.
Standard Configuration:

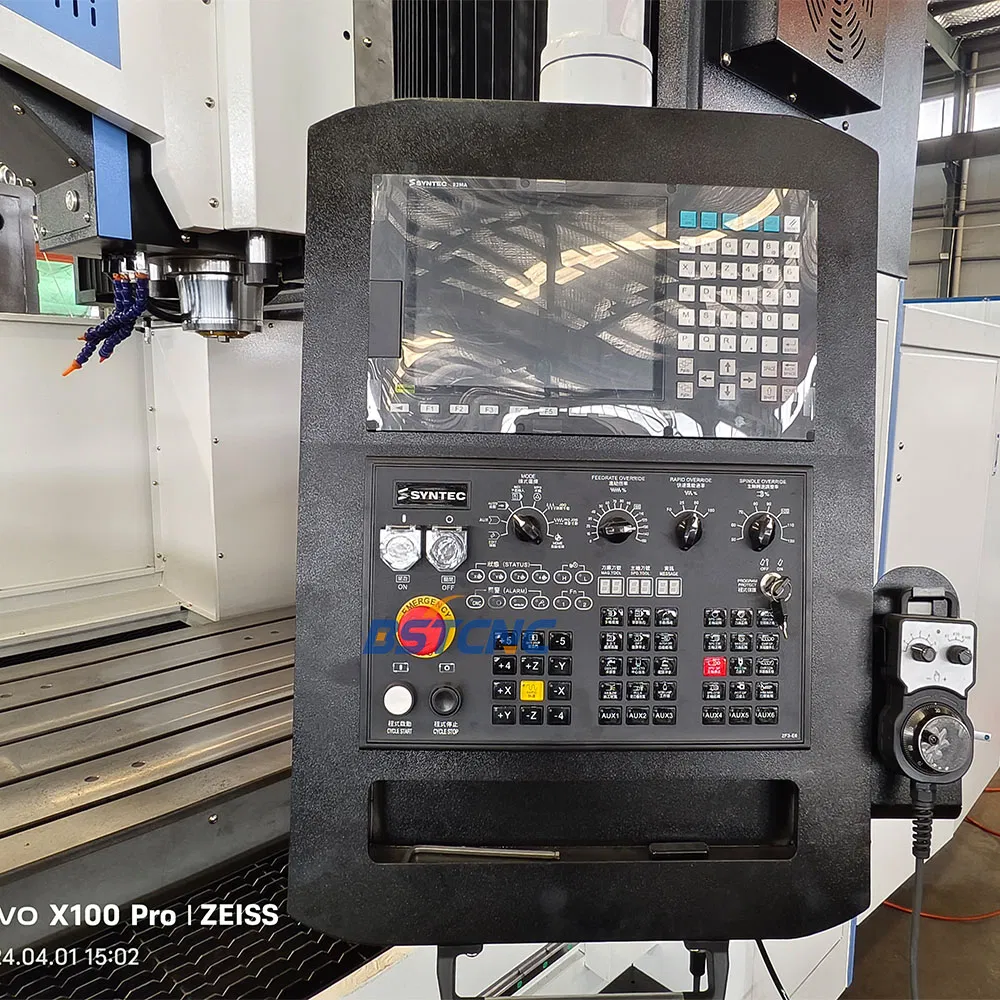

- GSK25i Control System & Original Driver Motors
- Arm type tool changer (24T)
- High-precision ball screw and roller guide ways

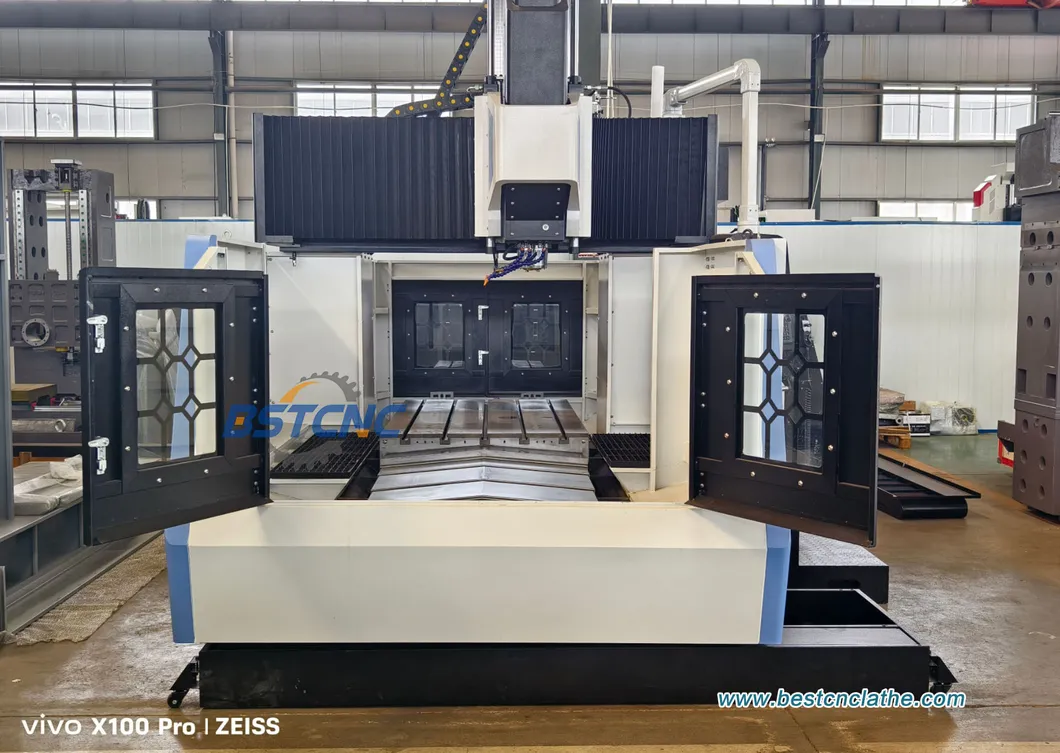

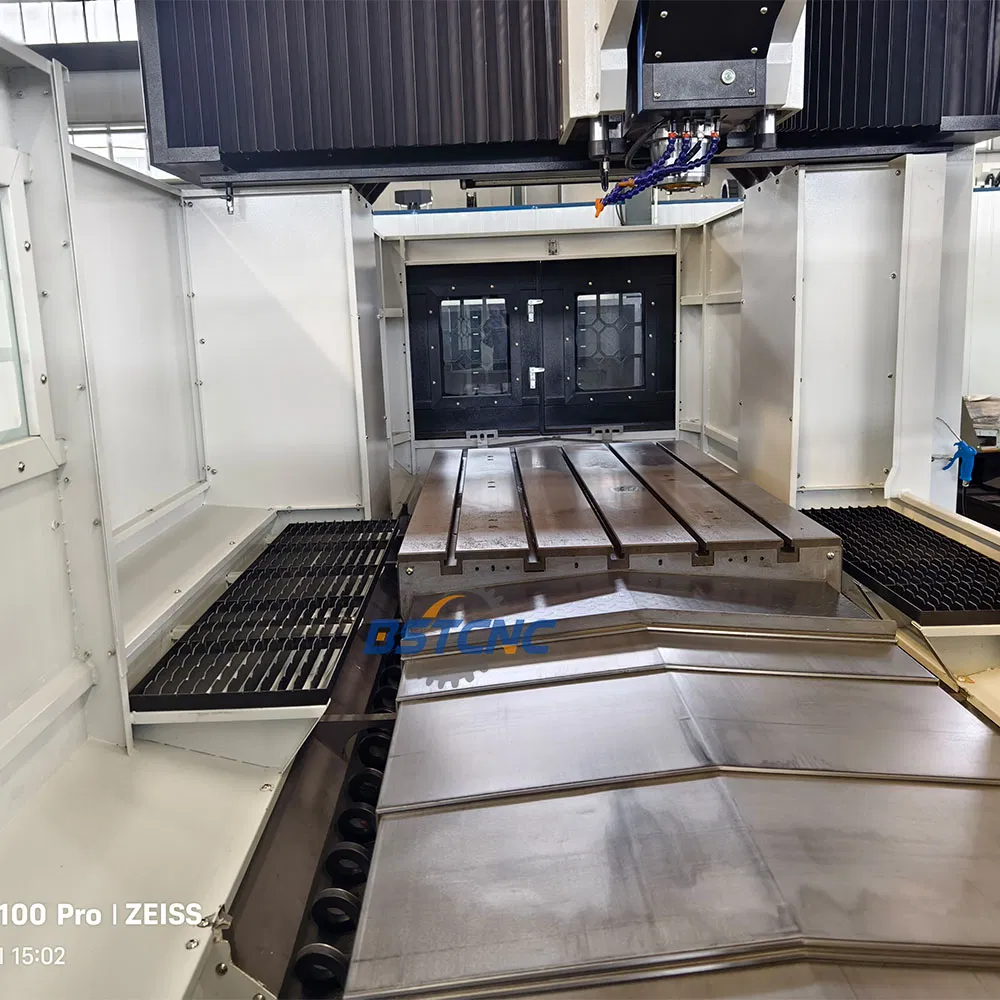

- Full enclosure machine guard and Stainless steel splash guard
- BT50-6000rpm Belt type spindle
- Dual screws + chain chip conveyor system
Frequently Asked Questions
What types of processing can this machine perform?
The GL series gantry machine is designed for high-precision CNC milling, boring, drilling, and tapping across various metal materials.
What are the main application industries for this equipment?
It is widely utilized in aviation, aerospace, rail transportation, automotive manufacturing, and high-precision mold processing.
How is the structural stability of the machine ensured?
The machine uses high-strength cast iron components optimized by finite element analysis, undergoing rigorous aging and tempering processes to ensure long-term precision.
What control systems are compatible with this machine?
The standard configuration includes the GSK25i control system with original driver motors, though it is compatible with other high-end systems like Fanuc.
What is the positioning accuracy of the GL-1613 model?
The machine achieves a positioning accuracy of ±0.005/300mm and a repeatability of ±0.004mm (JIS standard).
How is the machine packaged for delivery?
Standard packaging includes a steel bottom tray with steel frames and plywood protection to ensure safety during sea or land transport.
