Basic Information
Model NO.
06IR/08IR/11IR/16IR/22IR AG60/55/1.5/2.0/3.0 ISO
Certification
CE, RoHS, GS, ISO9001
Type
Gr520/ Gr928 Threading Insert
Application
Lathe CNC Machine, Metal Processing
Hardness
45HRC Threading Tool
Coating
PVD CVD Tin Tungsten Carbide

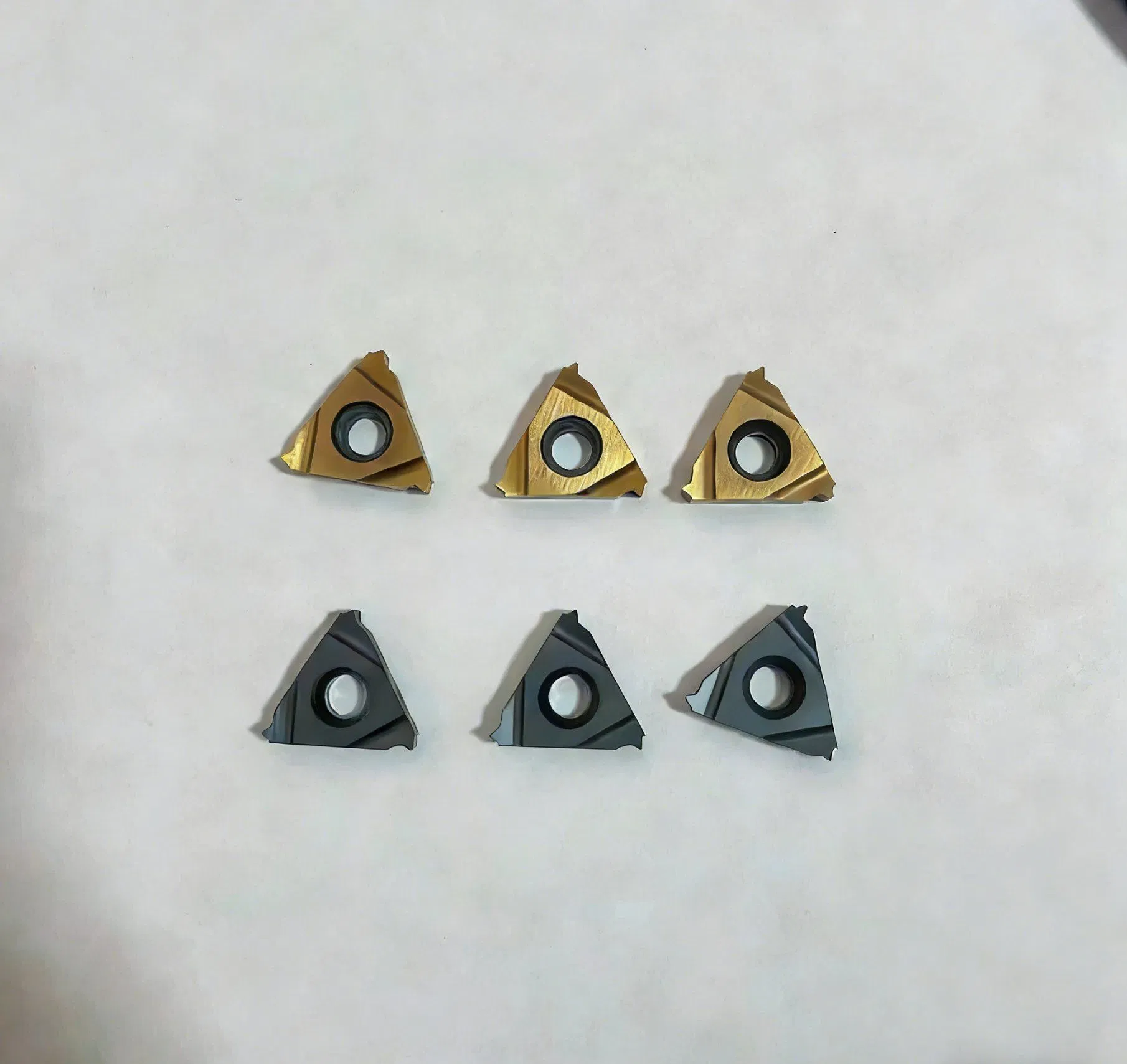

Product Description
✔
Sharp cutting edges, big stock removal, and high efficiency for CNC lathe operations.
✔
High precision stability in cutting with minimal shock.
✔
Versatile applications for various metals and non-metal materials.
✔
Long service lifetime and low wear characteristics.
| Product Name |
Tungsten Carbide Inserts |
| Model | 06IR/08IR/11IR/16IR/22IR AG60/55/1.5/2.0/3.0 ISO |
| Grade | GR520/ GR928 |
| Coating | PVD CVD carbide material |
| Workpiece | Steel/Stainless steel/Iron |
| Usage | Cutting Threading Tools |

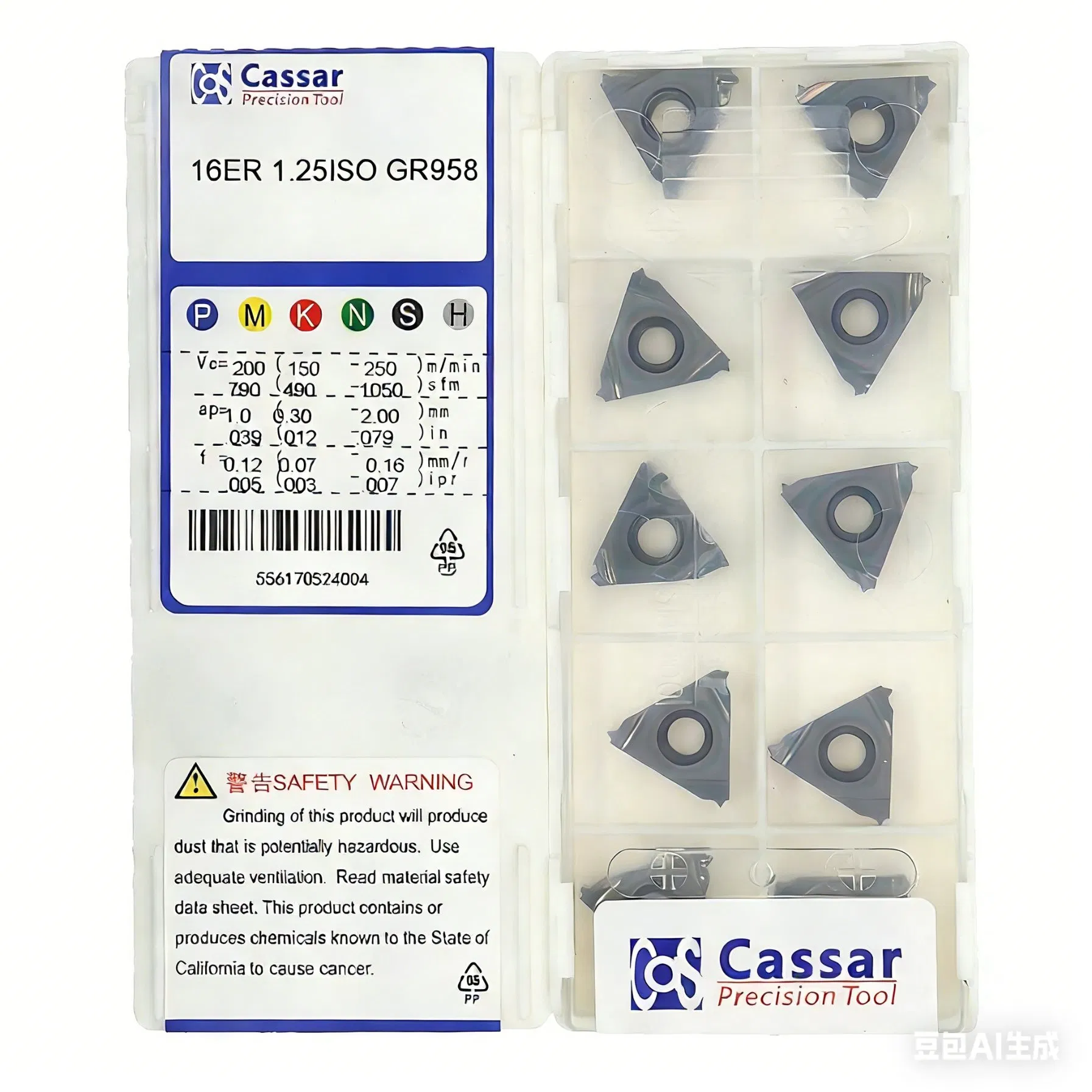

| Packing | 10pcs in a plastic box |

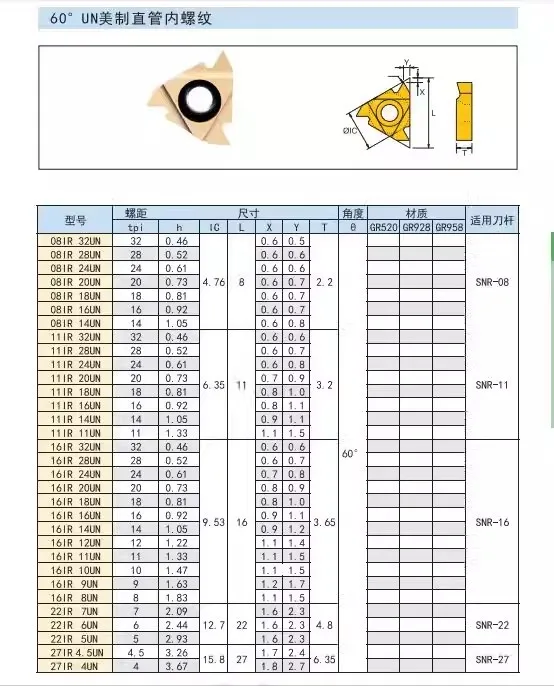

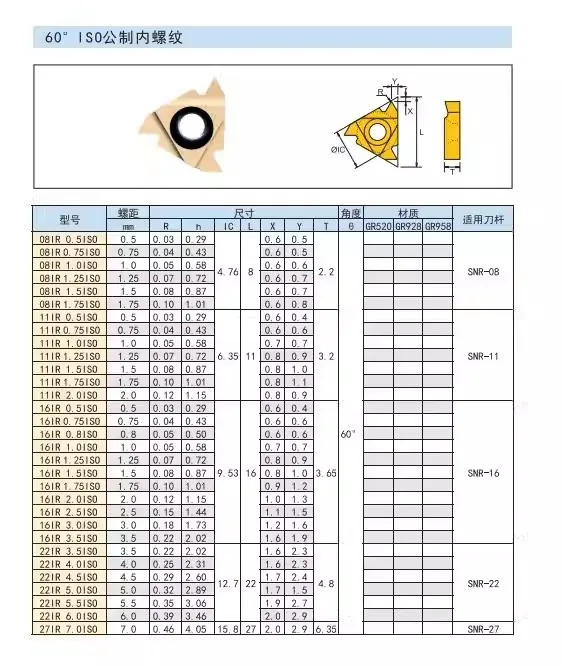

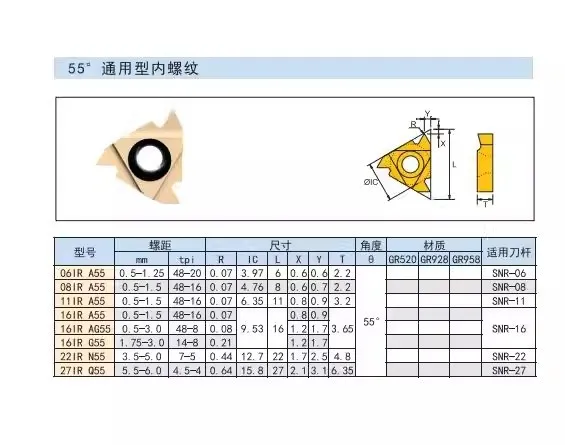

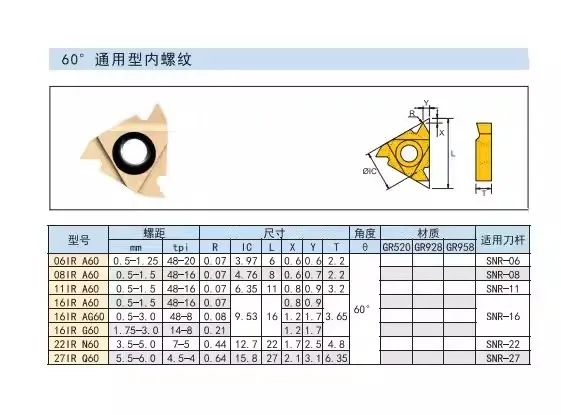

Threading Inserts Series Specifications
| Model Number |
Thread Type |
Angle |
Pitch (mm) |
Size |
Grade |
Application |
| 16ER AG60 GR958 | External | 60° | 0.5-3.0 | 16 | GR958 | High-hardness tool steel |
| 16ER 1.5 GR958 | External | Standard | 1.5 | 16 | GR958 | Precision threading |
| 16IR AG60 GR958 | Internal | 60° | 0.5-3.0 | 16 | GR958 | High-hardness materials |
| 16IR 2.0 GR958 | Internal | Standard | 2.0 | 16 | GR958 | Precision tool steel |
| 16ER AG60 GR928 | External | 60° | 0.5-3.0 | 16 | GR928 | General-purpose cutting |
Quality Assurance
★100% original brand quality material.
★20 years of expertise in tungsten carbide manufacturing.
★Strict quality control systems and ISO9001:2008 certification.
★Advanced technology and precision testing equipment.
Frequently Asked Questions (FAQ)
What materials are these threading inserts suitable for?
They are highly effective for cutting steel, stainless steel, and iron. The GR958 grade is specifically designed for high-hardness materials like tool steel.
What is the Minimum Order Quantity (MOQ)?
The MOQ is 10 pieces, which is equivalent to one standard plastic box.
What is the typical lead time for delivery?
For orders between 1 to 500 pieces, the lead time is approximately 3 days. Larger quantities are subject to negotiation.
Do the inserts come with a coating?
Yes, our inserts feature PVD and CVD coatings, including Tin Tungsten Carbide, which enhances durability and heat resistance.
Are these compatible with standard CNC machines?
Absolutely. These are designed for CNC lathe machine metal threading tools and follow international standards (DIN, ASTM, ISO, etc.).
What certifications do your products hold?
Our products are certified with CE, RoHS, GS, and are manufactured under ISO9001:2008 quality management systems.
