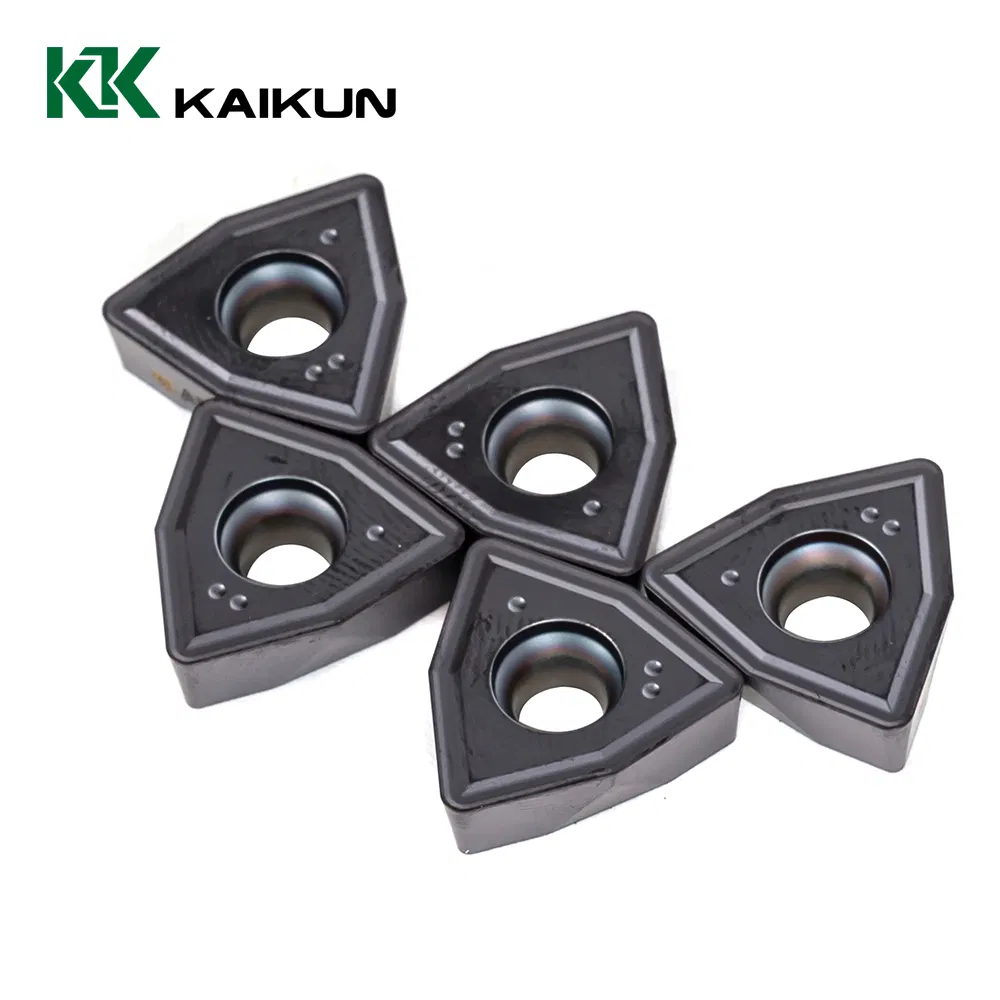

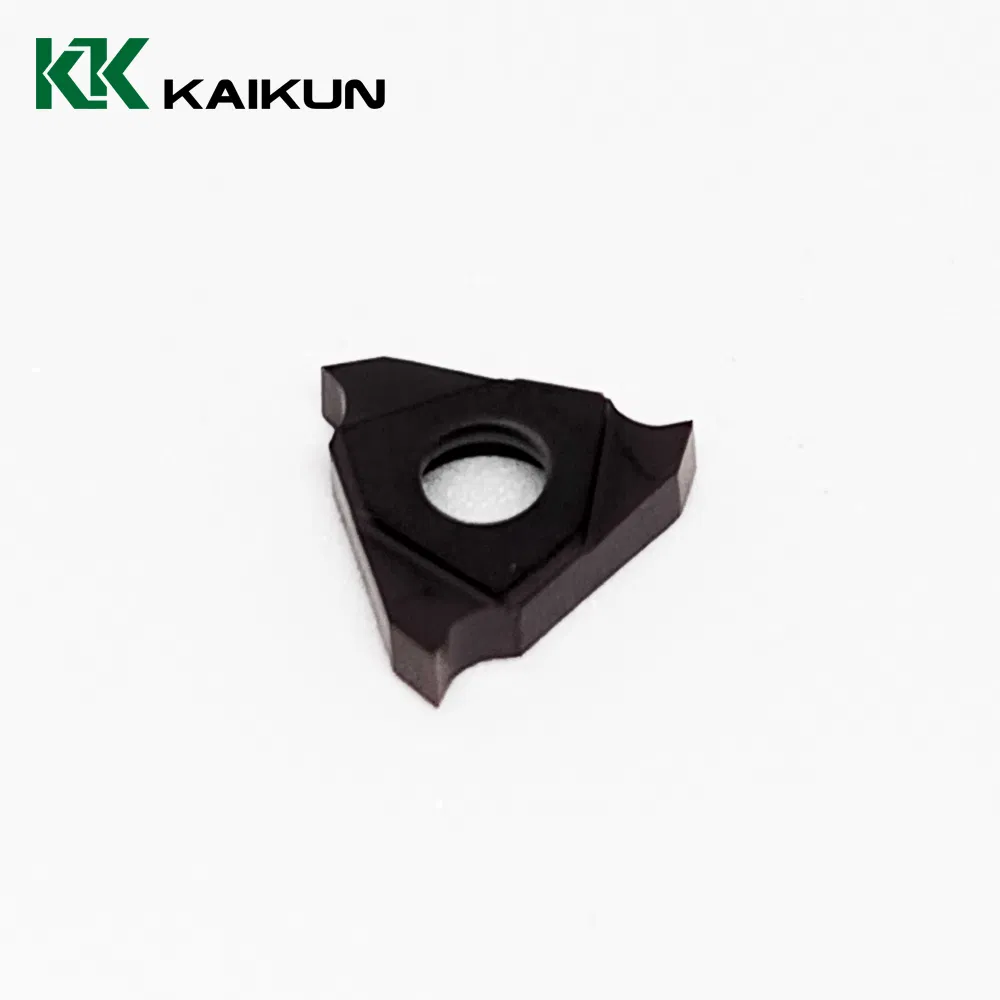

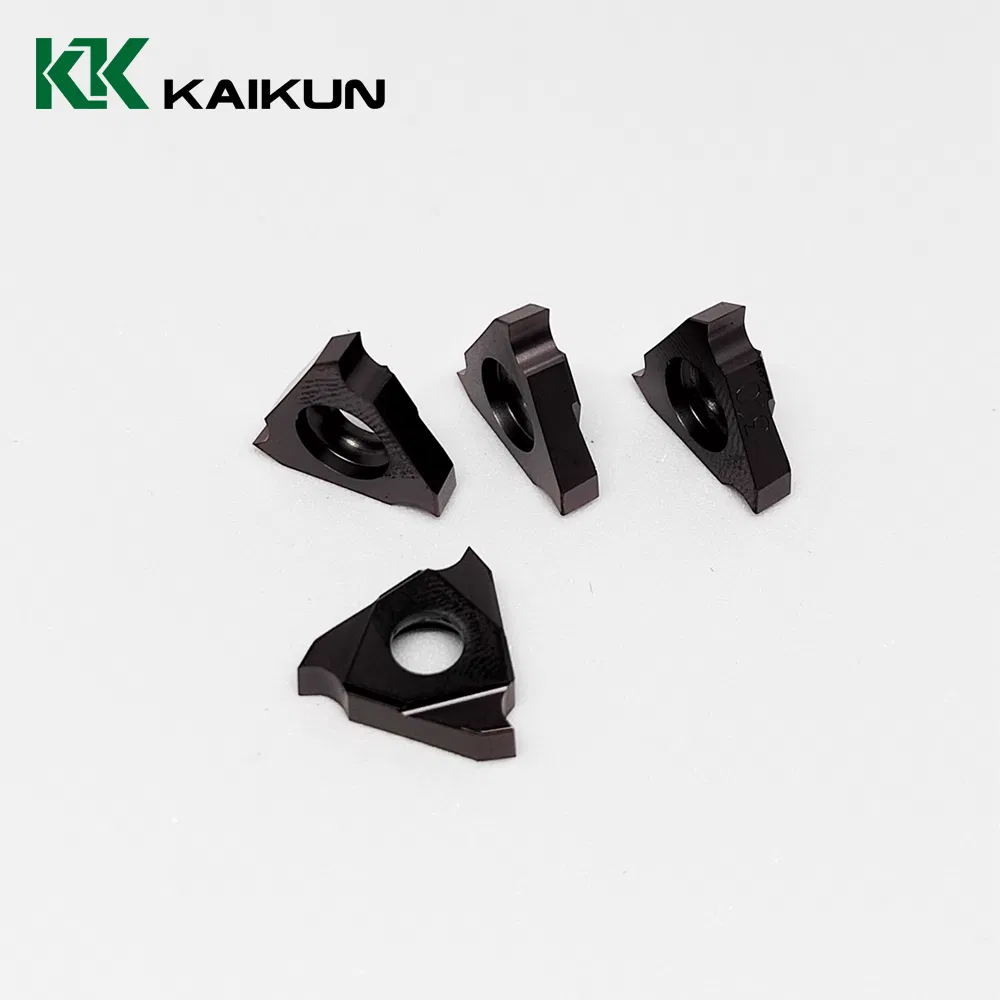

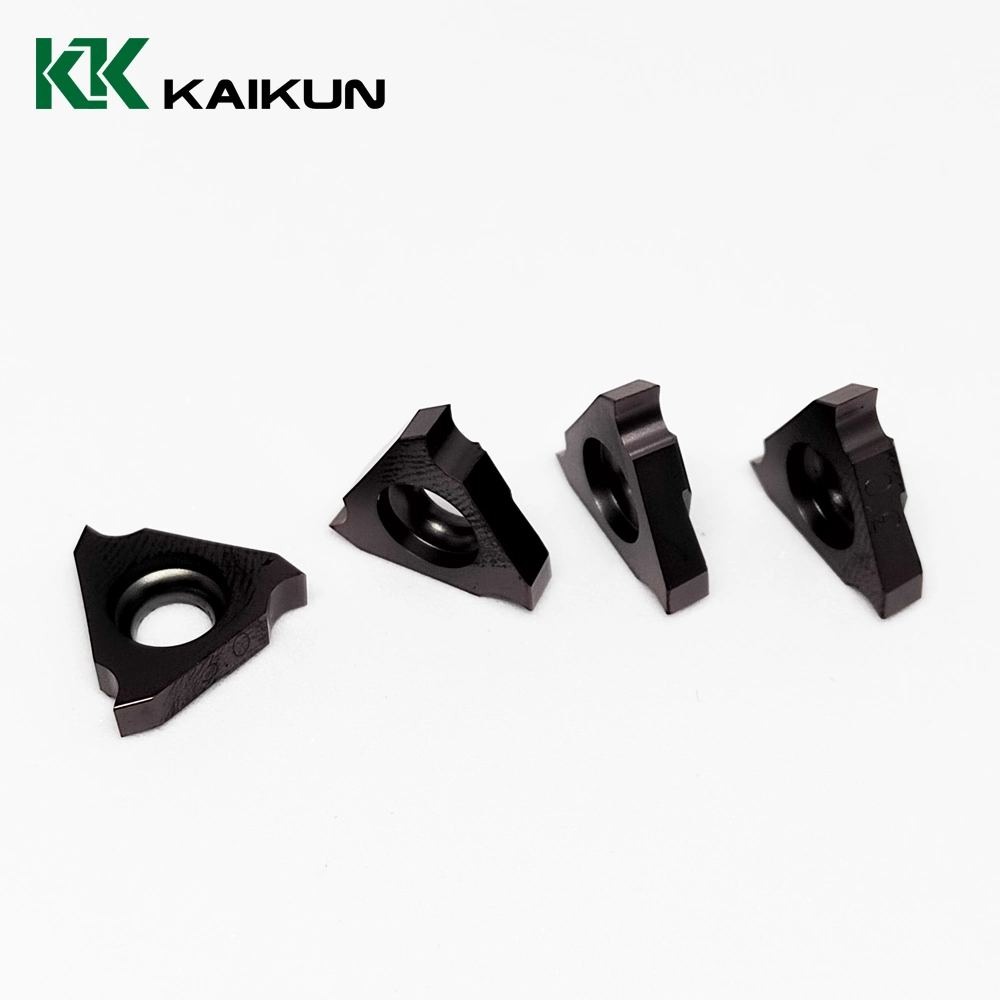

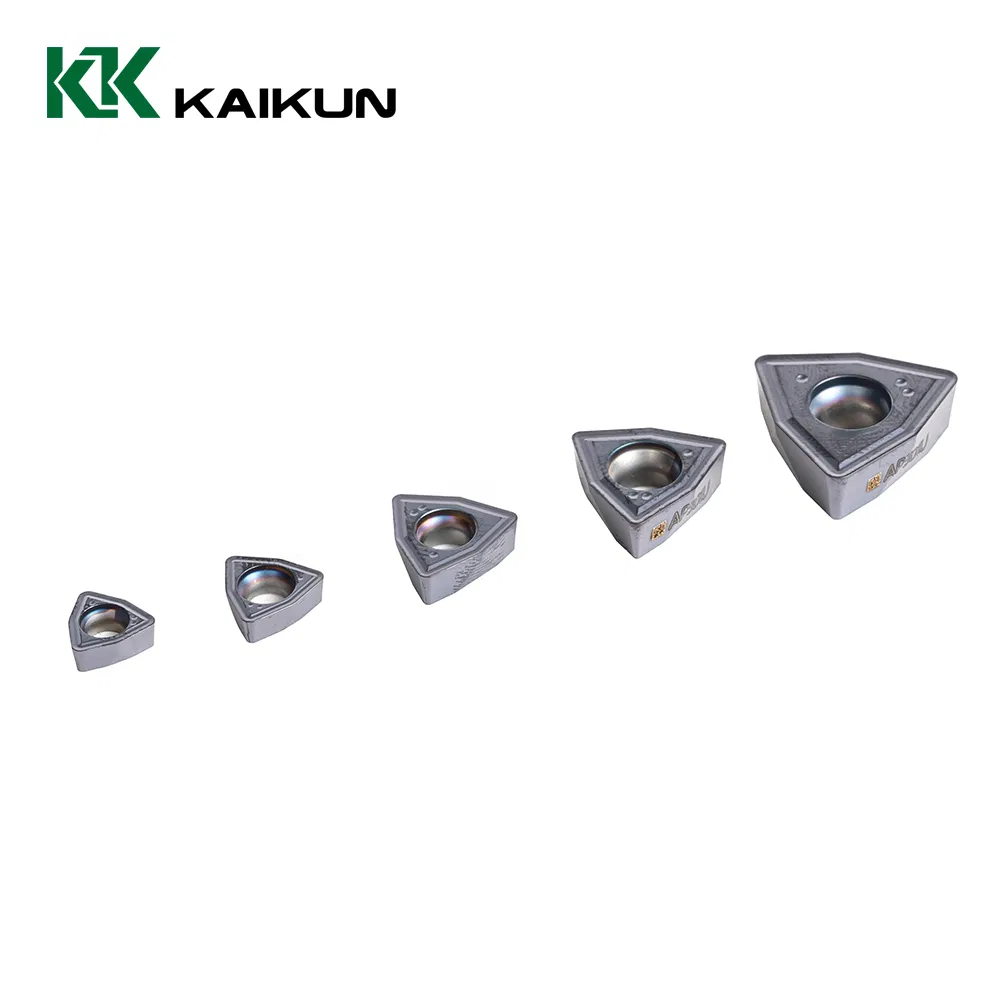

Carbide CNC/PCD/CBN Insert Turning / Milling /Threading /Grooving Insert Scmw 09t304
Carbide CNC/PCD/CBN Insert Turning / Milling /Threading /Grooving Insert Scmw 09t304
Carbide CNC/PCD/CBN Insert Turning / Milling /Threading /Grooving Insert Scmw 09t304
Carbide CNC/PCD/CBN Insert Turning / Milling /Threading /Grooving Insert Scmw 09t304
Carbide CNC/PCD/CBN Insert Turning / Milling /Threading /Grooving Insert Scmw 09t304
1 / 5
Carbide CNC/PCD/CBN Insert Turning / Milling /Threading /Grooving Insert Scmw 09t304
Carbide CNC/PCD/CBN Insert Turning / Milling /Threading /Grooving Insert Scmw 09t304
Carbide CNC/PCD/CBN Insert Turning / Milling /Threading /Grooving Insert Scmw 09t304
Carbide CNC/PCD/CBN Insert Turning / Milling /Threading /Grooving Insert Scmw 09t304
Carbide CNC/PCD/CBN Insert Turning / Milling /Threading /Grooving Insert Scmw 09t304

Carbide CNC/PCD/CBN Insert Turning / Milling /Threading /Grooving Insert Scmw 09t304

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Specifications
Model NO.
SCMW 09T304
Standard
DIN, JIS, ANSI
Material
Alloy
Application
Metal Cutting Machine, Processing Machinery Parts
Product Name
Turning/Milling/Grooving Inserts
Suitable Materials
P M K N S
Coating
PVD, CVD
Machining Category
Finishing, Semi-Finishing, Roughing
Transport Package
Carton Box
HS Code
8208101900
Product Description
⚙️ Carbide Turning & Milling Solutions

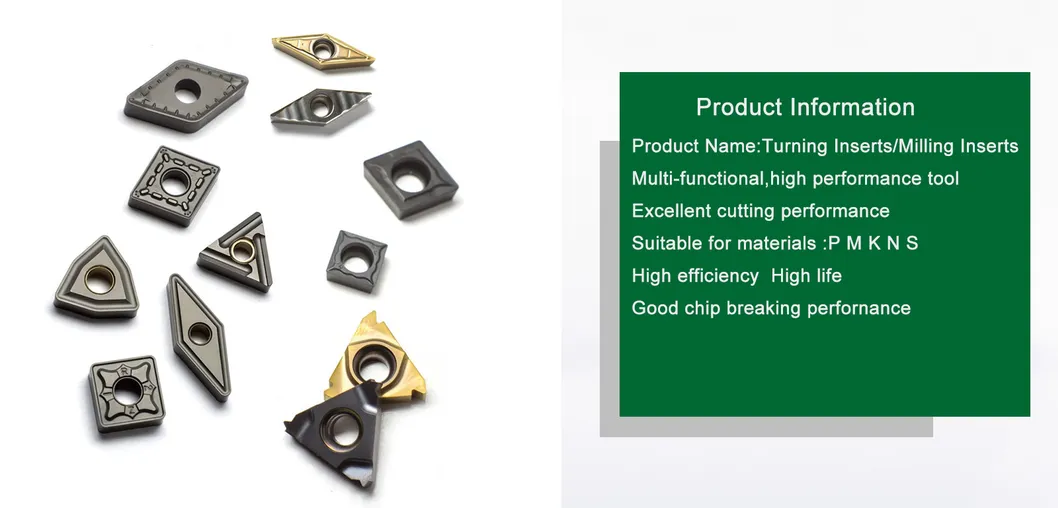

Carbide Turning Insert
Insert Details

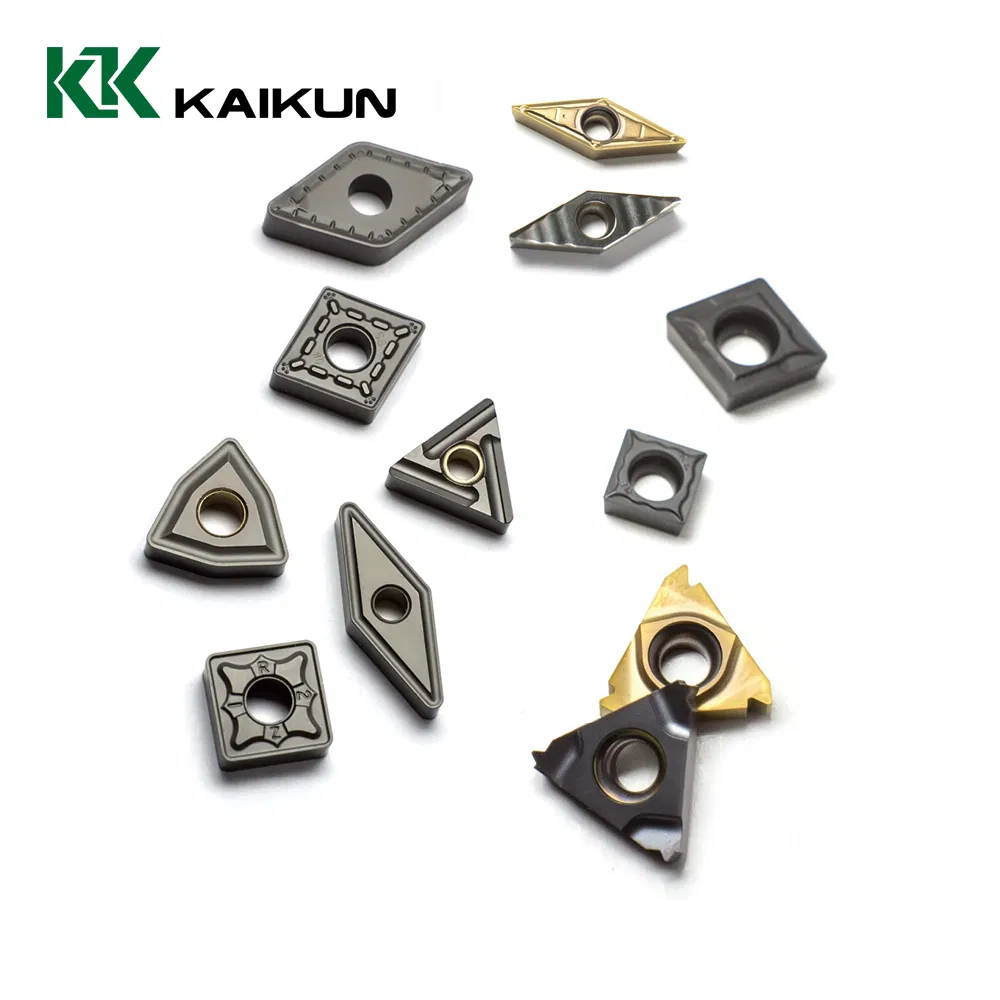

CNC Insert View 1

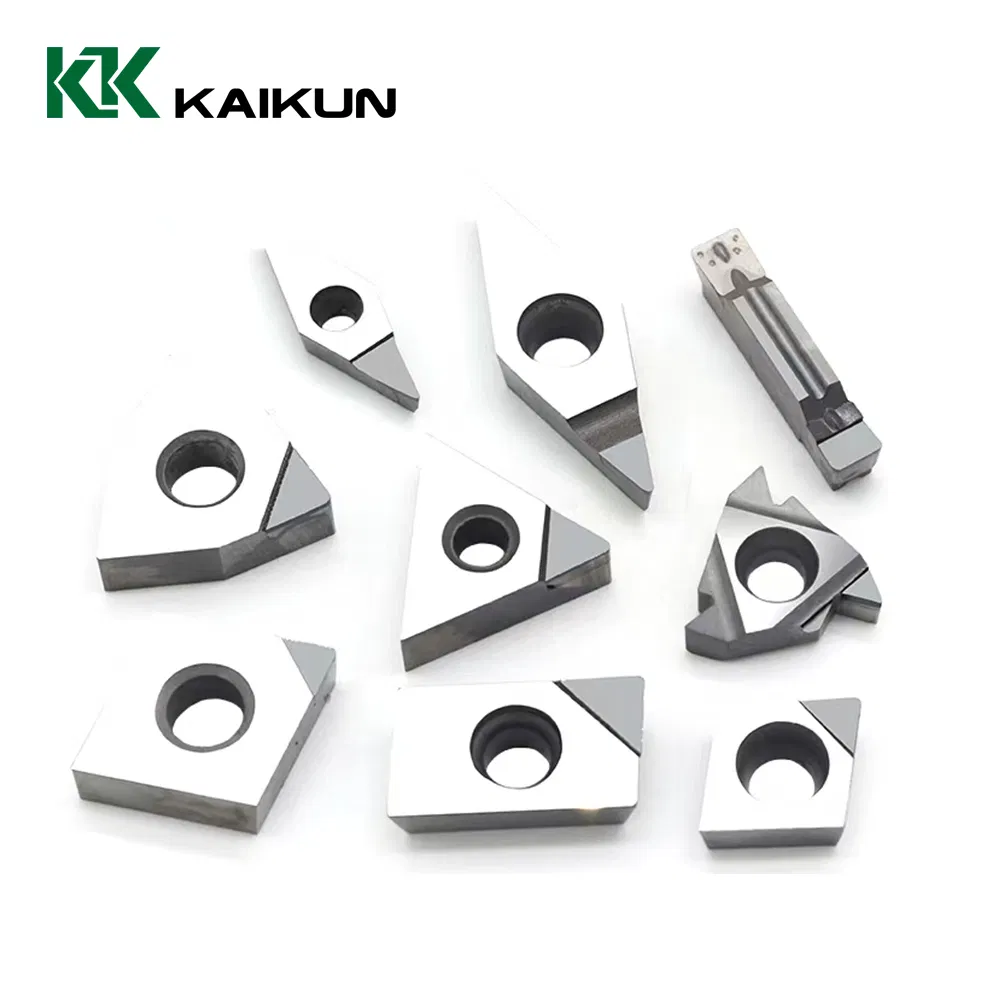

CNC Insert View 2

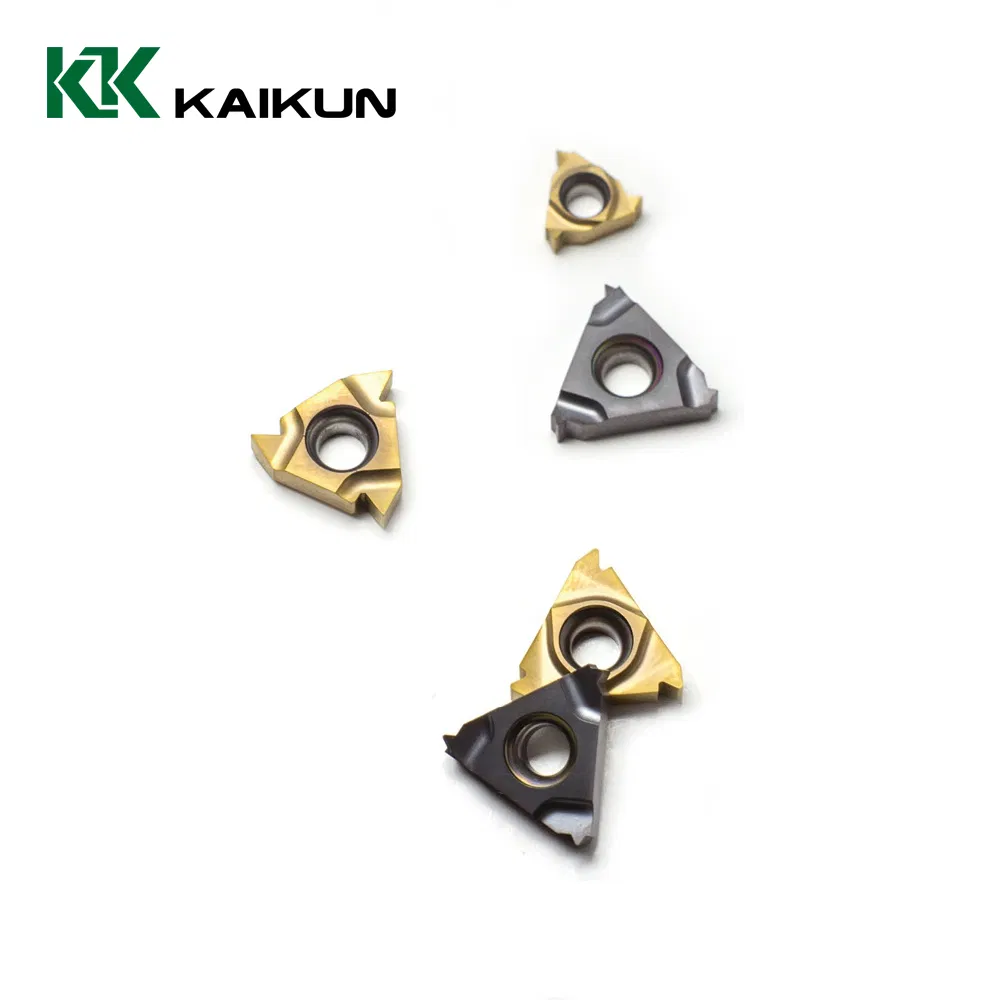

CNC Insert View 3

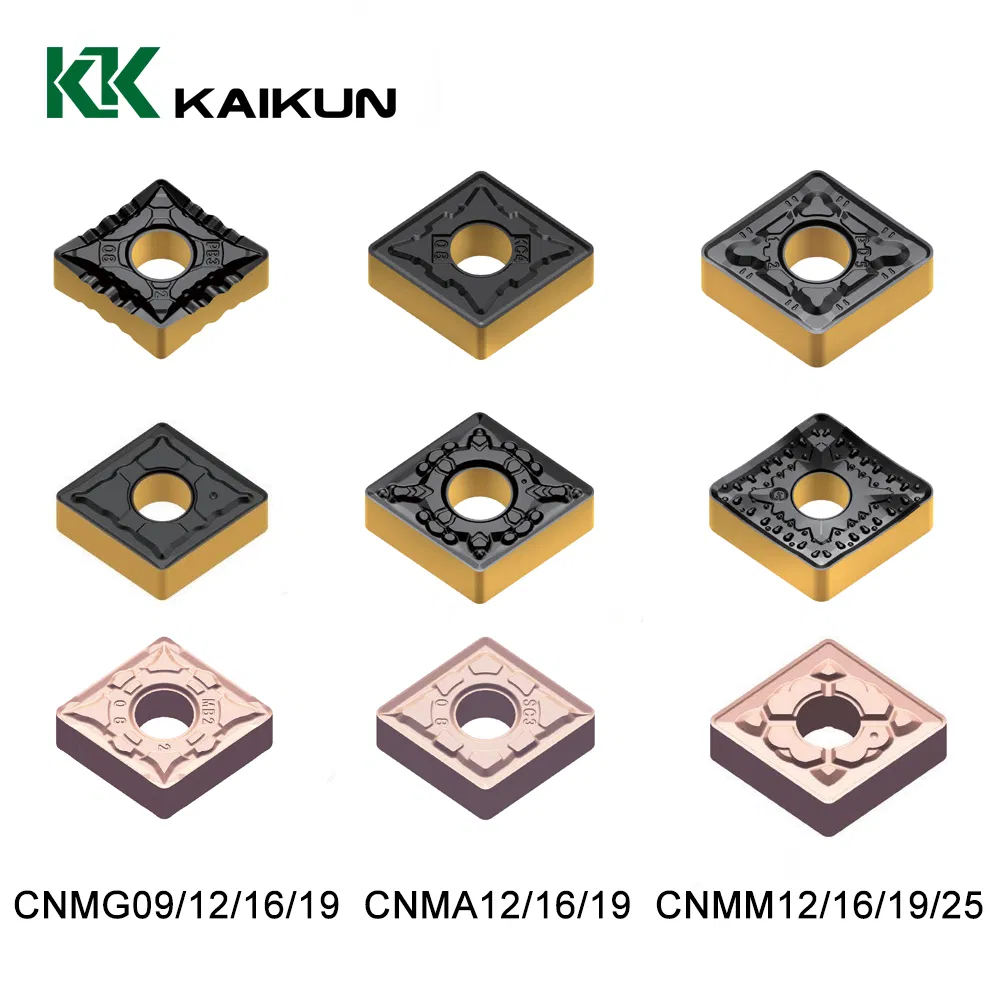

CNC Insert View 4

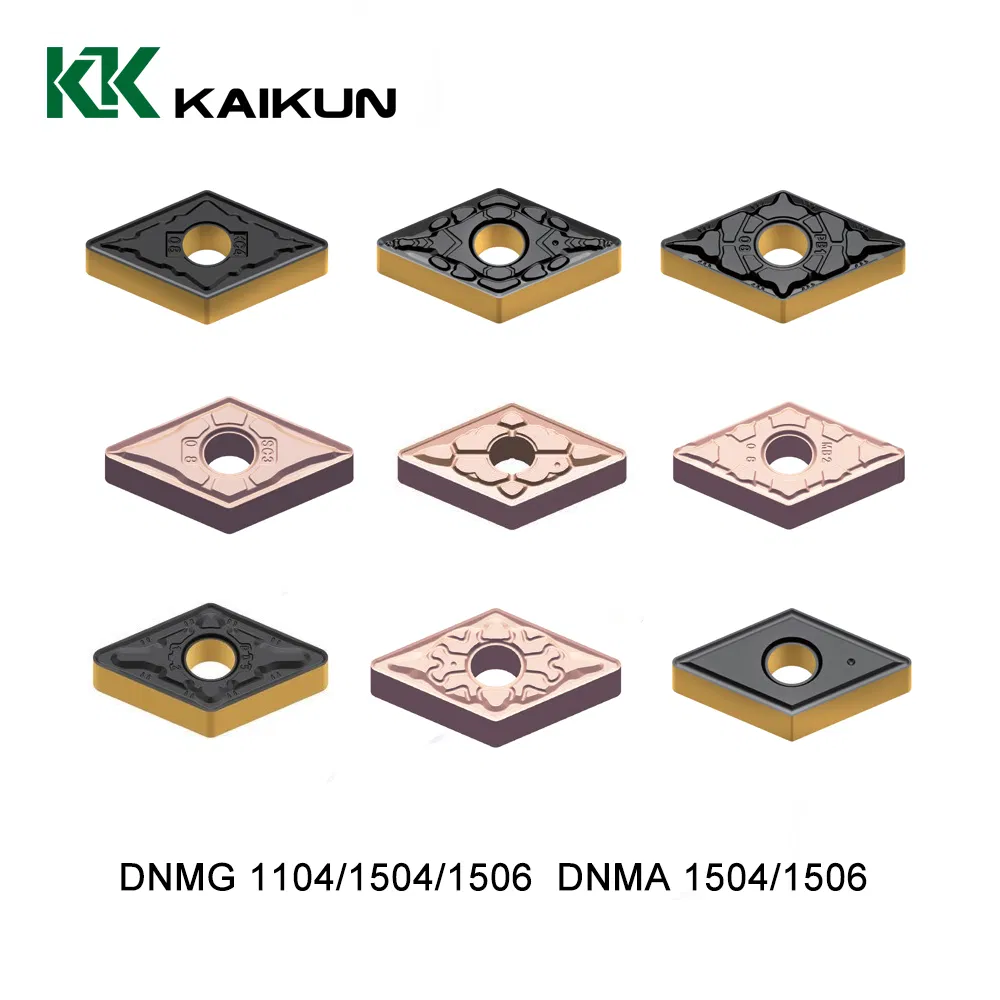

CNC Insert View 5

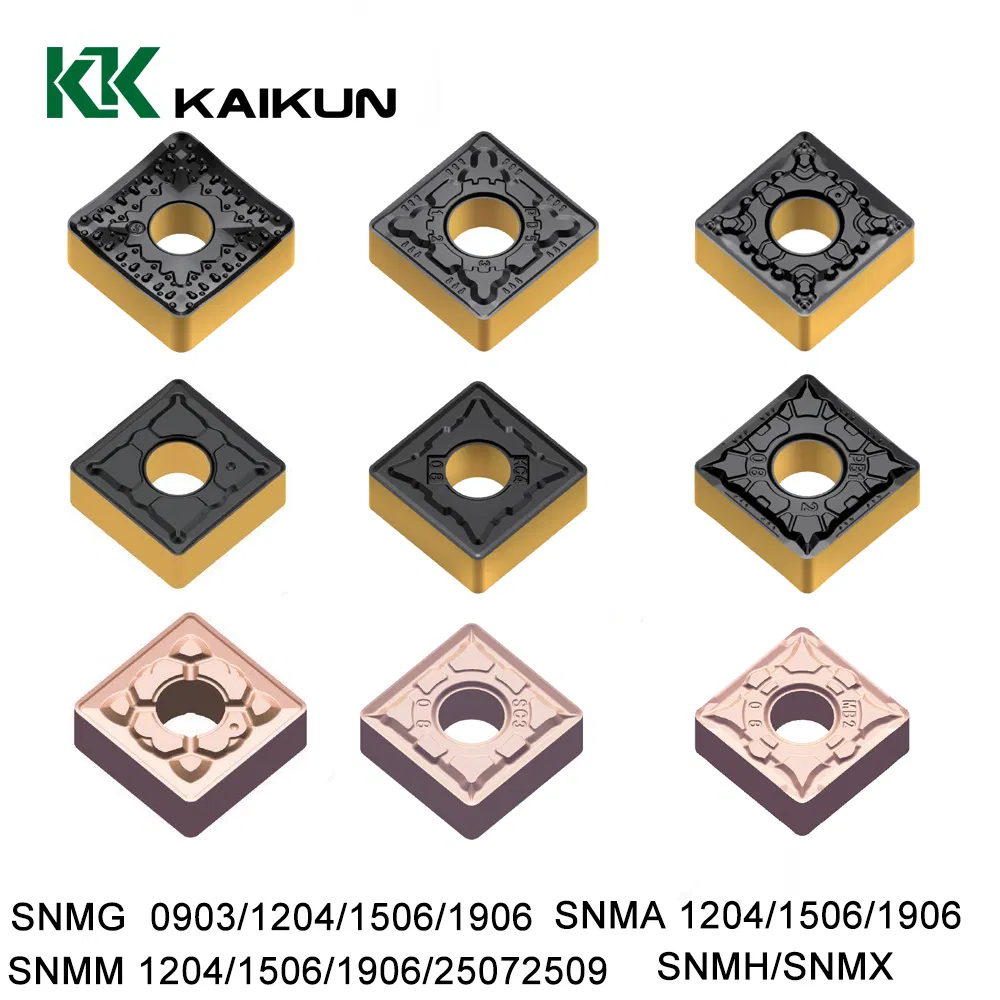

CNC Insert View 6

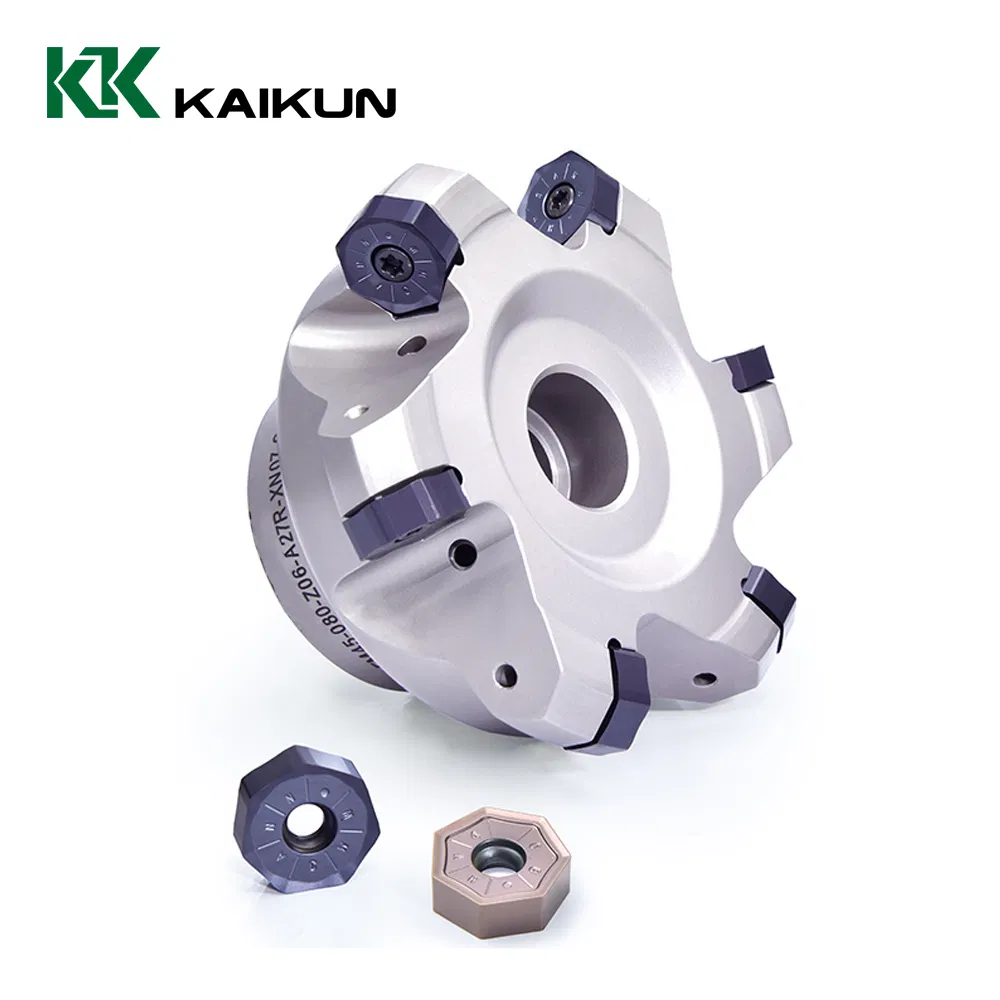

CNC Insert View 7

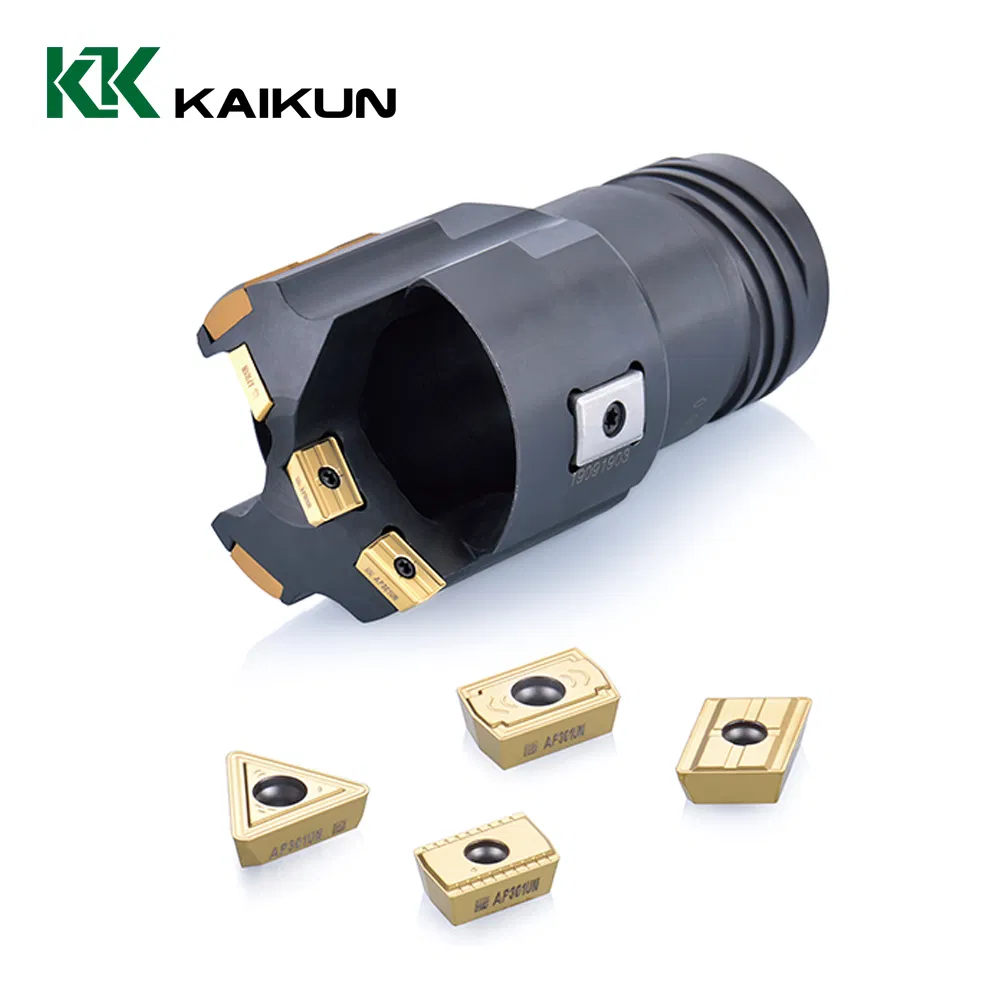

CNC Insert View 8

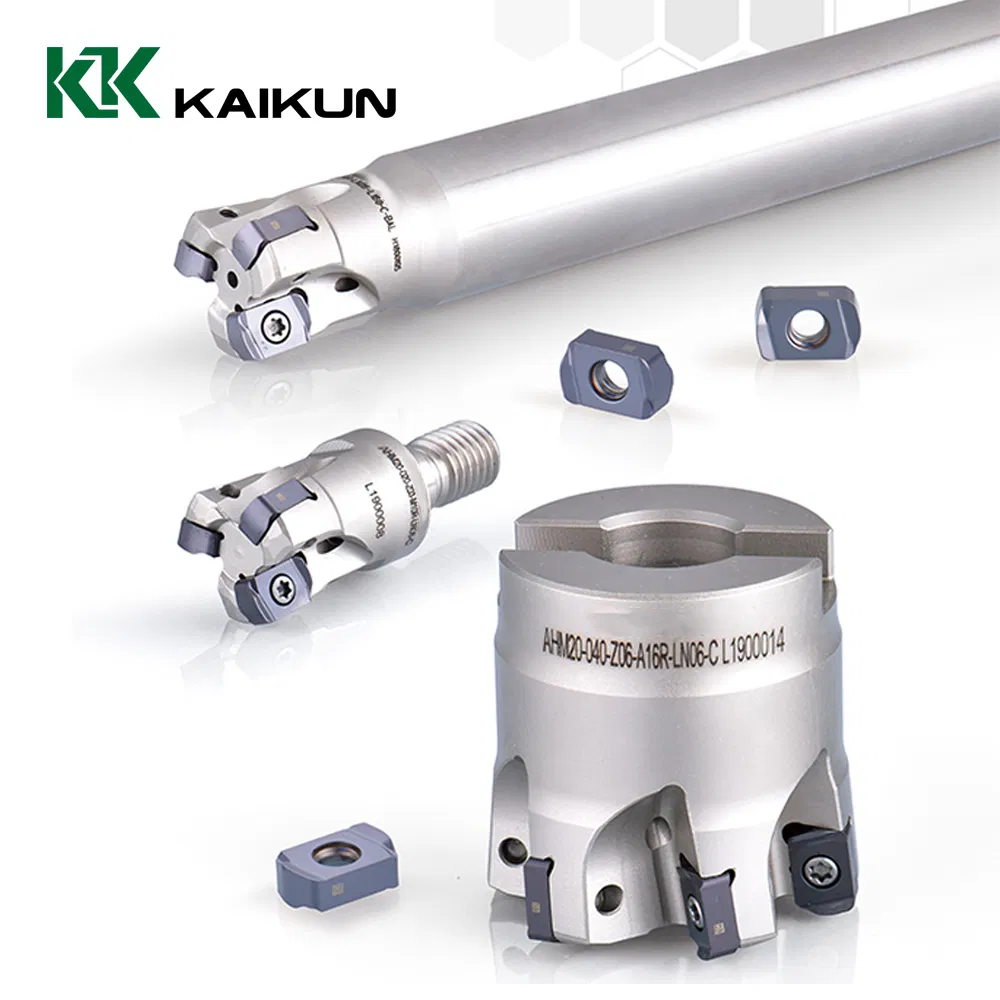

CNC Insert View 9
Technical Header
Insert Type Dimensions (mm) Recommended Parameters
Category Type d l s d1 r (mm) f (mm/rev) ap (mm)
Finishing CNMG 120404E-PB1 12.7 12.9 4.76 5.16 0.4 0.05-0.15 0.26-3.2
Finishing DNMG 110404E-PB1 9.52 11.62 4.76 3.81 0.4 0.05-0.15 0.26-2.3
Semifinishing CNMG 120408E-PB3 12.7 12.9 4.76 5.16 0.8 0.12-0.36 0.60-3.5
Medium SCMT 09T304E-PB1 9.5 9.5 3.97 4.40 0.4 0.04-0.14 0.30-2.4
Roughing SCMW 09T304E-KD5 9.5 9.5 3.97 4.40 0.4 0.10-0.22 0.40-4.8
Divider
Application 1
Application 2
Application 3
Application 4
Application Footer
Frequently Asked Questions
What materials are these carbide inserts suitable for?
These inserts are designed for a wide range of materials, specifically categorized under P (Steel), M (Stainless Steel), K (Cast Iron), N (Non-ferrous metals), and S (Heat-resistant alloys).
What types of machining can be performed with these products?
The inserts are versatile and suitable for turning, milling, threading, and grooving operations across finishing, semi-finishing, and roughing stages.
What are the benefits of PVD and CVD coatings?
PVD and CVD coatings enhance the insert's hardness, heat resistance, and wear resistance, significantly extending tool life and improving surface finish quality during high-speed cutting.
Do you offer different dimensions for the SCMW and CNMG models?
Yes, we provide various dimensions and types including CNMG, DNMG, SCMT, and SNMG series with different radius (r) and thickness (s) specifications to meet specific machining needs.
How are the products packaged for transport?
All inserts are securely packed in standard carton boxes to ensure they remain protected and undamaged during international transport.
Are these inserts compatible with standard CNC machinery?
Absolutely. Our inserts follow international standards such as DIN, JIS, and ANSI, making them compatible with most metal cutting and processing machinery globally.
