| Model NO. | SMC650 |
| Application | Metal Processing |
| Process Usage | Metal-Cutting CNC Machine Tools, Metal Aluminium Milling Drilling Tapping Boring |
| Movement Method | Linear Control |
| Control Method | Semi-Closed Loop Control |
| Processing Precision | 0.01~0.02(mm) |
| Travel X/Y/Z (mm) | 650 / 400 / 500 |
| Table Dimension (mm) | 900 * 360 |
| Max. Load (Kg) | 500 |
| Spindle Taper | BT40 |

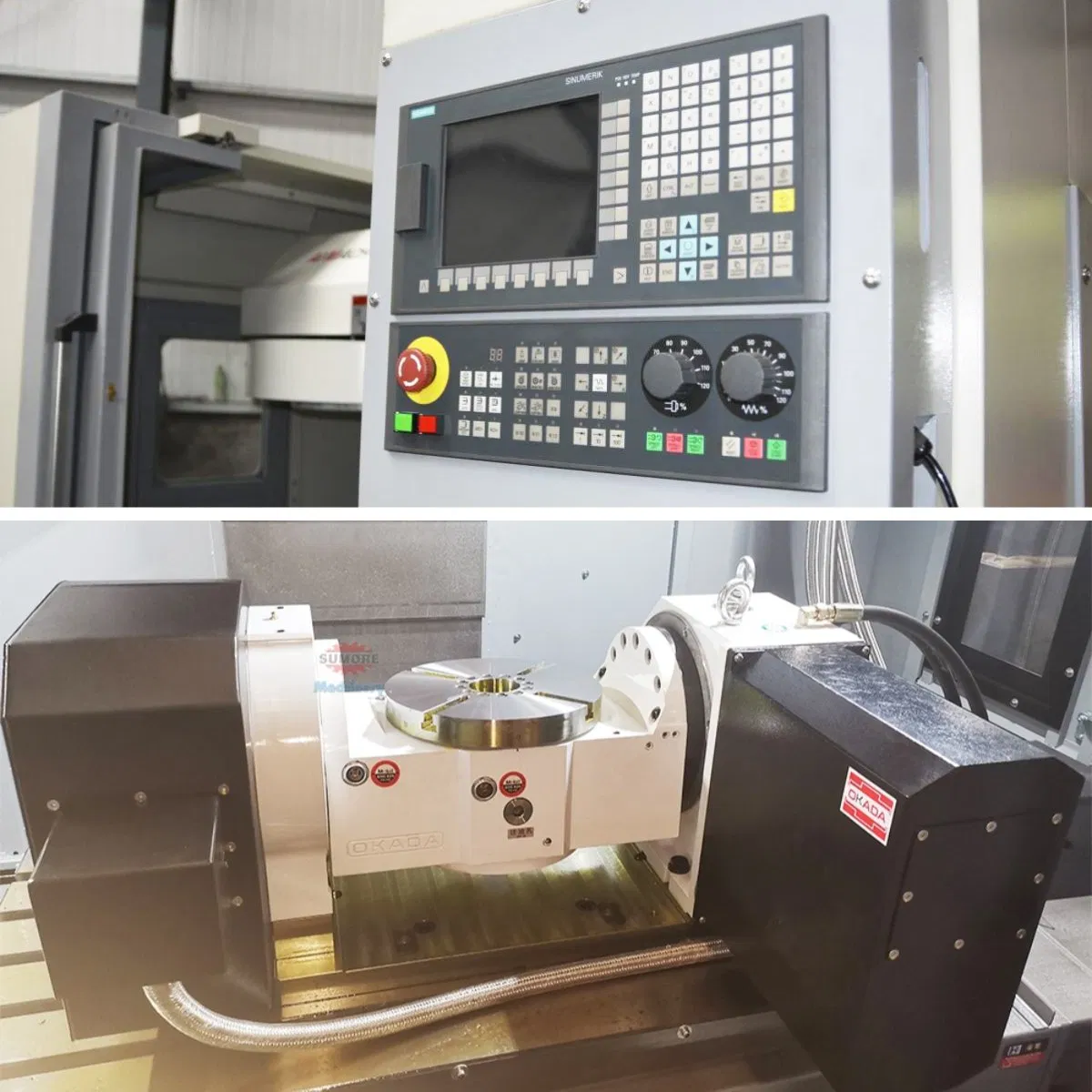

| Control System | GSK, Siemens, Fanuc, Mitsubishi, Syntech, etc. |

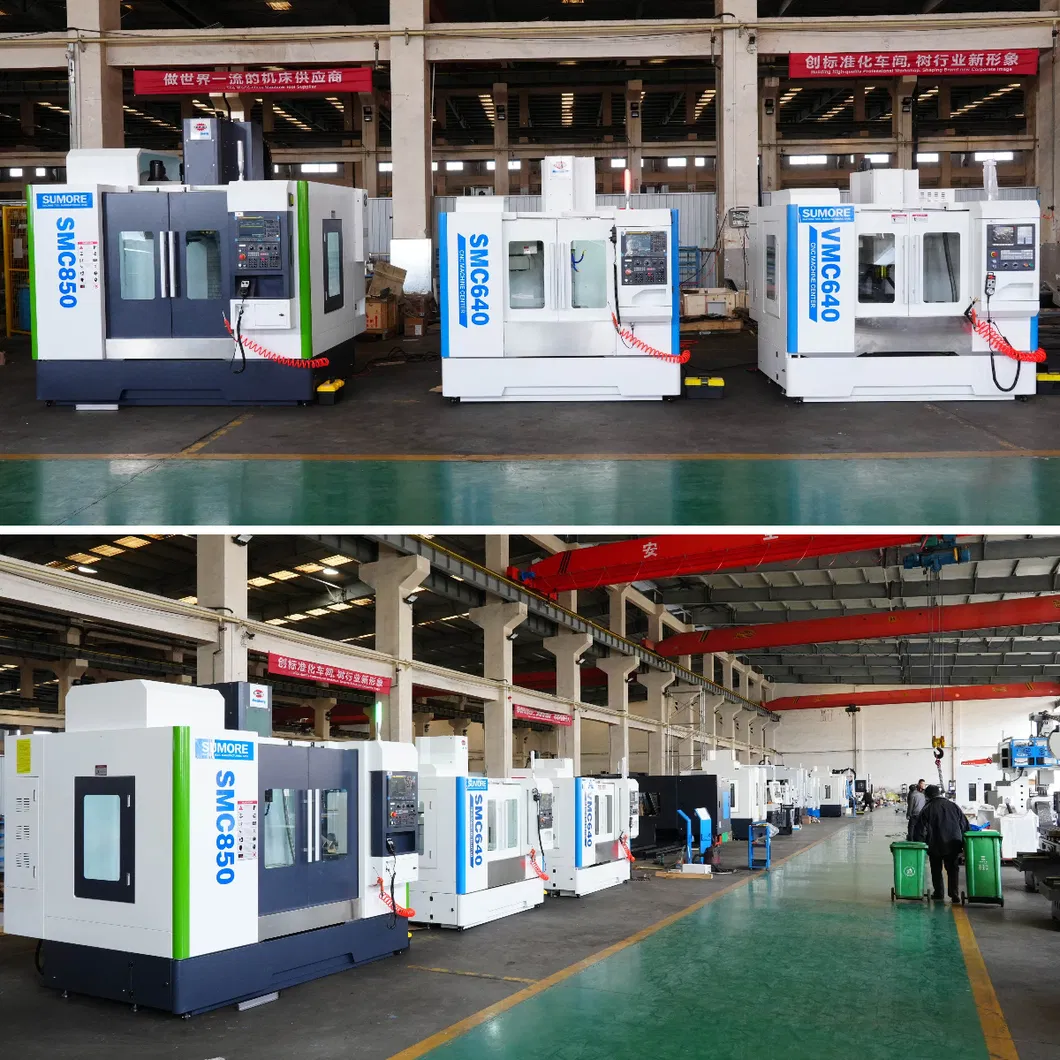

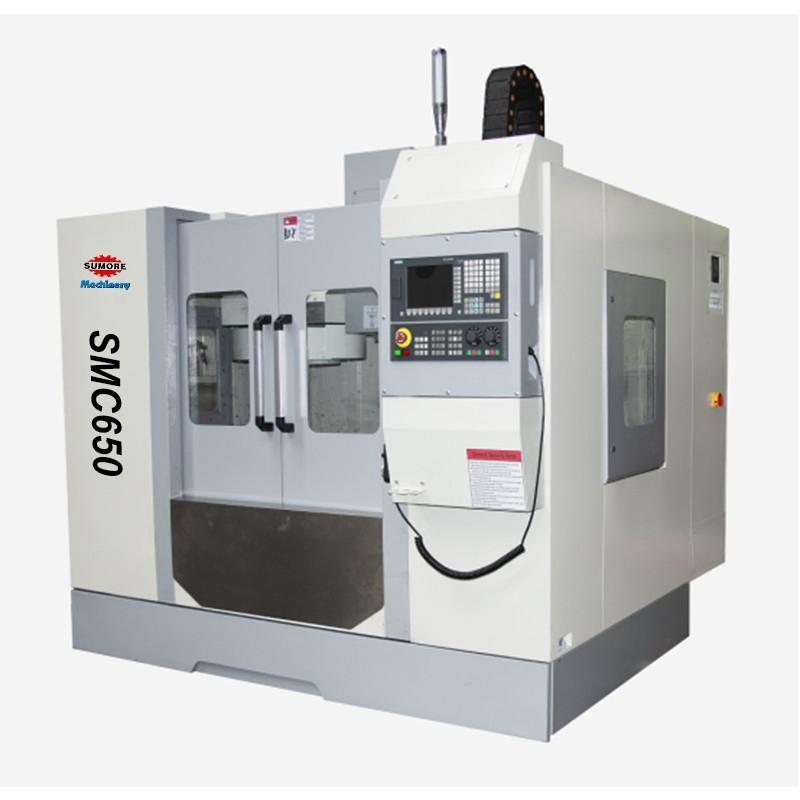

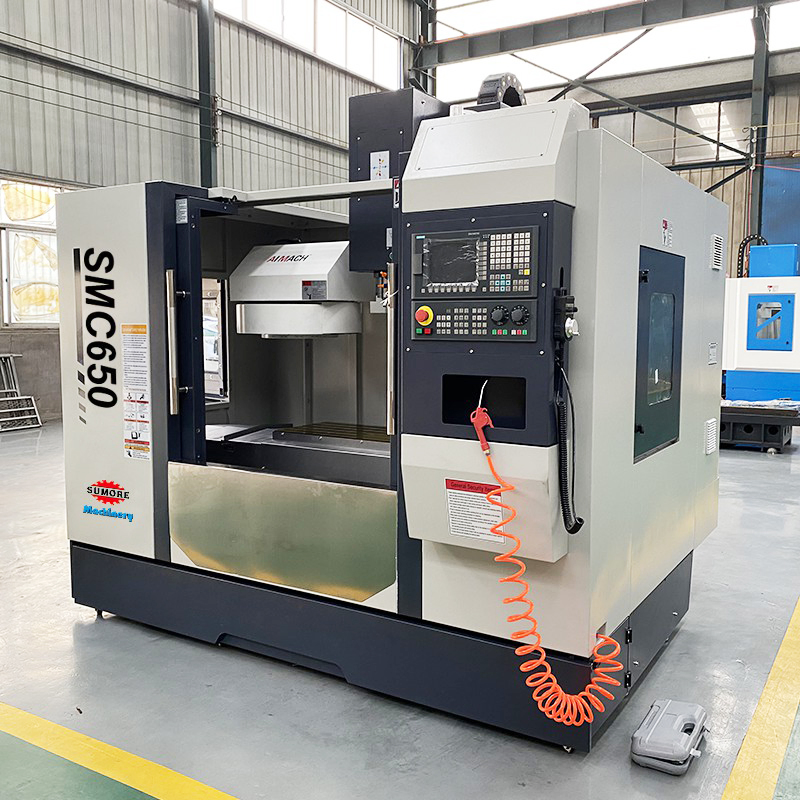

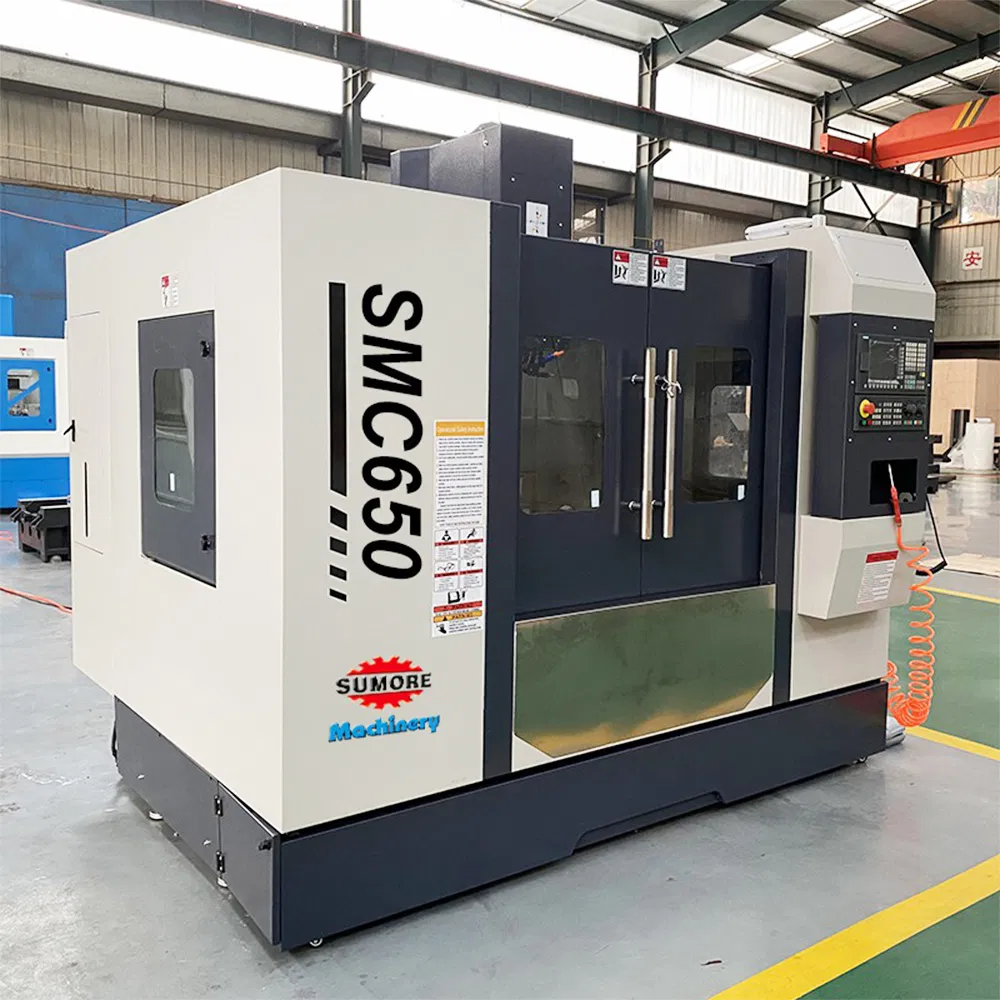

The SMC650 CNC Vertical Machining Center is one of the most economical solutions for heavy-duty industrial applications. Equipped with a 5.5 KW motor and a BT40 spindle taper, this machine is designed for high-performance milling, drilling, and tapping tasks.
| Specifications | SMC8650 |
| Travel X/Y/Z (mm) | 650 / 400 / 500 |
| Spindle Nose to Table (mm) | 100-600 |
| Table Dimension (mm) | 900 * 360 |
| Max. Load (kg) | 500 |
| T-slot (Width/Number) | 14mm / 3 |
| Spindle Speed (r.p.m) | 8000 (Standard) |
| Main Motor (kw) | 5.5 |
| X/Y Rapid Feed (mm/min) | 28000 |
| Z Rapid Feed (mm/min) | 14000 |
| Positioning Accuracy (mm) | ±0.006 |
| Repeatability Accuracy (mm) | ±0.003/300 |
| Tool Changer Capacity | 16 Tools |
| Machine Size (mm) | 2500 * 2250 * 2250 |

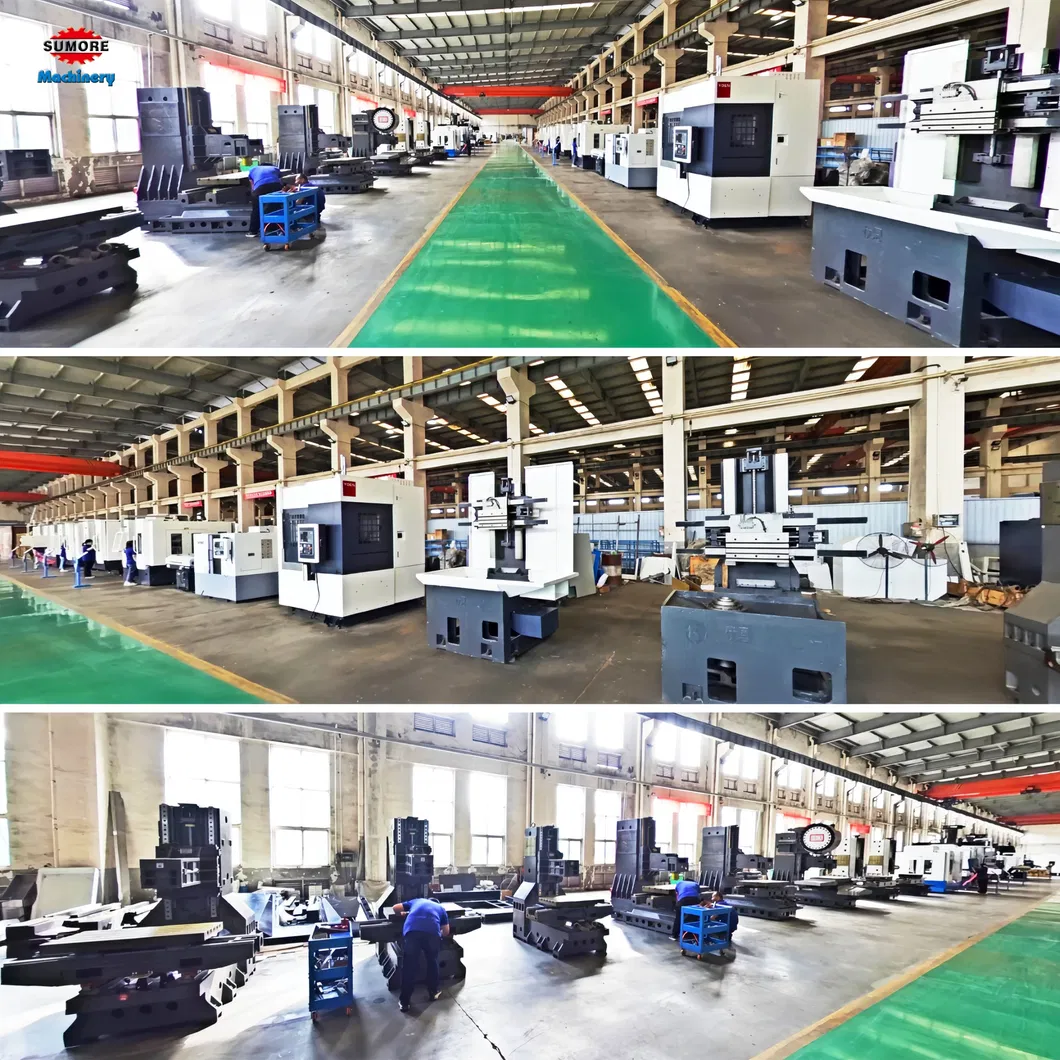

As a professional and experienced manufacturer of lathes, mills, drills, and CNC tools, our group has been a leader in the industrial field for over 20 years. We are committed to providing high-quality machinery that meets international standards.
