Wtjnr/L Series Carbide Brazed External Turning Tools Carbide Inserts for CNC Machine
Wtjnr/L Series Carbide Brazed External Turning Tools Carbide Inserts for CNC Machine
Wtjnr/L Series Carbide Brazed External Turning Tools Carbide Inserts for CNC Machine
Wtjnr/L Series Carbide Brazed External Turning Tools Carbide Inserts for CNC Machine
Wtjnr/L Series Carbide Brazed External Turning Tools Carbide Inserts for CNC Machine
1 / 5
Wtjnr/L Series Carbide Brazed External Turning Tools Carbide Inserts for CNC Machine
Wtjnr/L Series Carbide Brazed External Turning Tools Carbide Inserts for CNC Machine
Wtjnr/L Series Carbide Brazed External Turning Tools Carbide Inserts for CNC Machine
Wtjnr/L Series Carbide Brazed External Turning Tools Carbide Inserts for CNC Machine
Wtjnr/L Series Carbide Brazed External Turning Tools Carbide Inserts for CNC Machine

Wtjnr/L Series Carbide Brazed External Turning Tools Carbide Inserts for CNC Machine

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
WTJNR/L
Accessories
Clamp
Usage
External Turning Tool
Coating
Coated
Application
Milling Machine, Lathe
Structure
Clamp Machine Tool
Material
Alloy Steel
Origin
Mainland China
HS Code
8207809000
Package Size
17.00cm * 11.00cm * 10.00cm
Gross Weight
1.000kg
★

Product Description

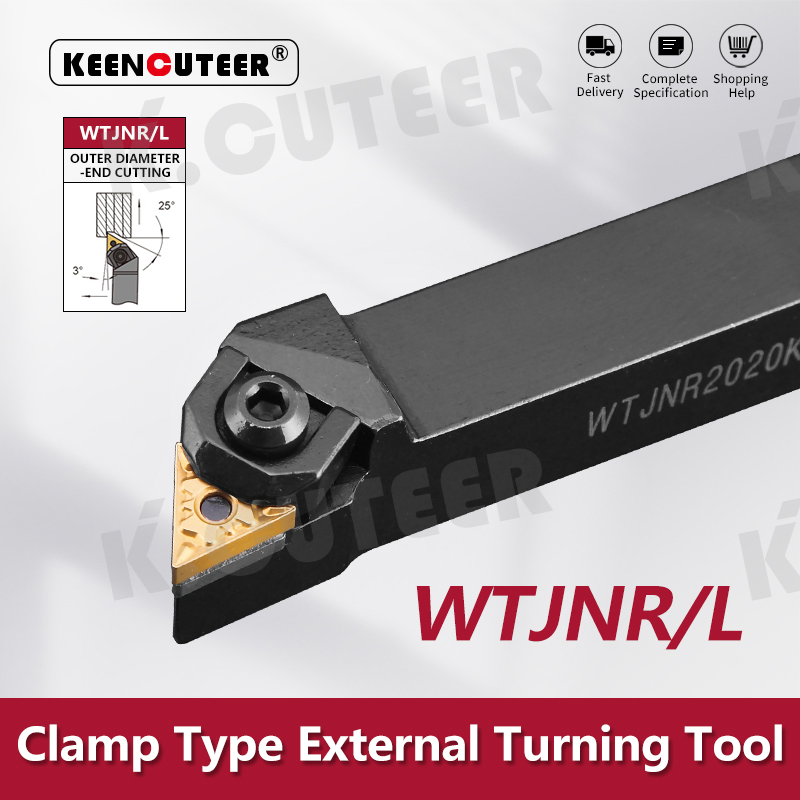

Clamp Type External Turning Tool

  • Tool Holder Material: 40Cr-42CrMo

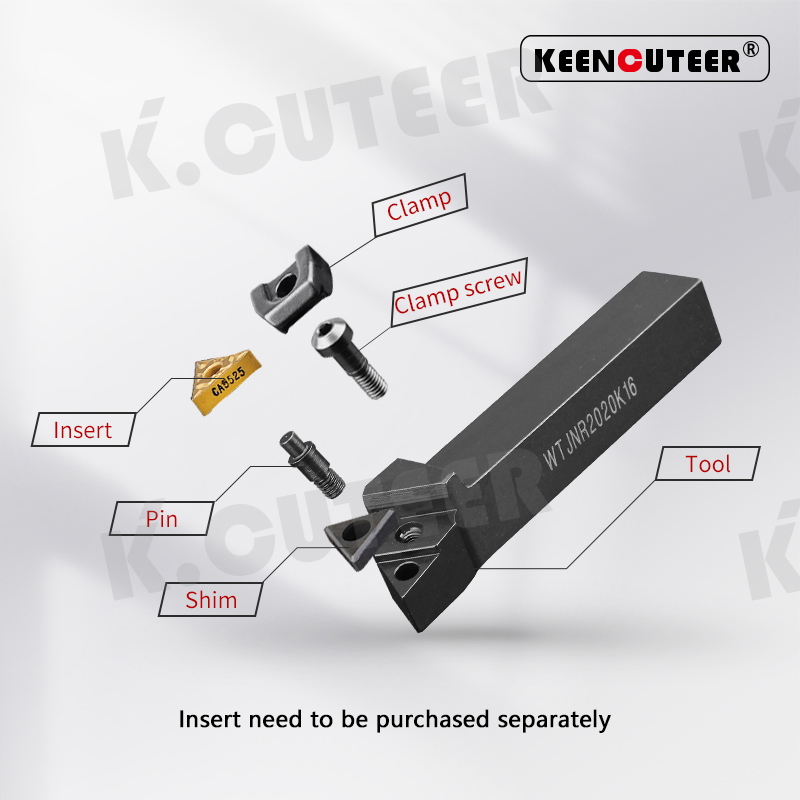

  • Hardware: Screw, Clamp, Shim, Pin
  • Hardness: HRC42-46

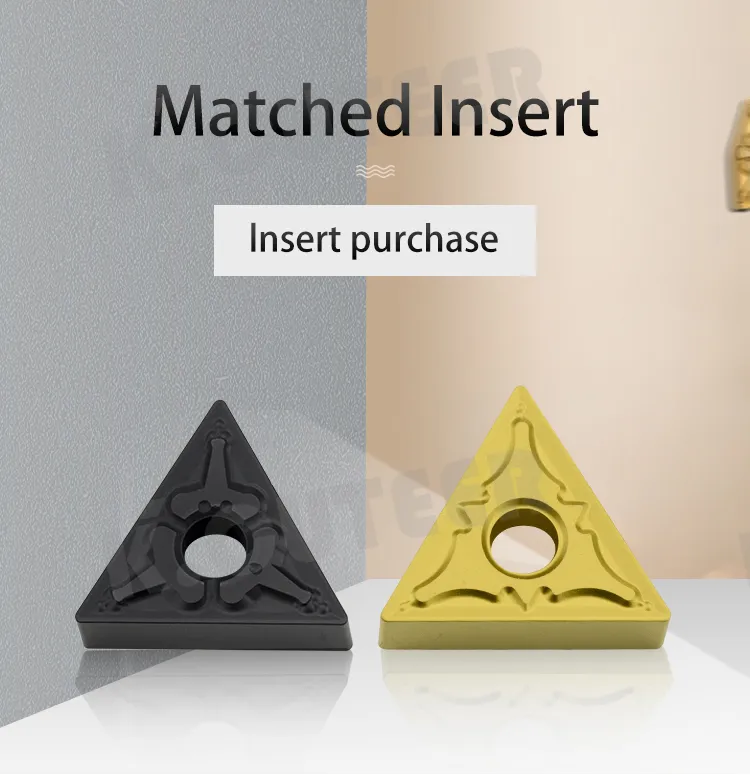

Insert Selection Guide:

TNMG JC600
Used for processing steel parts.
TNMG KT930S
Upgraded version for stainless steel processing.
TNMG KT60
Ceramic blade for processing mild steel.
TNMG H01
Used for processing aluminum parts.
TNMG KT5115
Used for processing cast iron.
TNMG JC700
Upgraded version for steel parts.
TNMG YZ6030
High hardness, for steel parts below 45 degrees.
TNMG YZ15TF
For stainless steel to reduce tool breakage.
✔

Key Features

  • Perfect machining effect and surface finish.
  • High tensile strength and anti-abrasion finish.
  • Fully compliant with ISO standards for accuracy.
  • Versatile application in Turning and Facing work.
  • Durable Pin up-pressing structure for stability.
  • Compatible with multiple lathe tool types.
📷

Product Gallery

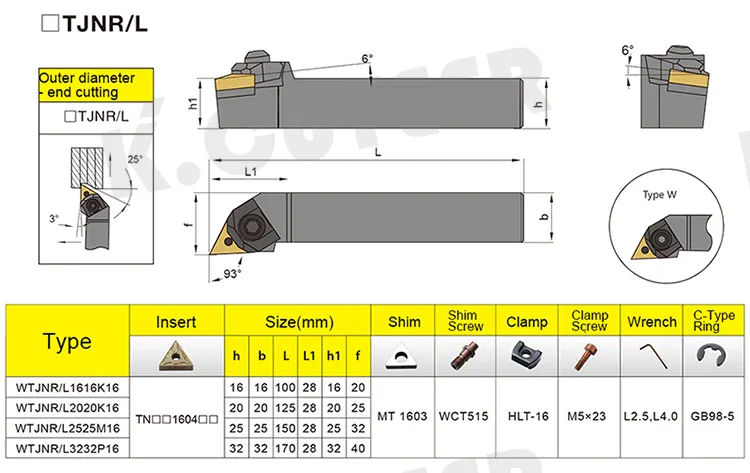

Turning Tool View 1

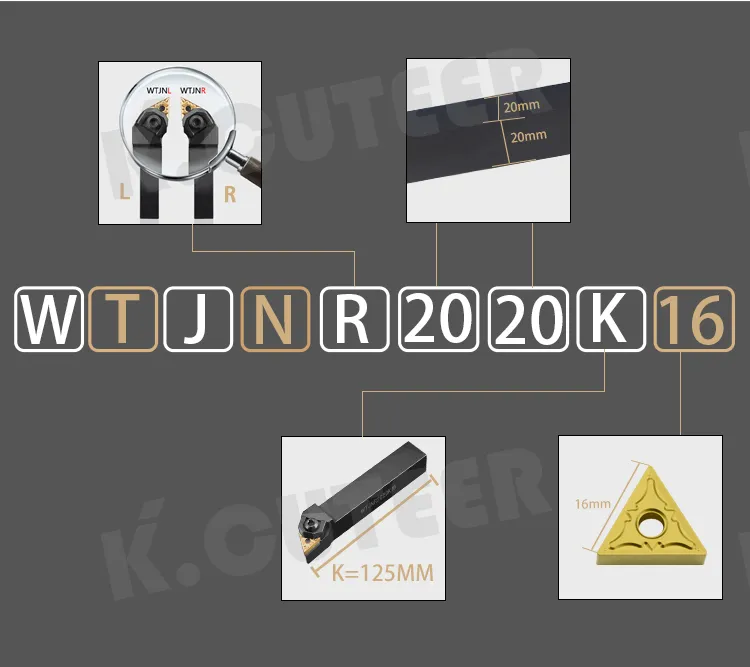

Turning Tool View 2
Turning Tool View 3

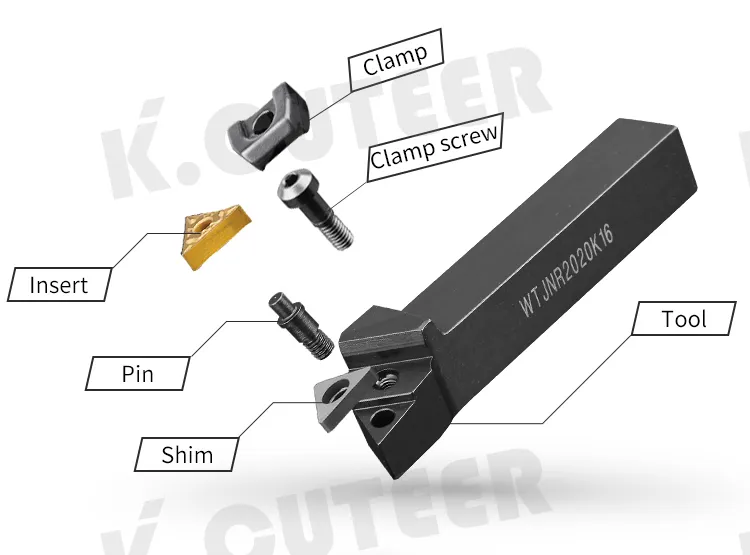

Turning Tool View 4

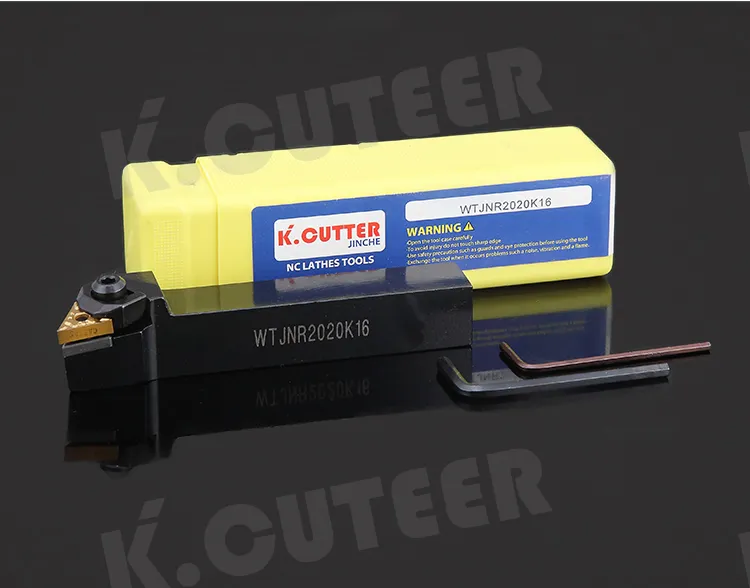

Turning Tool View 5

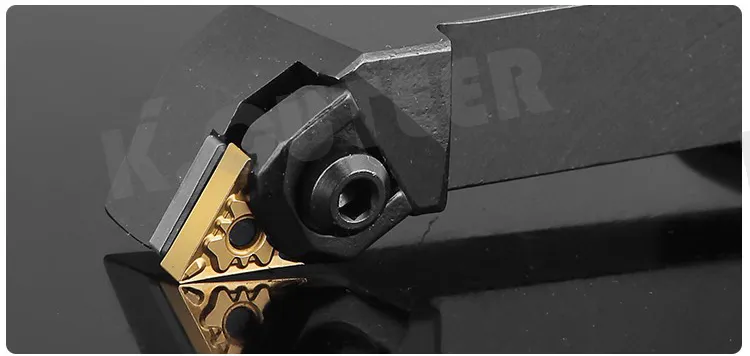

Turning Tool View 6

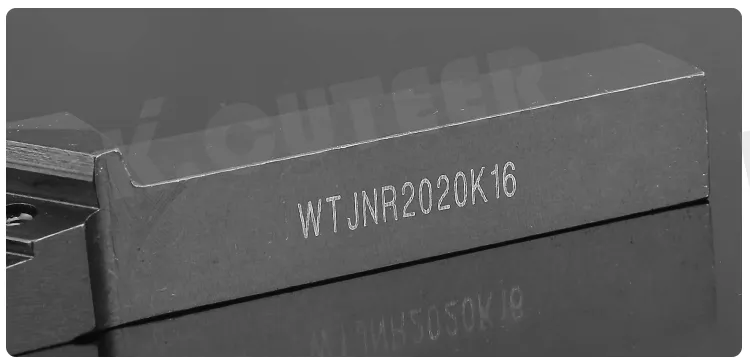

Turning Tool View 7

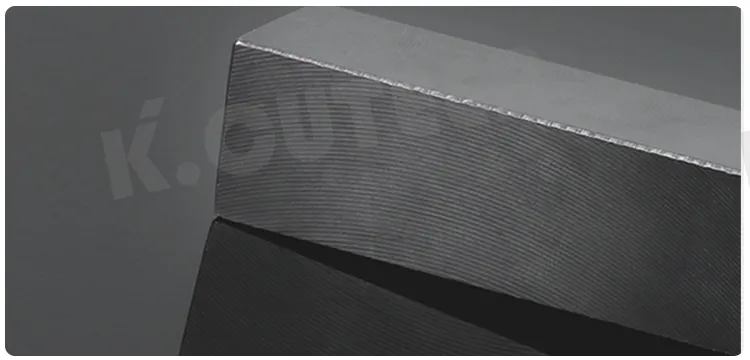

Turning Tool View 8
?

Frequently Asked Questions

What materials can the WTJNR/L tool holder process?
Depending on the TNMG insert chosen, it can process steel, stainless steel, cast iron, aluminum, and mild steel.
What is the hardness of the tool holder?
The tool holder is made of 40Cr-42CrMo alloy steel with a hardness range of HRC42-46.
Does the product follow international standards?
Yes, the specification and accuracy are in full compliance with ISO standards.
What kind of clamping structure does it use?
It uses a pin up-pressing clamp structure, which provides high stability during external turning and facing operations.
Which insert is best for stainless steel?
The TNMG KT930S and TNMG YZ15TF are specifically recommended for stainless steel processing to enhance durability.
